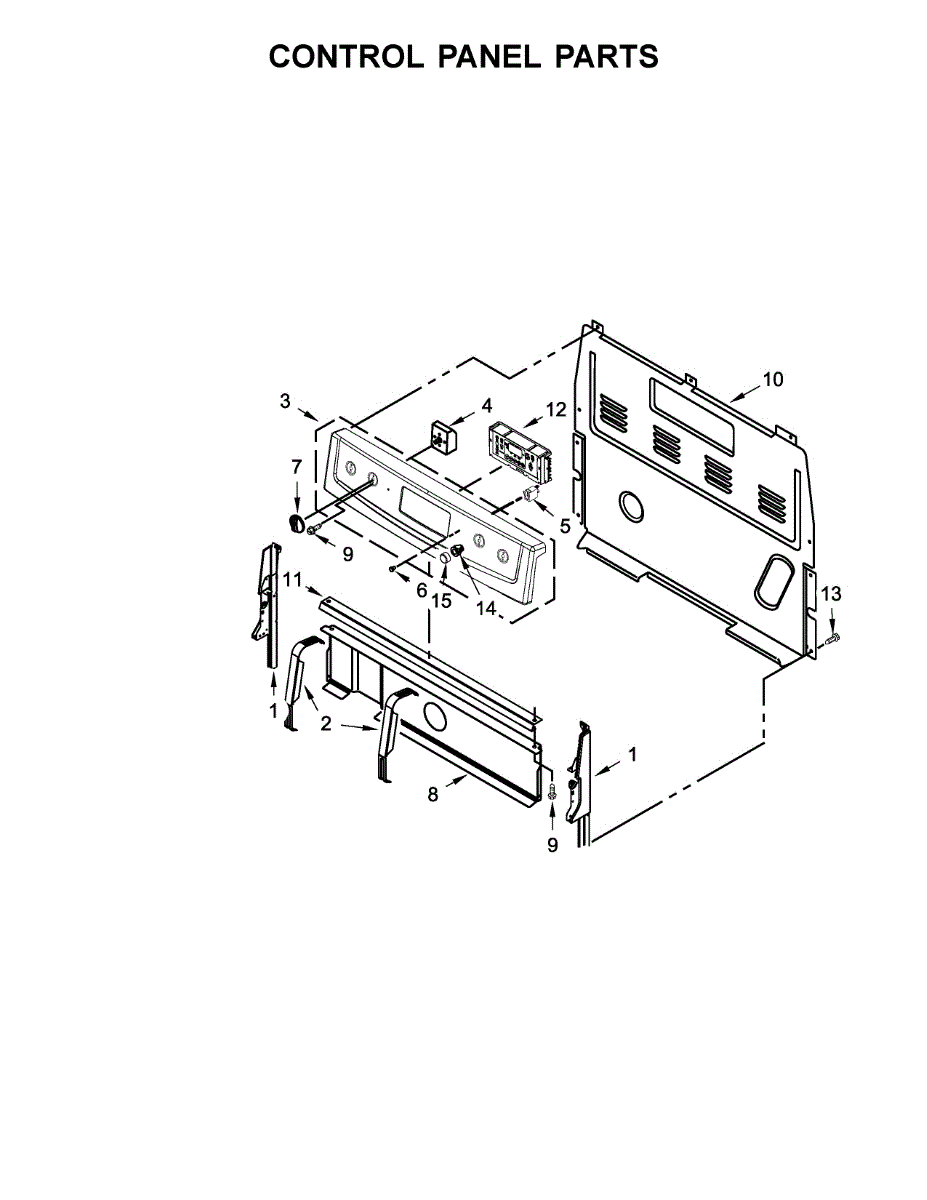

Parts for Whirlpool WFE540H0EE1: Control Panel Parts

Color: White  Note: Left side endcap

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

Color: White  Note: Right side endcap

This mounting bracket secures appliance components and panels to keep assemblies aligned and stable, helping prevent rattles and loose parts. It's a simple replacement that restores proper fit and support where the original bracket has failed. What it does:

• Provides rigid support for internal components or exterior panels to maintain alignment
• Stops vibration and rattling caused by a broken or bent bracket
• Restores secure attachment points for screws and fasteners
• Helps prevent additional wear from loose parts moving during operation

• Always unplug the appliance or disconnect power before starting any repair
• Remove necessary access panels to reach the damaged bracket; keep track of fasteners
• Reuse original screws if undamaged; replace stripped or corroded fasteners
• If alignment issues persist after installation, recheck fit and mounting points for damage

Color: Stainless

Color: White

Control: Black

The Infinite Switch is an OEM part for Whirlpool ranges. This switch is responsible for controlling the operation of the surface element on your range, allowing you to adjust the heat levels for cooking.

A bad surface element switch can occur due to regular wear and tear, electrical issues, or physical damage. If you notice symptoms such as an unresponsive switch, inability to adjust the heat levels, or inconsistent heating, it may be time to replace the surface element switch.

Symptoms of a bad surface element switch include:

• Unresponsive switch
• Inability to adjust heat levels
• Inconsistent or inadequate heating

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Infinite Switch is an OEM part for Whirlpool ranges. It contains internal switches that control cooking functions and safety features.

Causes of a bad switch set can be related to prolonged high-heat exposure, moisture, or accidental impact damage. Over many uses, normal component wear also occurs.

Symptoms of a bad switch include:

• Inoperable or unresponsive dials/buttons
• Failure to ignite burners or maintain set temperatures
• Stovetop elements do not turn off properly
• Oven will not initiate bake or broil cycles

This switch replacement is also compatible with select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.

Surface unit indicactor light.

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

This replacement control knob restores safe, easy operation to your appliance's control panel. It provides a secure grip for selecting settings and replaces cracked, worn, or missing knobs to improve usability and appearance. What it does:

• Allows you to turn and set appliance functions smoothly and accurately
• Replaces cracked, broken, or stripped knobs that are hard to grip or turn
• Helps prevent accidental setting changes by fitting securely on the control shaft
• Restores the original look of the control panel when the original knob is damaged

• Disconnect power to the appliance before attempting replacement
• Line up the knob splines with the control shaft and push on firmly until seated
• Do not force the knob; if it won't seat easily, inspect the shaft

This control knob attaches to the switch shaft so you can select settings on your appliance. Replacing a cracked or stripped knob restores a secure grip and smooth, accurate operation when turning the control.

• Attaches to the control shaft/stem to adjust settings
• Provides a clear pointer and handhold for precise selection
• Common symptoms: cracked/split knob, spins without engaging the control, wobbly/loose feel, missing knob
• Restores normal feel and alignment at the Off/selected positions

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Pull the old knob straight off the control shaft—avoid prying tools that could damage the panel
• Align the new knob with the shaft orientation and press firmly until fully seated
• Check pointer alignment at Off and reseat if needed

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

This control bracket secures the appliance control or console assembly, keeping the control board and user interface stable for reliable operation. It helps prevent loose or misaligned controls that can affect button response or display visibility. What it does:

• Provides a rigid mounting surface for the control board or console assembly
• Keeps control components aligned and stable during normal use
• Helps reduce vibration-related connector or wire stress
• Can restore proper fit and button alignment when the panel is loose

• One control bracket

• Disconnect power to the appliance before starting any repair
• Handle the control board and wiring harness carefully to avoid damage
• Basic hand tools (screwdriver, nut driver) are typically required for removal/installation
• Reuse existing screws or verify hardware compatibility

This blue light lens replaces a worn, cracked or missing refrigerator interior light cover to restore even light diffusion and protect the lamp. It snaps into the light housing to keep the bulb shielded and looking like new. What it does:

• Diffuses interior light for softer, more even illumination
• Protects the bulb or LED assembly from spills, dust and incidental contact
• Replaces cracked, yellowed or missing light covers that affect appearance or light output
• Works with the existing light housing and bulb

• One blue light lens

• Disconnect power or unplug the appliance before servicing to avoid shock
• Remove the old lens by gently releasing retaining tabs; press new lens into place until it clicks
• Use only manufacturer-recommended replacement parts and avoid forcing clips to prevent breakage
• Test the bulb and socket separately

This is an electronic control board with overlay used on ovens. This part sits on the front of the appliance and provides information for the user. The time or temperature is displayed on a small screen on the component. It also has operational buttons to turn the appliance on and off, choose cooking options, and change settings. If this part is damaged, it may cause the oven not to turn on, the oven not to heat, or the display to stop functioning.If this part is broken or damaged, it will need to be replaced. Make sure the appliance is turned off and unplugged from the wall. If it uses gas, it should not be turned on. A set of tools will be needed for the replacement process. A pair of work gloves may also be useful. Take off the door that holds the control board and disconnect the wires and other components. Replace with the new component, reassemble, and return power to the oven.This is an authentic OEM replacement component that has been sourced directly from the manufacturer. It is sold on an individual basis. The electronic control board with overlay is made to be used with stoves, ovens, and ranges created by Whirlpool.

The Oven Control Board is an OEM part for Whirlpool ranges. This control board manages the oven's functions, including temperature settings, bake and broil elements, and timing features.

Causes of a bad control board can include electrical issues, power surges, or normal wear and tear.

Symptoms of a bad oven control board include:

• The oven not heating up or maintaining the set temperature
• Error codes or beeping from the control panel
• The display not functioning properly or being blank
• The oven not responding to control inputs or buttons not working

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Color: White

Color: Stainless

Color: Black

Color: White. For black use 9758491.

Color: Stainless

Color: Black. For white use 9758491
