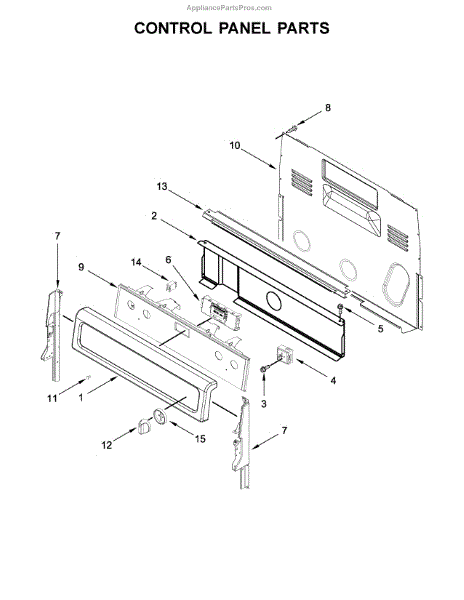

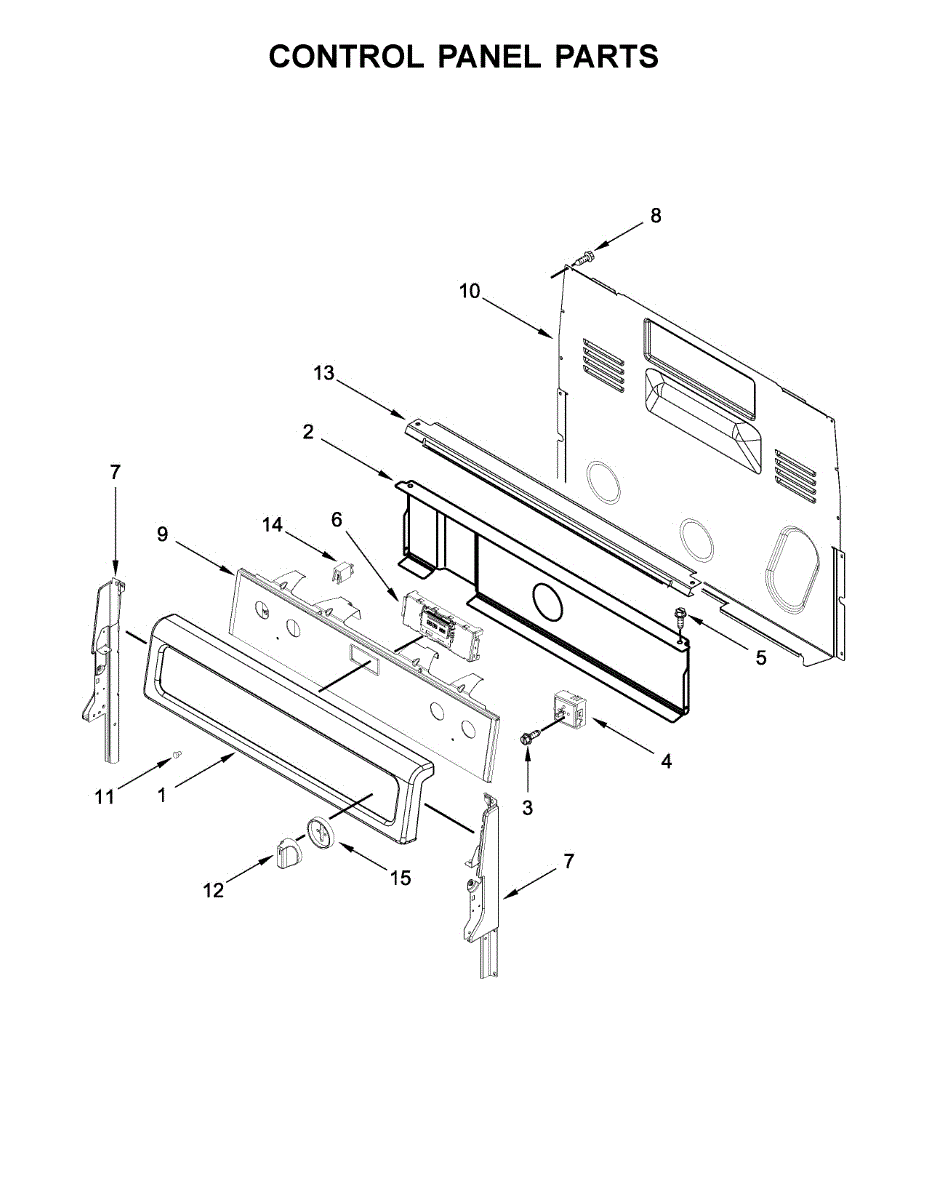

Parts for Whirlpool WFE770H0FZ2: Control Panel Parts

Color: Stainless

The Infinite Switch is an OEM part for Whirlpool ranges. This switch is responsible for controlling the operation of the surface element on your range, allowing you to adjust the heat levels for cooking.

A bad surface element switch can occur due to regular wear and tear, electrical issues, or physical damage. If you notice symptoms such as an unresponsive switch, inability to adjust the heat levels, or inconsistent heating, it may be time to replace the surface element switch.

Symptoms of a bad surface element switch include:

• Unresponsive switch
• Inability to adjust heat levels
• Inconsistent or inadequate heating

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Infinite Switch is an OEM replacement part for Whirlpool ranges. It is responsible for regulating the power and heat output of the surface elements on your range, allowing you to adjust the temperature for cooking.

A bad surface element control infinite switch can occur due to wear and tear, electrical issues, or damage to the switch mechanism. If you notice symptoms such as inability to adjust the temperature, uneven heating, or the surface element not turning on or off, it may indicate a faulty infinite switch.

Symptoms of a bad infinite switch include:

• Inability to adjust the temperature
• Uneven heating
• Surface element not turning on or off

Restore your range by replacing the faulty or damaged surface element control infinite switch with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Infinite Switch is an OEM part for Whirlpool ranges. It controls the heat levels of the elements on your cooktop, allowing you to adjust the temperature for precise cooking.

Causes of a bad infinite switch can include electrical malfunctions, wear and tear from frequent use, or physical damage due to impacts or spills.

Symptoms of a bad infinite switch include:

• Burners not heating up or heating inconsistently
• Burners stuck on a single heat setting
• No response when adjusting the heat level
• Sparks or electrical odors coming from the control area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Infinite Switch is an OEM part for Whirlpool ranges. It contains internal switches that control cooking functions and safety features.

Causes of a bad switch set can be related to prolonged high-heat exposure, moisture, or accidental impact damage. Over many uses, normal component wear also occurs.

Symptoms of a bad switch include:

• Inoperable or unresponsive dials/buttons
• Failure to ignite burners or maintain set temperatures
• Stovetop elements do not turn off properly
• Oven will not initiate bake or broil cycles

This switch replacement is also compatible with select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This Whirlpool Range Control Board is an OEM part for a variety of Whirlpool range models. It serves as the electronic brain of the range, managing functions such as temperature regulation, timer settings, and various cooking modes.

The control board in a range can be susceptible to issues like electrical faults, short circuits, or damage from power surges. A malfunctioning control board can lead to erratic temperature controls, display errors, or non-responsive buttons, hindering your ability to cook effectively.

Symptoms of a defective range control board include:

• The oven fails to heat up or maintain the set temperature.
• Digital displays show error codes or become unresponsive.
• The oven controls do not respond or work intermittently.
• Unusual behavior in cooking modes, such as the broiler activating unexpectedly.
• The oven timer functions incorrectly or not at all.

This genuine Whirlpool OEM replacement part is compatible with Maytag, Jenn-Air, and Kenmore models.


Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

Size: 8-18 x 1/2 inch.

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

The Surface Burner Knob is an OEM component for Whirlpool ranges. Located on the front panel below each cooktop element, this plastic knob toggles burners between OFF and varying heat levels.

Causes of a bad knob can include normal wear and tear to the printed markings, or loose/cracking stems compromising leverage over time.

Symptoms of a bad surface burner knob include:

• Difficulty turning knobs to desired settings
• Loose, uneven, or inconsistent feel during adjustment
• Faded or illegible printed heat level markings

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This control bracket secures the appliance control or console assembly, keeping the control board and user interface stable for reliable operation. It helps prevent loose or misaligned controls that can affect button response or display visibility. What it does:

• Provides a rigid mounting surface for the control board or console assembly
• Keeps control components aligned and stable during normal use
• Helps reduce vibration-related connector or wire stress
• Can restore proper fit and button alignment when the panel is loose

• One control bracket

• Disconnect power to the appliance before starting any repair
• Handle the control board and wiring harness carefully to avoid damage
• Basic hand tools (screwdriver, nut driver) are typically required for removal/installation
• Reuse existing screws or verify hardware compatibility

Surface unit indicactor light.

This bezel knob is the control-panel knob that lets you select settings and operate your appliance's controls with a finished, durable interface. It restores a secure grip and clear tactile feedback on the control shaft. What it does:

• Replaces a cracked, faded, or worn control knob to restore normal control operation
• Provides a finished bezel around the control shaft for a clean appearance
• Improves grip and makes setting selections easier and more reliable
• Helps stop slipping or loose rotation caused by a damaged knob

• Disconnect power to the appliance before attempting any service.
• Remove any trim or housing required to access the control knob; reinstall in reverse order.
• Press the knob onto the control shaft until fully seated; verify secure fit before use.
• If a retaining clip or screw is present, retain and re-use per the original configuration.
