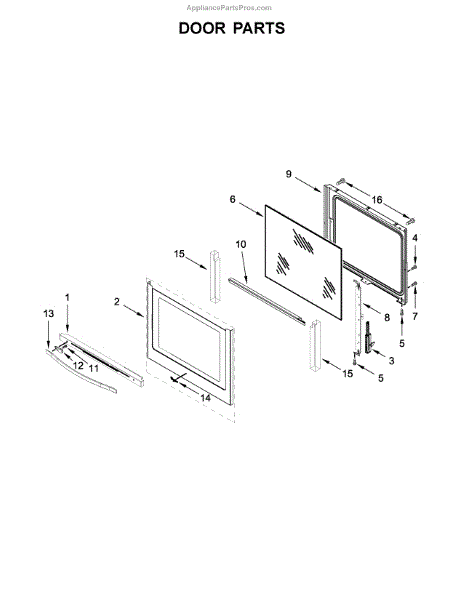

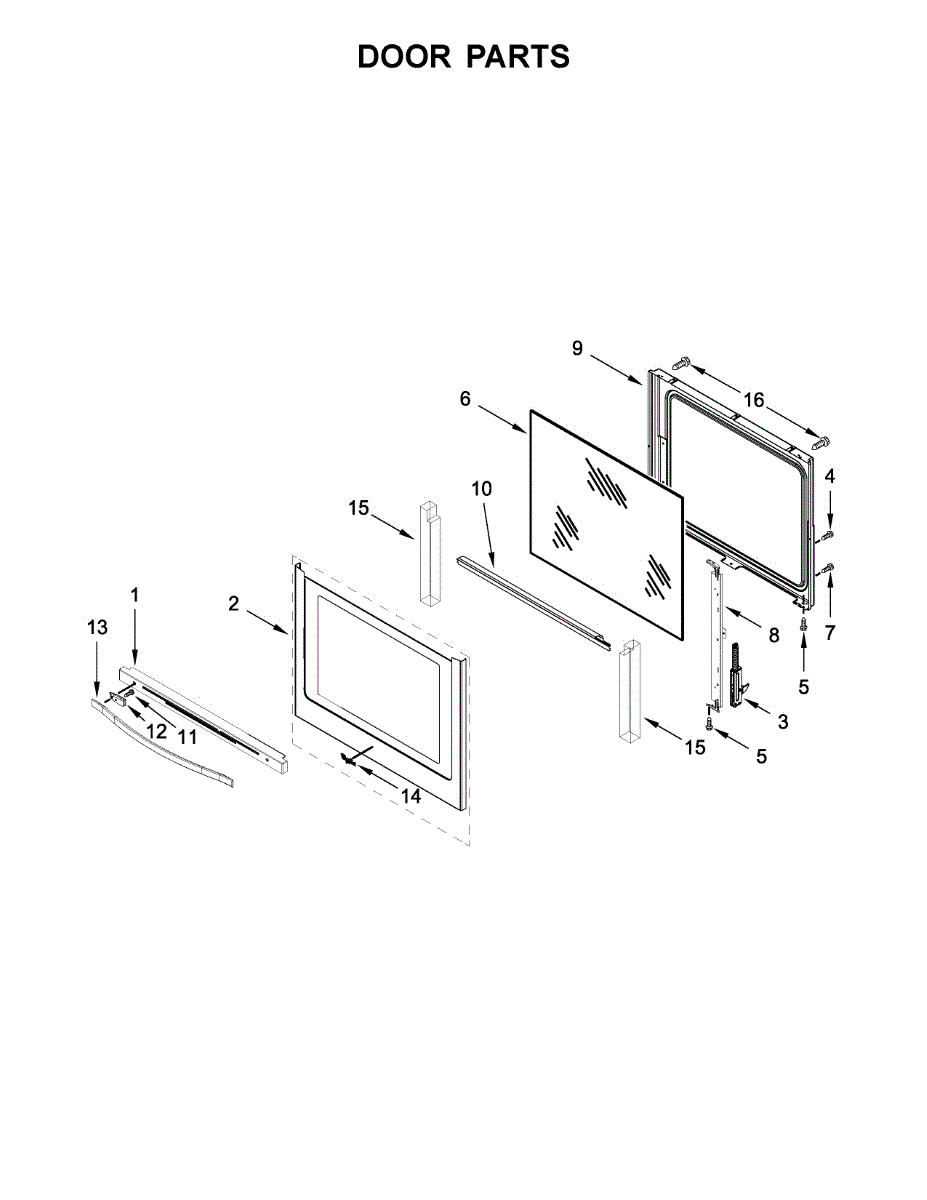

Parts for Whirlpool WFE770H0FZ2: Door Parts

The Trim is an OEM part for Whirlpool ranges. It forms a decorative border surrounding ventilation openings at the top and sides of the appliance.

Causes of a bad trim typically involve standard wear and tear exposing it to excessive heat and thermal expansion/contraction during cooking cycles. Aggressive cleaning chemicals could impact surface finishes.

Symptoms of a bad trim include:

• Gaps compromising a flush, seamless appearance
• Loose or sagging fit that detracts from aesthetics
• Risk of debris penetrating ventilation space
• Restricted convection benefits from misaligned openings

Compatible brands include KitchenAid, Jenn-Air, and select Kenmore models.

This inner oven door glass replaces a cracked, cloudy or damaged oven door panel so you can safely view cooking without heat loss. It restores the door's barrier and visibility for proper oven operation. What it does:

• Replaces damaged or cracked inner oven door glass to restore the door's protective barrier
• Helps prevent heat loss from the oven cavity and maintains proper cooking performance
• Restores clear viewing through the oven door so you can monitor food without opening the door
• Reduces the risk of cuts or injury from broken glass when the door is repaired

• Disconnect power to the appliance and allow the oven to fully cool before starting work
• Handle glass with care; wear cut-resistant gloves and eye protection
• Installation typically requires removing the oven door and separating inner panels—keep track of screws and spacers
• Follow local disposal rules for broken glass and do not attempt to reuse damaged fasteners

The Door Hinge is an OEM part for Whirlpool ovens. This hinge is crucial for supporting the oven door, allowing it to open and close smoothly. It ensures the door remains securely in place during cooking and baking.

Over time, oven door hinges can wear out or become damaged due to frequent use and exposure to high temperatures. Common causes of a bad hinge include metal fatigue, rust or corrosion, and accidental damage from slamming the oven door.

Symptoms of a bad hinge include:

• Difficulty opening or closing the oven door
• The oven door not staying securely closed
• A misaligned or sagging oven door
• Noises or squeaks when the door is operated

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken

This screw-and-washer fastener is a factory-size 8-18 x 5/16 hardware piece used to secure appliance panels and components. Replace stripped, rusty, or missing hardware to restore a tight, rattle-free fit and proper alignment. What it does:

• Fastens sheet-metal panels, brackets, and small components in the appliance cabinet
• Replaces lost, stripped, or corroded screws to maintain secure mounting
• Helps reduce vibration, buzzing, or rattling from loose parts
• Useful when the original hardware is missing or no longer holds securely

• Includes 1 screw-and-washer fastener (8-18 x 5/16)

• Disconnect power; shut off gas and water supplies if applicable
• Match the fastener to the original location; sizes can vary by application
• Start threads by hand to avoid cross-threading; use an appropriately sized driver
• Tighten snugly without overtightening to prevent stripping sheet metal

This inner door glass is the heat-resistant panel mounted on the inside of the oven door. It restores a clear, secure barrier to help retain heat and visibility when the original glass is cracked, shattered, or stained.

• Forms the inner pane of the oven door to contain heat and allow viewing of food
• Damage can cause heat loss, longer preheat/cook times, and unsafe sharp edges
• Cracked, shattered, or missing glass should be replaced before using the appliance
• Cloudy or permanently stained glass reduces visibility into the oven

• Disconnect power at the breaker and allow the oven to cool completely
• Wear cut-resistant gloves and eye protection; handle glass carefully
• Support or remove the door and work face-down on a padded surface
• Transfer any brackets/clips/insulation as configured; do not overtighten fasteners against the glass

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This support bracket secures internal components to the appliance chassis, restoring proper alignment and stability for attached parts. It's a simple replacement that helps stop rattling and prevents components from shifting during use. What it does:

• Provides a secure mounting point to hold panels, assemblies or components in place
• Helps eliminate vibration or rattling caused by a loose or broken bracket
• Restores proper alignment so connected parts operate correctly
• Prevents further wear or damage from loose components

• Disconnect power to the appliance before starting any repair
• Basic hand tools (screwdriver, nut driver) are typically required
• Keep original fasteners and note their location for reassembly; replace damaged hardware as needed

This inner oven door liner replaces the damaged or warped inner panel that supports the oven door glass and helps contain heat inside the oven cavity. It restores a solid mounting surface for door glass and internal components. What it does:

• Provides the inner structural panel for the oven door and supports the door glass and insulation.
• Helps maintain proper oven heat containment to support uniform cooking.
• Prevents direct exposure of insulation and internal parts to oven cavity heat and food debris.
• Addresses symptoms like visible cracks, warping, or detached glass mounting points on the inside of the door.

• Disconnect power before starting any repair and follow manufacturer's safety instructions.
• Remove the oven door per the appliance manual to access and replace the inner liner; handle glass and sharp edges carefully.
• Keep all original screws and mounting clips; confirm screw locations during disassembly to ensure proper reassembly.
• If the door has multiple glass panels or seals, verify placement during reassembly—do not force parts into position.

This mounting bracket secures internal or external appliance components to the cabinet, restoring proper alignment and preventing vibration. It's a small but critical metal support used where fasteners attach panels or assemblies. What it does:

• Provides a secure attachment point for panels, controls, or assemblies
• Prevents loosening, rattling, and misalignment caused by broken or missing supports
• Restores proper fit and function when original bracket is bent, cracked, or missing
• Works as a direct replacement using existing fasteners and mounting holes

• Disconnect power (and gas if applicable) before beginning any repair
• Installation typically requires basic hand tools (screwdriver, nut driver, or socket)
• Retain or reuse original screws; verify bracket orientation before tightening
• If metal edges are sharp, use care and protective gloves to avoid cuts

The Door Handle End Cap is an OEM part for Whirlpool ranges. This part attaches to the end of the oven door handle, securing it in place and providing a finished look. It helps ensure the handle remains firmly attached to the door, allowing for easy opening and closing of the oven.

Causes of a bad door handle end cap can include frequent use, accidental impacts, or degradation of materials over time.

Symptoms of a bad door handle end cap include:

• Loose or wobbly oven door handle
• Cracks or breaks in the end cap
• Difficulty opening or closing the oven door
• Visible damage to the end cap

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Stainless)

Color: Grey

This oven cavity insulation panel helps reduce heat loss and improves temperature stability inside the oven for more even cooking. It replaces worn or damaged insulation that can allow heat to escape or make the exterior hotter than normal. What it does:

• Provides thermal barrier between the oven cavity and outer cabinet to help maintain internal temperature
• Reduces heat transfer that can cause the exterior surfaces to become unusually hot
• Helps prevent excessive heat loss that can affect cooking performance and energy use
• Fits behind the oven liner where original insulation is mounted

• One oven cavity insulation panel

• Disconnect power (and gas, if applicable) before starting any repair
• Handle insulation with gloves; avoid compressing or tearing the material
• Follow the appliance service manual for proper placement and secure mounting

This replacement screw with a 10-16 thread secures panels, brackets, and other components in your appliance. Restoring the correct hardware keeps parts tight and aligned, reducing vibration and preventing loosening over time.

• Secures sheet-metal panels, brackets, and assemblies
• Replaces missing, stripped, or corroded fasteners
• Helps eliminate rattling or vibration from loose hardware
• Maintains proper alignment for reliable performance

• Disconnect power; turn off the water supply before servicing
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten into sheet metal or plastic
• Reinstall in the original location and orientation
