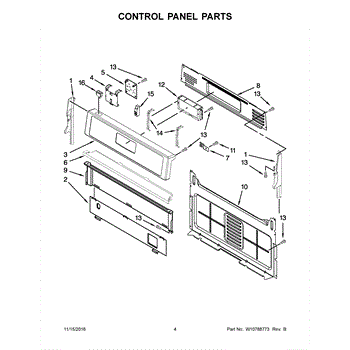

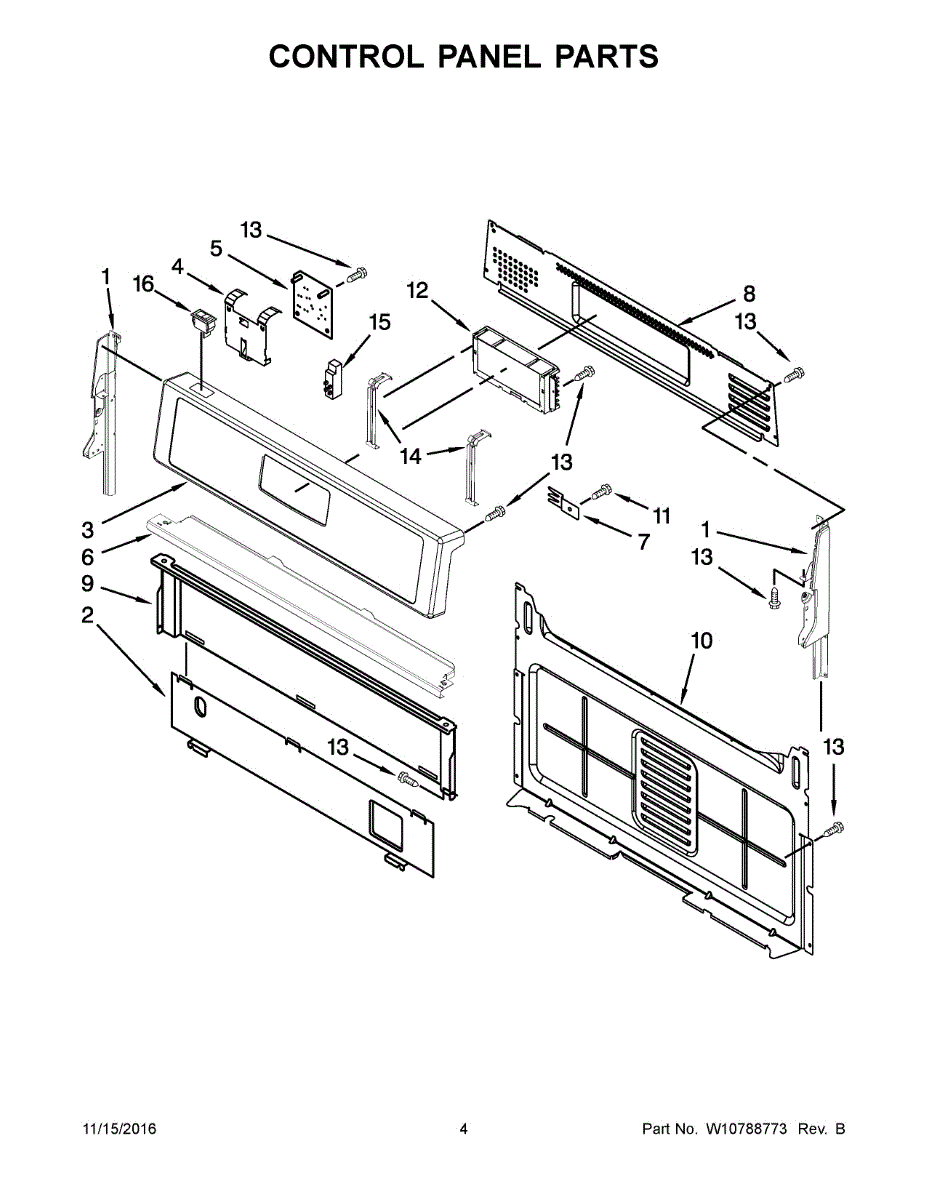

Parts for Whirlpool WFG530S0EB0: 03 - Control Panel Parts

Color: White  Note: Left side endcap

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

Color: White  Note: Right side endcap

This control panel is the user interface assembly that lets you select cooking modes and settings and displays status information. It restores intuitive control to the range or oven front user area so you can set timers, temperatures, and modes. What it does:

• Provides tactile/button input and a display for selecting oven/range functions and timers
• Sends user commands to the appliance's control system to start, stop, or change cycles
• Common symptom fix: unresponsive buttons or inability to select settings
• Common symptom fix: blank, flickering, or incorrect display readouts

• Disconnect power to the appliance before starting any repair to avoid shock
• Handle glass and plastic surfaces carefully to avoid scratching or cracking
• Verify the part matches the existing panel before installing

This electronic control module generates and manages ignition spark for DSI-equipped gas ovens/ranges. Replacing a failed unit restores reliable burner lighting and can resolve issues such as no spark, repeated clicking, or the oven/broiler not igniting.

• Generates high-voltage pulses to ignite gas at the DSI electrodes
• Times and controls ignition cycles; energizes the gas valve only during commanded ignition
• Monitors flame presence through the sense circuit and may retry or lock out if ignition fails
• Common symptoms of failure: oven or broiler won't ignite/heat, no clicking/spark, intermittent ignition, or continuous clicking
• Intended for models that use direct-spark (DSI) ignition systems, not glow-bar/hot-surface igniters

• Disconnect power and shut off gas supply before servicing
• Handle the control as an electrostatic-sensitive device; avoid touching terminals
• Transfer wires one at a time and mount the module securely with a proper ground
• After reassembly, restore utilities and verify normal ignition operation

This heat shield protects oven or range components from direct heat, helping prevent damage to nearby panels and wiring. It's a direct-replacement exterior shield used when existing metal shields are warped, cracked, or missing. What it does:

• Diverts and dissipates heat away from control panels, insulation, or adjacent components
• Helps stop heat-related discoloration, warping, or premature wear of nearby parts
• Restores proper clearance and airflow around the oven cavity after shield damage
• Commonly replaced when you see scorched areas, melted trim, or gaps where a shield once sat

• One heat shield (exact shape and mounting holes as shown in OEM diagram)

• Disconnect electrical power (and gas, if applicable) before starting any repair
• Remove oven racks and any trim panels to access the shield; keep track of fasteners
• Compare the replacement to the removed part to confirm fit before fastening
• If mounting hardware is damaged or missing, procure correct OEM fasteners — only the shield is guaranteed to ship

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This replacement electronic control board manages the appliance's cycles, settings and front-panel functions so the unit responds correctly to user commands and runs intended cycles. Restores control when the original board has failed. What it does:

• Controls cycles, timing and selected settings through the appliance's console
• Receives input from the user interface and coordinates signals to motors, valves and heaters
• Monitors sensor and switch inputs to help regulate operation
• Common symptoms of a failing board: unresponsive controls, blank or erratic display, cycles that won't start or stop, or unexpected error codes

• Disconnect power to the appliance before you begin; verify power is off with a meter
• Handle the board by its edges and avoid static discharge; use a grounded strap if available
• Verify the part number on the existing board before ordering—replace only with the exact PN

A direct-replacement electronic control board that manages oven and range functions so bake, broil and timed cycles run correctly. Restores responsive touchpad/knob commands and reliable cycle control for safe cooking. What it does:

• Receives user inputs and controls oven temperature, bake/broil cycles and timed operations
• Regulates power to heating elements and communicates status to the display and sensors
• Helps clear issues like unresponsive control panel, incorrect cycle behavior, or intermittent oven shutdowns
• Works with oven sensors and relays to maintain set temperatures and cycle timing

• One electronic control board

• Disconnect power before starting; this part requires basic electrical access behind the console or rear panel
• Handle the board by its edges and avoid static discharge; use anti-static precautions if available
• Verify wiring connections and harness orientation match the replacement before securing panels

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This mounting bracket secures appliance components and panels to keep assemblies aligned and stable, helping prevent rattles and loose parts. It's a simple replacement that restores proper fit and support where the original bracket has failed. What it does:

• Provides rigid support for internal components or exterior panels to maintain alignment
• Stops vibration and rattling caused by a broken or bent bracket
• Restores secure attachment points for screws and fasteners
• Helps prevent additional wear from loose parts moving during operation

• Always unplug the appliance or disconnect power before starting any repair
• Remove necessary access panels to reach the damaged bracket; keep track of fasteners
• Reuse original screws if undamaged; replace stripped or corroded fasteners
• If alignment issues persist after installation, recheck fit and mounting points for damage

This spark module supplies the high-voltage pulses that ignite the surface burners on a gas cooktop or range. Replacing a failing module helps restore consistent clicking and spark so burners light promptly and reliably.

• Supplies high-voltage to up to five surface igniters (5+0 configuration)
• Sends spark when a burner control is turned to Lite
• Failure symptoms can include no spark on all or multiple burners
• May also cause intermittent/weak spark or continuous clicking

• Disconnect power and shut off gas before servicing
• Note wire locations; move one connector at a time to matching terminals
• Mount securely in the original position and ensure proper grounding
• After replacement, if only one burner won't ignite, inspect that burner's switch and igniter

Color: White

Color: Black. Instruction sheet included.
