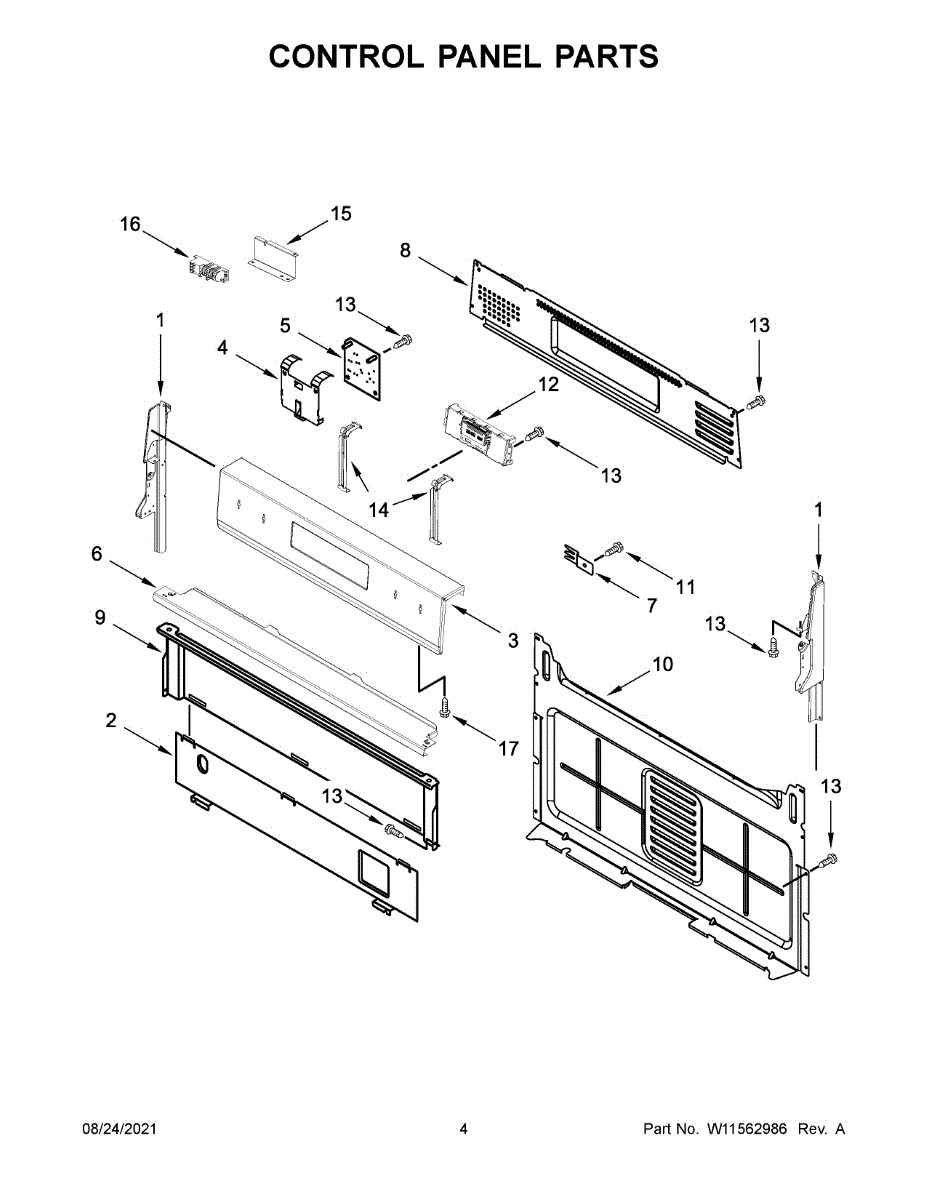

Parts for Whirlpool WFG535S0LS0: Control Panel Parts

Black left side end cap panel for electric and gas ranges. Replaces cracked, broken, or damaged side trim pieces. Installs on left exterior edge.

Right side end cap panel for ranges in black. Replaces cracked, broken, or missing end panel. Covers and protects the exterior side of your range.

Lower heat shield for gas ranges. Protects internal components from heat damage. Replace if cracked, warped, or missing to maintain proper heat distribution.

Replace your damaged or worn gas range control panel. This interface panel houses electronic controls and display components. Order a new panel if yours is cracked, broken, or missing buttons.

Gas range won't ignite or no clicking when preheating? The spark module generates sparks to ignite burners. Intermediate repair, requires panel access.

Support bracket for gas ranges. Secures and stabilizes internal components. Replace if bent, cracked, or broken to restore proper structural support.

Rear cover panel for gas ranges. Replaces cracked, damaged, or missing covers on the back of your range. Restores appearance and protects components.

Metal heat shield that protects range components from direct heat damage. Installs near oven cavity. Replace when original is warped, cracked, or missing.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Secures range components and panels to maintain proper alignment. Replace if your original bracket is cracked, broken, or missing to restore stability.

This spark module supplies the high-voltage pulses that ignite the surface burners on a gas cooktop or range. Replacing a failing module helps restore consistent clicking and spark so burners light promptly and reliably.

• Supplies high-voltage to up to five surface igniters (5+0 configuration)
• Sends spark when a burner control is turned to Lite
• Failure symptoms can include no spark on all or multiple burners
• May also cause intermittent/weak spark or continuous clicking

• Disconnect power and shut off gas before servicing
• Note wire locations; move one connector at a time to matching terminals
• Mount securely in the original position and ensure proper grounding
• After replacement, if only one burner won't ignite, inspect that burner's switch and igniter

Size: 8-18 x 1/2 inch.
