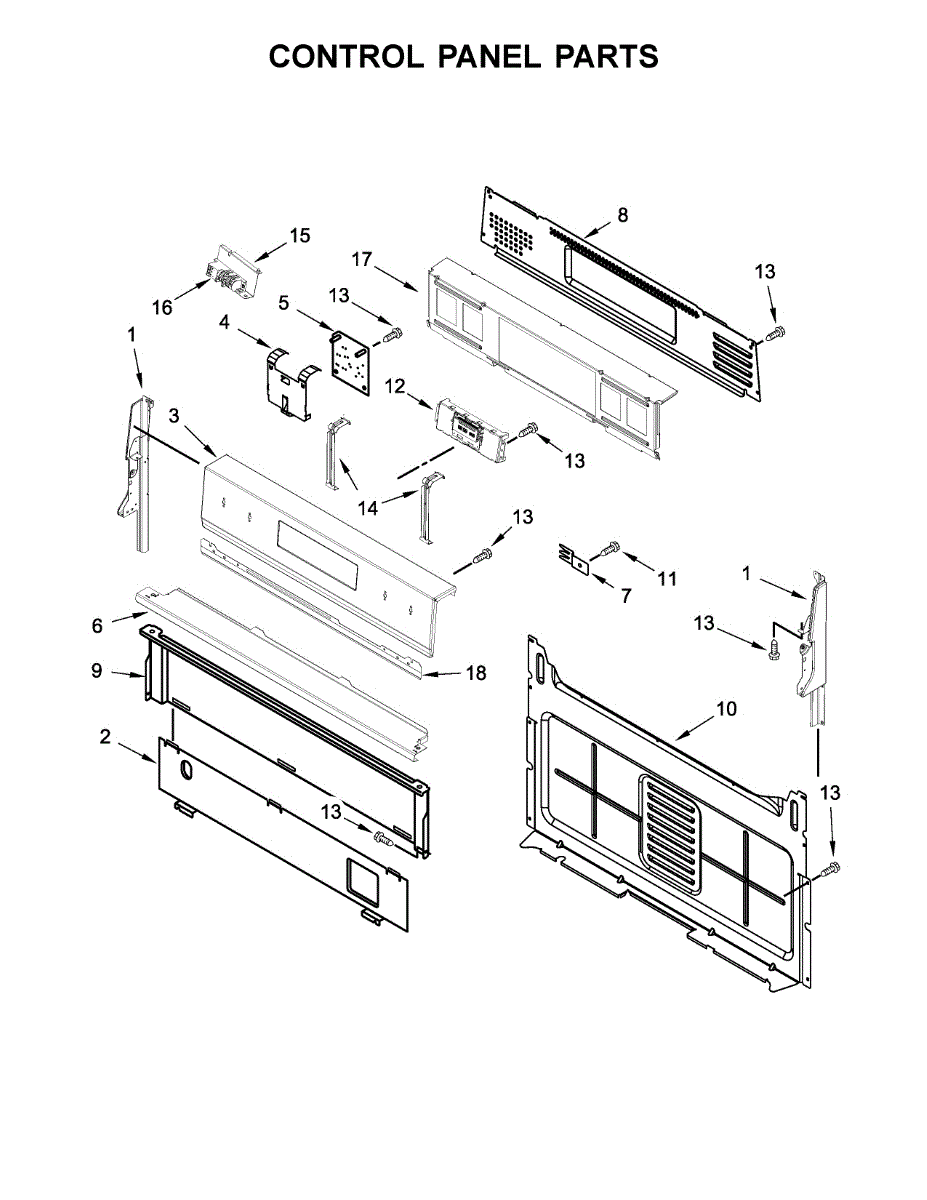

Parts for Whirlpool WFG550S0HB1: Control Panel Parts

This control panel is the front console assembly that houses the appliance's user controls and display, restoring normal button response and visible indicators for cycle selection and status. What it does:

• Provides the tactile buttons and display area used to select cycles, options, and start/stop the appliance
• Relays user input to the electronic control so the appliance responds correctly
• Restores visible status lights and indicators when a cracked or non-responsive panel prevents normal operation
• Can resolve issues like unresponsive buttons, missing display segments, or a damaged front console surface

• Disconnect power to the appliance before attempting any repair
• Handle the panel carefully to avoid scratching the finish or damaging the display overlay
• Replacement may require removing trim, screws, and electrical connectors; keep track of fasteners

This control panel is the user interface that lets you select cycles, start and stop the appliance, and view status. It restores responsive button and display control for normal operation. What it does

• Provides the front-facing buttons and display for selecting and confirming appliance cycles and options
• Sends user commands to the main control board so the appliance can start and run selected programs
• Common symptoms: unresponsive buttons, no display or backlight, inability to select cycles or start the appliance
• Replaces a damaged or worn interface to restore control and visible status feedback

• One control panel assembly

• Disconnect power before service to avoid shock or damage
• Remove trim and mounting hardware to access the existing panel; keep track of screws and connectors
• Handle the panel and any ribbon cables gently to avoid bending contacts or damaging the display
• If symptoms persist after install, verify wiring connections and the main control board for faults

The Spark Module is an OEM replacement part for Whirlpool gas ranges. It is responsible for generating the spark necessary to ignite the gas burners on your cooktop, ensuring reliable and consistent ignition every time. It controls the timing and distribution of the sparks, allowing for the proper ignition of each burner.

Symptoms of a faulty spark module include:

• No spark or ignition when turning on the burners
• Weak or intermittent sparks
• Difficulty in lighting the burners consistently

A bad spark module can occur due to electrical malfunctions, wear and tear over time, or exposure to moisture or grease. If you experience issues such as no spark at all, weak or intermittent sparks, or difficulty in igniting the burners, it may be time to replace the old or damaged spark module with this genuine OEM part.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This heat shield protects oven or range components from direct heat, helping prevent damage to nearby panels and wiring. It's a direct-replacement exterior shield used when existing metal shields are warped, cracked, or missing. What it does:

• Diverts and dissipates heat away from control panels, insulation, or adjacent components
• Helps stop heat-related discoloration, warping, or premature wear of nearby parts
• Restores proper clearance and airflow around the oven cavity after shield damage
• Commonly replaced when you see scorched areas, melted trim, or gaps where a shield once sat

• One heat shield (exact shape and mounting holes as shown in OEM diagram)

• Disconnect electrical power (and gas, if applicable) before starting any repair
• Remove oven racks and any trim panels to access the shield; keep track of fasteners
• Compare the replacement to the removed part to confirm fit before fastening
• If mounting hardware is damaged or missing, procure correct OEM fasteners — only the shield is guaranteed to ship

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Control Board is an OEM component specifically designed for Whirlpool gas ranges. Located within the control panel, the control board features electronic components and circuitry that allow the operation of the range's various functions including oven, surface burner, and timer controls.

The control board receives input signals from control knobs and buttons to coordinate precise timing and temperature regulation during cooking cycles. It communicates adjustments to gas valves, ignitors, fans, and other heating elements through a network of wires and connections.

Symptoms of a bad control board include:

• Failure to ignite burners or heat the oven
• Unresponsive or inaccurate control dials
• Constant blinking display or error codes
• Inability to set or keep temperature settings

This OEM part is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas range models.

The Cntrl-Elec (Control-Electric) is an OEM component specifically designed for Whirlpool gas ranges. It is the electric control board that regulates and monitors all burner and oven functions.

Causes of a bad control board can include moisture damage, thermal stress over time, or component failure due to normal electrical load.

Symptoms of a bad control board include:

• Unresponsive or intermittent burners that will not ignite
• Inability to properly regulate oven temperature
• Erratic or unpredictable oven and burner operation
• Constant error codes or failure indications

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This spark module supplies the high-voltage pulses that ignite the surface burners on a gas cooktop or range. Replacing a failing module helps restore consistent clicking and spark so burners light promptly and reliably.

• Supplies high-voltage to up to five surface igniters (5+0 configuration)
• Sends spark when a burner control is turned to Lite
• Failure symptoms can include no spark on all or multiple burners
• May also cause intermittent/weak spark or continuous clicking

• Disconnect power and shut off gas before servicing
• Note wire locations; move one connector at a time to matching terminals
• Mount securely in the original position and ensure proper grounding
• After replacement, if only one burner won't ignite, inspect that burner's switch and igniter
