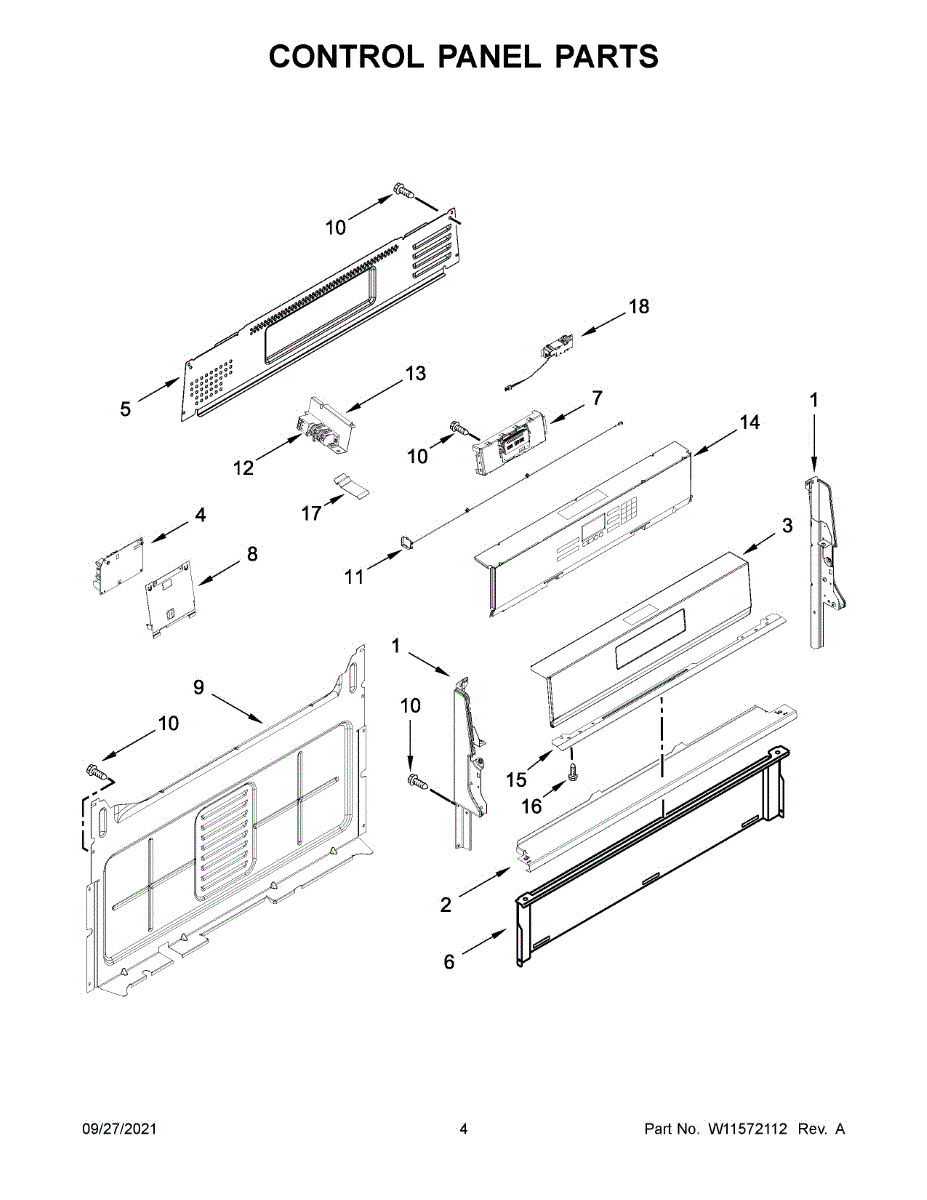

Parts for Whirlpool WFG975H0HV2: Control Panel Parts

The Spark Module is an OEM replacement part for Whirlpool gas ranges. It is responsible for generating the spark necessary to ignite the gas burners on your cooktop, ensuring reliable and consistent ignition every time. It controls the timing and distribution of the sparks, allowing for the proper ignition of each burner.

Symptoms of a faulty spark module include:

• No spark or ignition when turning on the burners
• Weak or intermittent sparks
• Difficulty in lighting the burners consistently

A bad spark module can occur due to electrical malfunctions, wear and tear over time, or exposure to moisture or grease. If you experience issues such as no spark at all, weak or intermittent sparks, or difficulty in igniting the burners, it may be time to replace the old or damaged spark module with this genuine OEM part.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This heat shield protects oven or range components from direct heat, helping prevent damage to nearby panels and wiring. It's a direct-replacement exterior shield used when existing metal shields are warped, cracked, or missing. What it does:

• Diverts and dissipates heat away from control panels, insulation, or adjacent components
• Helps stop heat-related discoloration, warping, or premature wear of nearby parts
• Restores proper clearance and airflow around the oven cavity after shield damage
• Commonly replaced when you see scorched areas, melted trim, or gaps where a shield once sat

• One heat shield (exact shape and mounting holes as shown in OEM diagram)

• Disconnect electrical power (and gas, if applicable) before starting any repair
• Remove oven racks and any trim panels to access the shield; keep track of fasteners
• Compare the replacement to the removed part to confirm fit before fastening
• If mounting hardware is damaged or missing, procure correct OEM fasteners — only the shield is guaranteed to ship

This electronic control board manages the appliance's electronic commands and cycle operations to restore responsive controls and correct timing functions. It replaces a damaged or non-responsive main control to help return normal appliance operation. What it does:

• Interprets user inputs and manages cycle sequences and timing
• Controls power to motors, valves, heaters, and indicators as directed by programming
• Commonly linked to symptoms like unresponsive buttons, intermittent operation, or appliances that won't start
• Can clear failures caused by faulty logic or damaged circuitry when replaced

• Disconnect power to the appliance before starting any repair
• Handle the board carefully and avoid touching circuitry; observe ESD precautions
• Verify wiring harness connections match before reassembly

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This spark module supplies the high-voltage pulses that ignite the surface burners on a gas cooktop or range. Replacing a failing module helps restore consistent clicking and spark so burners light promptly and reliably.

• Supplies high-voltage to up to five surface igniters (5+0 configuration)
• Sends spark when a burner control is turned to Lite
• Failure symptoms can include no spark on all or multiple burners
• May also cause intermittent/weak spark or continuous clicking

• Disconnect power and shut off gas before servicing
• Note wire locations; move one connector at a time to matching terminals
• Mount securely in the original position and ensure proper grounding
• After replacement, if only one burner won't ignite, inspect that burner's switch and igniter

This electronic control panel provides the user interface for your appliance, letting you select cycles, adjust settings, and view status. It replaces a faulty or worn front control assembly to restore normal operation and display feedback. What it does:

• Houses buttons/touch controls and the display that communicate user commands to the appliance
• Sends cycle and option selections to the main control board for proper operation
• Commonly replaced when controls are unresponsive, buttons stick, or the display is blank or shows errors
• Helps restore accurate cycle selection and visible status information

• Disconnect power before servicing to avoid electric shock or damage to electronic components
• Handle the control panel by the edges; avoid touching circuit contacts or display surfaces
• Some installations require removing the console or front trim; keep screws and small fasteners organized

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This electronic control board replaces a failed console control on compatible electric ranges and ovens, restoring timed cooking functions and user interface responsiveness for accurate cycle control. What it does:

• Regulates oven temperature, timers and display based on user inputs
• Controls bake, broil and preheat sequences for consistent cooking
• Restores digital clock, touchpad/knob input response and on/off functions
• Helps address symptoms like unresponsive controls, error codes, or no display

• Disconnect power at the breaker before accessing the console to avoid shock
• Handle the board by its edges and avoid touching components or connector pins
• Verify wire harness and connector seating during reassembly; match connector shapes
