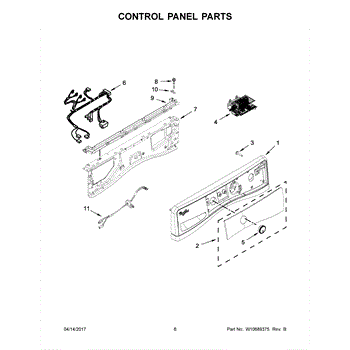

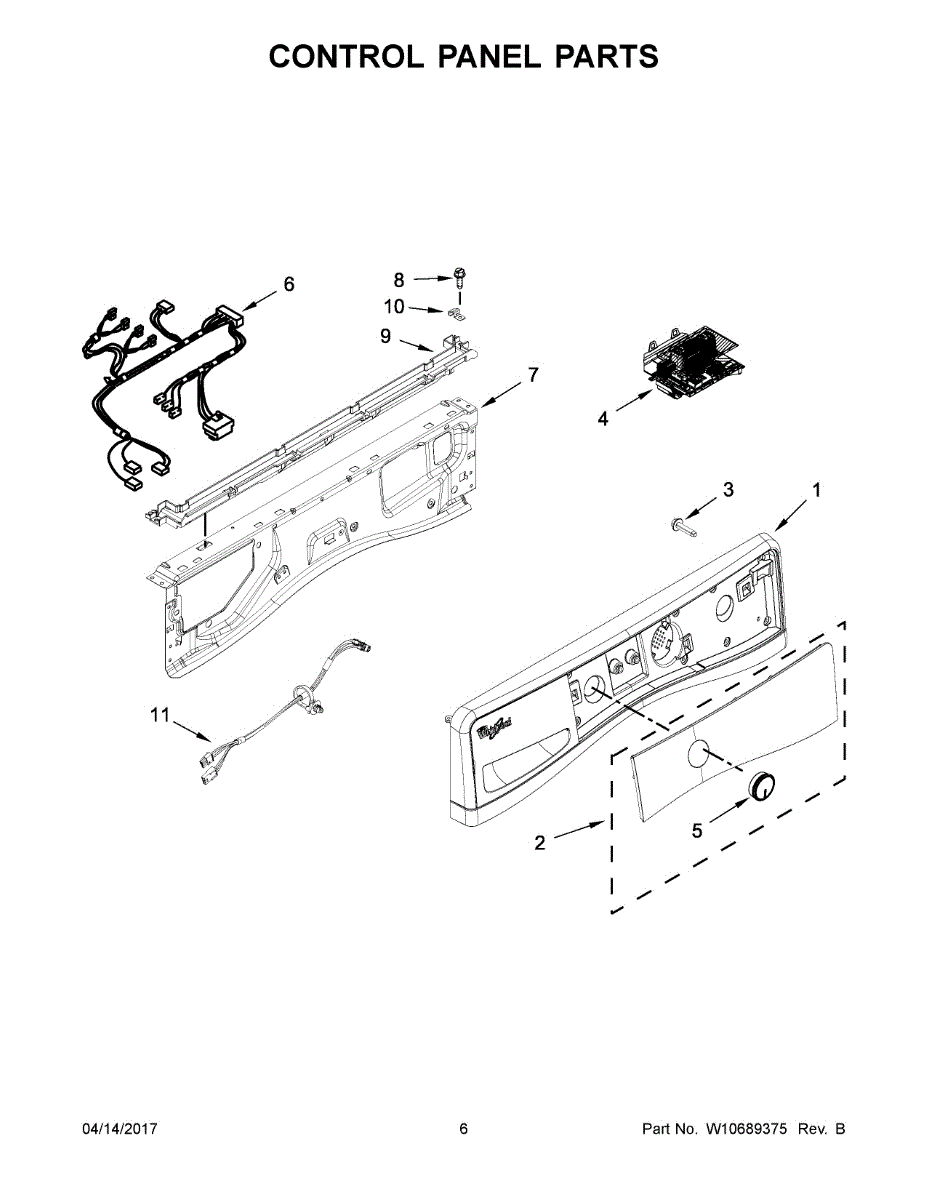

Parts for Whirlpool WFW72HEDW0: 04 - Control Panel Parts

This electronic control panel is the user interface assembly that lets you select cycles, change settings and view status information. Replacing a faulty panel restores button response and readable display so the appliance operates as intended. What it does:

• Replaces a damaged or unresponsive control interface/console
• Provides buttons/touch controls and the display used for cycle selection and status
• Commonly fixes symptoms like unresponsive buttons, blank or garbled display, or incorrect cycle behavior
• Connects to the appliance's wiring/ribbon harness to send commands to the main control

• Always disconnect power (unplug or switch off breaker) before beginning service
• Remove trim/bezels and mounting screws to access the panel; handle display and ribbon cables carefully
• Disconnect and reconnect ribbon/wiring connectors straight and level to avoid damage

This is a Whirlpool washing machine control board. This part can be found behind the control panel on top of the washer, and it manages the washer's functions, including filling, washing, spinning, and draining.A washer control board may be damaged by power surge, exposure to excessively high heat or moisture. If the washer's display shows error code F1 E1, that means the control board has malfunctioned. A damaged or faulty control board may cause the washer to skip cycles or stop working completely. A voltage tester can be used to verify that the control panel is causing problems.Before installing this part, be sure to cut power to the washer. It will need to be pulled away from any walls, as well, as the control panel is accessed from the back of the appliance. Remove the mounting screws holding the main control panel closed to find the control board, disconnect the old part from its wire harnesses and mounting and reinstall the new part in its place.This is a genuine OEM part compatible with washing machines manufactured by Whirlpool brands, including Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and others.

Color: Chrome

This wire harness routes power and signal connections between an appliance's controls and components, restoring proper electrical continuity for normal operation. It replaces a damaged or worn harness to help resolve power and control issues. What it does:

• Provides the factory wiring connections between control boards, motors, and sensors
• Restores reliable power and signal paths when wiring is frayed, melted, or broken
• Can stop intermittent operation, failure to start, or control communication errors when caused by wiring faults
• Keeps wires organized and secured to prevent chafing and short circuits

• One complete wire harness as shown

• Disconnect all power (unplug or shut off breaker) before beginning work
• Transfer and align connectors exactly as removed; do not force mismatched plugs
• Route and secure the harness with existing clips or fasteners to avoid contact with hot or moving parts

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This wire harness routes power and signals between an appliance's control and internal components to restore reliable electrical connections. Replacing a damaged harness helps stop intermittent operation and power loss for safer, more consistent performance. What it does:

• Routes power and control signals between the control board and internal components.
• Replaces frayed, cut, or burned wiring that can cause intermittent operation or component failures.
• Helps address symptoms such as loss of power to controls, unresponsive cycles, or devices that won't start.
• Prevents loose or corroded connections that can create intermittent faults.

• Always disconnect the appliance from power (unplug or switch off circuit breaker) before servicing.
• Match each connector to its mating plug and follow the OEM wiring diagram for routing and color codes.
• Secure the harness away from heat sources and moving parts; use existing clips and fasteners.
