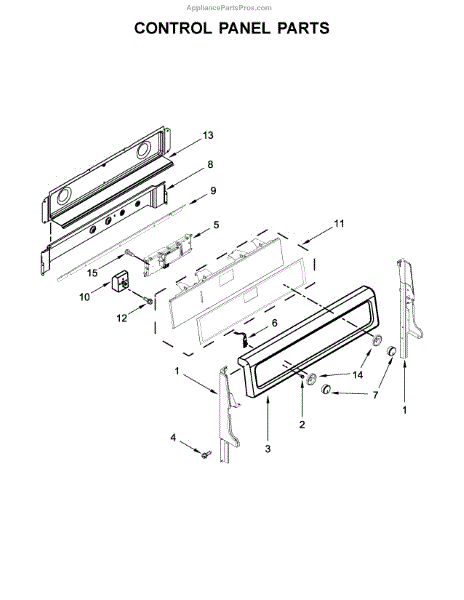

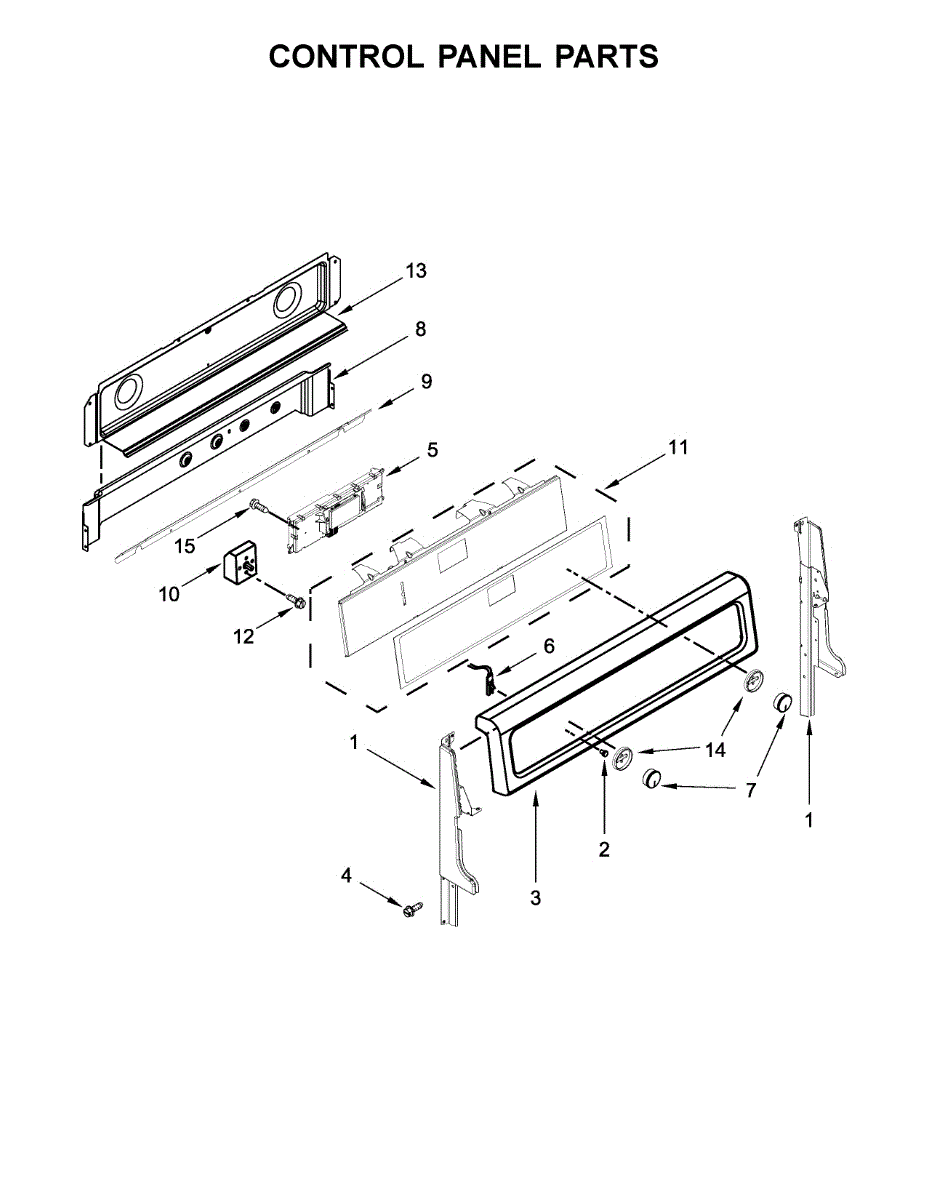

Parts for Whirlpool WGE745C0FE01: Control Panel Parts

Color: Black

Color: White

Color: White

Color: Black

This red indicator light lens covers the control-panel light opening. It restores a clean, finished look and keeps the status light easy to see while helping protect the opening from debris and accidental contact.

• Covers and diffuses the indicator light for clear visibility
• Fills the control panel opening for a finished, factory appearance
• Helps shield the opening from dust, splashes, and contact
• Common fixes: cracked, missing, loose, or discolored indicator lens

• Disconnect power by unplugging the appliance or switching off the breaker before servicing
• Access the control panel/backguard per your model's instructions
• Release the old lens (tabs/retainer) and press the new lens into the opening until fully seated
• Restore power and verify the indicator light is visible through the lens

Color: White

Color: Black

Color: Stainless

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Replacement electronic control board that manages the appliance's user inputs, display, and cycle logic. Replacing a failed board restores responsive controls, correct display feedback, and normal cycle operation when the original board malfunctions. What it does:

• Manages the user interface, display, and cycle control logic; symptoms include unresponsive buttons or a blank/erratic display.
• Controls cycle selection, start/stop, and timing functions; symptoms include the appliance not starting or cycles not advancing.
• Can resolve intermittent or erratic appliance behavior and some error-code conditions caused by a faulty control board.

• Disconnect power to the appliance before servicing to prevent electrical shock.
• Handle the board by the edges and use electrostatic discharge (ESD) protection if available.
• Follow the appliance-specific service manual or tech sheet for console/panel removal and wiring guidance.

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

Color: Stainless Steel

The Knob is an OEM part for Whirlpool ranges. It provides selection of cooking functions and specific temperature levels.

Causes of a bad knob can include cracked or warped knobs due to high heat exposure over time, loose/worn internal mechanisms, or damage from impact or moisture.

Symptoms of a bad range knob include:

• Knob that feels loose, wobbly or dysfunctional when selecting functions
• Inability to reliably set desired cooking temperatures
• Knob detaching from shaft or assembly during use
• Unintended changes or engagement of cooking functions

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Infinite Switch is an OEM replacement part for Whirlpool ranges. It is responsible for regulating the power and heat output of the surface elements on your range, allowing you to adjust the temperature for cooking.

A bad surface element control infinite switch can occur due to wear and tear, electrical issues, or damage to the switch mechanism. If you notice symptoms such as inability to adjust the temperature, uneven heating, or the surface element not turning on or off, it may indicate a faulty infinite switch.

Symptoms of a bad infinite switch include:

• Inability to adjust the temperature
• Uneven heating
• Surface element not turning on or off

Restore your range by replacing the faulty or damaged surface element control infinite switch with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This dual infinite switch regulates power to a dual surface element on your range or cooktop, delivering smooth, adjustable heat. Replacing a failing switch restores precise temperature control and consistent burner performance.

• Controls power to the inner and outer coils of a dual surface element
• Provides variable heat settings from low to high
• Common symptoms: no heat or only high heat, temperature won't adjust, one part of the dual element doesn't heat, or the element won't turn off
• Helps restore even, predictable cooking temperatures

• Disconnect power to the appliance before servicing
• Remove the knob and access the control panel to reach the switch
• Transfer wires one at a time to matching terminals on the new switch; use terminal markings or a photo for reference
• Secure the switch, reinstall the knob/panel, restore power, and test both inner and outer element functions

The Infinite Switch is an OEM part for Whirlpool ranges. It controls the heat levels of the elements on your cooktop, allowing you to adjust the temperature for precise cooking.

Causes of a bad infinite switch can include electrical malfunctions, wear and tear from frequent use, or physical damage due to impacts or spills.

Symptoms of a bad infinite switch include:

• Burners not heating up or heating inconsistently
• Burners stuck on a single heat setting
• No response when adjusting the heat level
• Sparks or electrical odors coming from the control area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool Infinite Switch is an OEM part for Whirlpool ranges. Whirlpool electric ranges. This switch controls the multiple heat settings of the small element, allowing the user to select their desired cooking temperature. It is an important electrical component that regulates burner heating cycles.

Symptoms of a bad infinite switch include:

• The element not heating up adequately or failing to maintain temperature
• Inability to select or change heat settings on the
• Burner operates intermittently or fails to heat properly

Causes of a bad infinite switch can include failure over many heating cycles. The electrical contacts within the switch may become corroded or deteriorate from repeated exposure to cooktop temperatures and cooking residue.

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric range models.

The SWTCH-MEMB is an OEM component specifically designed for Whirlpool ranges. This switch and membrane assembly operates critical control switches including temperature selection and timer functions.

Symptoms of a bad switch and membrane assembly include:

• Stuck, unresponsive, or failed control switches
• Missing or damaged overlay graphics
• Inaccurate temperature or time readings

Causes can be normal wear and tear over prolonged use. Chemical exposure or moisture can damage electronic components over time. Physical impacts or tears to the membrane are also causes for replacement.

Compatibility includes Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The SWTCH-MEMB is an OEM component specifically designed for Whirlpool ranges. This switch and membrane assembly operates critical control switches including temperature selection and timer functions.

Symptoms of a bad switch and membrane assembly include:

• Stuck, unresponsive, or failed control switches
• Missing or damaged overlay graphics
• Inaccurate temperature or time readings

Causes can be normal wear and tear over prolonged use. Chemical exposure or moisture can damage electronic components over time. Physical impacts or tears to the membrane are also causes for replacement.

Compatibility includes Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This bezel knob is the control-panel knob that lets you select settings and operate your appliance's controls with a finished, durable interface. It restores a secure grip and clear tactile feedback on the control shaft. What it does:

• Replaces a cracked, faded, or worn control knob to restore normal control operation
• Provides a finished bezel around the control shaft for a clean appearance
• Improves grip and makes setting selections easier and more reliable
• Helps stop slipping or loose rotation caused by a damaged knob

• Disconnect power to the appliance before attempting any service.
• Remove any trim or housing required to access the control knob; reinstall in reverse order.
• Press the knob onto the control shaft until fully seated; verify secure fit before use.
• If a retaining clip or screw is present, retain and re-use per the original configuration.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit
