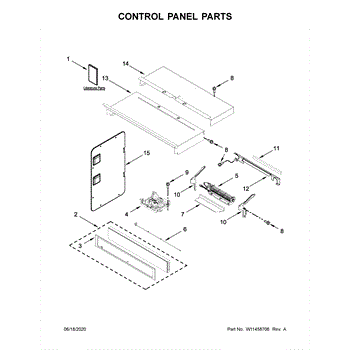

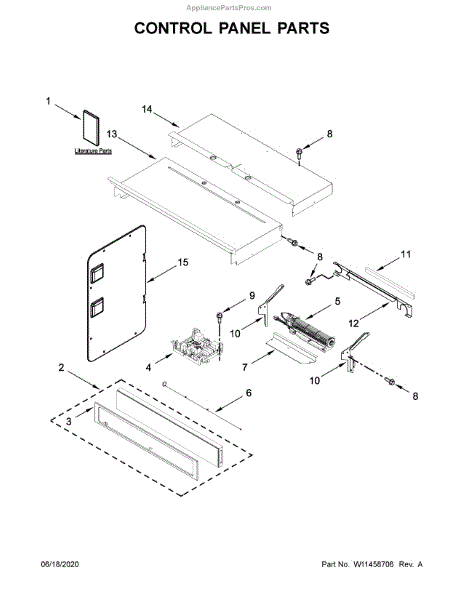

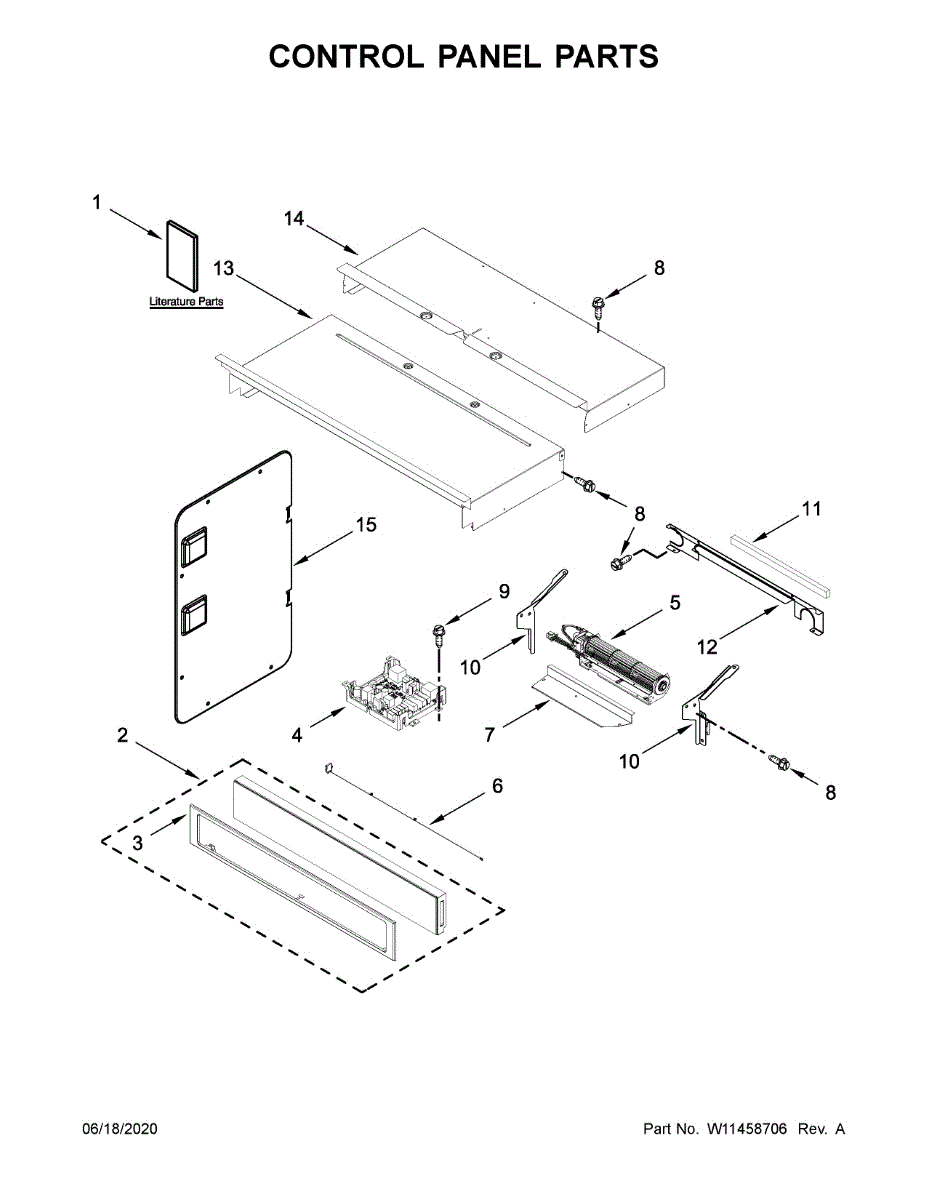

Parts for Whirlpool WOC54EC0HS04: Control Panel Parts

The Console is an OEM part for Whirlpool wall ovens. It houses the control panel where users operate cooking functions, timers, and settings.

Symptoms of a bad console include:

• Faulty or unresponsive button membranes
• Burned-out indicator lights
• Water or moisture damage behind controls
• Cracked casing from repeated impact or heating

Over time and continuous use, consoles experience wear from steam exposure during cooking and constant adjustment of buttons and dials. This can cause membranes to fail, cracking of plastic, or moisture damage to electronics.

Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement console is the outer housing that holds and protects the oven/dryer control interface and buttons, restoring the appliance's appearance and providing a secure mount for the controls. What it does:

• Houses and protects the control board, switches, and user interface from spills, heat, and physical damage
• Keeps buttons, knobs, and displays aligned and accessible for normal operation
• Replaces cracked, broken, or cosmetically damaged panels to improve appearance and function
• Helps prevent debris from reaching internal electronics

• Disconnect power to the appliance before starting any work.
• Handle edges carefully to avoid cuts and to prevent damage to the new console.
• Remove any trim, knobs, or screws that secure the old console; retain hardware.
• After installing, restore power and verify controls work before final reassembly.

The Console is an OEM part for Whirlpool wall ovens. It is the interface panel housing control knobs and display lights.

Causes of a bad console can include cracked or peeling finishes, faulty knobs, burned-out display lights, or moisture damage over time.

Symptoms of a bad console include:

• Control knobs difficult to turn or unresponsive
• Burned-out or non-illuminated indicator lights
• Warped or cracked plastic casing
• Moisture infiltration behind controls

As one of the major touch points for users, the console endures constant adjustment of settings during cooking. Over years of repeated heating cycles, consoles can experience wear and finish degradation. It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This electronic control panel provides the user interface for the appliance, restoring responsive touchpads, buttons, and display feedback so you can select cycles and settings reliably. What it does:

• Replaces a worn or damaged control panel to restore button and touchpad operation
• Helps resolve unresponsive controls, missing display segments, or intermittent input recognition
• Enables access to cycle selection, temperature/timer adjustments, and other user commands
• Works as the main console that communicates user inputs to the control system

• Disconnect power to the appliance before starting any repair to avoid shock
• Handle the panel carefully to avoid scratching or cracking the display/overlay
• Basic hand tools and caution with wiring harness clips are typically required

The Oven Control Board is an OEM part for Whirlpool ovens. It regulates and controls the various functions and settings of your oven, including the oven's temperature, timers, and cooking modes.

A bad oven control board can occur due to electrical malfunctions, power surges, or component failure. If you notice symptoms such as an unresponsive control panel, error codes displayed on the screen, or erratic heating and temperature fluctuations, it may be time to replace the oven control board.

Symptoms of a bad oven control board include:

• Unresponsive control panel
• Error codes displayed on the screen
• Erratic heating and temperature fluctuations

Restore your oven by replacing the faulty or malfunctioning oven control board with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Blower is an OEM part for Whirlpool ranges. It is responsible for cooling down the internal parts of the range during operation, preventing overheating. This cooling fan blower motor circulates air, dissipating heat and maintaining a safe operating temperature for the range. It helps to extend the lifespan of the range and prevents potential damage caused by excessive heat buildup.

A bad cooling fan blower motor can occur due to wear and tear or electrical malfunctions. If you notice symptoms such as loud or unusual noises coming from the range, failure of the cooling fan to operate, or overheating issues, it may be time to replace the blower motor.

Symptoms of a bad cooling fan blower motor include:

• Loud or unusual noises coming from the range
• Failure of the cooling fan to operate
• Overheating issues with the range

Restore your range by replacing the faulty or worn-out cooling fan blower motor with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This antenna and housing assembly (M2.0) replaces the factory antenna module and its outer housing to restore reliable wireless reception and secure mounting for the control electronics. It helps recover signal-dependent features and keeps internal components protected. What it does:

• Receives and routes wireless/control signals between the appliance electronics and external devices or modules
• Provides a secure, insulated housing to protect the antenna and associated wiring from damage
• Can resolve symptoms such as intermittent or lost wireless communication, unresponsive remote functions, or erratic control-panel connectivity
• Designed as a direct-fit assembly for the corresponding control harness and mounting points

• Disconnect power to the appliance before beginning any repair to avoid shock or damage
• Handle connectors and wiring gently; ensure mating connectors fully seat and locking tabs engage
• Keep screws and mounting hardware organized; verify the housing aligns with factory mounting bosses before tightening

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
