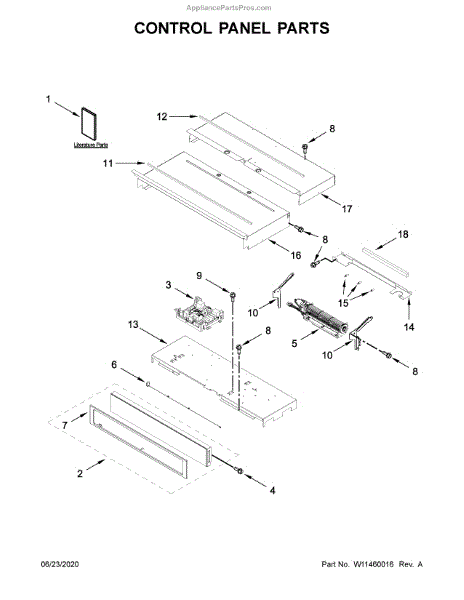

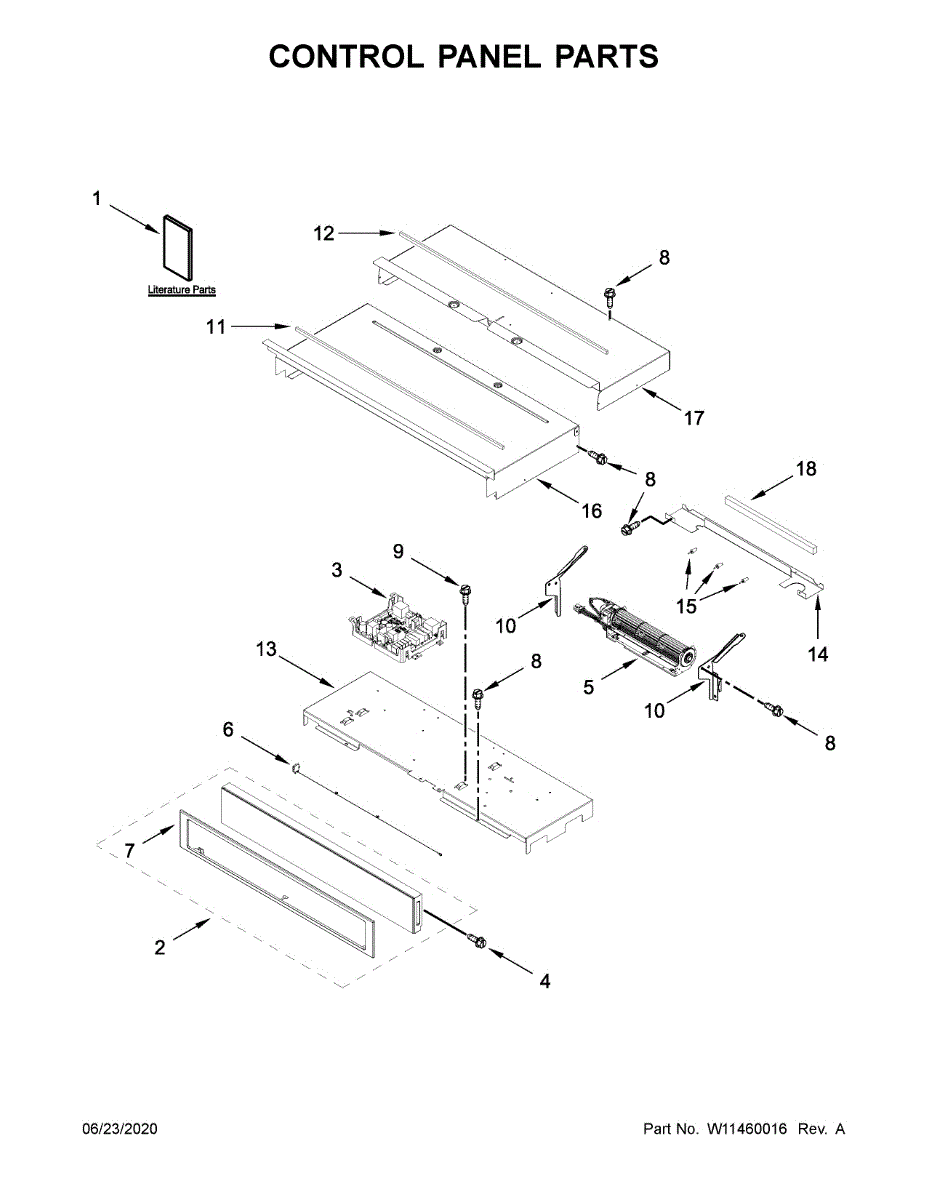

Parts for Whirlpool WOD51EC7HS02: Control Panel Parts

The Console is an OEM part for Whirlpool ovens. It houses the electronic control panel and display interface.

Causes of a bad console can include water damage, cracked casings from repeated heating cycles, or normal wear over time.

Symptoms of a bad oven console include:

• Faulty or unresponsive touch control buttons
• Burnt-out indicator light bulbs
• Moisture or water leaks behind controls
• Loose or damaged control knobs

As a major access point into the oven, the console endures high heat exposure during every use cycle. Repeated opening/closing of the oven door also subjects it to impact. Over the years, consoles can experience cracking, button membrane failure, or electronic component malfunctions.

Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore wall ovens.

This electronic control board regulates the appliance's functions and user interface, restoring proper cycle selection and timed operations when the original board fails. It replaces a faulty main control to bring responsive controls back to the unit. What it does:

• Manages cycle selection, timing, and user interface signals
• Controls power distribution to motors, heaters, valves, and sensors via board relays
• Resolves symptoms like unresponsive controls, erratic cycles, or failure to start
• Helps stop intermittent operation caused by a damaged or burned control board

• One electronic control board

• Disconnect power before attempting service to avoid shock or damage
• Some units require removing an access panel or console to reach the board
• Handle the board by its edges and avoid touching components or connectors

The Oven Control Board is an OEM part for Whirlpool ovens. It regulates and controls the various functions and settings of your oven, including the oven's temperature, timers, and cooking modes.

A bad oven control board can occur due to electrical malfunctions, power surges, or component failure. If you notice symptoms such as an unresponsive control panel, error codes displayed on the screen, or erratic heating and temperature fluctuations, it may be time to replace the oven control board.

Symptoms of a bad oven control board include:

• Unresponsive control panel
• Error codes displayed on the screen
• Erratic heating and temperature fluctuations

Restore your oven by replacing the faulty or malfunctioning oven control board with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Blower is an OEM part for Whirlpool ranges. It is responsible for cooling down the internal parts of the range during operation, preventing overheating. This cooling fan blower motor circulates air, dissipating heat and maintaining a safe operating temperature for the range. It helps to extend the lifespan of the range and prevents potential damage caused by excessive heat buildup.

A bad cooling fan blower motor can occur due to wear and tear or electrical malfunctions. If you notice symptoms such as loud or unusual noises coming from the range, failure of the cooling fan to operate, or overheating issues, it may be time to replace the blower motor.

Symptoms of a bad cooling fan blower motor include:

• Loud or unusual noises coming from the range
• Failure of the cooling fan to operate
• Overheating issues with the range

Restore your range by replacing the faulty or worn-out cooling fan blower motor with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This antenna and housing assembly (M2.0) replaces the factory antenna module and its outer housing to restore reliable wireless reception and secure mounting for the control electronics. It helps recover signal-dependent features and keeps internal components protected. What it does:

• Receives and routes wireless/control signals between the appliance electronics and external devices or modules
• Provides a secure, insulated housing to protect the antenna and associated wiring from damage
• Can resolve symptoms such as intermittent or lost wireless communication, unresponsive remote functions, or erratic control-panel connectivity
• Designed as a direct-fit assembly for the corresponding control harness and mounting points

• Disconnect power to the appliance before beginning any repair to avoid shock or damage
• Handle connectors and wiring gently; ensure mating connectors fully seat and locking tabs engage
• Keep screws and mounting hardware organized; verify the housing aligns with factory mounting bosses before tightening

This panel skin is the replacement outer surface for the appliance control console, restoring the console's finished appearance and protecting buttons and trim from wear. It's a direct-fit cosmetic and protective overlay. What it does:

• Covers and protects the control area from scratches, stains, and everyday wear
• Restores faded, peeling, or cracked console surfaces for improved appearance
• Helps prevent dirt and moisture from reaching internal switches and electronics
• Returns the console to its intended look after removal or damage during repair

• Disconnect power to the appliance before starting any repair
• Removal/replacement typically requires removing the console or trim—retain all screws and mounting hardware
• Handle edges carefully to avoid damaging the new skin or surrounding trim
• If clips or adhesive are present, they are intact or replace as needed for secure installation

This control panel is the user interface assembly that houses the oven's touchpads and display so you can select cooking modes and view settings. It replaces a damaged or unresponsive console to restore normal control and display functions. What it does:

• Provides the front-facing buttons/touchpads and display used to set oven temperature, timers, and cooking modes.
• Sends user commands to the oven control board so functions start when selected.
• Commonly replaced for symptoms such as unresponsive buttons, missing/blank display segments, or incorrect readouts.
• Restores reliable input and clear status feedback when the original panel is cracked, worn, or faulty.

• One control panel/user interface assembly

• Disconnect power to the appliance before attempting any repair to avoid shock or damage.
• Basic hand tools are typically required; some models may require removal of the oven door or back panel.
• Handle the display and ribbon connectors carefully to avoid damage; confirm connector seating during reassembly.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
