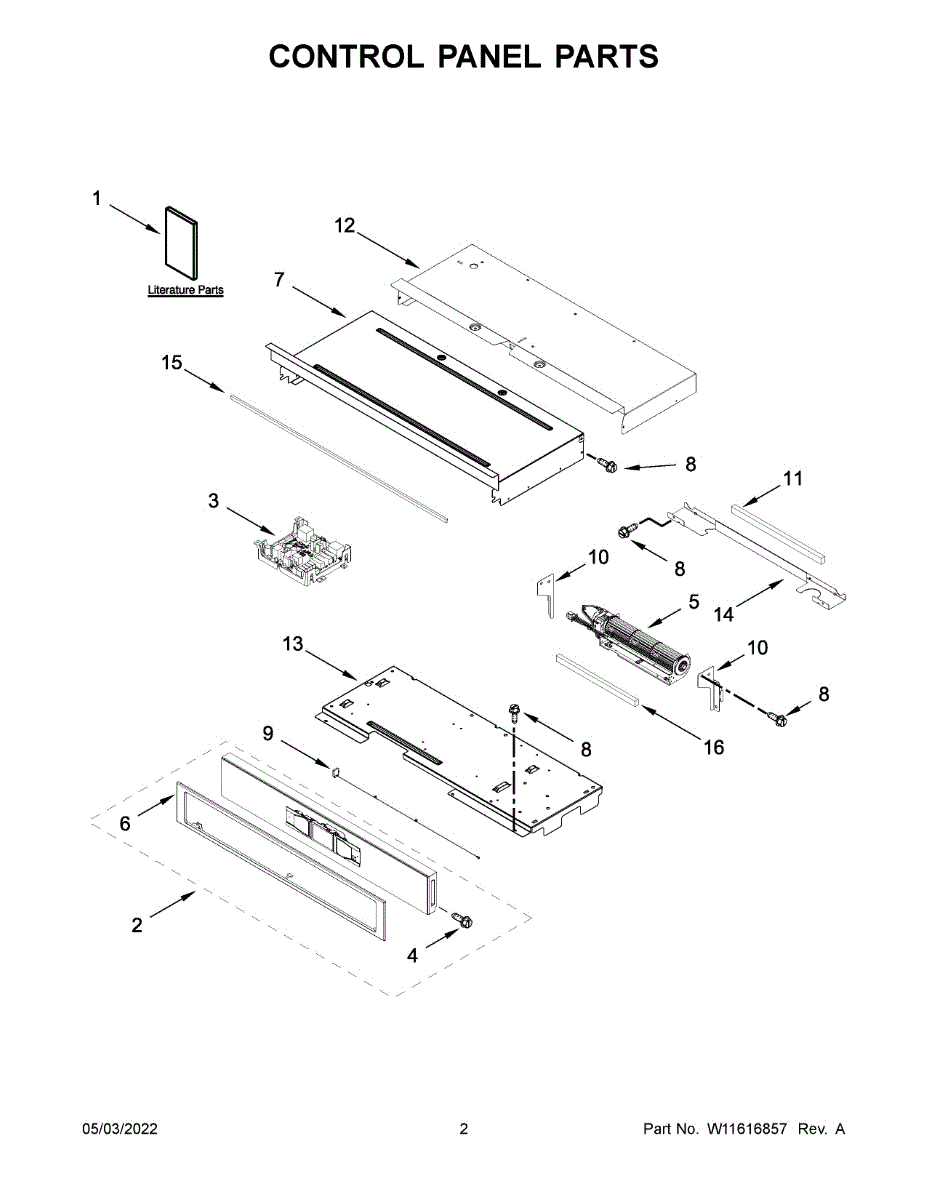

Parts for Whirlpool WOS51EC0HS20: Control Panel Parts

This console PTM assembly is the control module that houses the console switches and interface for the range/oven, letting the user send commands to the oven's control system. It restores responsive front-panel controls and correct button function. What it does:

• Replaces the console control module that registers front-panel button presses
• Restores normal operation of the oven/range interface and touch controls
• Helps resolve symptoms like unresponsive buttons, intermittent control input, or missing console feedback
• Interfaces with the main control via ribbon/power connector to transmit user commands

• One console PTM assembly

• Disconnect power before servicing to avoid shock or damage
• Handle the assembly and ribbon connector carefully to avoid bending contacts
• Reuse existing mounting hardware unless screws/clips are damaged

The Oven Control Board is an OEM part for Whirlpool ovens. It regulates and controls the various functions and settings of your oven, including the oven's temperature, timers, and cooking modes.

A bad oven control board can occur due to electrical malfunctions, power surges, or component failure. If you notice symptoms such as an unresponsive control panel, error codes displayed on the screen, or erratic heating and temperature fluctuations, it may be time to replace the oven control board.

Symptoms of a bad oven control board include:

• Unresponsive control panel
• Error codes displayed on the screen
• Erratic heating and temperature fluctuations

Restore your oven by replacing the faulty or malfunctioning oven control board with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This electronic control panel provides the user interface for the appliance, restoring responsive touchpads, buttons, and display feedback so you can select cycles and settings reliably. What it does:

• Replaces a worn or damaged control panel to restore button and touchpad operation
• Helps resolve unresponsive controls, missing display segments, or intermittent input recognition
• Enables access to cycle selection, temperature/timer adjustments, and other user commands
• Works as the main console that communicates user inputs to the control system

• Disconnect power to the appliance before starting any repair to avoid shock
• Handle the panel carefully to avoid scratching or cracking the display/overlay
• Basic hand tools and caution with wiring harness clips are typically required

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

This wire harness routes power and signals between the appliance control and its components, restoring reliable electrical connections for normal operation. It replaces a damaged, burned, or disconnected harness to help components receive proper power and control signals. What it does:

• Connects control board outputs to motors, heaters, sensors, or switches so components operate as commanded
• Restores intermittent or lost power caused by frayed, melted, or broken wiring
• Prevents shorts and improper operation from damaged or exposed conductors
• Matches factory routing and connector types for correct fit and function

• One factory-style wire harness

• Disconnect power to the appliance before servicing to avoid shock or injury
• Compare new harness to the old one for connector types and routing before installation
• Route and secure the harness following factory clips and channels to prevent pinching or rubbing
• Replace or repair damaged connectors or terminals at the control or component before reconnecting

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
