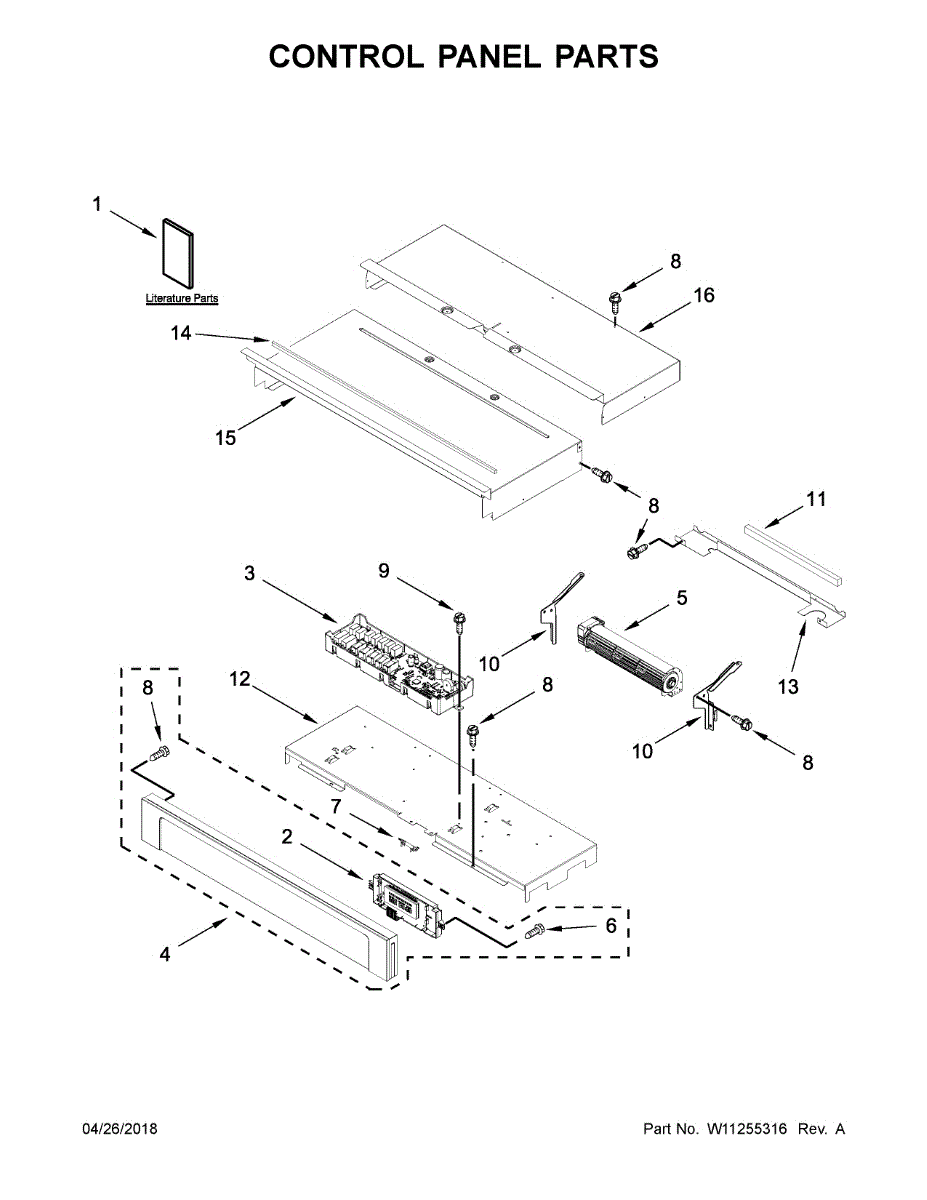

Parts for Whirlpool WOS51EC7AB05: Control Panel Parts

This electronic control board is the appliance's brain, managing power to key components while executing your selected settings. Replacing a failed board restores normal operation, responsive controls, and reliable cycle timing across programmed functions.

• Interprets user inputs and runs stored programs while managing safety interlocks
• Switches onboard relays to power loads (motors, heaters, fans, valves) as required
• Monitors sensor and switch feedback to control performance and protect the system
• Common failure signs: won't power on or start, unresponsive controls/display, won't advance or stops mid-cycle, random beeping/flashing, or error codes

• Disconnect power at the breaker; turn off gas/water if your appliance uses them
• Use ESD protection; handle the board by the edges to avoid static damage
• Photograph and label all connectors; transfer any jumpers or mounting hardware from the original board
• After reassembly, restore power and run any model-specific diagnostic or calibration procedure per the service manual.

The Control Board is an OEM part for Whirlpool ovens. It plays a vital role in regulating and monitoring all electrical operations of the oven, such as activating heating elements, running fans and motors, and managing temperature settings.

Causes of a bad control board can include exposure to electrical surges, moisture damage from steam cleaning over many uses, or something as simple as a loose connection point. Control boards are also susceptible to wearing out faster in hard water areas.

Symptoms of a bad control board include:

• The oven not heating up properly or preheating slowly
• Inaccurate temperature readings
• Failure to maintain set temperatures
• Lights or timers not functioning correctly
• Random or unexpected shutting off during use

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Color: Black

Color: White

Color: Stainless

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

The Thermal Fuse is an OEM part for Whirlpool ovens. It acts as a safety device that prevents the oven from overheating. When the oven reaches an unsafe temperature, the thermal fuse cuts off power to the heating elements, ensuring the appliance does not overheat and cause potential damage or fire hazards.

Causes of a bad thermal fuse can include frequent overheating, electrical issues, or normal wear and tear over time. These factors can lead to the fuse blowing or becoming ineffective, compromising the safety and functionality of the oven.

Symptoms of a bad Thermal Fuse include:

• The oven not heating up
• The oven shutting off unexpectedly
• No power to the oven's heating elements
• Error codes related to overheating or temperature control

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
