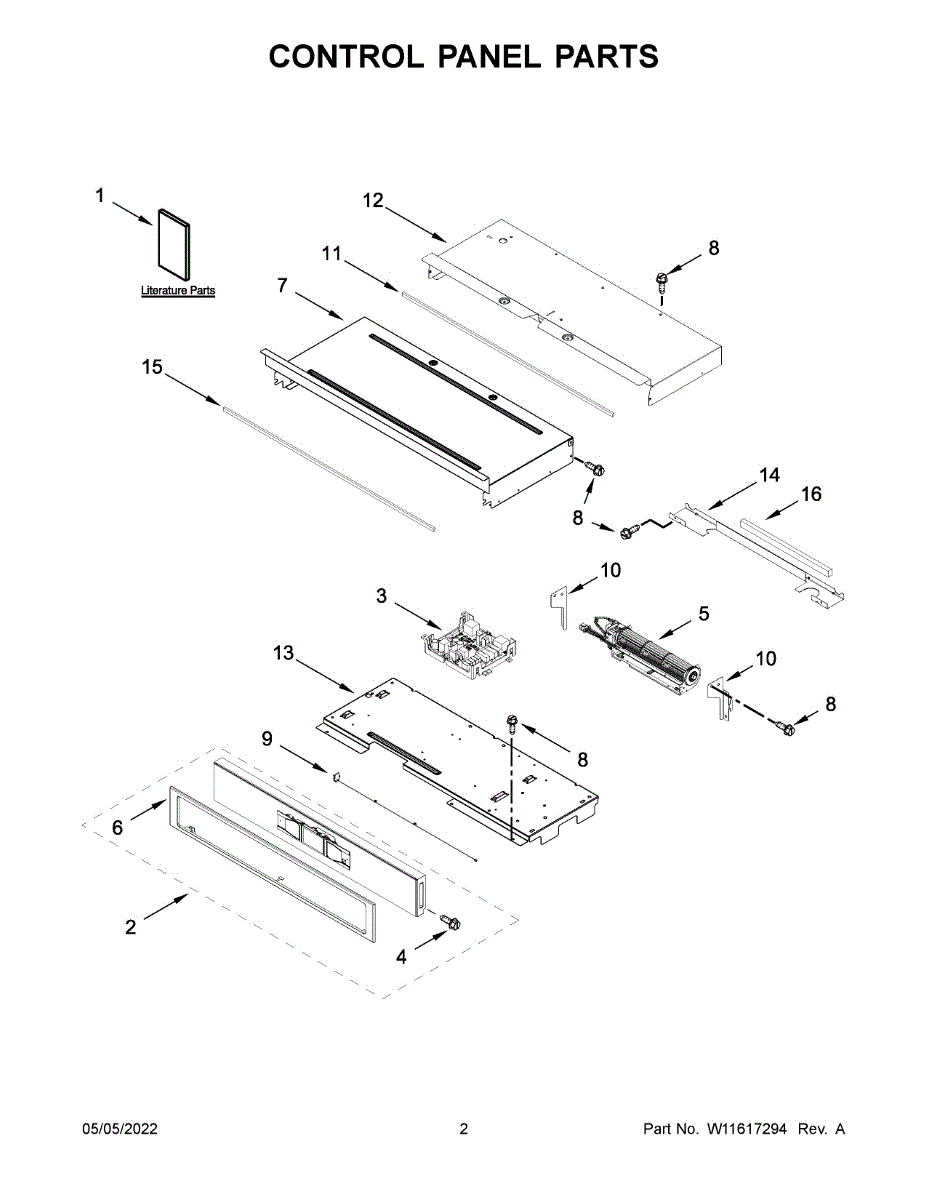

Parts for Whirlpool WOS72EC0HV20: Control Panel Parts

This replacement electronic control board manages the appliance's functions, user inputs and cycle timing so your unit runs the selected programs correctly. Use it to restore control responsiveness and normal cycle operation when the original board fails. What it does:

• Receives and processes user commands from the control panel and starts the appropriate cycles
• Controls timing, relays and communications between sensors and motors
• Commonly used when an appliance won't start, shows no display, displays error codes, or cycles improperly
• Works with associated relays and touch controls to regulate operation

• Always disconnect power before servicing; this part handles live voltages
• Handle the board carefully to avoid static discharge and physical damage
• May require removal of the console or control housing; keep track of screws and connectors

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

This wire harness routes power and signals between the appliance control and its components, restoring reliable electrical connections for normal operation. It replaces a damaged, burned, or disconnected harness to help components receive proper power and control signals. What it does:

• Connects control board outputs to motors, heaters, sensors, or switches so components operate as commanded
• Restores intermittent or lost power caused by frayed, melted, or broken wiring
• Prevents shorts and improper operation from damaged or exposed conductors
• Matches factory routing and connector types for correct fit and function

• One factory-style wire harness

• Disconnect power to the appliance before servicing to avoid shock or injury
• Compare new harness to the old one for connector types and routing before installation
• Route and secure the harness following factory clips and channels to prevent pinching or rubbing
• Replace or repair damaged connectors or terminals at the control or component before reconnecting

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
