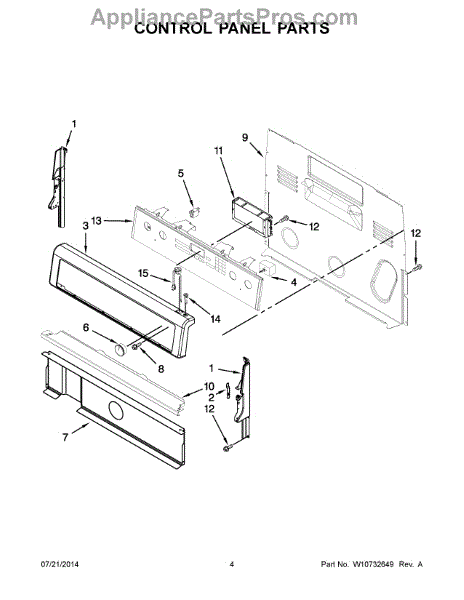

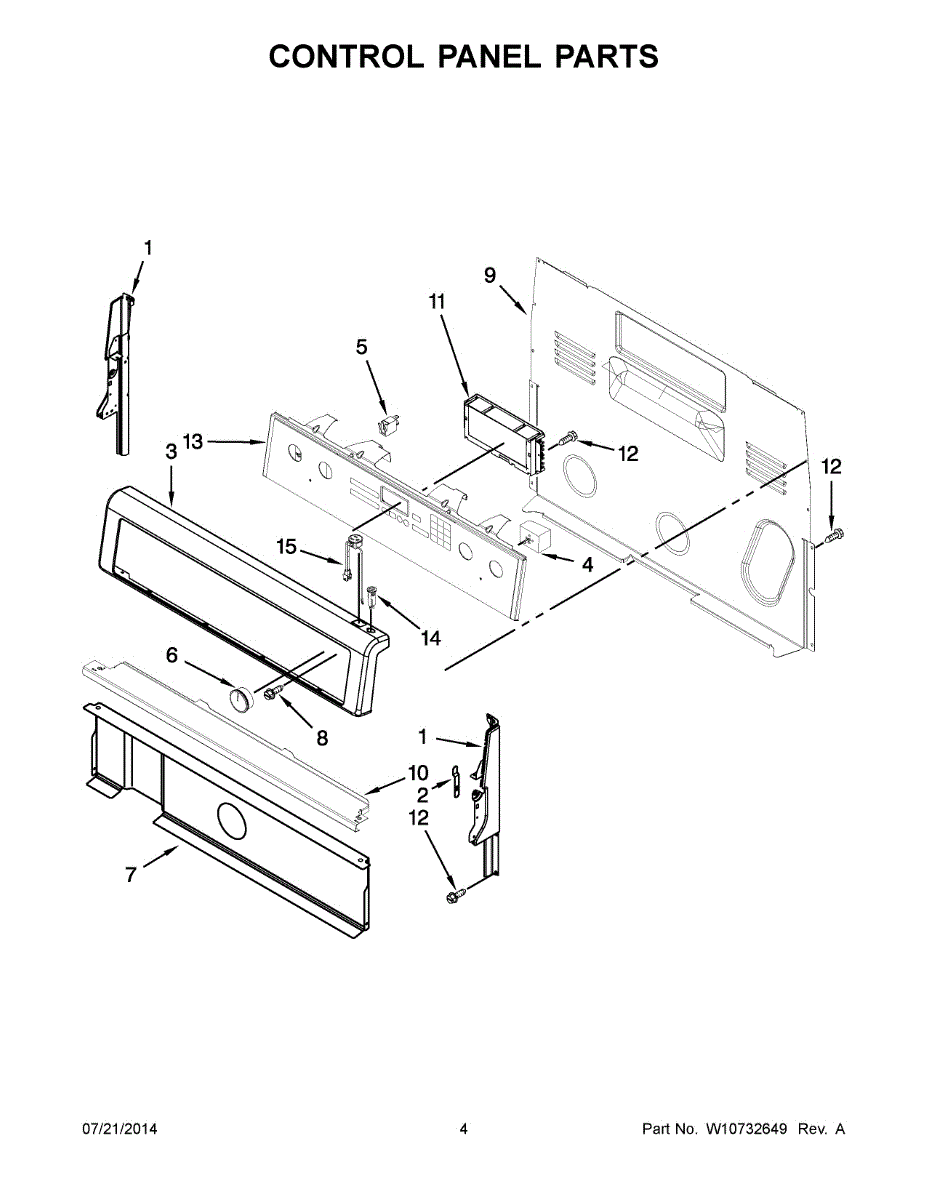

Parts for Whirlpool YWFE710H0DE0: 03 - Control Panel Parts

Color: White  Note: Left side endcap

Color: Black   Note: Left side endcap

Color: Black   Note: Right side endcap

Color: White  Note: Right side endcap

This spring clip is a small metal retainer used to secure wiring or small components in place, preventing movement and accidental disconnection. It helps maintain reliable electrical and mechanical connections inside the appliance. What it does:

• Holds wiring harnesses or small terminals securely to reduce chafing and intermittent connections
• Keeps connectors and small components from shifting during operation or transport
• Helps prevent wire strain that can cause shorts or loss of function
• Commonly replaced when clip is bent, broken, or missing and wiring becomes loose

• One spring clip

• Turn off power to the appliance at the breaker before inspecting or replacing
• Use needle-nose pliers to compress and seat the clip; avoid forcing or over-bending
• Verify the clip secures the intended wire or terminal without pinching insulation
• If wiring shows damage, replace the wiring/harness per OEM guidance rather than relying on the clip alone

This control panel is the front console assembly that houses the keypad and display so you can select functions and see status. It restores user control and visible feedback when the original console is cracked, unresponsive, or damaged. What it does

• Provides the push-button keypad for selecting cycles, times and options.
• Houses the display/indicator area so settings and status are visible.
• Routes user input to the appliance control board so commands are registered.
• Helps prevent further damage or debris entry when the original panel is broken.

• Disconnect power to the appliance before starting any repair to avoid shock.
• Handle the panel and any display lens carefully to avoid scratching or cracking.
• Reattach any ribbon cables or connectors gently and secure mounting screws snugly; test operation before final reassembly.

The Infinite Switch is an OEM part for Whirlpool ranges. This switch is responsible for controlling the operation of the surface element on your range, allowing you to adjust the heat levels for cooking.

A bad surface element switch can occur due to regular wear and tear, electrical issues, or physical damage. If you notice symptoms such as an unresponsive switch, inability to adjust the heat levels, or inconsistent heating, it may be time to replace the surface element switch.

Symptoms of a bad surface element switch include:

• Unresponsive switch
• Inability to adjust heat levels
• Inconsistent or inadequate heating

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Infinite Switch is an OEM replacement part for Whirlpool ranges. It is responsible for regulating the power and heat output of the surface elements on your range, allowing you to adjust the temperature for cooking.

A bad surface element control infinite switch can occur due to wear and tear, electrical issues, or damage to the switch mechanism. If you notice symptoms such as inability to adjust the temperature, uneven heating, or the surface element not turning on or off, it may indicate a faulty infinite switch.

Symptoms of a bad infinite switch include:

• Inability to adjust the temperature
• Uneven heating
• Surface element not turning on or off

Restore your range by replacing the faulty or damaged surface element control infinite switch with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Infinite Switch is an OEM part for Whirlpool ranges. It contains internal switches that control cooking functions and safety features.

Causes of a bad switch set can be related to prolonged high-heat exposure, moisture, or accidental impact damage. Over many uses, normal component wear also occurs.

Symptoms of a bad switch include:

• Inoperable or unresponsive dials/buttons
• Failure to ignite burners or maintain set temperatures
• Stovetop elements do not turn off properly
• Oven will not initiate bake or broil cycles

This switch replacement is also compatible with select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.

Surface unit indicactor light.

This replacement control knob lets you select settings again when the original is cracked, stripped, or missing. It fits onto the control shaft to provide a secure, easy-to-grip interface for everyday operation.

• Replaces a broken, worn, or missing selector knob
• Restores smooth, positive turning of the control shaft
• Helps ensure the pointer aligns with settings and the Off position
• Common symptoms: knob cracks, spins freely, slips, or falls off

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the old knob straight off; avoid prying or twisting past the stops
• Align the new knob with the stem shape and push straight on until fully seated
• Verify smooth operation and proper alignment with the Off position after installation

This machine screw is used across appliances to secure brackets, covers, and internal components. Replacing a missing or stripped fastener helps keep parts aligned and tight, reducing vibration and preventing loose or shifting assemblies.

• Provides machine-thread fastening for panels, brackets, and internal parts
• Helps eliminate rattling, vibration, and loose fits
• Restores proper attachment when the original screw is stripped, missing, or corroded
• Used wherever an 8-32 screw is specified in the service manual or parts list

• Disconnect power to the appliance; turn off gas/water if applicable
• Match the screw to the original location to confirm size and thread
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten to prevent stripping or cracking

This upper electrical cover protects and conceals the appliance's control box and wiring, helping keep electrical components safe from dust and accidental contact. It restores a finished appearance and supports secure mounting of the console area. What it does:

• Covers and shields the control box and wiring from dust, debris and accidental contact.
• Helps keep electrical connections secure by providing a proper mounting surface for the console.
• Restores the appliance's exterior appearance when the original cover is cracked, warped or missing.
• Reducing exposed components can help avoid nuisance issues like loose connectors or intermittent controls.

• Disconnect power (unplug or shut off the breaker) before starting any work.
• Handle panels carefully — metal edges can be sharp; wear gloves if needed.
• Keep original screws/fasteners or replace with equivalent OEM screws; verify alignment before tightening.

This control bracket secures the appliance control or console assembly, keeping the control board and user interface stable for reliable operation. It helps prevent loose or misaligned controls that can affect button response or display visibility. What it does:

• Provides a rigid mounting surface for the control board or console assembly
• Keeps control components aligned and stable during normal use
• Helps reduce vibration-related connector or wire stress
• Can restore proper fit and button alignment when the panel is loose

• One control bracket

• Disconnect power to the appliance before starting any repair
• Handle the control board and wiring harness carefully to avoid damage
• Basic hand tools (screwdriver, nut driver) are typically required for removal/installation
• Reuse existing screws or verify hardware compatibility

The Electronic Control Board is an OEM part for Whirlpool ranges. This control board manages and regulates the range's functions, including oven temperature settings, timer operations, and control of the heating elements.

Causes of a bad electronic control board include electrical surges, overheating, and aging components.

Symptoms of a bad Electronic Control Board include:

• The range not heating properly
• Error codes displayed on the control panel
• Unresponsive or erratic buttons and controls
• Inability to set or maintain temperatures accurately

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
