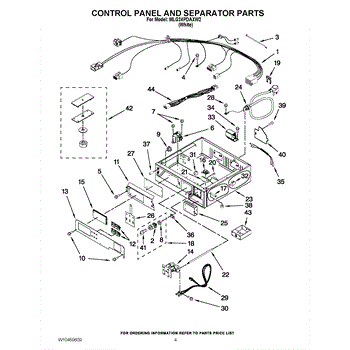

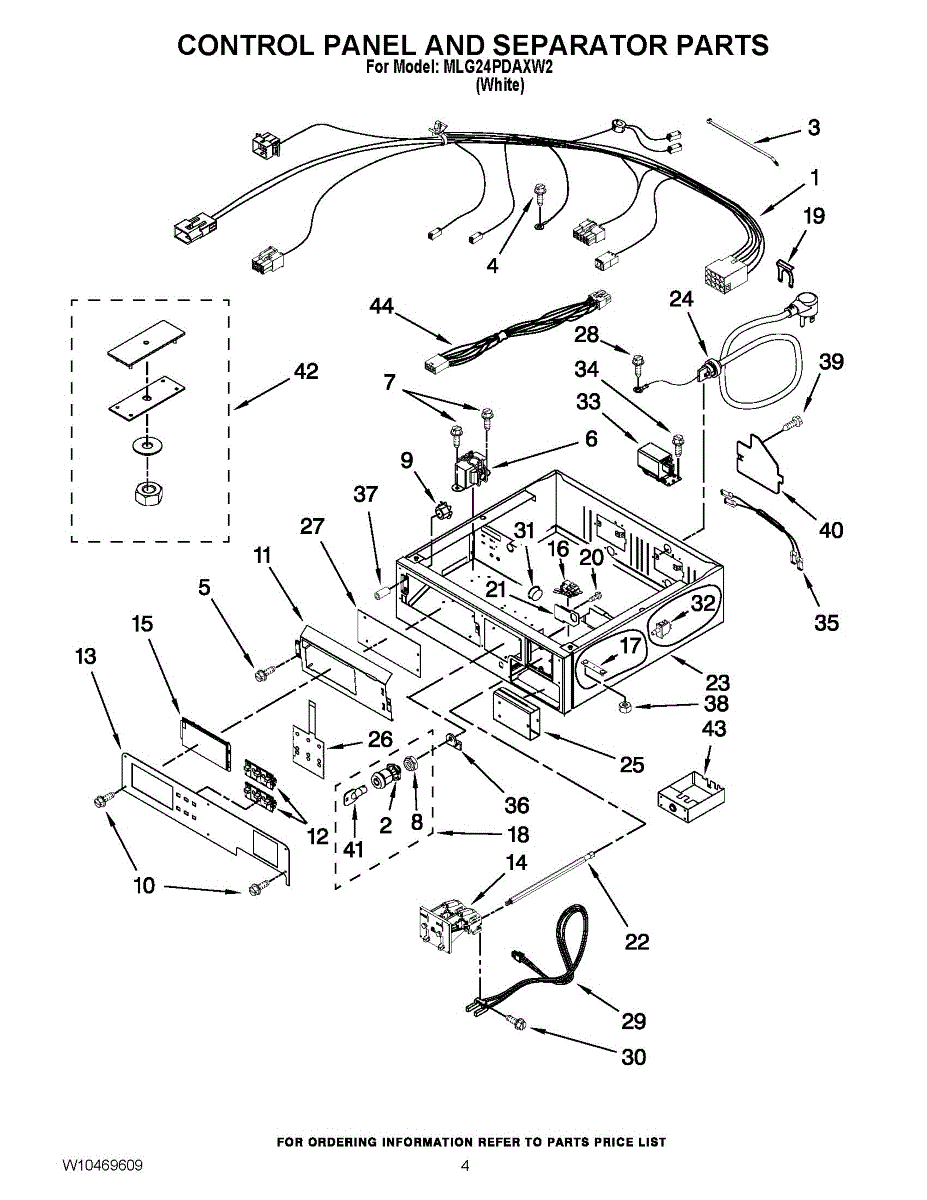

Parts for Maytag MLG24PDAXW2: 02 - Control Panel And Separator Parts

This condenser tie is a small plastic wire tie used to secure the condenser assembly or related wiring and tubing in place. It helps prevent rubbing, vibration noise, and loose routing that can cause wear or interference. What it does:

• Secures condenser coils, wiring harnesses, or drain/tubing to the appliance frame
• Prevents rubbing and vibration that can cause noise or premature wear
• Keeps wiring and tubing routed away from moving parts and hot surfaces
• Helps maintain tidy component placement for reliable operation

• Disconnect power to the appliance before servicing.
• Use pliers or a tie tool to snug the tie; trim excess tail flush to avoid sharp edges.
• Single-use plastic ties may need replacement if cut for removal.
• Route tied components clear of fans, sharp edges, and heating elements.

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

This control transformer converts household line voltage to the low-voltage feed used by the appliance's control and components, restoring reliable power to timers, relays, and sensors. It's a direct-replacement electrical transformer designed for plug-and-play swap when the original is faulty. What it does:

• Steps down 120VAC line voltage to the appliance's low-voltage control circuit so controls and relays operate correctly.
• Commonly replaces a failed or intermittent transformer that causes control failures, no-power to timers, or unresponsive electronic components.
• Helps restore stable control voltage when the original transformer is noisy, overheats, or delivers inconsistent output.
• Fits the OEM mounting and wiring layout for a clean replacement without modifying existing harnesses.

• One replacement transformer

• Disconnect power at the breaker or unplug the appliance before any service—verify power is off.
• Match wiring colors and terminal positions to the original; secure all connections and use strain reliefs where present.
• Inspect mounting hardware and gaskets; replace any damaged fasteners for a secure fit.

This lock assembly secures the appliance access panel and restores a proper, stable latching action for safe operation. It replaces a worn or broken access lock so the panel stays closed when the appliance is in use. What it does:

• Provides a secure latch for the access/service panel to prevent unintended opening
• Replaces damaged, bent, or non-engaging lock components that cause loose or rattling panels
• Helps restore normal operation when a panel won't stay closed or is difficult to latch
• Works as the mechanical locking point for service access, improving user safety during operation

• One access lock assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Removal may require a screwdriver and access to the service panel; keep fasteners for reassembly
• Handle plastic clips and tabs carefully to avoid breakage; replace any damaged fasteners

The Push Button is an OEM part for Whirlpool Laundry Centers. This part starts the wash or dry process, and making adjustments to settings. The push button is engineered for durability and a precise fit, ensuring it integrates seamlessly with the appliance's control panel.

Causes of a malfunctioning push button can include repeated use leading to wear and tear, accumulation of lint or detergent residue affecting its functionality, or damage to the button's contacts or the control panel circuitry.

Symptoms of a bad Push Button include:

• Difficulty in engaging the desired cycle or setting
• The button feeling stuck or failing to return to its original position after being pressed
• The appliance not responding to button presses, resulting in an inability to start or modify cycles

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This display cover protects and finishes the appliance control panel, keeping the touchpad and display lens safe while restoring a clean, readable appearance. Replaces a cracked, faded, or scratched panel trim. What it does:

• Shields the control board area from dust, spills, and everyday wear
• Restores a clear view of the display and touchpad markings for easier use
• Improves the appliance's appearance by replacing damaged or discolored trim
• Helps prevent debris from interfering with buttons or electronic controls

• Disconnect power before starting any repair to avoid shock or damage
• Remove any outer trim or screws to access the control panel; handle the cover gently to avoid breaking retention clips
• Keep track of small fasteners and note orientation for correct reassembly
• Avoid touching circuit board contacts or components when replacing the cover

This service access switch is the OEM-style replacement switch that detects and secures the appliance's service or control access point, helping technicians safely access internal components during diagnostics and repair. What it does:

• Detects whether the service/access panel or console is opened and signals the control board accordingly
• Helps prevent operation while the access panel is open for safer service
• Restores proper access-sensing when a worn or failed switch causes service-mode or control interlock issues
• Compatible where the appliance uses a dedicated access/service switch for control-board interlock functions

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove necessary panels or console to access and replace the switch
• Handle near control boards with care to avoid ESD damage; reconnect all wiring securely
• After installation, restore power and verify the switch correctly senses panel position and that the appliance operates normally

This lock assembly secures the appliance access panel and restores a proper, stable latching action for safe operation. It replaces a worn or broken access lock so the panel stays closed when the appliance is in use. What it does:

• Provides a secure latch for the access/service panel to prevent unintended opening
• Replaces damaged, bent, or non-engaging lock components that cause loose or rattling panels
• Helps restore normal operation when a panel won't stay closed or is difficult to latch
• Works as the mechanical locking point for service access, improving user safety during operation

• One access lock assembly

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Removal may require a screwdriver and access to the service panel; keep fasteners for reassembly
• Handle plastic clips and tabs carefully to avoid breakage; replace any damaged fasteners

A short self-tapping screw used to fasten appliance panels and trim so components stay secure and aligned. Replacing a worn or missing screw restores proper fit and reduces rattling or loose parts. What it does

• Fastens panels, trim, and small assemblies to the appliance frame
• Keeps control panels, access panels, and bezels securely mounted
• Replaces stripped, rusted, or missing fasteners that cause vibration or rattling
• Helps maintain proper alignment of removable panels and covers

• One short self-tapping screw

• Disconnect power before working on the appliance to avoid shock or injury
• Use the correct screwdriver and hold parts in place while installing to avoid cross-threading
• Do not overtighten — stop when the panel is snug to prevent stripping or cracking
• Replace with the exact part number to ensure proper fit and function

This is a 10-32 threaded bolt used to fasten and secure appliance components. It provides a simple, reliable replacement for stripped or missing fasteners to keep panels and assemblies held in place. What it does

• Secures panels, brackets, or assemblies where a 10-32 threaded fastener is required
• Stops loose parts that can vibrate, rattle, or shift during operation
• Restores proper fit and alignment for affected components
• Matches common OEM fastener function for a direct-replacement fit

• Use the correct screwdriver or socket to avoid stripping the head
• Tighten to snug condition; do not over-torque—excessive force can strip threads
• Replace any damaged mating nut or threaded insert for reliable fastening
• Disconnect power and follow appliance-specific safety procedures before servicing

This is a replacement power cord that restores electrical connection between your appliance and the household outlet, letting the appliance receive mains power safely. It replaces a damaged or worn cord to help restore normal operation. What it does:

• Carries mains voltage from the wall outlet to the appliance so it can power up and operate
• Replaces frayed, melted, or broken cords that can cause intermittent power or no power at all
• Helps eliminate arcing or loose connection symptoms that may trip breakers or cause burning smells
• Restores a secure, strain-relieved connection when the original cord or terminal is damaged

• One replacement power cord

• Always disconnect power at the breaker or unplug the appliance before replacing the cord
• Route the cord and secure the strain relief or clamp per the appliance's wiring access panel

This replacement switch restores reliable on/off control for the matched function in your appliance. A worn or sticking switch can prevent components from powering correctly; replacing it helps bring back consistent, safe operation.

• Opens and closes an electrical circuit to control a specific component
• Actuates via a knob, button, lever, or door/lid mechanism
• Common symptoms: unit or component won't start/turn on, intermittent operation, or must press/hold to work
• Visual clues: loose actuator, heat discoloration, or burned terminals

• Disconnect power before servicing; verify no voltage with a meter
• Document wire positions; move leads to the new switch one at a time
• Secure the switch in the original orientation and ensure proper actuator alignment
• Restore power and test the controlled function for proper operation

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

A general-purpose 6-20 screw used to secure panels, brackets and small components on Whirlpool appliances. Replaces stripped or missing fasteners to restore a snug fit and reduce rattling or loose parts. What it does:

• Secures appliance panels, trim, brackets and internal components in original mounting locations.
• Stops panel movement, vibration noise and loose connections caused by missing or corroded screws.
• Fits the OEM 6-20 thread designation used on multiple Whirlpool assembly points.
• Sold individually for spot repairs and small part replacements.

• Disconnect power or gas supply to the appliance before starting any repair.
• Use the correct screwdriver or bit to avoid stripping the head; tighten until snug but do not overtighten.
• Replace like-for-like; stop and verify the correct fastener for the mounting point.
• Check the appliance's parts diagram for the exact screw location and orientation.

This 3/8-16 nut secures appliance components and helps prevent loosening and vibration. Replace a worn, stripped, or missing nut to restore a tight, reliable connection and consistent operation.

• Provides a 3/8-16 threaded fastener connection for applicable bolts or studs
• Helps keep brackets, panels, and other parts firmly in place
• Replaces damaged or missing hardware that can cause looseness or rattling
• Signs of failure include rounded corners, stripped threads, corrosion, or inability to tighten securely

• Disconnect power and, if applicable, shut off water and gas before servicing
• Match thread size to the original part; start threading by hand to avoid cross-threading
• Reinstall any washers/spacers in the original order; tighten securely without over-tightening
• If the original used a locking feature or threadlocker, reinstall per your product's service information

This replacement cover restores the appliance's finished appearance and protects internal components from dust and debris. It's a direct-fit exterior trim piece designed to replace a cracked, broken, or missing cover. What it does:

• Protects internal components and wiring from debris and accidental contact
• Restores the appliance's cosmetic appearance and helps maintain sealing
• Helps reduce dust buildup in the covered area
• Replaces damaged or missing trim that can expose sharp edges or hardware

• Disconnect power (unplug or switch off circuit breaker) before beginning work
• Basic hand tools may be required; follow for panel removal/replacement
• Handle carefully to avoid scratching the finish and watch for sharp edges
• Replace with manufacturer-recommended fasteners

This access door key operates the factory lock on select appliances. It replaces a lost or worn key so you can securely lock or unlock the access door and restore normal, controlled access to the compartment.

• Locks or unlocks the access door via the built-in lock cylinder
• Restores function when the original key is missing, bent, or broken
• Helps resolve situations where the door can't be opened or secured due to a worn key
• Maintains restricted access to the compartment when needed

• Verify this key matches your model's lock; keys are not universal
• Insert fully and turn gently—do not force a stuck lock
• If the lock cylinder is damaged or seized, replace the lock assembly
• Disconnect power if removing the door or servicing internal components
