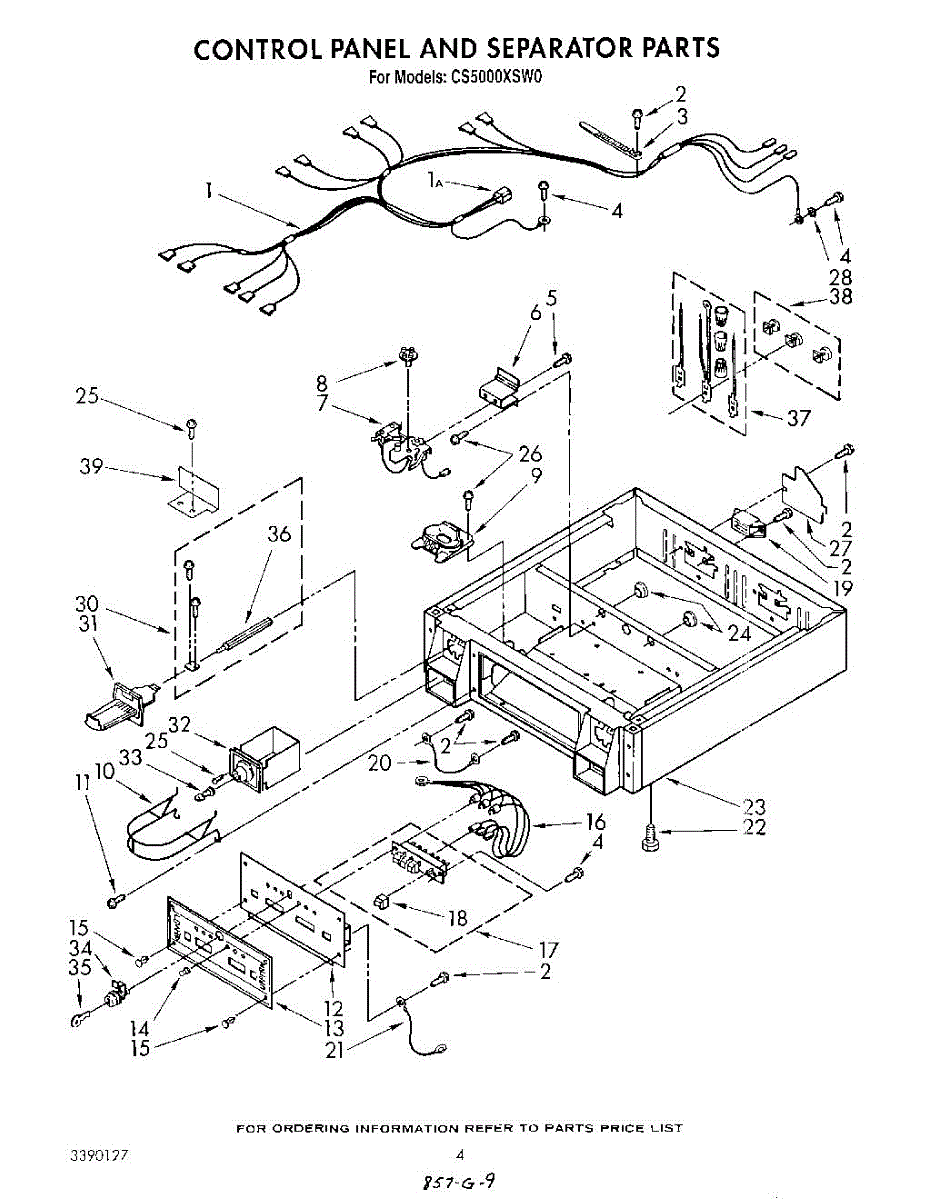

Parts for Whirlpool CS5000XSW0: 03 - Control Panel And Separator Parts

10-24 x 1/2 inch mounting screw for securing appliance panels, handles, brackets, and internal components. Replace lost, stripped, or damaged screws.

Size: 10-24 x 3/8 inch.

Dryer won't advance through cycles or keeps running after finishing? This timer controls cycle sequencing and shutoff. Typical DIY repair in 15 minutes.

6 Pin 30 minute

Dryer timer stuck or not advancing through cycles? The timing cam controls cycle progression. Worn cams cause timers to stall mid-cycle or fail to move.

3 pin 60 minute

Size: 10-32 x 1/2 inch.

The Push Button Switch is an OEM part for Whirlpool washing machines. This part activates various functions and cycles on the control panel of the washer. The switch is designed to ensure responsive and reliable operation when selecting wash settings.

Causes of a bad push button switch can include wear and tear from frequent use, exposure to moisture, or physical damage from impacts.

Symptoms of a bad push button switch include:

• Unresponsive buttons on the control panel
• Inability to start or change wash cycles
• Intermittent operation of washer functions
• Error codes related to control panel issues

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Terminal Block Kit is an OEM part for Whirlpool dryers. This kit includes the terminal block, wires, wire connectors, screws, brackets and instructions.

Common causes of a bad terminal block include overheating due to loose connections, corrosion from moisture exposure, and physical damage from handling or installation errors.

Symptoms of a bad terminal block kit include:

• Dryer not starting or losing power during operation
• Burning smell or visible burn marks near the terminal block
• Loose or frayed wires connected to the terminal block
• Intermittent electrical issues or malfunctioning controls

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw-washer assembly secures panels, brackets, and other appliance components. The integrated washer spreads load and resists loosening, so replacing a worn or missing fastener restores a tight, reliable fit and helps eliminate rattles.

• Provides fastening with a built-in washer for even clamping and retention
• Replaces missing, stripped, or corroded hardware
• Helps address loose panels/handles and vibration or rattle noises
• Supports proper alignment of covers, brackets, and trim

• Disconnect power and shut off water or gas (as applicable) before servicing
• Match to the original fastener; location and quantity in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten; replace other severely rusted or damaged fasteners in the same area

This is the outer cover that protects the electrical terminal block on the back of a dryer. It shields the power cord connection point from accidental contact and helps prevent dust or debris from reaching the wiring terminals. Replace this cover if it is cracked, broken, or missing to ensure safe operation and protect the electrical connections.

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.

Includes screws and wire connectors. For the complete terminal block kit use 279320.

Dryer won't power on or has loose power cord connection? This terminal block screw kit secures electrical connections. Easy DIY fix in 15 minutes.

Bracket extension for dryers and laundry centers. Mounts to provide structural support for internal components. Replace if bent, broken, or missing.

Spray paint. Color: Toast. Size: 12 oz. can.

Spray paint. Color: Platinum. Size: 12 oz. can.

Bottle with brush. Color: Toast. Size: 0.6 fl.oz.

Touch-up paint. Color: Almond. Size: 1 qt. can. (Uncut)

Spray paint. Color: Harvest gold. Size: 12 oz. can.

Touch-up paint. Color: Harvest gold. Size: 1 qt. can.

Touch-up paint. Color: Toast. Size: 1 qt. can.

Touch-up paint. Color: Platinum. Size: 1qt. can.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Touch up paint for appliances with chips, scratches, or worn spots. Includes brush applicator. Restores finish on damaged surfaces. 0.6 fl oz.

0.6 oz. platinum touch-up paint with brush for appliances. Repairs scratches, chips, and gouges on doors, handles, and trim panels. Acrylic formula.

Touch-up paint for appliances in almond color. Repairs chips, scratches, and worn spots on ovens, refrigerators, microwaves, and dryers.

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

Almond. Size: 13 oz. can. Acrylic appliance paint.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Touch-up paint for covering scratches, chips, and minor blemishes on appliance exteriors. Restores appearance and protects surfaces when finish is damaged.
