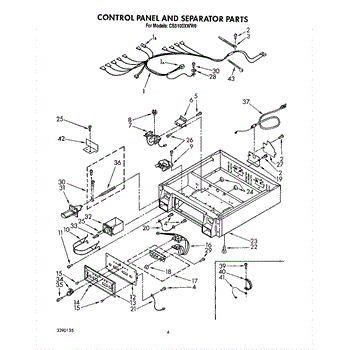

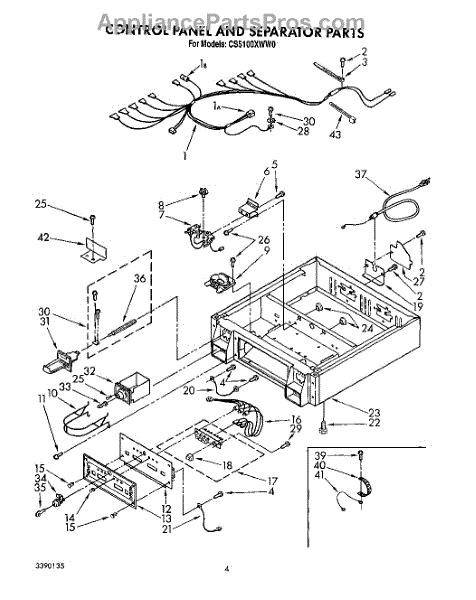

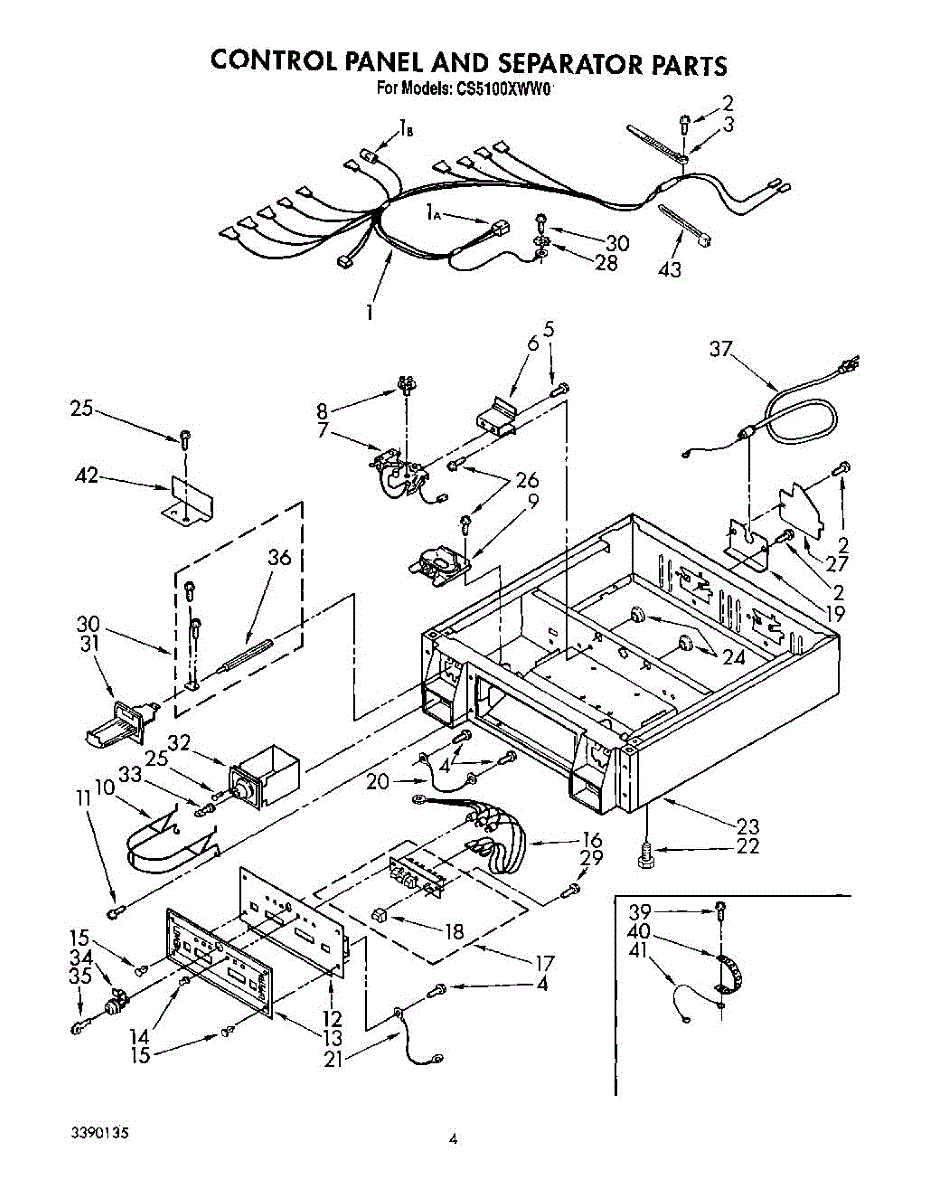

Parts for Whirlpool CS5100XWN0: 03 - Control Panel And Separator Parts

This is a fastener screw used to secure appliance panels and components where a 10-24 thread is required. It provides a reliable hold for reattaching parts during repairs and maintenance. What it does:

• Fastens panels, brackets, or components with a 10-24 threaded hole
• Restores original attachment points that have missing or damaged screws
• Helps reduce vibration and rattling when properly tightened
• Works with metal or reinforced plastic mating components designed for 10-24 hardware

• One screw (quantity: 1)

• Use the matching 10-24 driver/socket and turn until snug; avoid over-tightening
• Verify mating threads and alignment before driving to prevent cross-threading
• Disconnect power and follow appliance safety procedures before servicing
• Check for proper washer or spacer if originally present

This mechanical timer controls your dryer's cycle sequencing. It advances through timed and automatic settings, routes power through internal contacts, and shuts the unit off at the end of the cycle to restore reliable operation.

• Advances cycles in timed and auto-dry modes
• Directs power to motor/heater via internal switch contacts
• Ends the cycle and turns the dryer off at completion
• Failure symptoms include the timer not advancing, dryer running continuously, won't start on certain settings, or auto-dry not progressing

• Disconnect power; turn off gas supply for gas models before servicing
• Access the timer from the control console; remove the knob/dial if needed
• Transfer wires one at a time to matching terminals on the new timer
• Mount the timer securely, reinstall panels/knob, and run a test cycle

6 Pin 30 minute

The Timing Cam is an OEM part for Whirlpool dryers. This is part of the dryer's timer mechanism and manages the sequence and duration of drying cycles.

Causes of a bad Timing Cam often stem from mechanical wear and tear over extended use, which can lead to the cam becoming worn down or damaged.

Symptoms of a bad Dryer Timing Cam include:

• The dryer not advancing through its cycles properly, leading to under or over-dried clothes.
• The dryer stopping mid-cycle or failing to start a cycle at all, indicating the cam isn't engaging the timer contacts correctly.
• Unusual noises from the timer area, which may suggest the cam is damaged or misaligned.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 10-32 x 1/2 inch.

The Push Button Switch is an OEM part for Whirlpool washing machines. This part activates various functions and cycles on the control panel of the washer. The switch is designed to ensure responsive and reliable operation when selecting wash settings.

Causes of a bad push button switch can include wear and tear from frequent use, exposure to moisture, or physical damage from impacts.

Symptoms of a bad push button switch include:

• Unresponsive buttons on the control panel
• Inability to start or change wash cycles
• Intermittent operation of washer functions
• Error codes related to control panel issues

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This screw-washer assembly secures panels, brackets, and other appliance components. The integrated washer spreads load and resists loosening, so replacing a worn or missing fastener restores a tight, reliable fit and helps eliminate rattles.

• Provides fastening with a built-in washer for even clamping and retention
• Replaces missing, stripped, or corroded hardware
• Helps address loose panels/handles and vibration or rattle noises
• Supports proper alignment of covers, brackets, and trim

• Disconnect power and shut off water or gas (as applicable) before servicing
• Match to the original fastener; location and quantity in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten; replace other severely rusted or damaged fasteners in the same area

This replacement cover restores the appliance's finished appearance and protects internal components from dust and debris. It's a direct-fit exterior trim piece designed to replace a cracked, broken, or missing cover. What it does:

• Protects internal components and wiring from debris and accidental contact
• Restores the appliance's cosmetic appearance and helps maintain sealing
• Helps reduce dust buildup in the covered area
• Replaces damaged or missing trim that can expose sharp edges or hardware

• Disconnect power (unplug or switch off circuit breaker) before beginning work
• Basic hand tools may be required; follow for panel removal/replacement
• Handle carefully to avoid scratching the finish and watch for sharp edges
• Replace with manufacturer-recommended fasteners

Screw: 8-16 x 3/8 inch.

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

This power cord connects your appliance to household electricity, supplying safe, reliable power to its controls and components. Replace a damaged or overheated cord to restore dependable operation and reduce the risk of shorts.

• Supplies AC power from the wall outlet to the appliance's electrical system
• Helps resolve no power, intermittent power loss, or tripped breaker issues
• Replace if the cord is cut, frayed, melted, discolored, or feels hot at the plug
• Restores safe operation when the original plug or insulation is damaged

• Disconnect power at the outlet or circuit breaker before servicing
• Note wire routing and connection points; match the original orientation for hot, neutral, and ground
• Seat the cord properly and secure with the model's required strain relief or clamp to prevent tension on terminals
• Ensure the cord is not pinched and is clear of sharp edges, hot surfaces, and moving parts; test for proper operation
