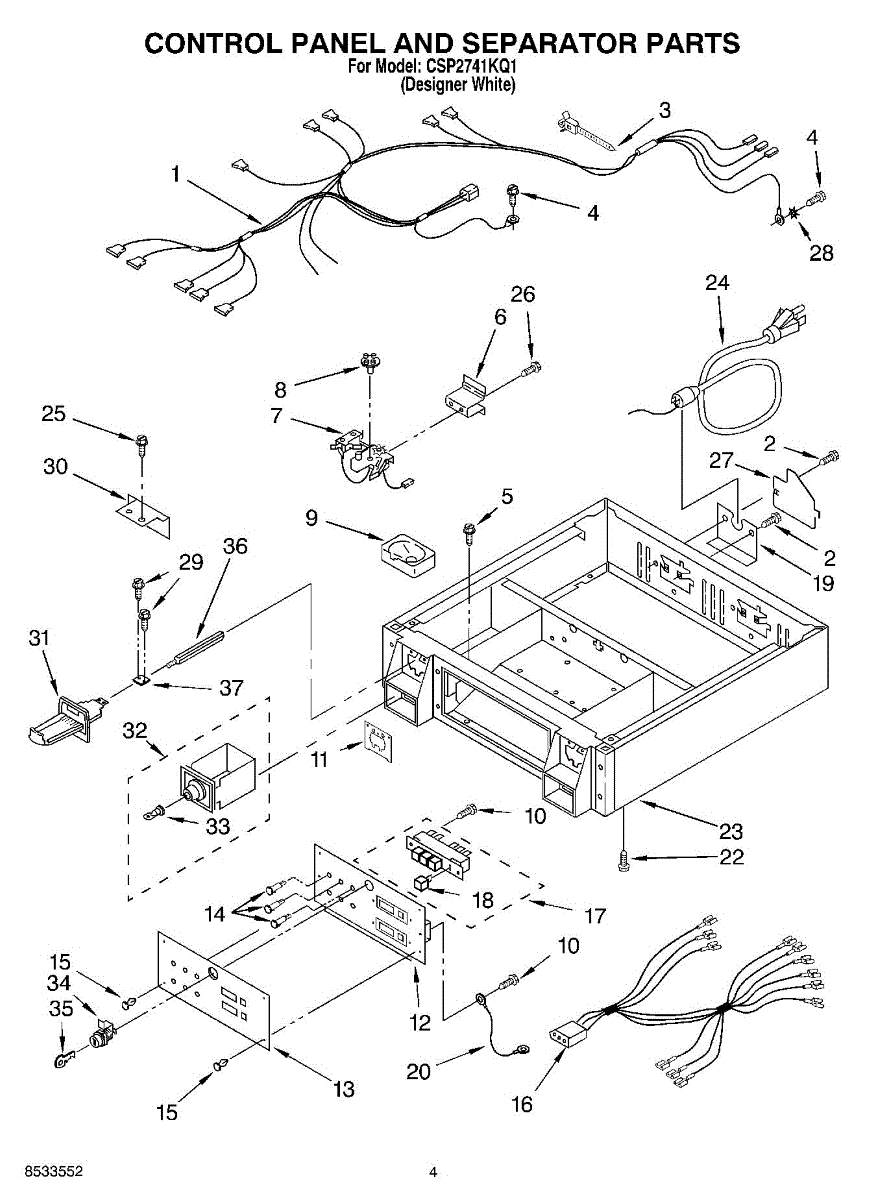

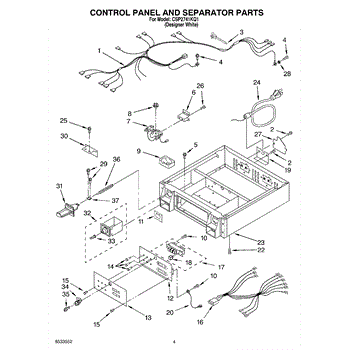

Parts for Whirlpool CSP2741KQ1: 04 - Control Panel And Separator Parts

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses

Replacement screw secures panels, brackets, and internal assemblies. Needed when original hardware is stripped, corroded, or missing to keep parts tight.

Dryer won't advance through cycles or keeps running after finishing? This timer controls cycle sequencing and shutoff. Typical DIY repair in 15 minutes.

12 Pin 15 Minute

9 Pin 20 Minute

6 Pin 30 minute

Dryer timer stuck or not advancing through cycles? The timing cam controls cycle progression. Worn cams cause timers to stall mid-cycle or fail to move.

3 pin 60 minute

Channels coins from the coin slide into the collection box on coin-operated laundry equipment. Replace if cracked, damaged, or missing to restore flow.

Screw: 8-16 x 3/8 inch.

Guides dryer airflow from drum to lint screen housing. Replace if cracked, broken, or missing to restore proper air path and contain lint in ductwork.

Replace your dryer's red indicator light bulb when it burns out or stops illuminating. Restores control panel visibility. Verify fit with your model number.

Dryer indicator light bulb illuminates control panel status. Replace when amber light fails to illuminate or dims. Verify fit with your model number.

Replace your dryer's blue indicator lamp when faded or burned out. Restores clear panel visibility for cycle status and features. Verify fit with model.

The Push Button Switch is an OEM part for Whirlpool washing machines. This part activates various functions and cycles on the control panel of the washer. The switch is designed to ensure responsive and reliable operation when selecting wash settings.<

The Push Button Switch is an OEM part for Whirlpool washing machines. This part activates various functions and cycles on the control panel of the washer. The switch is designed to ensure responsive and reliable operation when selecting wash settings.<

This strut is a direct-fit door support that cushions and controls a refrigerator door's opening and closing, helping the door stay in position and reducing abrupt movement or slamming for safer, smoother operation. What it does:

• Cushions and controls door movement to prevent sudden closing or slamming
• Holds the door open or supports it during normal use to keep it from dropping
• Reduces hinge noise and wear by smoothing motion
• Common symptom: door won't stay open, drops, or closes too quickly

• Disconnect power to the appliance before starting work as a general safety precaution
• Support the door or have a second person hold it while removing/installing the strut
• Use basic hand tools; avoid forcing fasteners or components

Replacement machine bolt for securing panels, brackets, and components in dishwashers, dryers, washers, and laundry centers. Restores fit if missing.

This power cord connects your appliance to household electricity, supplying safe, reliable power to its controls and components. Replace a damaged or overheated cord to restore dependable operation and reduce the risk of shorts.

• Supplies AC powe

This screw-washer assembly secures panels, brackets, and other appliance components. The integrated washer spreads load and resists loosening, so replacing a worn or missing fastener restores a tight, reliable fit and helps eliminate rattles.

• Pr

Machine screw fastens panels, brackets, and components inside appliances. Replace stripped, missing, or loose screws to restore secure assembly.

This replacement cover restores the appliance's finished appearance and protects internal components from dust and debris. It's a direct-fit exterior trim piece designed to replace a cracked, broken, or missing cover. What it does:

• Protects inte

Bracket extension for dryers and laundry centers. Mounts to provide structural support for internal components. Replace if bent, broken, or missing.

The Coin Slide is an OEM replacement part for Whirlpool washers. It is vertical 8 coin chute for payment in commercial or coin-operated laundry washers. It provides a secure and reliable mechanism for accepting coins, ensuring smooth operation and hass

The Coin Box is an OEM replacement part for Whirlpool combo washer/dryers. It provides a storage space for coins used to operate the unit. The coin box slots ensure collected change remains safe and secures payments for laundry cycles.

Cau

Washer won't start or door won't unlock? This lock cam drives the door lock mechanism to secure and release the door for proper cycle operation.

This 1/4-20 bolt secures appliance panels, brackets, and components to keep assemblies stable and aligned. It's a direct-fit fastener used where a standard 1/4-20 machine screw is required. What it does:

• Fastens panels, mounting brackets, and in

Bracket extension for dryers and laundry centers. Mounts to provide structural support for internal components. Replace if bent, broken, or missing.
