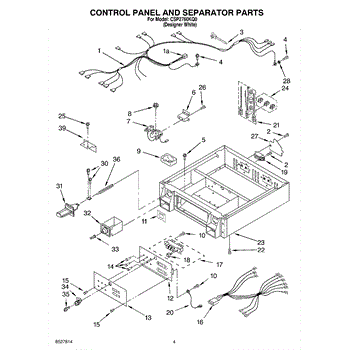

Parts for Whirlpool CSP2760KQ0: 03 - Control Panel And Separator Parts

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

This mechanical timer controls your dryer's cycle sequencing. It advances through timed and automatic settings, routes power through internal contacts, and shuts the unit off at the end of the cycle to restore reliable operation.

• Advances cycles in timed and auto-dry modes
• Directs power to motor/heater via internal switch contacts
• Ends the cycle and turns the dryer off at completion
• Failure symptoms include the timer not advancing, dryer running continuously, won't start on certain settings, or auto-dry not progressing

• Disconnect power; turn off gas supply for gas models before servicing
• Access the timer from the control console; remove the knob/dial if needed
• Transfer wires one at a time to matching terminals on the new timer
• Mount the timer securely, reinstall panels/knob, and run a test cycle

9 Pin 20 Minute

12 Pin 15 Minute

6 Pin 30 minute

The Timing Cam is an OEM part for Whirlpool dryers. This is part of the dryer's timer mechanism and manages the sequence and duration of drying cycles.

Causes of a bad Timing Cam often stem from mechanical wear and tear over extended use, which can lead to the cam becoming worn down or damaged.

Symptoms of a bad Dryer Timing Cam include:

• The dryer not advancing through its cycles properly, leading to under or over-dried clothes.
• The dryer stopping mid-cycle or failing to start a cycle at all, indicating the cam isn't engaging the timer contacts correctly.
• Unusual noises from the timer area, which may suggest the cam is damaged or misaligned.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

3 pin 60 minute

This coin funnel channels coins from the coin slide/drop into the collection box on coin-operated laundry equipment. Replacing a damaged or missing funnel restores smooth coin flow and helps prevent jams and lost coins inside the cabinet.

• Guides coins from the slide/drop into the collection/coin box
• Helps prevent coins from spilling into the cabinet and causing jams
• Cracks, warping, or misalignment can cause coin back-ups or coins showing up inside the machine
• Visible damage or frequent coin jams indicate the funnel should be replaced

• Disconnect electrical power before servicing; for gas dryers, also shut off gas supply
• Remove coin box and open the meter case/console to access the funnel
• Reuse existing mounting hardware; install the new funnel in the same orientation
• Clear debris and test coin travel by hand before reassembly and returning to service

Screw: 8-16 x 3/8 inch.

This replacement funnel guides dryer airflow from the drum into the lint screen housing. Replacing a cracked or missing funnel helps restore a tight air path for efficient drying and keeps lint contained inside the proper ductwork.

• Directs exhaust air from the drum into the lint screen/duct path
• Helps prevent lint blowback and cabinet contamination
• A damaged or warped funnel can cause longer dry times and poor airflow
• Contribute to excess lint in the drum or overheating symptoms

• Disconnect power; for gas models, also shut off the gas supply
• Access is typically through the top or front panel; remove lint duct fasteners as needed
• Transfer and reuse existing mounting hardware and any seals
• Clean lint from mating ducts and ensure an airtight fit before reassembly

This blue indicator lamp notifies you of cycle status or feature activation on compatible appliance control panels. It replaces a faded or burned-out lamp to restore clear, visible panel indicators and improve user feedback. What it does:

• Illuminates control panel lights so status LEDs are visible
• Replaces a burned-out or dim indicator lamp
• Helps restore clear visual feedback for cycle or feature activation
• Fits into the indicator socket on compatible appliance control boards

• One blue indicator lamp

• Disconnect power to the appliance before starting any repair
• Access may require removing the control panel or console—handle plastic components carefully
• Push or gently pull the old lamp from its socket; press the new lamp into the socket until fully seated

The Push Button Switch is an OEM part for Whirlpool washing machines. This part activates various functions and cycles on the control panel of the washer. The switch is designed to ensure responsive and reliable operation when selecting wash settings.

Causes of a bad push button switch can include wear and tear from frequent use, exposure to moisture, or physical damage from impacts.

Symptoms of a bad push button switch include:

• Unresponsive buttons on the control panel
• Inability to start or change wash cycles
• Intermittent operation of washer functions
• Error codes related to control panel issues

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Push Button Switch is an OEM part for Whirlpool washing machines. This part activates various functions and cycles on the control panel of the washer. The switch is designed to ensure responsive and reliable operation when selecting wash settings.

Causes of a bad push button switch can include wear and tear from frequent use, exposure to moisture, or physical damage from impacts.

Symptoms of a bad push button switch include:

• Unresponsive buttons on the control panel
• Inability to start or change wash cycles
• Intermittent operation of washer functions
• Error codes related to control panel issues

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Terminal Block is an OEM replacement part for Whirlpool dryers. It is responsible for distributing electricity to key components that control drying operations.

Symptoms of a bad terminal block include:

• The dryer not heating up properly or failing to achieve the desired temperature
• Components like lights or timers not functioning
• Strange buzzing or humming noises coming from the dryer

Causes of terminal block failure can be worn or damaged wiring terminals, loose connections due to normal vibration, or corrosion buildup over several years of use.

This terminal block is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore dryer models.

Please note: Please note that this part does not include the wires, screws, and nuts. They must be ordered separately. For the complete block assembly use 279320.

This strut is a direct-fit door support that cushions and controls a refrigerator door's opening and closing, helping the door stay in position and reducing abrupt movement or slamming for safer, smoother operation. What it does:

• Cushions and controls door movement to prevent sudden closing or slamming
• Holds the door open or supports it during normal use to keep it from dropping
• Reduces hinge noise and wear by smoothing motion
• Common symptom: door won't stay open, drops, or closes too quickly

• Disconnect power to the appliance before starting work as a general safety precaution
• Support the door or have a second person hold it while removing/installing the strut
• Use basic hand tools; avoid forcing fasteners or components

Includes screws and wire connectors. For the complete terminal block kit use 279320.

This 5/16-18 x 3/4 machine bolt replaces a missing or damaged fastener used to secure panels, brackets and components in many home appliances. It restores proper fit and helps stop rattling or loose parts. What it does:

• Secures panels, brackets or assemblies to maintain proper alignment and safe operation
• Restores clamping force where a stripped or missing bolt lets parts shift or vibrate
• Helps eliminate rattling, scraping or movement caused by loose fasteners
• Matches standard 5/16-18 coarse threads for direct replacement of the OEM bolt

• Disconnect power to the appliance before servicing to reduce shock and injury risk
• Start threads by hand to avoid cross-threading; tighten using the correct socket or wrench
• Do not overtighten; snug to manufacturer torque or until secure to avoid stripping threads
• If the original mating threads are damaged, inspect the receiving part and repair or replace as needed

The Terminal Block Screw Kit is an OEM replacement part for Whirlpool dryers. It is an assembly of screws used to securely fasten electrical terminal blocks within the dryer's control panel. Includes 3 screws and 3 nuts. Screw kit for dryer cord connector.

Over time, terminal block screws can become loose, corroded, or damaged due to regular use or electrical issues. If the terminal block screws are compromised, it can lead to electrical problems or even pose a safety hazard.

Symptoms of a faulty terminal block screw kit include:

• Intermittent power or failure of heating/fan elements to engage
• Repeated blowing of internal fuses or tripping of circuit breakers
• Hot terminal connections detected during operation
• Arc flashes, sparks, or smoke seen around the control panel area

This genuine Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This screw-washer assembly secures panels, brackets, and other appliance components. The integrated washer spreads load and resists loosening, so replacing a worn or missing fastener restores a tight, reliable fit and helps eliminate rattles.

• Provides fastening with a built-in washer for even clamping and retention
• Replaces missing, stripped, or corroded hardware
• Helps address loose panels/handles and vibration or rattle noises
• Supports proper alignment of covers, brackets, and trim

• Disconnect power and shut off water or gas (as applicable) before servicing
• Match to the original fastener; location and quantity in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten; replace other severely rusted or damaged fasteners in the same area

This 10-32 x 3/8 machine screw secures panels and components in many appliances where a small, threaded fastener is required. It replaces stripped, missing, or loose screws to restore stable assembly and reduce vibration. What it does:

• Fastens panels, brackets, and small components using 10-32 unified threads
• Restores secure mounting when screws are missing, stripped, or loose
• Helps stop rattling, misalignment, and intermittent part contact caused by loose fasteners
• Works wherever a 10-32 x 3/8 machine screw is specified by the manufacturer

• Disconnect power or unplug the appliance before servicing
• Use the correct size screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Replace with the same size and thread spec to ensure proper fit and function

This replacement cover restores the appliance's finished appearance and protects internal components from dust and debris. It's a direct-fit exterior trim piece designed to replace a cracked, broken, or missing cover. What it does:

• Protects internal components and wiring from debris and accidental contact
• Restores the appliance's cosmetic appearance and helps maintain sealing
• Helps reduce dust buildup in the covered area
• Replaces damaged or missing trim that can expose sharp edges or hardware

• Disconnect power (unplug or switch off circuit breaker) before beginning work
• Basic hand tools may be required; follow for panel removal/replacement
• Handle carefully to avoid scratching the finish and watch for sharp edges
• Replace with manufacturer-recommended fasteners

The Coin Slide is an OEM replacement part for Whirlpool washers. It is vertical 8 coin chute for payment in commercial or coin-operated laundry washers. It provides a secure and reliable mechanism for accepting coins, ensuring smooth operation and hassle-free lock box transactions.

Symptoms of a bad coin slide include:

• Coins getting stuck or not sliding smoothly
• Failure to register or accept coins
• Inconsistent or unreliable coin acceptance

A faulty coin slide can occur due to regular use, jammed coins, or damage to the internal components. If you experience issues such as coins getting stuck or not registering, it may be time to replace the coin slide.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Coin Box is an OEM replacement part for Whirlpool combo washer/dryers. It provides a storage space for coins used to operate the unit. The coin box slots ensure collected change remains safe and secures payments for laundry cycles.

Causes of a bad coin box can be normal wear from hundreds of deposits, minerals clogging slots, or physical damage compromising security.

Symptoms of a bad coin box include:

• Coins not being accepted or properly collected
• Box distorting shape or developing cracks over time
• Change falling out or going missing

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This lock cam is a small actuator that drives the appliance's door-lock mechanism. It translates the lock actuator's movement into a positive latch, helping the door lock securely when required and release correctly so cycles start and finish properly.

• Interfaces with the lock actuator and latch to engage and release the lock
• Wear, cracking, or rounding can cause the lock not to engage or to stick
• Common symptoms include a door/lid that won't lock or unlock, loose lock lever, clicking without latching, or door/lock-related error messages
• Restores proper linkage travel and switch actuation when the original cam is worn or damaged

• Disconnect power to the appliance before servicing
• Access the lock mechanism per your model; note the cam's orientation and any springs/linkages
• Install the new cam fully seated and ensure it engages the actuator and latch smoothly
• Reassemble, restore power, and test lock operation

This 1/4-20 bolt secures appliance panels, brackets, and components to keep assemblies stable and aligned. It's a direct-fit fastener used where a standard 1/4-20 machine screw is required. What it does:

• Fastens panels, mounting brackets, and internal components to the appliance frame
• Prevents parts from shifting, vibrating, or producing rattling noises
• Restores proper alignment for components that won't sit flush or move under load
• Replaces corroded, stripped, or missing hardware that can cause loose assemblies

• One 1/4-20 bolt

• Disconnect power to the appliance before performing any repairs
• Use the correct socket or wrench for a secure fit; avoid rounded fasteners
• Tighten snugly but avoid over-torquing to prevent thread damage or stripped holes
• Ensure mating threads are clean and free of debris
