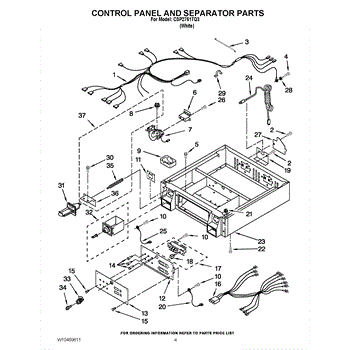

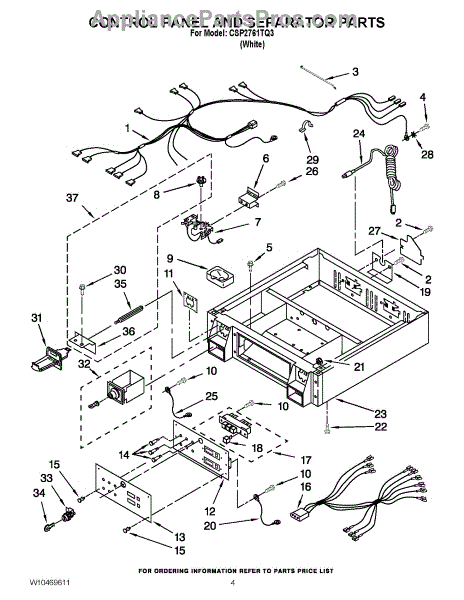

Parts for Whirlpool CSP2761TQ3: 02 - Control Panel And Separator Parts

This condenser tie is a small plastic wire tie used to secure the condenser assembly or related wiring and tubing in place. It helps prevent rubbing, vibration noise, and loose routing that can cause wear or interference. What it does:

• Secures condenser coils, wiring harnesses, or drain/tubing to the appliance frame
• Prevents rubbing and vibration that can cause noise or premature wear
• Keeps wiring and tubing routed away from moving parts and hot surfaces
• Helps maintain tidy component placement for reliable operation

• Disconnect power to the appliance before servicing.
• Use pliers or a tie tool to snug the tie; trim excess tail flush to avoid sharp edges.
• Single-use plastic ties may need replacement if cut for removal.
• Route tied components clear of fans, sharp edges, and heating elements.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Dryer won't advance through cycles or keeps running after finishing? This timer controls cycle sequencing and shutoff. Typical DIY repair in 15 minutes.

6 Pin 30 minute

3 pin 60 minute

Channels coins from the coin slide into the collection box on coin-operated laundry equipment. Replace if cracked, damaged, or missing to restore flow.

Screw: 8-16 x 3/8 inch.

Guides dryer airflow from drum to lint screen housing. Replace if cracked, broken, or missing to restore proper air path and contain lint in ductwork.

Replace your dryer's red indicator light bulb when it burns out or stops illuminating. Restores control panel visibility. Verify fit with your model number.

Dryer indicator light bulb illuminates control panel status. Replace when amber light fails to illuminate or dims. Verify fit with your model number.

Replace your dryer's blue indicator lamp when faded or burned out. Restores clear panel visibility for cycle status and features. Verify fit with model.

The Push Button Switch is an OEM part for Whirlpool washing machines. This part activates various functions and cycles on the control panel of the washer. The switch is designed to ensure responsive and reliable operation when selecting wash settings.

Causes of a bad push button switch can include wear and tear from frequent use, exposure to moisture, or physical damage from impacts.

Symptoms of a bad push button switch include:

• Unresponsive buttons on the control panel
• Inability to start or change wash cycles
• Intermittent operation of washer functions
• Error codes related to control panel issues

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Push Button Switch is an OEM part for Whirlpool washing machines. This part activates various functions and cycles on the control panel of the washer. The switch is designed to ensure responsive and reliable operation when selecting wash settings.

Causes of a bad push button switch can include wear and tear from frequent use, exposure to moisture, or physical damage from impacts.

Symptoms of a bad push button switch include:

• Unresponsive buttons on the control panel
• Inability to start or change wash cycles
• Intermittent operation of washer functions
• Error codes related to control panel issues

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This strut is a direct-fit door support that cushions and controls a refrigerator door's opening and closing, helping the door stay in position and reducing abrupt movement or slamming for safer, smoother operation. What it does:

• Cushions and controls door movement to prevent sudden closing or slamming
• Holds the door open or supports it during normal use to keep it from dropping
• Reduces hinge noise and wear by smoothing motion
• Common symptom: door won't stay open, drops, or closes too quickly

• Disconnect power to the appliance before starting work as a general safety precaution
• Support the door or have a second person hold it while removing/installing the strut
• Use basic hand tools; avoid forcing fasteners or components

Size: 10-32

Replacement machine bolt for securing panels, brackets, and components in dishwashers, dryers, washers, and laundry centers. Restores fit if missing.

This strut is a direct-fit door support that cushions and controls a refrigerator door's opening and closing, helping the door stay in position and reducing abrupt movement or slamming for safer, smoother operation. What it does:

• Cushions and controls door movement to prevent sudden closing or slamming
• Holds the door open or supports it during normal use to keep it from dropping
• Reduces hinge noise and wear by smoothing motion
• Common symptom: door won't stay open, drops, or closes too quickly

• Disconnect power to the appliance before starting work as a general safety precaution
• Support the door or have a second person hold it while removing/installing the strut
• Use basic hand tools; avoid forcing fasteners or components

Machine screw fastens panels, brackets, and components inside appliances. Replace stripped, missing, or loose screws to restore secure assembly.

This is the outer cover that protects the electrical terminal block on the back of a dryer. It shields the power cord connection point from accidental contact and helps prevent dust or debris from reaching the wiring terminals. Replace this cover if it is cracked, broken, or missing to ensure safe operation and protect the electrical connections.

This screw-washer assembly secures panels, brackets, and other appliance components. The integrated washer spreads load and resists loosening, so replacing a worn or missing fastener restores a tight, reliable fit and helps eliminate rattles.

• Provides fastening with a built-in washer for even clamping and retention
• Replaces missing, stripped, or corroded hardware
• Helps address loose panels/handles and vibration or rattle noises
• Supports proper alignment of covers, brackets, and trim

• Disconnect power and shut off water or gas (as applicable) before servicing
• Match to the original fastener; location and quantity in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten; replace other severely rusted or damaged fasteners in the same area

The Coin Slide is an OEM replacement part for Whirlpool washers. It is vertical 8 coin chute for payment in commercial or coin-operated laundry washers. It provides a secure and reliable mechanism for accepting coins, ensuring smooth operation and hassle-free lock box transactions.

Symptoms of a bad coin slide include:

• Coins getting stuck or not sliding smoothly
• Failure to register or accept coins
• Inconsistent or unreliable coin acceptance

A faulty coin slide can occur due to regular use, jammed coins, or damage to the internal components. If you experience issues such as coins getting stuck or not registering, it may be time to replace the coin slide.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This is a coin collection box designed for coin-operated commercial laundry machines. It slides into the coin mechanism housing and collects coins deposited by users, and it comes with a key for access. Replace this coin box if the key no longer works, the box is damaged or bent preventing proper insertion, or if coins are jamming or falling through due to wear.

Washer won't start or door won't unlock? This lock cam drives the door lock mechanism to secure and release the door for proper cycle operation.

This 1/4-20 bolt secures appliance panels, brackets, and components to keep assemblies stable and aligned. It's a direct-fit fastener used where a standard 1/4-20 machine screw is required. What it does:

• Fastens panels, mounting brackets, and internal components to the appliance frame
• Prevents parts from shifting, vibrating, or producing rattling noises
• Restores proper alignment for components that won't sit flush or move under load
• Replaces corroded, stripped, or missing hardware that can cause loose assemblies

• One 1/4-20 bolt

• Disconnect power to the appliance before performing any repairs
• Use the correct socket or wrench for a secure fit; avoid rounded fasteners
• Tighten snugly but avoid over-torquing to prevent thread damage or stripped holes
• Ensure mating threads are clean and free of debris

Bracket extension for dryers and laundry centers. Mounts to provide structural support for internal components. Replace if bent, broken, or missing.
