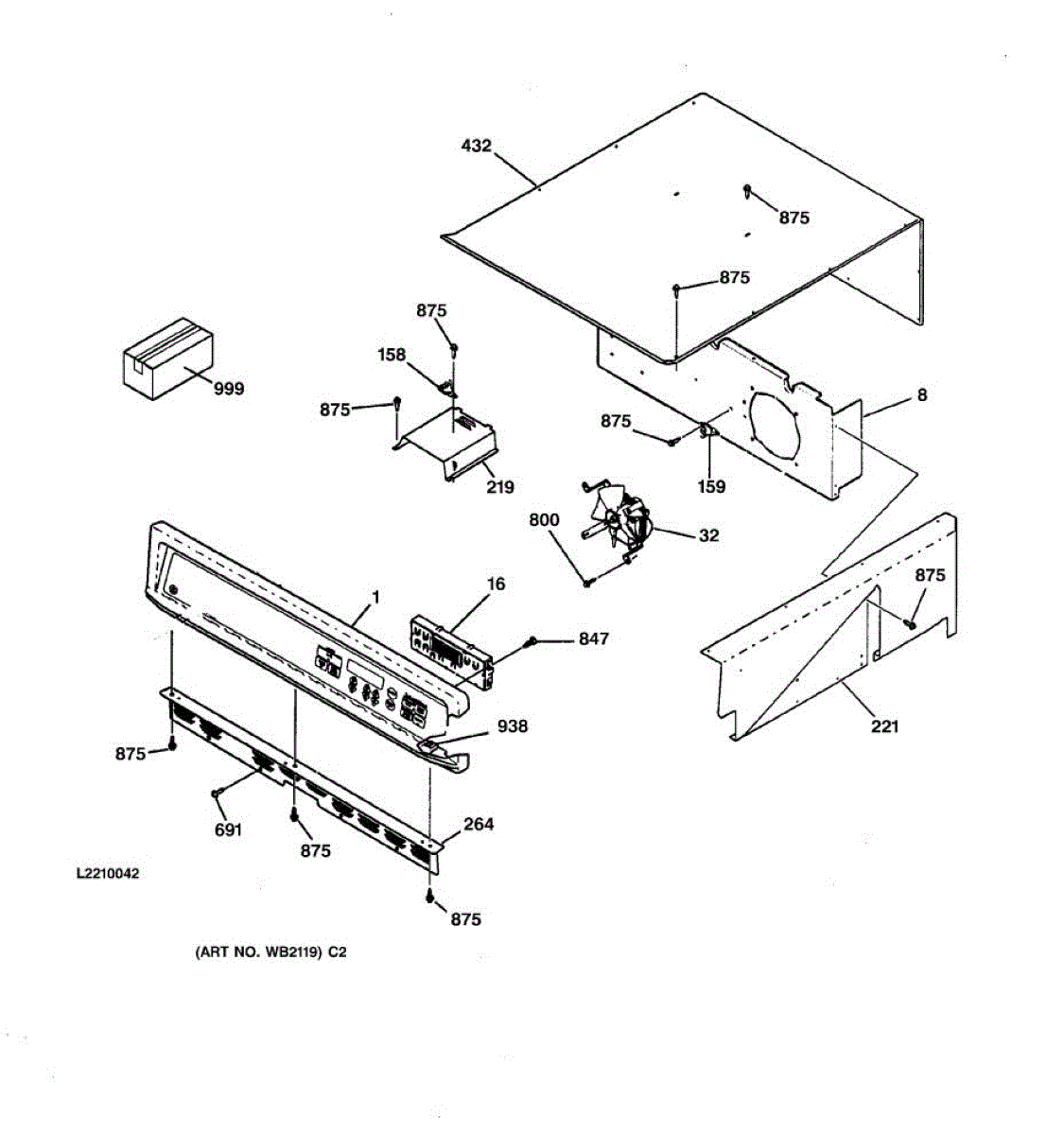

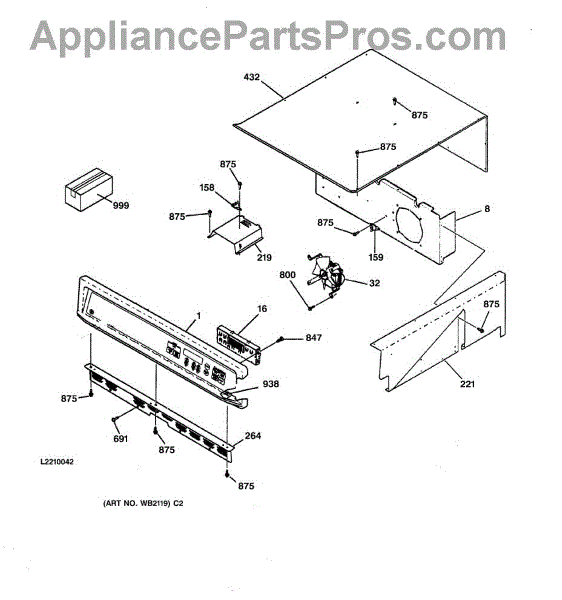

Parts for Ge JKP15BA1BB: 01 - Control Panel & Top Parts

Wiring may not be the same as original clock, may require installation by a appliance service person.

This limit switch is a snap-action safety/position switch used in many cooking appliances. It opens or closes an electrical circuit when a mechanism reaches its limit, enabling safe operation and helping protect components when conditions aren't met.

• Provides snap-action switching to confirm a mechanical limit or interlock within the appliance
• Changes state to allow or interrupt power when the limit is reached
• Common failure symptoms: self-clean won't start or complete, oven won't heat/start, or door lock-related error codes
• May fail a continuity test or lose its distinct "click" when actuated

• Disconnect power before service; allow appliance to cool completely
• Access and mounting vary by model—take photos and transfer wires one at a time
• Mount in the same orientation; ensure the actuator/lever aligns with the mechanism and is not bent
• After installation, verify switch operation with a continuity test while actuating the mechanism

This limit switch is a safety control for compatible cooking appliances. It opens or closes an electrical circuit when a preset limit is reached—commonly temperature or travel—helping protect components and ensure proper operation of heating and latch systems.

• Monitors a specific limit at its mounting point (temperature or mechanism travel, depending on model)
• Opens/closes the circuit to interrupt or allow power to related components
• A failed switch can prevent heating, stop self-clean from starting, or keep the door from locking/unlocking
• Helps protect wiring and controls from damage during abnormal conditions

• Disconnect power to the appliance and allow all components to cool before servicing
• Access location varies by model; take photos and label wires before removal
• Transfer wires one at a time to the new switch; secure with existing hardware
• If the old switch tripped due to overheating or binding, inspect fans, vents, and latch/linkages to correct the root cause

This inner vent trim replaces a damaged or missing vent trim to restore the appliance's finished look and help channel air through the vent opening. Fits the factory location and matches the surrounding trim finish. What it does:

• Covers the inner edge of the vent opening to improve appearance and protect internal components
• Helps direct airflow from the vent area for normal ventilation
• Commonly replaced when the trim is cracked, warped, loose, or cosmetically worn
• Matches the original black finish for a consistent look

• Generally attaches at the vent opening using existing clips or screws
• Power off and allow the appliance to cool before beginning any work
• Handle carefully to avoid scratching the finish; use a soft cloth to protect surfaces
• If mounting hardware is missing or damaged, replace with the correct OEM fasteners

ST10-16 X 7/16"

Nickel

Black. 8-18 AB HXW 3/8
