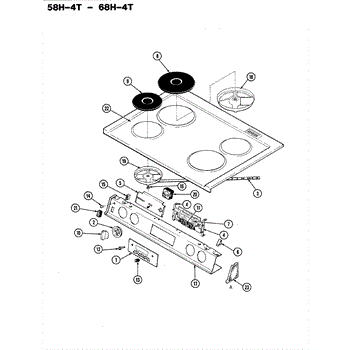

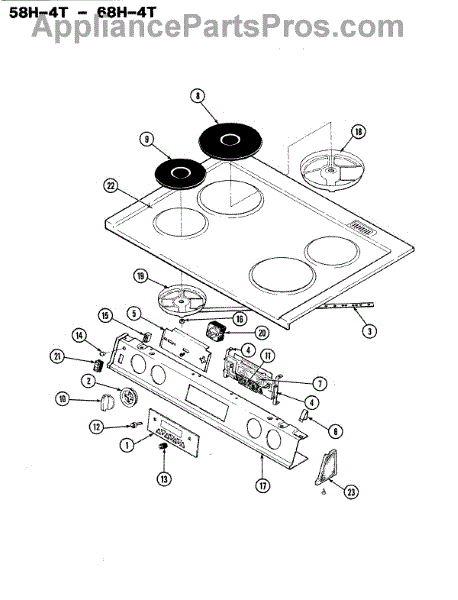

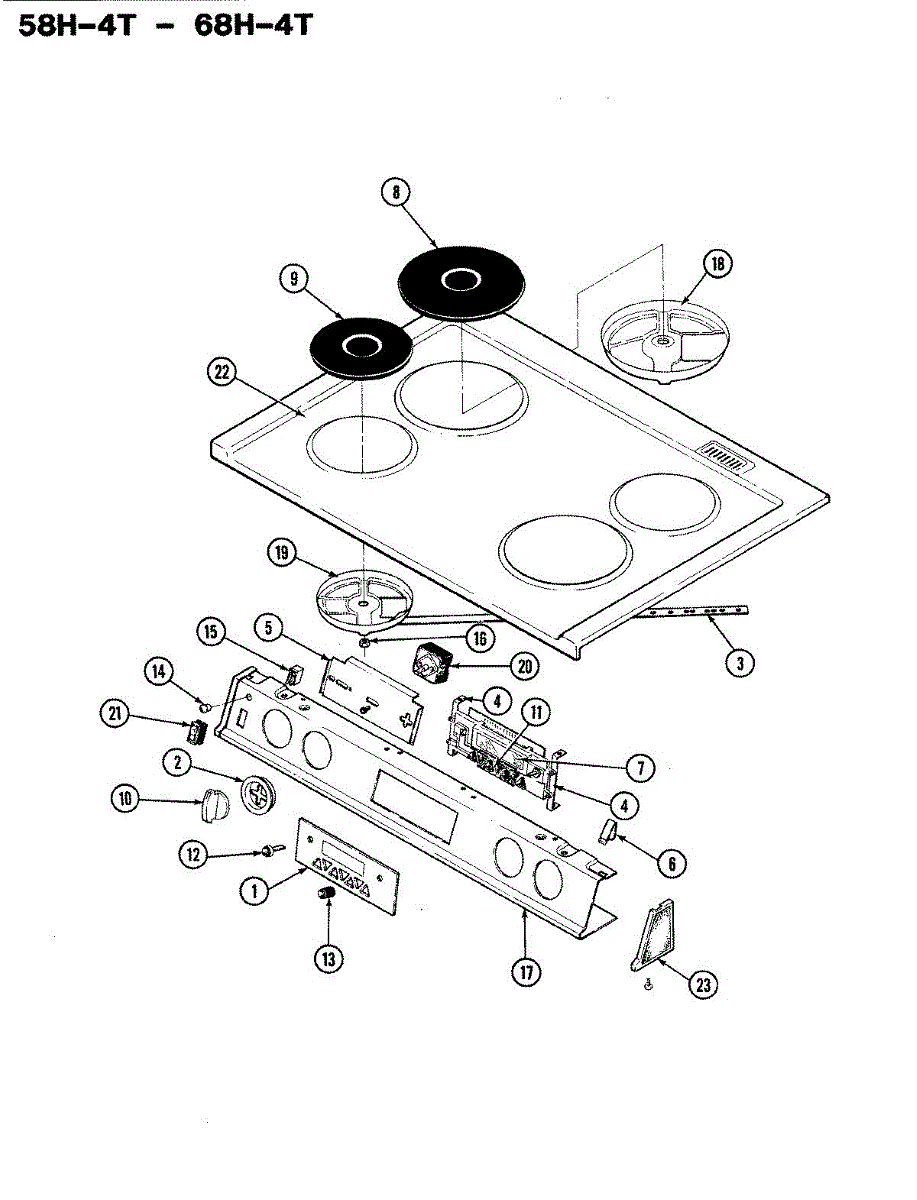

Parts for Magic Chef 68HA-4TXW: 02 - Control Panel / Top Assembly Parts

This part has been discontinued by the manufacturer and is no longer available.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

This cabinet top clip is a small plastic retainer that secures the appliance's top/cabinet to the chassis, keeping the cabinet aligned and preventing movement or rattling. It restores a flush fit between the cabinet and body. What it does:

• Secures the top/cabinet panel to the appliance frame so the cabinet stays in place
• Prevents the cabinet from shifting, vibrating, or sitting unevenly
• Helps stop gaps that can let dirt or moisture into cabinet seams
• Common symptom: loose, rattling, or misaligned cabinet top or trim

• One cabinet top clip

• Always disconnect power before servicing the appliance
• Remove necessary trim or panels to access the cabinet clip; a screwdriver or trim tool may be needed
• Replace broken or worn clips with matching parts only; inspect surrounding fasteners for damage

This part has been discontinued by the manufacturer and is no longer available.

This surface element supplies heat to an electric range or cooktop burner. When it fails, the burner may not heat or may heat inconsistently. Replacing the element restores steady, reliable cooking performance.

• Converts electrical energy into heat for the cooking zone
• Works with the surface control (infinite switch) to regulate temperature
• Common symptoms: burner won't heat, intermittent or uneven heating, visible breaks/blistering, burnt/melted terminals
• A failed element will not glow or reach set temperature when energized

• Disconnect power at the breaker before servicing and allow the cooktop to cool completely
• If your model uses a plug-in coil style: remove the drip pan, pull the element straight out of the receptacle, and inspect/replace a heat-damaged receptacle as needed
• If your model uses an under-glass radiant style: lift the cooktop, transfer any clips/limiters from the old element, and route wires exactly as original
• After reassembly, test the burner at a low setting to ensure proper operation

The Range Clock Knob is an OEM part for Whirlpool ranges. It attaches to the center of the oven control panel and allows users to adjust the built-in clock, serving as the primary control for setting or correcting the time.

Over time, the clock knob can become faulty due to regular use leading to internal stripping or wear, exposure to heat causing cracks or warping, or accidental impacts damaging the knob.

Color: Black

Symptoms of a defective range clock knob include:

• Difficulty setting or adjusting the clock
• The knob spins freely without engaging the control shaft
• The knob feels loose, cracked, or broken

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.

This replacement light lens covers the appliance's bulb, protecting it from contact, moisture, and splashes while diffusing illumination. Replacing a cracked or missing lens restores safe, even lighting and keeps the bulb properly shielded. What it does:

• Shields the bulb from contact, moisture, and debris
• Diffuses light for more even illumination with reduced glare
• Helps protect the socket area from contamination
• Typical symptoms: cracked, warped, or missing lens; discoloration; exposed bulb; harsh or uneven lighting

• Includes: 1 light lens

• Disconnect power to the appliance before servicing; allow the lamp/area to cool completely
• Wear gloves and eye protection when handling an old or broken lens
• Remove retaining screws, tabs, or clips and note lens orientation for reassembly
• Reuse existing hardware if required; do not overtighten; restore power and test light operation

This part is no longer available.

This infinite switch controls the heat level of an electric range's surface burner, letting you adjust burner temperature from low to high. Replace a worn or failed control to restore variable heat regulation for safe cooking performance. What it does:

• Regulates electrical current to the surface burner so you can set low-to-high heat levels.
• Restores variable burner control when heat is stuck on a single setting or won't cycle.
• Addresses symptoms like no heat at some settings, inconsistent burner temperatures, or a burner that only works on one or two settings.
• Works as the user-operated control behind the range control knob for a single surface element.

• Disconnect power at the house breaker or unplug the range before servicing.
• Verify correct replacement by matching terminal layout and mounting to the old switch; only install the exact part specified for your model.
• Use proper tools and avoid touching live terminals; Handle glass-top ranges carefully to avoid cracking when accessing or replacing the switch.

Color: Black
