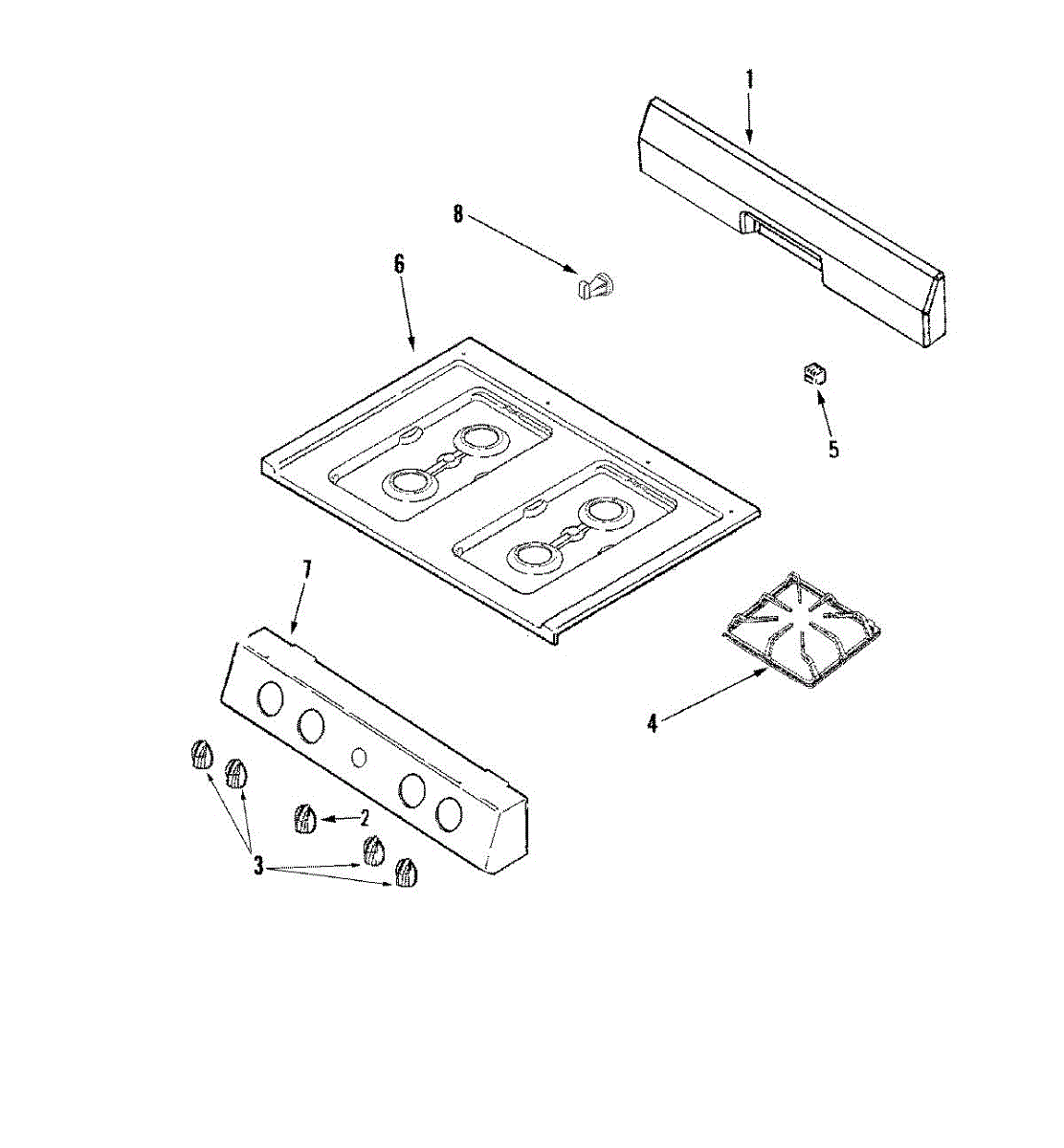

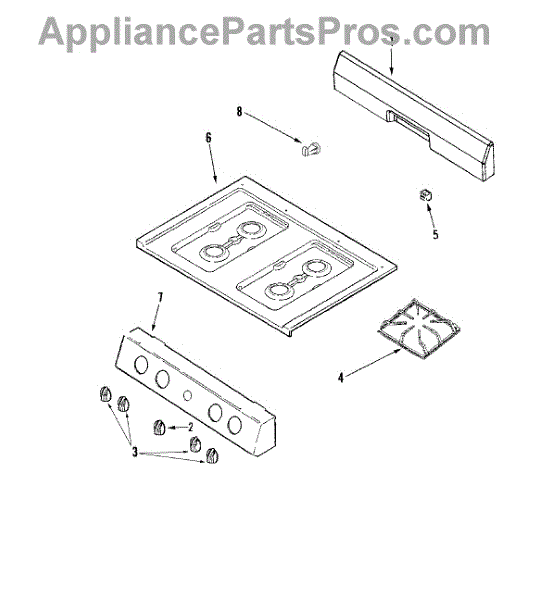

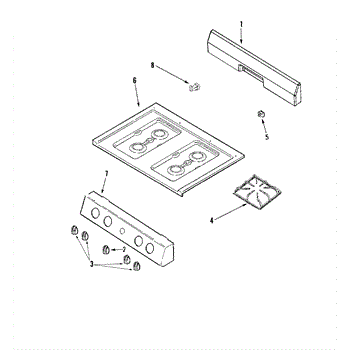

Parts for Magic Chef CPR1100ADQ: 02 - Control Panel / Top Assembly Parts

Black burner grate for cooktop surfaces. Supports cookware over burner flames. Replace if cracked, chipped, or missing for safe cooking operation.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Maintains correct gap between internal range components. Replace if worn, missing, cracked, or broken to restore proper alignment and prevent parts rubbing.
