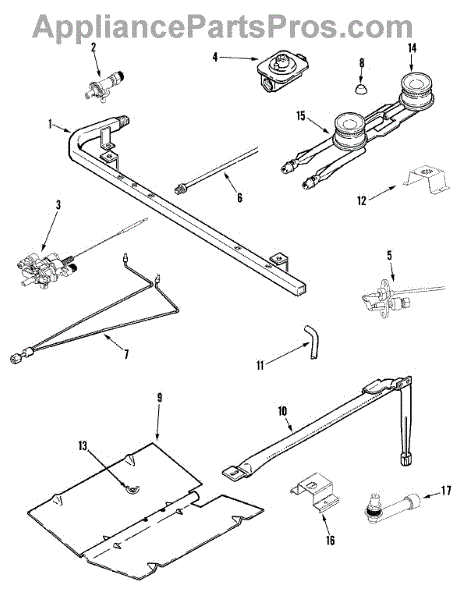

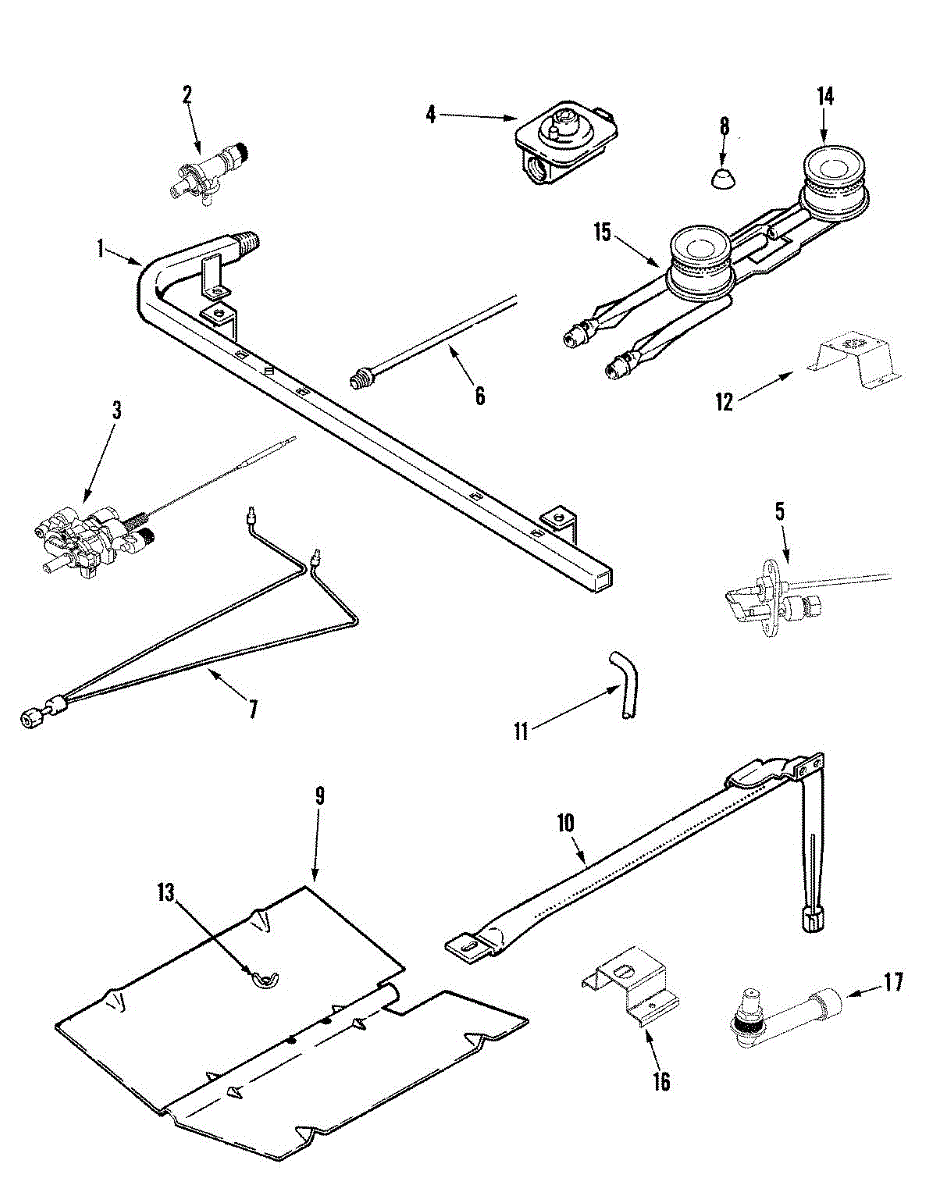

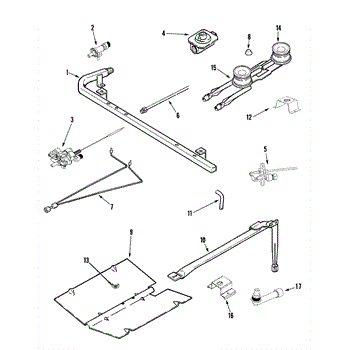

Parts for Magic Chef CPR1100ADQ: 04 - Gas Controls Parts

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

A set of four valve mounting screws used to secure the water/ice valve or valve bracket in place. These OEM-style screws restore proper valve alignment and fasten valve assemblies for reliable operation. What it does:

• Secures the valve or valve bracket to the appliance chassis to prevent movement during operation
• Helps maintain a tight seal at valve mounting points to reduce risk of leaks
• Replaces missing, stripped, or corroded valve mounting fasteners
• Restores stable valve positioning that can prevent rattling or vibration

• Disconnect power and shut off the water supply before beginning any work
• Use the correct screwdriver or bit to avoid stripping the screw heads
• Thread screws in by hand first, then tighten snugly—do not overtighten to avoid damaging the valve or mounting threads
• If existing threads are damaged, inspect the mounting boss and replace as needed

This is a replacement thermostat mounting screw that secures the temperature control sensor for reliable positioning and consistent temperature sensing. A simple, low-cost fix when the existing screw is missing, stripped, or damaged. What it does:

• Secures the thermostat or temperature sensor to the appliance housing or bracket
• Keeps the thermostat sensor in correct contact/position for accurate temperature readings
• Prevents the sensor from shifting, which can cause temperature fluctuations or inconsistent operation
• Replaces stripped, corroded, or missing mounting hardware

• Disconnect power to the appliance before starting any repair to avoid electric shock
• Use the correct screwdriver and match thread engagement; do not force or cross-thread the screw
• Tighten snugly but avoid overtightening to prevent damage to the thermostat or housing
• After installation, restore power and verify proper temperature control and operation

Fixes oven temperature running too hot or too cold. This gas thermostat regulates heat to maintain accurate cooking temperatures in your range oven.

Pilot burner assembly for gas range surface burners. Provides continuous flame for ignition. Replace when pilot won't stay lit, flame is weak, or assembly is damaged.

This LP gas hood orifice controls propane flow to a range/hood burner for stable, efficient flame performance. It's a direct-replacement service part used when a burner is delivering low, uneven, or overly large flames. What it does

• Meter propane flow to the hood/top burner for correct combustion.
• Restores proper flame size and heat output when the orifice is clogged or wrong for LP conversion.
• Helps stop symptoms like sputtering, weak flames, or uneven burner performance.
• Small, threaded part that seats in the burner or valve assembly to create the correct jet size.

• Turn off gas supply and power before servicing; follow local codes for gas appliance work.
• Inspect threads and sealing surfaces; use proper thread sealant if required by manufacturer.
• Only replace with the correct orifice size for your fuel type (LP); do not mix with natural gas orifices.

A small fastening nut that secures the top pilot assembly on gas ranges and ovens, keeping the pilot tube and components properly positioned for reliable ignition. Use when the original nut is stripped, loose, or missing. What it does:

• Secures the top pilot/pilot tube to the burner assembly so the pilot remains correctly aligned.
• Helps maintain a stable pilot flame by keeping components from shifting.
• Commonly replaced when the pilot assembly is loose, the pilot won't stay lit, or there is visible wear on the nut.
• Simple replacement part that restores proper mechanical fastening for the pilot.

• Turn off gas supply and power to the appliance before beginning any work.
• Use the correct-sized wrench or socket to avoid rounding the nut; tighten just until secure — do not overtighten.
• Inspect pilot tube and surrounding fittings for damage or leaks when replacing this nut.

Cone component for gas range top burner lighter assembly. Replaces cracked, broken, or missing lighter cones. Installs on the burner ignition system.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Structural support plate that holds and stabilizes range components to maintain alignment. Replace if cracked, broken, or worn to restore stability.

Hand-tighten wing nut secures panels, brackets, and components in ranges and ovens for tool-free adjustment. Replace when lost, stripped, or broken.
