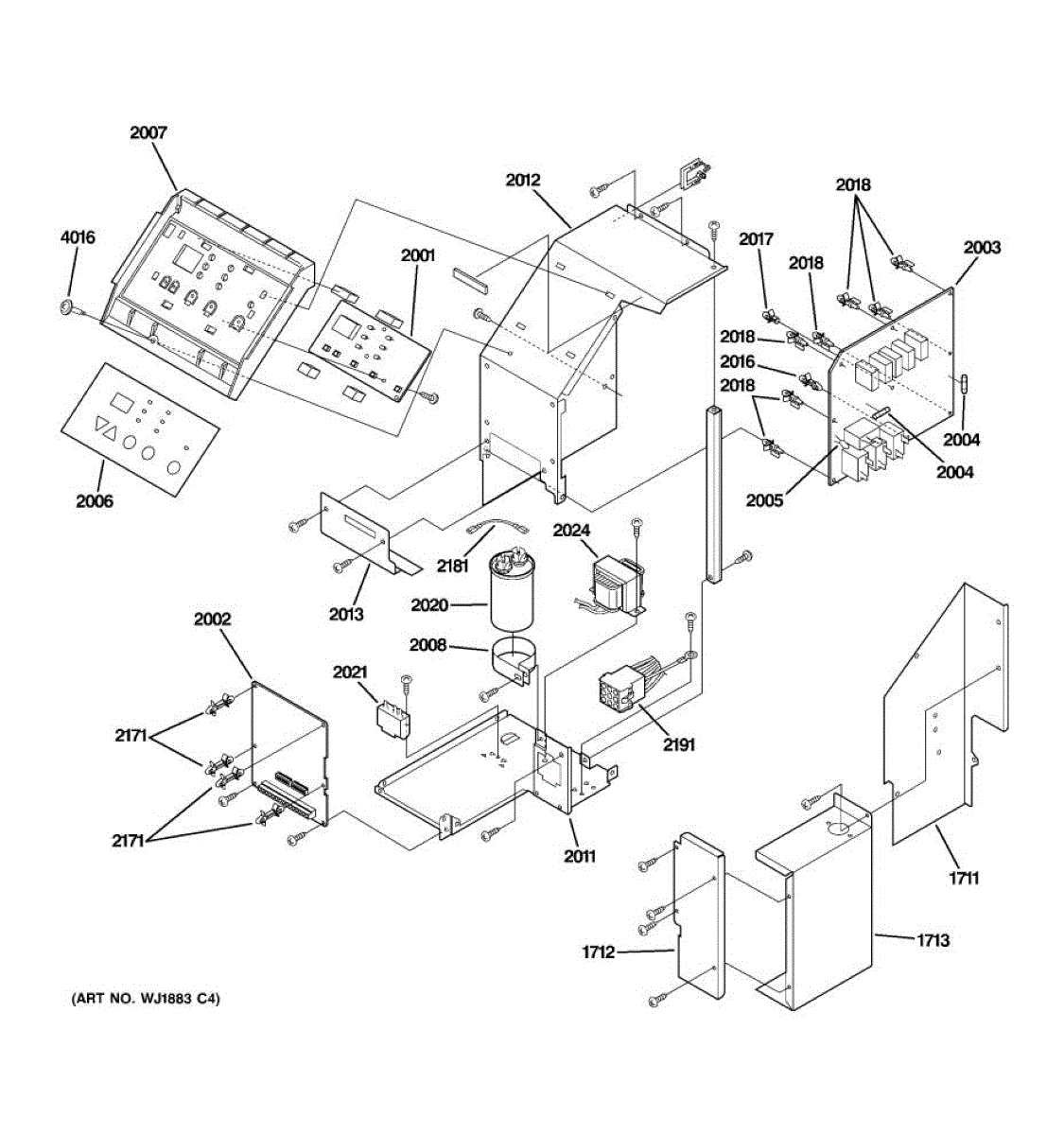

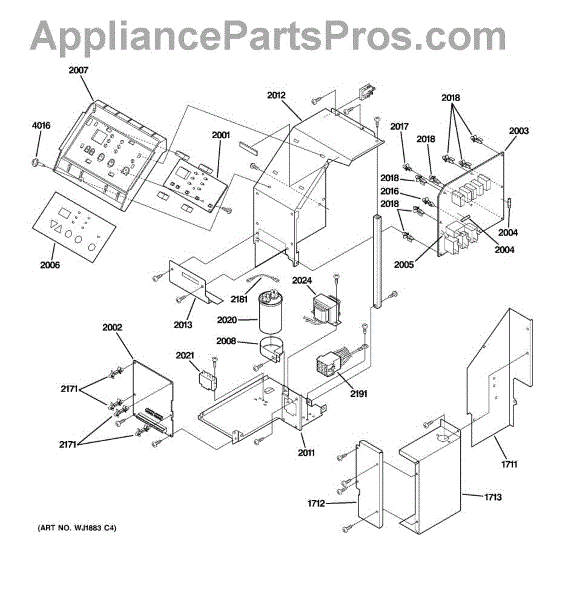

Parts for Ge AZ58H09EADM1: 03 - Control Parts

the interface control board allows the user to control settings such as heating, cooling and fan mode on the PTAC unit.

This Drive PWB-K is the electronic drive control board that manages motor and drive functions so your appliance runs and responds to commands. Replacing a failed board restores normal drive operations and control signals. What it does:

• Controls motor/drive signals to start, stop, and regulate drum rotation or drive assembly
• Processes input from the main control and translates commands to the drive motor
• Commonly diagnosed when the appliance won't spin, won't start, or shows drive-related errors
• Helps eliminate intermittent or total loss of drive function caused by a faulty board

• One Drive PWB-K control board

• Always disconnect power before inspecting or replacing the control board
• Handle the board by its edges and avoid static discharge; use anti-static precautions if available
• Verify connector orientation and seating; match wire harness locations before powering up

This control sheet is a thin insulating/ protective console panel that helps shield the appliance control assembly from heat, moisture, and debris for reliable keypad and electronics performance. It restores proper protection behind the control area. What it does:

• Provides a protective barrier behind the console to help prevent heat and moisture damage to control electronics
• Helps keep dust and debris away from the control board and keypad assembly
• Maintains the original spacing/insulation between the control and inner cabinet components
• Helps reduce the chance of shorts or corrosion caused by stray moisture

• One control sheet/console insulation panel

• Recommended for repair by someone comfortable working with appliance control panels
• Disconnect power (unplug or shut off breaker) before removing the console or accessing the control area
• Handle the control sheet gently to avoid tearing; reassemble fasteners in their original positions
