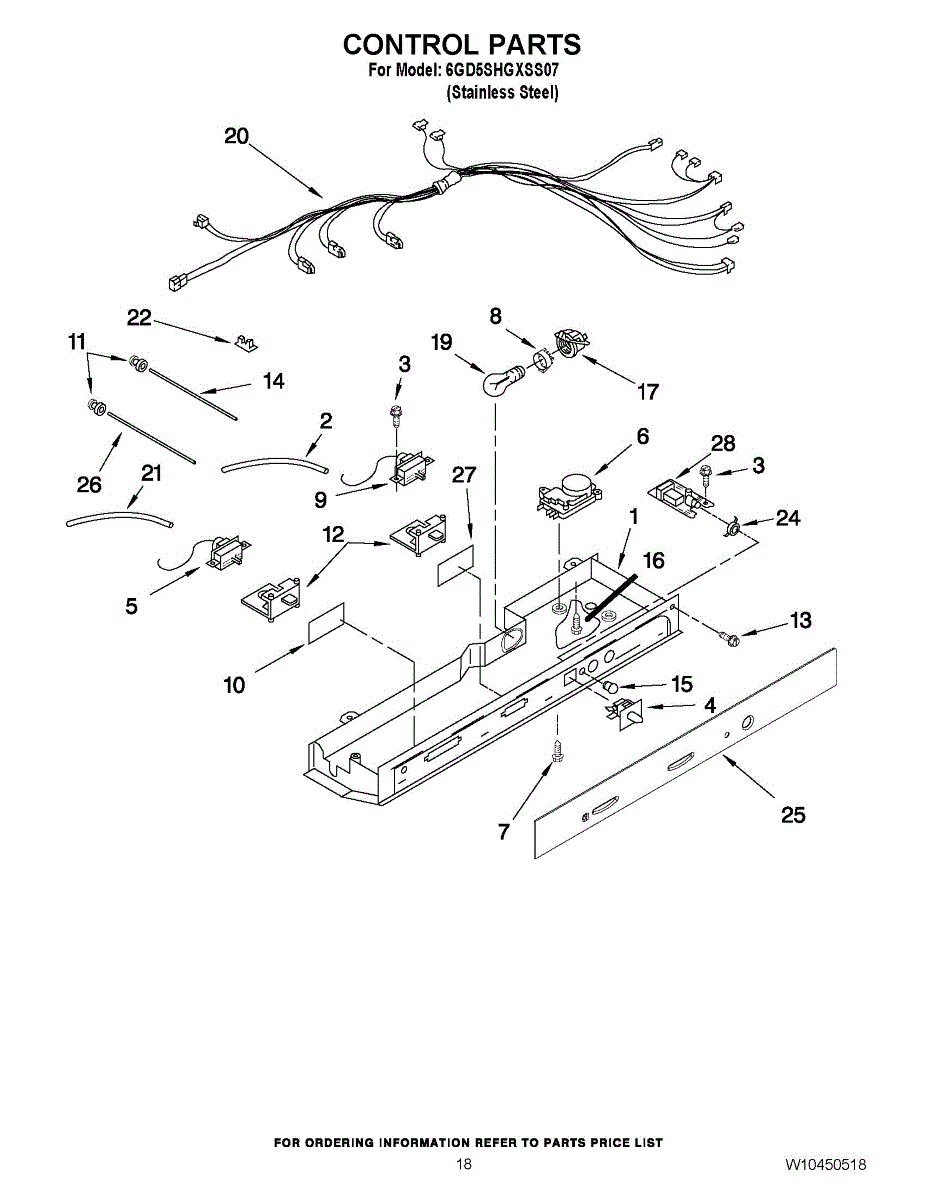

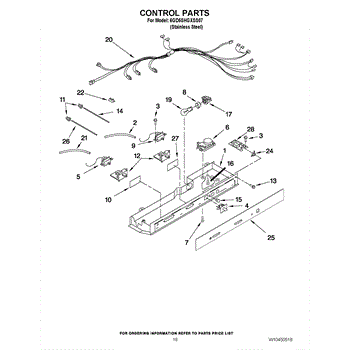

Parts for Whirlpool 6GD5SHGXSS07: 10 - Control Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

The Thermostat Tube Shield is an OEM part for Whirlpool refrigerators. It functions as a barrier that covers and insulates the temperature control thermostat capillary tube. This shield ensures accurate temperature sensing and regulation by protecting the capillary tube from physical damage and external temperature influences.

Over time, the thermostat tube shield can become worn out or damaged due to factors like regular wear and tear, accidental impact, or environmental conditions such as humidity and temperature fluctuations.

Symptoms of a bad thermostat tube shield include:

• Inconsistent or inaccurate refrigerator temperatures
• The refrigerator running continuously or cycling on and off frequently
• Visible damage or wear to the shield
• Difficulty in maintaining the desired temperature settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

6 - 19 x .250

The Light Switch is an OEM part for Whirlpool refrigerators. This switch is responsible for controlling the refrigerator's interior light, turning it on when the door is opened and off when it is closed.

Symptoms of a failing refrigerator light switch include:

• The interior light staying on when the refrigerator door is closed
• The light not activating when the refrigerator door is opened
• Intermittent or flickering light due to a loose connection or faulty switch

Causes of light switch failure typically involve mechanical wear from repeated use, accumulation of dirt or debris that can interfere with the switch mechanism, or electrical issues such as short circuits.

This OEM part is also compatible with other brands manufactured by Whirlpool, including Maytag, KitchenAid, Jenn-Air, Amana, and others.

This is a small replacement screw used to fasten appliance panels and internal components, restoring secure connections and reducing rattles or loose parts. Ideal when original screws are missing or damaged. What it does:

• Secures access panels, mounting brackets, or internal assemblies to prevent vibration and movement
• Helps maintain electrical and mechanical connections by keeping components properly aligned
• Common fix for loose control panels, trim pieces, or internal module attachments

• One replacement screw as shown

• Use the matching driver (Phillips, hex, or Torx) and hand-start the screw to avoid cross-threading
• Tighten until snug; do not over-torque to prevent stripping or cracking surrounding material
• Disconnect power to the appliance before accessing internal parts to avoid injury
• If the original screw is corroded or broken, replace with the same type and length for best fit

This replacement door inner glass restores a clear, protective viewing window so you can monitor cooking without opening the door. It fits the appliance's door assembly and replaces damaged, cracked or missing inner glass. What it does

• Serves as the inner protective glass in the appliance door for safe viewing during operation
• Restores visibility when the original glass is cracked, shattered or fogged
• Helps protect internal components from spills and debris that can enter the door cavity
• Replaces broken or chipped glass that may cause rattling or air leaks

• One door inner glass window

• Disconnect power to the appliance before beginning any repair
• Handle glass with care and wear cut-resistant gloves and eye protection
• Removal typically requires opening or removing the door; keep track of screws and brackets

This slide is the support guide that helps a drawer or rack move smoothly and stay aligned, restoring dependable opening and closing. It replaces a worn or broken guide to improve fit and operation. What it does

• Guides and supports a drawer or rack so it slides in and out smoothly
• Keeps the drawer or rack aligned and prevents binding or uneven movement
• Replaces damaged or worn slide hardware that can cause sticking or sagging
• Restores stable support for loads carried by the drawer or rack

• One slide support

• Disconnect power to the appliance before beginning any repair
• Installation usually requires basic hand tools; follow OEM instructions for correct placement
• Inspect mating parts (screws, brackets) and replace any damaged hardware

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 40W replacement light bulb restores interior appliance lighting so you can see inside ovens and ranges for checking food without opening the door. Simple, direct fit for compatible appliance light sockets. What it does:

• Provides bright, focused 40W illumination for appliance interiors
• Replaces burned-out or dim bulbs so the interior light turns on when the door is opened
• Helps you monitor cooking progress and oven/range activity safely
• Fits standard appliance light housings designed for a 40W lamp

• Always disconnect power or unplug the appliance before replacing the bulb
• Allow the old bulb and surrounding area to cool completely before handling
• Use a cloth or gloves to avoid skin oils on the bulb; tighten gently—do not overtighten
• Restore power to test operation

The Thermostat Tube Shield is an OEM part for Whirlpool refrigerators. It functions as a barrier that covers and insulates the temperature control thermostat capillary tube. This shield ensures accurate temperature sensing and regulation by protecting the capillary tube from physical damage and external temperature influences.

Over time, the thermostat tube shield can become worn out or damaged due to factors like regular wear and tear, accidental impact, or environmental conditions such as humidity and temperature fluctuations.

Symptoms of a bad thermostat tube shield include:

• Inconsistent or inaccurate refrigerator temperatures
• The refrigerator running continuously or cycling on and off frequently
• Visible damage or wear to the shield
• Difficulty in maintaining the desired temperature settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
