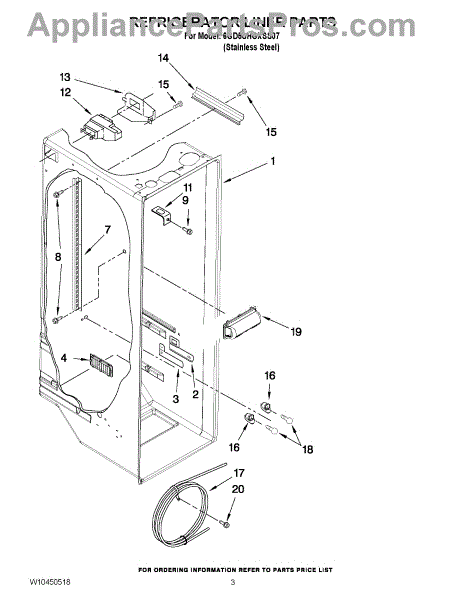

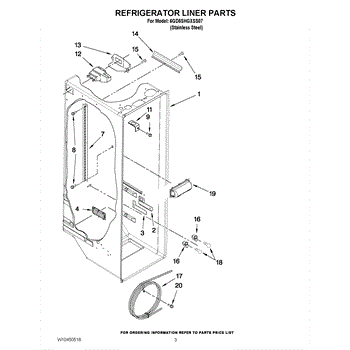

Parts for Whirlpool 6GD5SHGXSS07: 02 - Refrigerator Liner Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This screw secures appliance components to restore proper fit and stop parts from shifting. Replacing a missing or damaged screw helps eliminate rattling and keeps panels, trim and small assemblies aligned during normal use. What it does:

• Fastens panels, brackets, trim or small internal assemblies to maintain structural fit.
• Replacing a worn or missing screw can stop rattling, vibration or loose parts.
• Uses OEM-design fit and thread profile for correct engagement and to avoid stripped threads.
• Intended for use in specific Whirlpool assemblies.

• Disconnect power and, if applicable, shut off gas or water supply before servicing.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the screw head.
• Tighten snugly but do not overtighten — overtightening can strip threads or damage components.
• If threads or inserts are damaged, replace or repair per OEM instructions before reinstalling.

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Reservoir Tubing is an OEM replacement part for Whirlpool refrigerators. It is a flexible plastic tubing that replaces the water reservoir and holds the water for the ice maker and dispenser.

Causes can include cracks from heat or cold exposure over time, punctures from sharp edges during installation, or deterioration of plastic tubing that impacts integrity.

Symptoms of bad water reservoir tubing include:

• Inaccurate or inconsistent ice production
• Leaks or water spills near the reservoir or ice maker
• Kinks or ruptures in the tubing that obstruct water flow
• Mineral buildup that clogs or restricts the line

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Note: As per manufacture this is no longer a tank. The tank style has been updated with coiled tubing.

This 40W replacement light bulb restores interior appliance lighting so you can see inside ovens and ranges for checking food without opening the door. Simple, direct fit for compatible appliance light sockets. What it does:

• Provides bright, focused 40W illumination for appliance interiors
• Replaces burned-out or dim bulbs so the interior light turns on when the door is opened
• Helps you monitor cooking progress and oven/range activity safely
• Fits standard appliance light housings designed for a 40W lamp

• Always disconnect power or unplug the appliance before replacing the bulb
• Allow the old bulb and surrounding area to cool completely before handling
• Use a cloth or gloves to avoid skin oils on the bulb; tighten gently—do not overtighten
• Restore power to test operation

This is the light lens that covers and protects the appliance's light source. Replacing a cracked, yellowed, or missing lens restores clear, even illumination while shielding the bulb/LED from grease, moisture, and impact.

• Diffuses light for more even, glare-free illumination
• Protects the bulb or LED module from debris, grease, and moisture
• Replace if the lens is cracked, warped, melted, discolored, or missing
• Also replace if the lens no longer stays seated or falls out

• Disconnect power to the appliance before servicing and allow the area to cool
• Remove any retaining screws or release tabs to take off the old lens
• Seat the new lens fully; reuse existing fasteners if applicable
• Do not overtighten fasteners; handle carefully to avoid damage

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip
