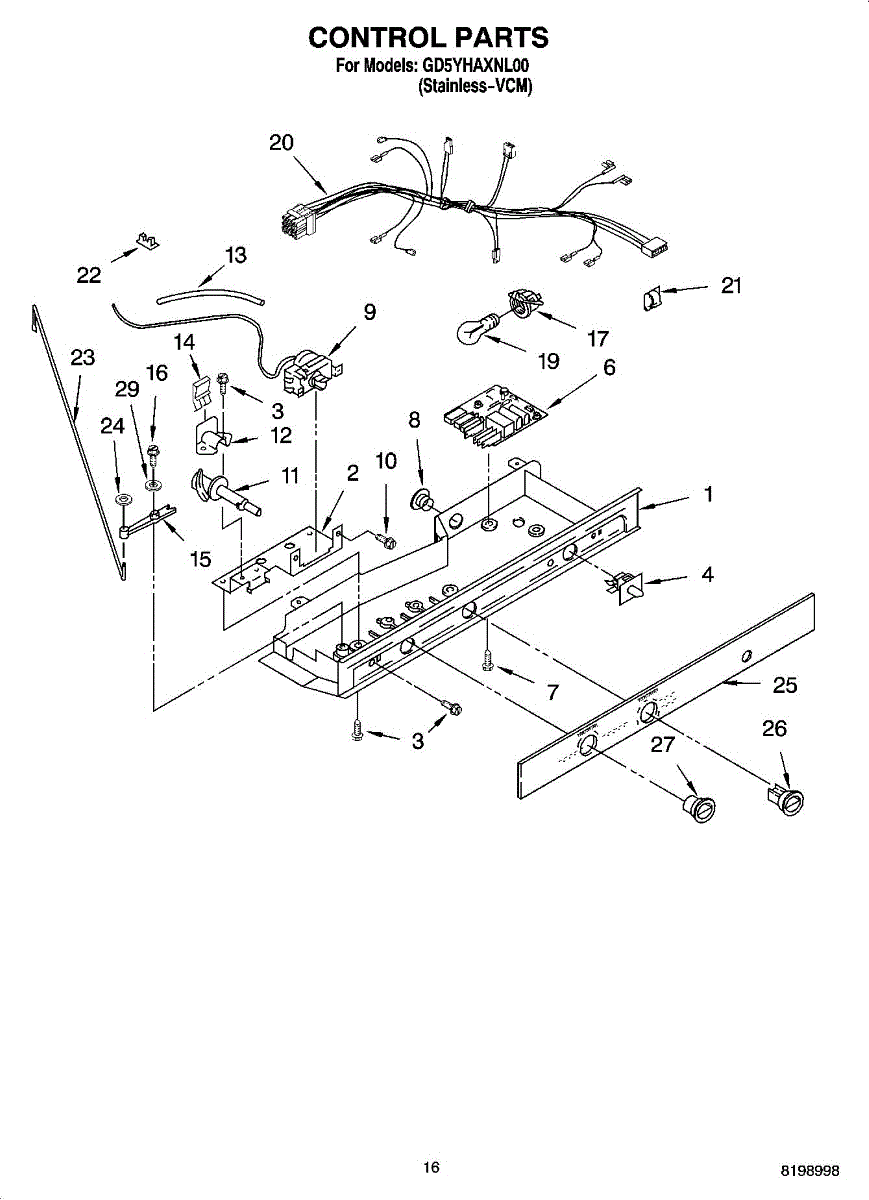

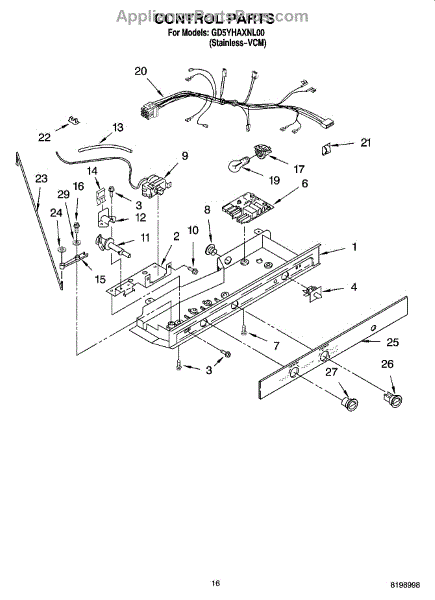

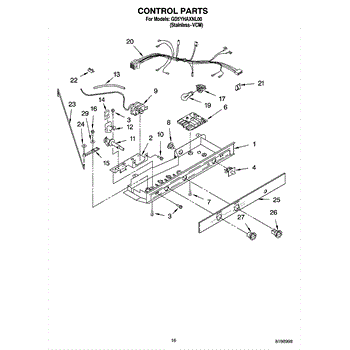

Parts for Whirlpool GD5YHAXNL00: 10 - Control Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Light Switch is an OEM part for Whirlpool refrigerators. This switch is responsible for controlling the refrigerator's interior light, turning it on when the door is opened and off when it is closed.

Symptoms of a failing refrigerator light switch include:

• The interior light staying on when the refrigerator door is closed
• The light not activating when the refrigerator door is opened
• Intermittent or flickering light due to a loose connection or faulty switch

Causes of light switch failure typically involve mechanical wear from repeated use, accumulation of dirt or debris that can interfere with the switch mechanism, or electrical issues such as short circuits.

This OEM part is also compatible with other brands manufactured by Whirlpool, including Maytag, KitchenAid, Jenn-Air, Amana, and others.

Adaptive Defrost Control Board

This is a small replacement screw used to fasten appliance panels and internal components, restoring secure connections and reducing rattles or loose parts. Ideal when original screws are missing or damaged. What it does:

• Secures access panels, mounting brackets, or internal assemblies to prevent vibration and movement
• Helps maintain electrical and mechanical connections by keeping components properly aligned
• Common fix for loose control panels, trim pieces, or internal module attachments

• One replacement screw as shown

• Use the matching driver (Phillips, hex, or Torx) and hand-start the screw to avoid cross-threading
• Tighten until snug; do not over-torque to prevent stripping or cracking surrounding material
• Disconnect power to the appliance before accessing internal parts to avoid injury
• If the original screw is corroded or broken, replace with the same type and length for best fit

The Cold Control is an OEM part for Whirlpool refrigerators, acting as a thermostat that regulates the temperature inside the fridge and freezer compartments. It's a critical component that ensures your refrigerator maintains the desired temperature to keep your food fresh and safe.

Causes of a bad Cold Control may include electrical malfunctions within the control unit, which can prevent accurate temperature sensing. Wear and tear from continuous use may lead to a degradation of the control's responsiveness.

Symptoms of a bad Cold Control include:

• The refrigerator or freezer is too warm or too cold
• Frequent or continuous running of the refrigerator's compressor
• Inability to start the cooling system

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

The Thermostat Tube Shield is an OEM part for Whirlpool refrigerators. It functions as a barrier that covers and insulates the temperature control thermostat capillary tube. This shield ensures accurate temperature sensing and regulation by protecting the capillary tube from physical damage and external temperature influences.

Over time, the thermostat tube shield can become worn out or damaged due to factors like regular wear and tear, accidental impact, or environmental conditions such as humidity and temperature fluctuations.

Symptoms of a bad thermostat tube shield include:

• Inconsistent or inaccurate refrigerator temperatures
• The refrigerator running continuously or cycling on and off frequently
• Visible damage or wear to the shield
• Difficulty in maintaining the desired temperature settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This thermostat knob is the control dial used to set temperature on compatible ranges and ovens, restoring a clear pointer and easy grip when the original knob is cracked, faded, or missing. It provides a simple, user-facing control for the appliance thermostat. What it does:

• Turns the thermostat control shaft to select cooking temperature settings.
• Replaces cracked, worn, broken, loose, or missing knobs that make temperature adjustments difficult.
• Restores a visible pointer/indicator for accurate temperature selection.
• Improves grip and tactile feedback for safer, easier temperature changes.

• Turn appliance controls OFF and cool before replacing the knob.
• Remove the old knob by pulling it straight off the control shaft; align the new knob splines with the shaft and push on until fully seated.
• If the knob is stuck, use gentle rocking while pulling; do not pry on surrounding surfaces or force the shaft.
