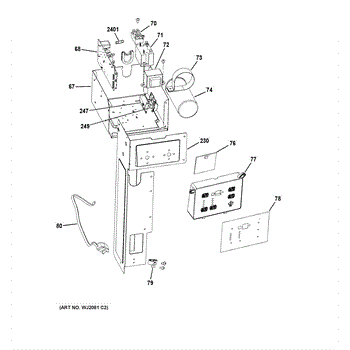

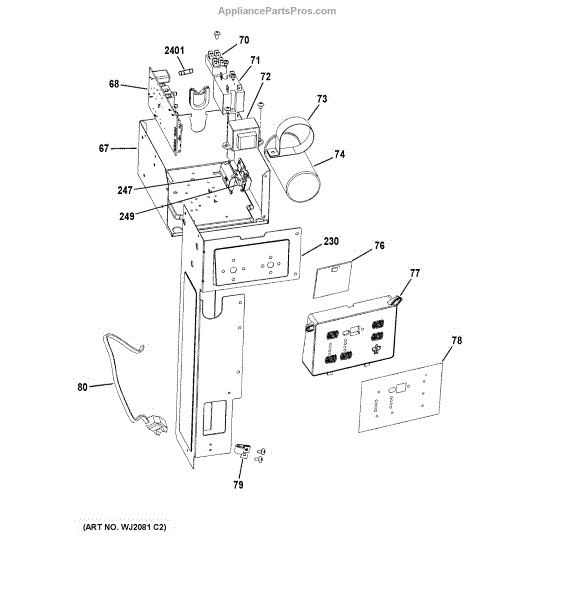

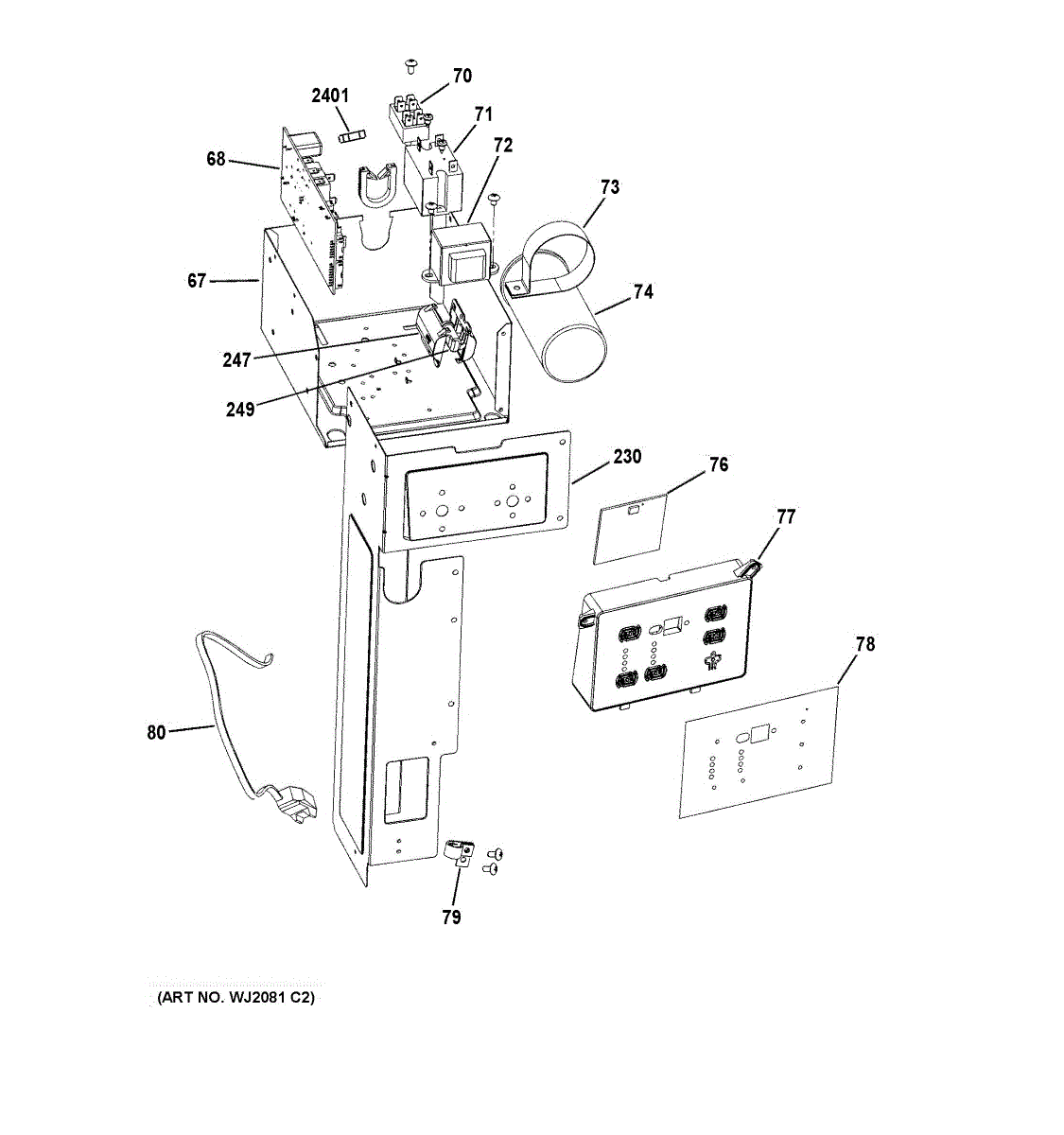

Parts for Ge AEQ24DSL1: Control Parts

This replacement transformer supplies the correct voltage for an appliance's control circuits so electronic controls and low-voltage components receive stable power. Installs in place of a failed or damaged transformer to restore reliable control operation. What it does:

• Converts incoming mains power to the lower voltage used by control boards and low-voltage components
• Restores power to electronic controls and displays when a failed transformer prevents operation
• Helps resolve symptoms like dead control panels, no display, or intermittent control function
• Provides a direct, plug-in replacement for the corresponding OEM transformer

• Disconnect power to the appliance before starting any repair to avoid electric shock
• Label or photograph wire connections before removal to ensure correct reassembly
• Mount securely and reconnect wires exactly as original; use appropriate wire connectors

This capacitor clamp is a small metal bracket that secures a refrigerator or appliance capacitor to the cabinet, helping keep the capacitor stable and preventing movement or vibration during operation. It preserves reliable electrical connections and reduces noise from loose components. What it does

• Holds the capacitor firmly in place to prevent shifting and rattling
• Helps maintain stable capacitor connections to avoid intermittent motor or control issues
• Reduces vibration-related noise from the capacitor area
• Protects the capacitor from contact with other components that could cause wear or damage

• One capacitor clamp/mounting bracket

• Disconnect power before accessing electrical components
• Inspect the clamp for cracks, corrosion, or missing fasteners and replace if damaged
• Retain original mounting hardware when possible; use compatible screws or bolts if replacements are needed

This capacitor helps start and run the appliance's motor, restoring reliable motor operation and improving performance. It's a direct-replacement electrical component intended to replace a failed or weak capacitor. What it does

• Provides the electrical charge needed to start and assist motor operation
• Helps maintain consistent motor speed and torque during run
• Commonly linked to symptoms like humming, motors that won't start, or intermittent operation
• Replacing a failing capacitor can stop repeated starter attempts and protect the motor from stress

• One capacitor

• Disconnect power to the appliance before servicing to avoid shock
• Discharge the capacitor before touching terminals; use insulated tools and follow safety procedures
• Note terminal locations and wiring before removal; replace with like-for-like connections

This display board is the front electronic control that shows oven/range status and lets you select functions, times, and temperatures. Replacing a failed display restores visible readouts and responsive control inputs for safe, reliable operation. What it does:

• Provides the visual display and status indicators for the appliance control console
• Accepts user inputs from the control panel and relays commands to the main control
• Commonly replaced for blank or flickering displays, unreadable characters, or unresponsive console controls
• Can clear display-related error symptoms when the underlying issue is a failed display module

• Disconnect power at the breaker or unplug the appliance before starting work
• Access typically requires removing the control console or back console panel; follow OEM service instructions
• Handle the board carefully and avoid static discharge; do not touch connector pins
• If symptoms persist after replacement, check the main control and wiring harness for faults

This is a replacement power cord that restores safe electrical connection to the appliance. Use it when the original cord is damaged or no longer supplying reliable power to help restore normal operation. What it does:

• Provides the main electrical connection between the appliance and household power
• Replaces frayed, cut, or melted cords that cause intermittent power or no power
• Removes loose or damaged plug connections that can trip breakers or cause arcing
• Helps eliminate visible burn or scorch marks at the cord or plug

• Always disconnect power at the breaker or unplug the appliance before servicing.
• Verify the cord routes through the strain-relief and is secured per the appliance's wiring harness.
• Inspect terminal connections for corrosion and tighten securely; match wire colors to original wiring.

This electrical box support is a replacement bracket that secures the appliance's control/electrical box to the chassis, helping keep wiring and components stable for reliable operation and reduced vibration. What it does:

• Holds the control/electrical box in place to prevent movement and strain on wires and connectors
• Helps maintain proper alignment of controls and access panels
• Reduces vibration-related noise and intermittent electrical connections
• Useful when the original support is bent, cracked, or missing

• One electrical box support bracket

• Disconnect power to the appliance before beginning any repair
• Access may require removing rear or inner panels; basic hand tools typically needed
• Inspect mounting screws and nearby wiring; replace any damaged fasteners or wire harness clips
• Do not modify the bracket; install exactly as the OEM design to ensure safe fit and function
