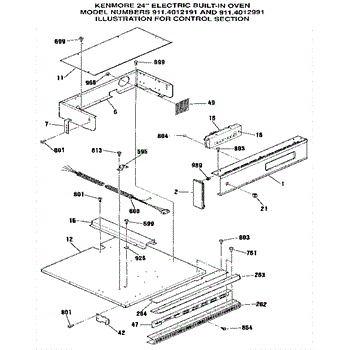

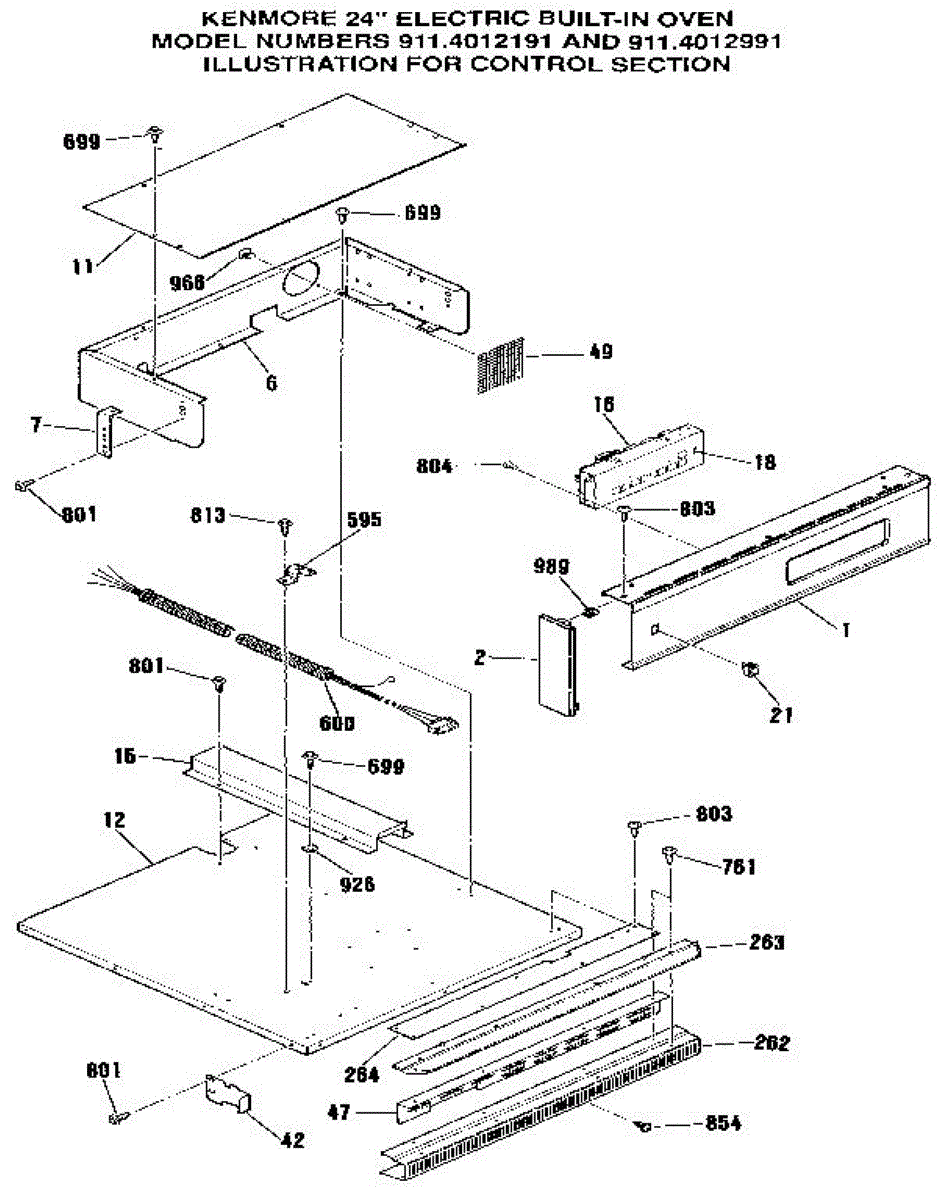

Parts for Kenmore 911.4012191 (9114012191, 911 4012191): Control Section Parts

This end cap covers the right side of your appliance's control panel, providing a finished appearance and protection. It prevents moisture and debris from entering the control area while maintaining the unit's aesthetic design. Replace this cap if it's cracked, missing, or doesn't fit properly against the control panel.

This is a black rocker switch used to control a function on compatible ranges/cooktops. Replacing a worn or inoperative switch restores positive on/off control and reliable operation of the connected feature.

• Controls an appliance function (such as a light or igniter circuit) with a single on/off action
• Common failure signs: switch won't stay on, no response when toggled, intermittent operation, or physical damage/discoloration
• Direct-fit replacement designed for the original switch location
• Helps restore safe, predictable control to the appliance

• Disconnect power and, if applicable, shut off gas before servicing
• Access is typically from the control panel; retain orientation of wires and note terminal positions
• Transfer wires one at a time to the new switch to avoid miswiring
• Inspect connectors for heat damage; replace damaged terminals before reassembly

The range latch screw is a small fastener used to secure the door latch mechanism or latch strike plate firmly to the range frame. It keeps the latch components from shifting or loosening over time with repeated use. Replace this screw when the original is stripped, missing, or corroded, causing the latch assembly to feel loose or the oven door to not close securely.

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

ST10-16 X 7/16"

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Range burner clip secures burner components in place. Replace if bent, broken, or burners wobble. Verify fit with your model number before ordering.

This printed user manual provides operating instructions, care guidance, and basic troubleshooting for your appliance so you can use controls correctly and maintain reliable performance. Clear diagrams and safety information help prevent misuse and damage. What it does:

• Explains control functions, cycle options, and normal operating procedures
• Lists routine care and cleaning steps to help prevent issues
• Offers basic troubleshooting tips for common symptoms like unexpected noises, control confusion, or error messages
• Provides important safety warnings and installation/clearance reminders

• Read entire manual before operating the appliance
• Keep the manual in a safe place for future reference and any resale
• This is a documentation item only; no tools or mechanical installation required
