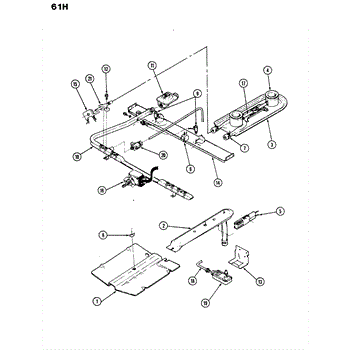

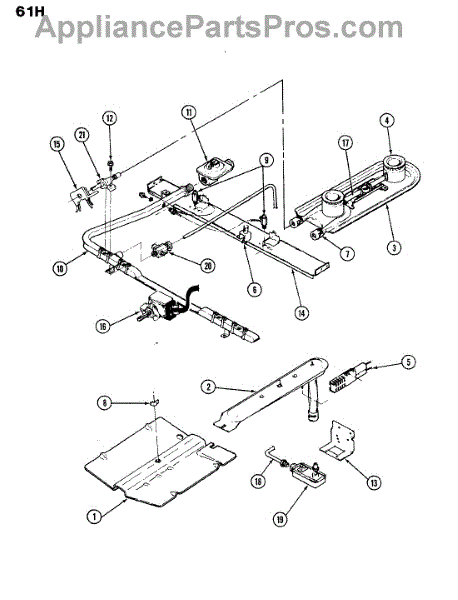

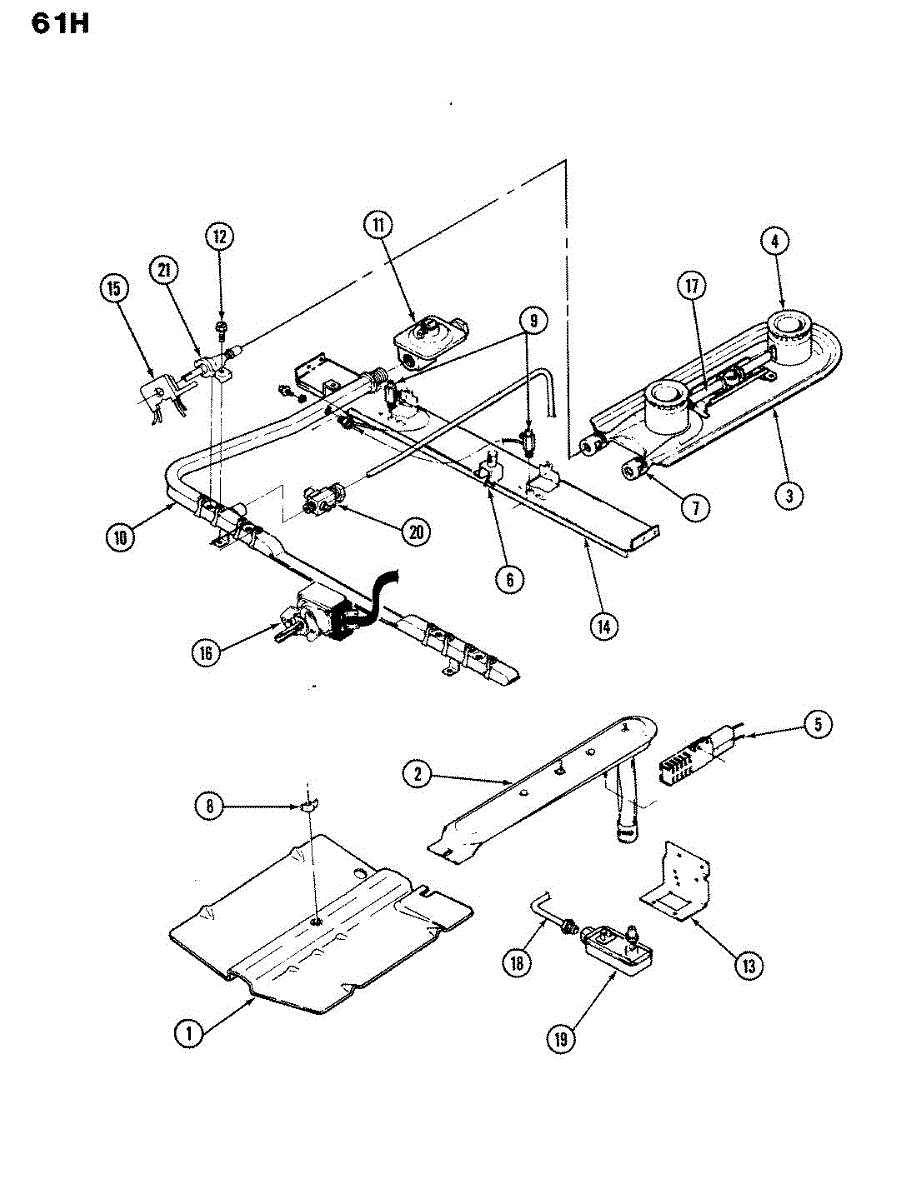

Parts for Magic Chef 61HN-3KX: 02 - Control System Parts

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

The Flat Style Oven Igniter Kit is an OEM part for Whirlpool ovens. It is designed to ignite the gas in the oven burner, facilitating the start of the heating process. This igniter is crucial for ensuring your oven heats up quickly and efficiently, providing the necessary flame for cooking and baking.

Symptoms of a bad Oven Igniter include:

• The oven failing to heat up or taking a long time to reach the desired temperature.
• A noticeable gas smell when the oven is turned on, indicating the gas is not igniting.
• The igniter glowing without producing a flame, which can point to a lack of adequate temperature to ignite the gas.

Causes of a bad oven igniter can include the wear and breakdown of the igniter element over time, a faulty electrical connection, or a disruption in the gas supply.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For top surface burners. Configuration: 2 + 0.

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

This infinite switch controls an electric cooktop's surface burner by varying power to the element, letting you dial in and maintain precise heat. Replacing a failed switch restores smooth temperature adjustment and reliable simmer-to-boil performance. What it does:

• Regulates AC power to the surface element based on the knob setting
• Restores full range of heat levels from low simmer to high
• Common failure symptoms: no heat, stuck on high, erratic temperature, or burner won't turn off
• Can correct intermittent heating or a knob that turns without changing heat

• One surface burner infinite switch

• Disconnect power at the breaker before servicing
• Remove the control knob and access the console/panel to reach the switch
• Transfer wires to the matching terminals on the new switch; secure the switch to the panel
• Reassemble, restore power, and test the burner through all settings
