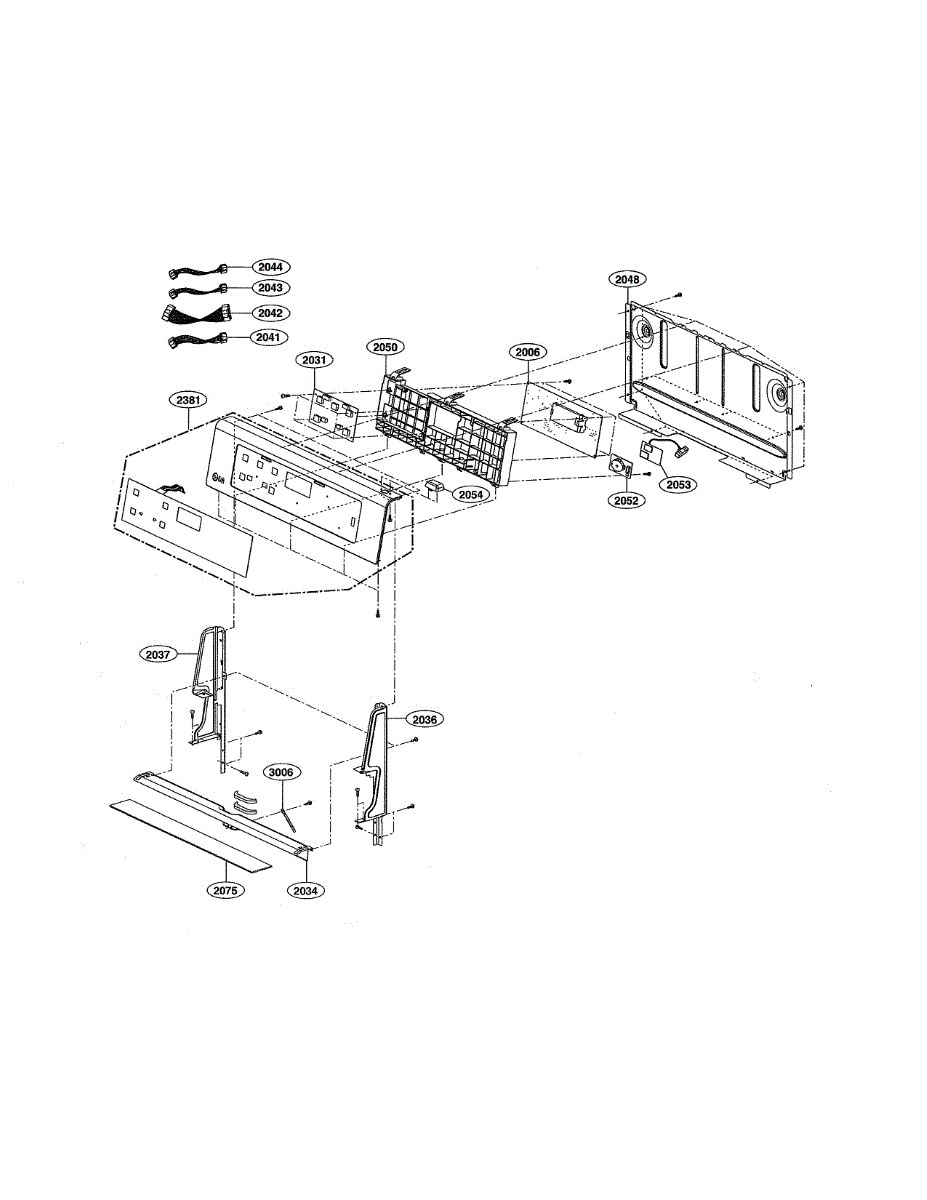

Parts for Lg LRE3027ST: Controller Parts

A Tap-Tite binding-head screw used to fasten appliance panels and components where a self-tapping metal thread is required. Replaces missing or damaged fasteners to restore secure assembly and reduce vibration or rattling. What it does:

• Creates its own mating thread in thin sheet metal for a secure hold without a nut.
• Holds panels, brackets, and trim in place to prevent looseness or movement.
• Commonly used where stripped, missing, or broken screws cause rattling, misalignment, or parts that won't stay attached.
• Compatible with standard screwdrivers or nut drivers sized to the binding-head.

• Disconnect power and unplug the appliance before working on it.
• Use the correct driver bit to avoid cam-out or head damage.
• Start straight and apply steady pressure; avoid overtightening to prevent stripping the formed threads.
• If the original hole is badly damaged, assess for repair or use of a larger fastener as needed.

A factory screw for securing specified components in your appliance. Replaces a missing or damaged fastener to restore a tight, reliable hold and help reduce vibration, rattling, and misalignment.

• Secures brackets, covers, or internal assemblies where this exact screw is specified by the manufacturer
• Useful when the original screw is missing, stripped, or corroded
• Helps eliminate looseness, vibration, and rattling noises
• Matches the original fastener for proper fit and thread engagement

• Disconnect power (and shut off water supply if applicable) before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged clips or inserts to ensure a secure repair

Replacement washer that secures fasteners and distributes load at connection points in ranges and ovens. Needed when original is missing, worn, or damaged.

Replacement screw for electric and gas ranges. Secures internal components and panels. Needed when original is stripped, missing, or damaged during repair.

Secures panels, brackets, and internal components in your range. Replace this screw if the original is missing, stripped, or rusted for proper fit.

This customized screw secures appliance components where a standard fastener won't fit, helping keep panels, brackets and small assemblies stable. It's a direct-fit replacement when the original specialized screw is missing or damaged. What it does:

• Fastens and holds appliance panels, brackets or small parts in place
• Prevents rattling, loose trim or misaligned components caused by a missing or stripped screw
• Matches the OEM fit and thread pattern for proper engagement and alignment
• Used in locations that require a non-standard or customized fastener

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten securely but do not overtighten; overtightening can strip threads or crack parts
• Keep removed hardware organized so you can reinstall in the original location

This hardware washer helps distribute fastener load and maintain proper spacing in your LG appliance. Replacing a missing or worn washer restores secure mounting and alignment, reducing vibration and rattling from loose assemblies.

• Distributes the load of a screw or bolt and protects mating surfaces to maintain alignment
• Helps keep components secure and at the correct spacing
• A damaged or missing washer can lead to loosening, vibration, or rattling during operation
• Ensures correct hardware stack-up during reassembly after service

• Disconnect power and shut off water or gas before servicing
• Note the order and orientation of any washers/spacers; take a reference photo
• Use the correct driver or wrench and tighten snugly—do not overtighten
• Replace companion hardware if corroded, stripped, or damaged

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

Replacement mounting screw for electric and gas ranges. Secures components and panels. Needed when original screw is stripped, missing, or damaged.

Replacement screw for electric and gas ranges. Secures internal components and panels. Order a new screw if the original is stripped, missing, or damaged.

Outer door frame assembly for electric ranges. Restores door structure and appearance when original is cracked, bent, or worn. Mounts door panel securely.

This is an exterior door handle that mounts to the front of the oven door, allowing you to open and close it during cooking. It attaches with mounting screws or brackets on the door panel. Replace this handle if it is cracked, loose, broken off, or if the mounting points have become damaged, making the door difficult to operate safely.

Replacement window glass for range oven doors. Restores clear viewing area when original glass is cracked, chipped, cloudy, or shattered. Installs inside door.

Inner cover panel for electric ranges. Installs inside the appliance body to protect internal components. Replace if cracked, broken, or missing.

This is the outer door panel that forms the exterior surface of the oven door. It provides a finished appearance and helps insulate the oven cavity. Replace this panel if it is dented, scratched, discolored, or if the outer surface has become damaged from heat exposure or impact.

Cushion pad insulator that mounts between internal range components and cabinet. Reduces noise and vibration while preventing wear. Replace if cracked or missing.

Door mounting bracket for electric ranges. Secures the door assembly to the frame. Replace if bracket is bent, cracked, or missing for proper door alignment.

Secures and pivots your range oven door for smooth opening and closing. Replace if hinge is bent, broken, or causing door misalignment and gaps.

Mounting bracket secures internal components and panels in your range. Replace if cracked, bent, or missing to restore proper alignment and support.

Range display not working or buttons unresponsive? This display power control board assembly restores your control panel functions and power management.

Fix burners not working, unresponsive buttons, or display issues. This range display control board manages the digital interface and burner controls.

Range controls not responding or functions intermittent? This wire harness restores electrical connections between components. Moderate DIY repair for most models.

Fix intermittent power issues or burnt wiring in your range with this wire harness. Restores electrical connections between control boards and components.

This complete parts assembly replaces the factory-installed assembly used to mount and connect multiple components in the appliance, restoring proper mechanical and electrical operation. It's a direct-fit replacement when the original assembly is damaged or worn. What it does:

• Replaces a damaged or broken component assembly that secures and links internal parts
• Restores reliable mechanical connections and helps eliminate intermittent or failed operation
• Can reduce unusual noises or vibrations caused by loose or worn assembly parts
• Allows reattachment of wiring harnesses and fasteners that rely on the assembly's mounting points

• One complete parts assembly as pictured

• Always unplug the appliance or disconnect power before starting any repair
• Handle connectors and wiring gently; document connector locations before removal
• Basic hand tools are usually required; some disassembly of panels may be needed

This is a circular wire harness holder that secures and organizes internal wiring within the range. It clips onto the frame or mounting points to keep wires routed properly and away from heat sources. Replace this part if it is broken or missing, which can cause loose wiring or potential contact with hot surfaces.

Replace a faulty range wire harness if your oven isn't heating, burners won't turn on, or controls are unresponsive. Moderate DIY repair in 30-60 minutes.

This is a warming zone heating element assembly designed for a range cooktop. It provides low, even heat to keep food warm without further cooking. Replace this element if the warming zone no longer heats up, heats unevenly, or fails to maintain a consistent temperature.

Idle packing bushing for electric and gas ranges. Replaces worn, cracked, or missing bushings. Ensures proper fit and cushioning for range components.

Rear cover panel for electric ranges. Replaces cracked, broken, or missing back covers. Installs on the rear exterior of the range body. Direct fit.

If your range grill won't brown or crisp food properly, this carbon heater element restores radiant heat for grill and combination cooking modes.

Fix loose or rattling heating elements with this range heater bracket. Secures the heater assembly in proper alignment to prevent movement and damage.

This Radiant Surface Element is an OEM replacement part for LG electric ranges and cooktops. It is a high-power coil heating unit located below the cooktop surface that provides efficient, customizable heat for various cooking needs.

Causes of failure can be wear and damage to coiled filaments from prolonged heating cycles, cracking of ceramic insulators, or loose wiring connections suffering arcing or resistance over time.

Symptoms of a faulty element include:

• Slow or inadequate heating of cookware even on high settings
• Temperature fluctuations within the heating zone
• Burning or charring of spills and foods on the element itself
• Tripped circuit breakers obstructing range operation

This replacement is also compatible with some Kenmore models

This is a radiant surface heating element measuring 5-1/2 inches in diameter and rated at 1200 watts. It sits beneath the glass cooktop surface and provides heat to the burner area when activated. Replace this element if the burner fails to heat, heats unevenly, or does not reach full temperature.

Rubber bumper grommet for electric and gas ranges. Replaces cracked, worn, or missing grommets that cushion and support range components.

Replaces a cracked, bent, or missing oven shelf in your electric range. This shelf installs inside the oven cavity to support cookware during baking.

Fix unresponsive control panel buttons with this tactile switch replacement. Restores reliable button response. Simple DIY repair, typically under 5 minutes.

The Time Delay Fuse is an OEM part for LG microwaves. This fuse provides a safety mechanism by delaying the flow of electricity, protecting the microwave's electrical components from power surges and ensuring the appliance operates safely. It helps to prevent immediate damage in the event of a power surge or electrical fault, thus prolonging the lifespan of the microwave.

Over time, the time delay fuse can become damaged due to electrical surges, wear and tear, or faulty connections. If the fuse blows, it can disrupt the microwave’s ability to function correctly.

Symptoms of a bad time delay fuse include:

• The microwave not turning on
• No response from the microwave control panel
• The microwave stopping unexpectedly during operation
• Electrical issues or blown circuits in the microwave

This OEM LG part is also compatible with Sears/Kenmore models.

Refrigerator not cooling or running warm? A faulty condenser fan motor assembly prevents proper airflow across the condenser. Includes motor and blade.

The Magnetron Thermostat is an OEM part for LG microwaves and built-in ranges. Its primary function is to monitor the temperature and ensure that it remains within a safe operating range. If the temperature exceeds the preset limit, the thermostat will interrupt the power supply to the magnetron, preventing overheating and potential damage.

Causes of a faulty magnetron thermostat can include electrical malfunctions, component failures, or physical damage. These factors can result in issues such as erratic heating, microwave not heating properly, or the appliance shutting off unexpectedly.

Symptoms of a bad magnetron thermostat may include:

• Microwave not heating food evenly or at all
• Inconsistent or weak heating performance
• Microwave shutting off or displaying error codes related to temperature issues

This OEM LG part can also be used on Kenmore/Sears appliances.

Replace your range's wire harness if the existing wiring is damaged, frayed, or showing signs of wear. Connects electrical components inside your range.

If your oven won't reach the right temperature or shows an F9 error, the temperature sensor may be faulty. Simple DIY repair in under 45 minutes.

Replace a damaged or corroded wire harness in your range. This single-connection harness restores proper electrical connections when original wiring is frayed, melted, or broken.

Charcoal filter removes cooking odors and smoke in recirculating range hoods. Replace every 6 months for optimal air quality. Verify fit with model number.

A replacement bracket assembly that secures internal components and maintains correct alignment for reliable operation. Restores proper mounting and reduces noise or movement caused by loose or damaged supports. What it does:

• Provides a secure mounting point for internal appliance components to prevent shifting or sagging
• Restores alignment that can stop rattling, vibration, or intermittent contact issues
• Supports housings, panels or subassemblies to maintain proper clearance and function
• Replaces bent, cracked, or broken brackets that compromise component stability

• One bracket assembly as shown

• Recommend disconnecting power (and water, where applicable) before beginning any repair
• Remove panels or covers as needed to access the mounting location; keep fasteners organized
• Use appropriate hand tools; inspect adjacent parts and replace any damaged fasteners or clips

Fix unresponsive controls or error codes with this range power control board assembly. Coordinates oven functions and user inputs. Moderate difficulty repair.

Wire harness for electric ranges. Connects internal electrical components. Replace if wires are frayed, damaged, or connectors are broken or melted.

This convection fan circulates hot air through the oven cavity to promote even cooking and consistent baking results. Replacing a worn or failed fan restores convection performance and reduces hot spots. What it does:

• Circulates heated air for uniform temperature distribution during convection cooking
• Stops or reduces uneven baking, overcooked edges, and inconsistent roast results
• Replaces a fan that is not spinning or is making grinding, rattling, or high-pitched noises
• Helps restore proper airflow when the oven's convection function is weak or intermittent

• Disconnect power to the appliance before starting any repair
• Allow the oven to cool completely; wear gloves to protect against sharp edges
• Verify proper fan rotation and quiet operation before fully reassembling the oven

This replacement bar serves as the exterior door handle/trim that lets you open and close the appliance door smoothly while restoring the unit's original appearance. It's a direct-replacement style part designed to fit the factory mounting points. What it does:

• Provides a secure grip for opening and closing the appliance door
• Restores damaged, cracked, or cosmetically worn door trim/handle areas
• Helps maintain proper door alignment and fit when installed correctly
• Reduces draft and keeps the door sealing surface operating as intended

• One replacement bar

• Disconnect power (and for refrigerators, unplug the unit) before attempting removal/installation
• Remove any door shelves or trim blocking access; support the door during handle removal to avoid damage
• Reuse any required screws or brackets only if shown in OEM instructions; replace damaged fasteners

This is an AC synchronous motor and switch assembly that controls the oven door lock mechanism during the self-clean cycle. It engages to lock the door before high-temperature cleaning begins and unlocks it once the cycle is complete and the oven has cooled. Replace this assembly if the oven door fails to lock or unlock, or if the self-clean cycle will not start or complete properly.

Mounting supporter bracket that stabilizes internal components in your electric range. Replace if cracked, broken, or missing to restore proper alignment.

Replace your burned-out or dim oven light bulb to restore interior visibility while cooking. Direct-fit incandescent lamp for safe food monitoring. Verify fit with your model number.

This is a sheath-style heating element that serves as the broil element in the top of the oven cavity. It produces high, direct heat from above for broiling foods. Replace this element if the broiler no longer heats, heats unevenly, or if you can see visible damage such as blistering, cracks, or burn-through spots on the element.

The range packing seal creates an airtight barrier around oven doors or other range components to maintain proper cooking temperatures and prevent heat loss. Positioned around door edges or component joints, it needs replacement if heat escapes, cooking becomes uneven, or the seal appears cracked or compressed.

This sheath heater is the electric element that delivers radiant heat for the unit's heating cycles, such as grill/broil or convection. Replacing a failed heater restores proper temperature performance and consistent results.

• Generates radiant heat when energized to help reach and maintain set temperature
• Supports grill/broil or convection functions for browning and even cooking
• Common failure signs: no heat in those modes, extended preheat times, uneven results, tripped breaker, or a visibly blistered/broken element
• Restores reliable heating performance when the original element is open or shorted

• Disconnect power and let components cool before servicing
• If servicing a microwave, remember high-voltage components can retain a dangerous charge; discharge the capacitor and consider service if you're not experienced
• Handle the element by its brackets; avoid bending the sheath or stressing terminals
• Move wires one at a time to the new part and verify element continuity with a multimeter before reassembly

This is an exterior side panel that forms part of the range cabinet, providing a finished appearance and structural support. It is made of metal with a black finish and attaches to the side of the unit. Replace this panel if it is dented, rusted, scratched, or otherwise damaged.

Front plate for electric ranges. Installs on the range front panel. Replace if cracked, chipped, damaged, or missing to restore appearance.

This adjustable leg supports your range and allows you to level the appliance on uneven floors. It screws into the bottom corner of the range and can be adjusted up or down as needed. Replace this part if your range is wobbly, tilting, or sitting unevenly.

This is a metal anti-tip bracket that secures the range to the floor or wall to prevent it from tipping forward. It is a critical safety device, especially when heavy items are placed on an open oven door. Replace or install this bracket if yours is missing, damaged, or if you are repositioning the range after a move or kitchen remodel.

Replacement slider for range drawers and panels. Restores smooth movement when original is worn, cracked, or broken. Mounts to moving components for alignment.

Replace worn range drawer sliders to restore smooth, quiet operation and proper alignment. Prevents damage to surrounding trim. Confirm fit with your model.

This is an exterior door handle that mounts to the front of the oven door, allowing you to open and close it during cooking. It attaches with mounting screws or brackets on the door panel. Replace this handle if it is cracked, loose, broken off, or if the mounting points have become damaged, making the door difficult to operate safely.

Replacement oven rack support bracket for your range. Installs inside the oven cavity to hold racks in place. Replace if cracked, broken, or missing.

Leveling foot that installs at the base of your range to provide stability and protect countertops. Replace if cracked, broken, or missing.

Mounting anchor for range door handles. Replaces worn, broken, or missing anchors to restore secure handle attachment and eliminate wobbling or loose fit.
