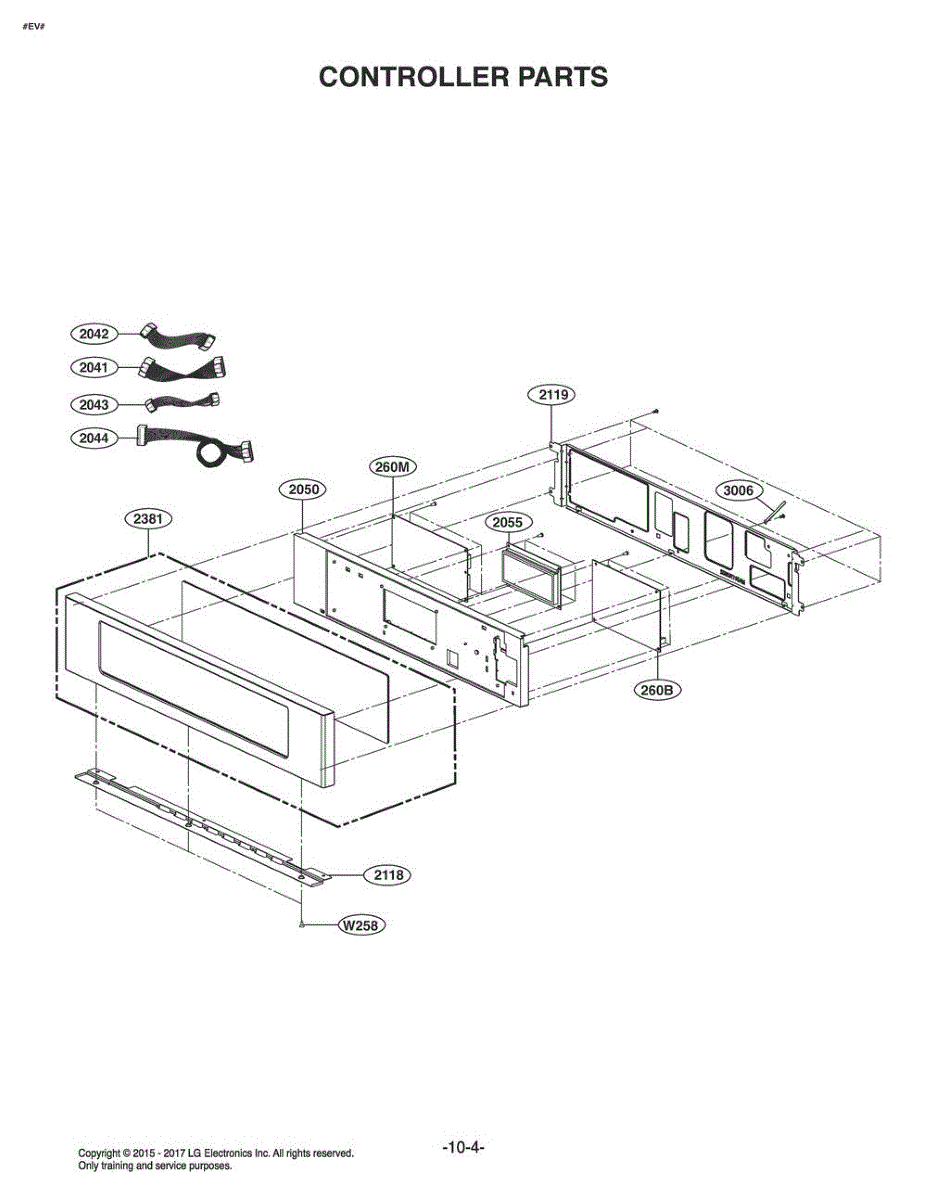

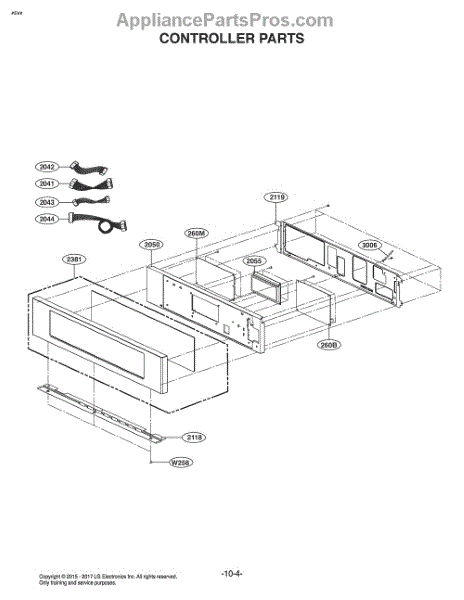

Parts for Lg LD3653SP: Controller Parts

Control panel mounting bracket for wall ovens and ranges. Secures the control panel to the front frame. Replace if bent, cracked, or damaged during repair.

This is a circular wire harness holder that secures and organizes internal wiring within the range. It clips onto the frame or mounting points to keep wires routed properly and away from heat sources. Replace this part if it is broken or missing, which can cause loose wiring or potential contact with hot surfaces.

Wire harness for ranges and wall ovens. Connects electrical components within the appliance. Replace if wires are damaged, frayed, or connectors are broken.

This is a VFD (vacuum fluorescent display) module that mounts behind the range's control panel and shows time, temperature, error codes, and cycle status. It communicates with the main electronic control board to relay information to the user. Replace this display board if the screen is blank, dim, flickering, showing incomplete characters, or displaying incorrect information even after a power reset.

This PCB assembly is the appliance's main control board that manages cycle commands, sensor signals and user inputs to keep the appliance operating correctly. Replacing a faulty board restores control and communication functions. What it does:

• Receives inputs from the control panel and sends commands to motors, valves and heaters
• Monitors sensor signals and timing functions to coordinate cycles
• Stops operation or causes errors if the board fails or loses power
• Common symptom link: unresponsive controls, error codes, or appliance that won't start

• One PCB assembly (control board)

• Disconnect power before starting and verify power is removed to avoid shock
• Handle the board carefully and avoid touching components or connectors; observe electrostatic discharge (ESD) precautions
• Inspect connectors and wiring for damage and ensure secure connections during reassembly

Fix a range that won't heat, cycle on, or respond to buttons. This control board assembly interprets inputs and restores reliable oven operation.
