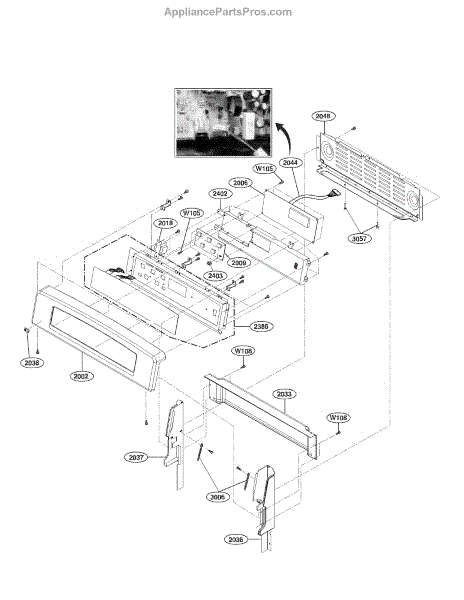

Parts for Lg LRE30451SB001: Controller Parts

Replacement sub printed circuit board that restores the appliance's electronic control functions by processing and routing signals between the user interface and other control modules, helping address unresponsive controls and erratic operation. What it does:

• Processes and routes control signals between the user interface and main control modules.
• Replaces a failed sub control board that can cause unresponsive buttons, blank or flickering displays, or intermittent operation.
• Can resolve specific feature failures or error codes tied to the sub board circuitry.
• Provides a direct OEM-design replacement to restore proper electronic control when the original board is faulty.

• Disconnect power to the appliance before accessing electrical components.
• Document or photograph connector locations before removal to ensure correct reassembly.
• Handle the board by the edges and use proper ESD precautions to avoid damage.

Power transformer that supplies low-voltage power to the appliance control board and user interface, helping restore stable voltage to control circuits for reliable operation of displays and control functions. What it does:

• Steps down incoming mains voltage to the low-voltage level required by the control board and display.
• Replaces a failed transformer that can cause blank or dim displays and unresponsive controls.
• Can address intermittent resets, failure to start, or control-board power-loss symptoms when diagnosed as the faulty component.
• Works with the main control assembly to maintain stable voltage for sensors and interface electronics.

• Disconnect power at the breaker or unplug the appliance before starting any work.
• Handle the control board and connectors carefully; document or photograph wiring locations before removal.
• Reconnect all terminals securely; verify correct orientation and insulation to avoid shorts.

This touchpad and control panel assembly restores a responsive, reliable user interface for your appliance. It provides the keypad membrane and front panel that register button presses and send commands to the electronic control.

• Provides the user interface to select functions and settings
• Membrane keypad and ribbon/connector transmit inputs to the main control
• Worn or damaged keys may cause unresponsive or intermittent buttons, stuck-key beeping, or inability to start/stop
• Cracked or damaged panel face can prevent proper button operation

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the console; release the keypad ribbon by lifting the connector lock—avoid creasing the ribbon
• Transfer any brackets/trim from the original panel if required; align and secure the new panel
• Fully seat the ribbon and test all keys before final reassembly

A circular lug designed to join a stripped wire to a threaded terminal for a secure electrical connection. Helps restore reliable contact at terminals and reduces the chance of intermittent power or arcing at connection points. What it does:

• Provides a strong mechanical and electrical connection between a wire and a screw or bolt terminal.
• Helps prevent loose connections that can cause intermittent operation, sparking, or overheating.
• Commonly used where a ring-style termination is required for safe, stable wiring.
• Works with properly sized wire and fasteners to maintain consistent conductivity.

• Always disconnect power to the appliance before inspecting or replacing electrical parts.
• Use the correct lug size and gauge for the wire and terminal; crimp or solder per manufacturer recommendations.
• Tighten terminal hardware to the appliance manufacturer's specified torque; avoid over-tightening which can damage the lug or terminal.
• If wiring insulation or the terminal is damaged or corroded, replace the affected components rather than reusing them.
