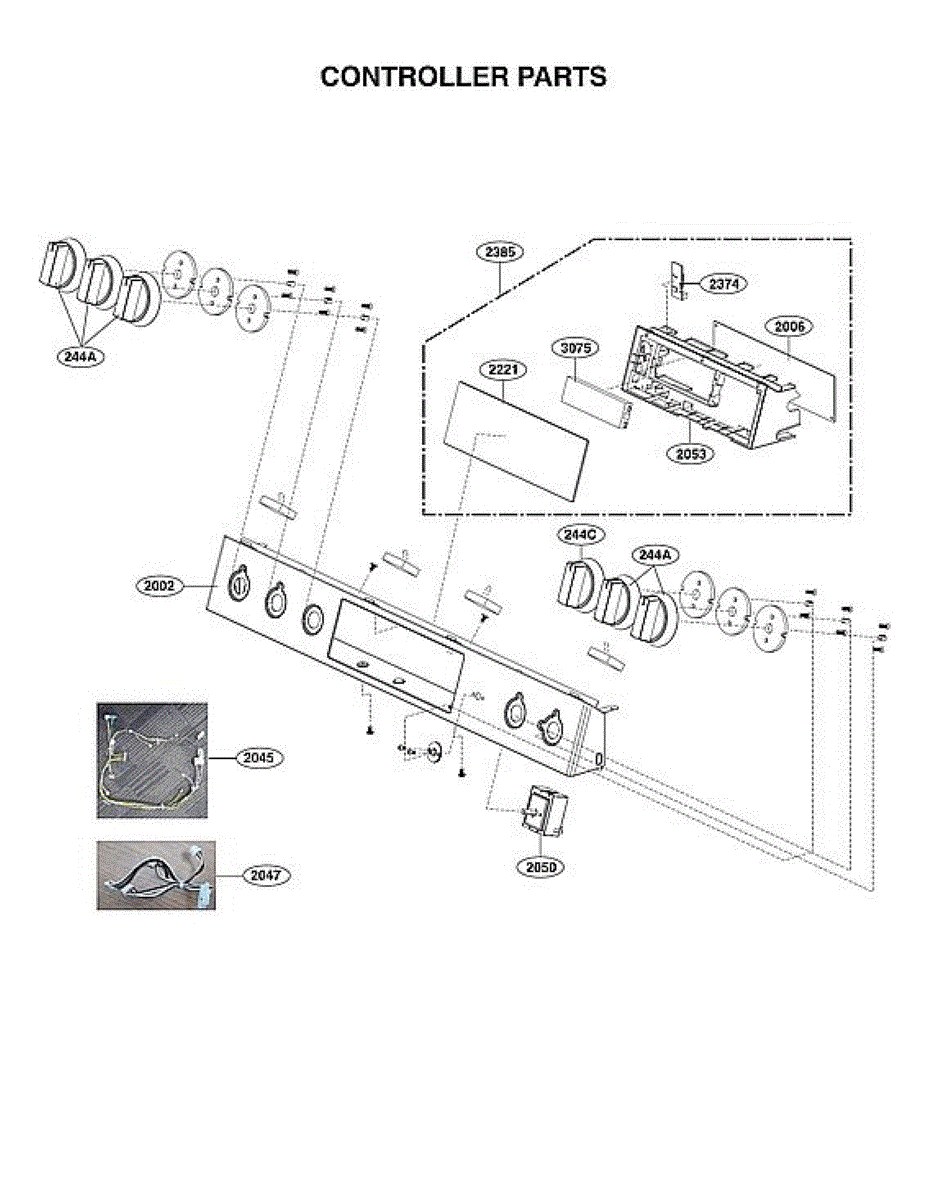

Parts for Lg LSDL6336D/00: Controller Parts

Fix a burner that won't ignite or heat evenly with this surface burner assembly. Restores consistent flame and reliable heat to your gas range cooktop.

A Tap-Tite binding-head screw used to fasten appliance panels and components where a self-tapping metal thread is required. Replaces missing or damaged fasteners to restore secure assembly and reduce vibration or rattling. What it does:

• Creates its own mating thread in thin sheet metal for a secure hold without a nut.
• Holds panels, brackets, and trim in place to prevent looseness or movement.
• Commonly used where stripped, missing, or broken screws cause rattling, misalignment, or parts that won't stay attached.
• Compatible with standard screwdrivers or nut drivers sized to the binding-head.

• Disconnect power and unplug the appliance before working on it.
• Use the correct driver bit to avoid cam-out or head damage.
• Start straight and apply steady pressure; avoid overtightening to prevent stripping the formed threads.
• If the original hole is badly damaged, assess for repair or use of a larger fastener as needed.

Insulator component for electric and gas ranges. Protects wiring and components from heat damage. Replace if cracked, melted, or deteriorated over time.

Insulation component that protects internal range wiring and components from heat. Replace if cracked, deteriorated, or missing to restore proper insulation.

This is a replacement screw used to secure appliance components and panels. It restores proper fastening where a stripped, missing, or damaged screw causes loose parts or rattling. What it does:

• Fastens panels, trim, or internal components to maintain structural fit
• Helps stop vibration-related noise from loose assemblies
• Replaces missing or corroded screws that prevent proper closures
• Restores secure mounting after repairs or disassembly

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug—do not over-torque to prevent thread damage
• Keep small parts away from children and pets
• Disconnect power or water before accessing internal parts

Small fastening nut that secures components inside microwaves and ranges. Replace if worn, missing, or stripped to restore proper assembly fit.

A factory screw for securing specified components in your appliance. Replaces a missing or damaged fastener to restore a tight, reliable hold and help reduce vibration, rattling, and misalignment.

• Secures brackets, covers, or internal assemblies where this exact screw is specified by the manufacturer
• Useful when the original screw is missing, stripped, or corroded
• Helps eliminate looseness, vibration, and rattling noises
• Matches the original fastener for proper fit and thread engagement

• Disconnect power (and shut off water supply if applicable) before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged clips or inserts to ensure a secure repair

Replacement washer that secures fasteners and distributes load at connection points in ranges and ovens. Needed when original is missing, worn, or damaged.

Replacement screw for electric and gas ranges. Secures internal components and panels. Needed when original is stripped, missing, or damaged during repair.

Secures panels, brackets, and internal components in your range. Replace this screw if the original is missing, stripped, or rusted for proper fit.

This customized screw secures appliance components where a standard fastener won't fit, helping keep panels, brackets and small assemblies stable. It's a direct-fit replacement when the original specialized screw is missing or damaged. What it does:

• Fastens and holds appliance panels, brackets or small parts in place
• Prevents rattling, loose trim or misaligned components caused by a missing or stripped screw
• Matches the OEM fit and thread pattern for proper engagement and alignment
• Used in locations that require a non-standard or customized fastener

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten securely but do not overtighten; overtightening can strip threads or crack parts
• Keep removed hardware organized so you can reinstall in the original location

This hardware washer helps distribute fastener load and maintain proper spacing in your LG appliance. Replacing a missing or worn washer restores secure mounting and alignment, reducing vibration and rattling from loose assemblies.

• Distributes the load of a screw or bolt and protects mating surfaces to maintain alignment
• Helps keep components secure and at the correct spacing
• A damaged or missing washer can lead to loosening, vibration, or rattling during operation
• Ensures correct hardware stack-up during reassembly after service

• Disconnect power and shut off water or gas before servicing
• Note the order and orientation of any washers/spacers; take a reference photo
• Use the correct driver or wrench and tighten snugly—do not overtighten
• Replace companion hardware if corroded, stripped, or damaged

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

This is a replacement customized screw designed to secure appliance panels and components. It restores proper fit and fastening where the original screw is lost or worn, helping maintain safe, stable operation. What it does

• Replaces missing or damaged mounting screw used on appliance panels and internal components
• Restores secure fastening to reduce vibration and rattling during operation
• Matches the original OEM fit and thread form for correct engagement when verified for your model
• Helps prevent loose parts that can cause noise or interfere with moving components

• Disconnect power and water before servicing the appliance
• Verify screw size, thread direction, and length match the original before installation
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid overtightening to prevent stripping or damaging mating threads

Replacement screw for electric and gas ranges. Secures panels, brackets, and internal assemblies. Restores tight fit when original is missing or stripped.

This 4.0x16mm tapping screw secures trim, panels, and brackets on ranges and microwaves. Replace missing, stripped, or damaged screws during repair.

Replacement door window glass for electric ranges. Restores clear viewing panel in oven door. Install when original glass is cracked, broken, or fogged.

Replace your range's broken or cracked door handle. This handle attaches to the front of your oven door for opening and closing. Ideal for worn or damaged handles.

Inner door cover panel for electric and gas ranges. Replaces damaged, cracked, or missing inner door cosmetic panels. Installs on the interior door assembly.

Bracket that anchors the handle to your range oven door. Replace if cracked, stripped, or broken to restore secure handle attachment and alignment.

This is the outer door panel assembly for a range oven, which includes the exterior glass and surrounding frame. It forms the visible front surface of the oven door and helps contain heat during cooking. Replace this assembly if the outer door glass is cracked, shattered, or if the panel frame is warped or damaged.

Replace worn door hinges causing sagging, misalignment, or difficulty opening your electric range. Restores smooth operation and proper seal. Verify fit with your model number.

This is a complete control panel and display board assembly for a range oven. It includes the electronic control board and the user-facing display panel that allows you to set cooking modes, temperature, and timer functions. Replace this assembly if the display is blank, unresponsive, showing error codes, or if oven functions fail to activate when selected.

This is a circular wire harness holder that secures and organizes internal wiring within the range. It clips onto the frame or mounting points to keep wires routed properly and away from heat sources. Replace this part if it is broken or missing, which can cause loose wiring or potential contact with hot surfaces.

A replacement vent grille that restores proper airflow and the finished appearance of the appliance's front vent area. Fits over the exhaust/intake opening to protect internal components while helping direct airflow. What it does:

• Covers the appliance vent opening to help guide exhaust or intake airflow
• Protects internal fan and electronics from large debris and direct contact
• Replaces cracked, warped, or missing vent trim that affects appearance
• Helps maintain intended ventilation performance when installed correctly

• Disconnect power to the appliance before beginning any work
• Typically secures with clips or screws; handle gently to avoid snapping tabs
• Align mounting tabs and fasten evenly to prevent gaps or rattling

This rear cover is the replacement cabinet panel that protects internal components and restores the original enclosure for proper airflow and safety. It helps keep wiring and electronics shielded from damage and dust. What it does:

• Replaces a cracked, warped, or missing rear cabinet panel
• Protects internal wiring, control boards, and components from debris
• Restores proper enclosure to help maintain intended airflow and clearance
• Reduces risk of accidental contact with live parts during operation

• Disconnect power before starting any repair to avoid electric shock
• Handle edges carefully; use gloves to protect hands from sharp sheet-metal edges
• Reinstall using existing screws and mounting points; verify secure fit and clearance

Decorative trim piece that surrounds the rear of your range for a finished appearance. Replace if cracked, chipped, damaged, or missing for restored looks.

This is a cast iron or porcelain-coated burner grate that sits on top of the range cooktop, providing a stable surface to hold pots and pans over the burner. It supports cookware and allows heat to circulate evenly during cooking. Replace this grate if it is cracked, warped, rusted through, or if its feet are broken, causing cookware to sit unevenly on the burner.

This is a cast iron or heavy-duty metal grate that sits over the center burner on the range cooktop, providing a stable surface to support pots and pans during cooking. It is designed to fit between the outer burner grates for a continuous cooking surface. Replace this grate if it is cracked, warped, has broken feet, or no longer sits level on the cooktop.

If your range burners won't light or heat unevenly, the gas valve assembly may have failed. This part regulates gas flow to restore proper ignition.

Gas valve assembly that controls and delivers gas to the burner. Mounts inside the range cabinet. Replace if cracked, leaking, or damaged to restore safe gas flow.

Gas range won't ignite or heat properly? This valve assembly controls gas flow to your oven and burners. Restores ignition and safe operation.

Controls gas flow to your range burner. Replace this valve assembly when the original is faulty, leaking, or damaged to restore safe gas regulation.

This replacement surface heating element restores heating on electric ranges by providing the cooktop heat source for pots and pans. Use it to replace a bent, non-heating, or intermittently working element and get back to normal cooking. What it does:

• Heats cookware on the range surface to allow boiling, simmering, and frying.
• Replaces an element that stays cold, is slow to heat, or cycles on and off.
• Addresses issues like visible damage, burning odors, or uneven cooking from a faulty element.
• Matches OEM fit and electrical connection style for straightforward replacement.

• One surface heating element as shown

• Disconnect power to the range at the breaker before servicing to avoid shock.
• Allow the cooktop and existing element to cool completely before removing.
• Remove the damaged element by unplugging its terminal block and seating the new element into the same connector; do not force or bend terminals.
• After installation, restore power and test on low-to-medium heat to ensure proper operation.

Replace your gas range burner head if flames are uneven, won't ignite, or produce yellow/orange flames. Controls ignition and flame for each burner.

The Burner Head is an OEM part for LG gas ranges. It is located underneath the burner caps and is responsible for producing the ignited flame during cooking.

Symptoms of a bad burner head include:

• Difficulty lighting or sustaining a flame
• Unbalanced or irregular burner performance
• Yellow flame tips or soot buildup
• Burner tubes appearing warped or misshapen

Causes of a faulty burner head can be issues like cracks in the burner material, blockages within the gas tubes, or deformations from long-term heat exposure.

 This burner head is also compatible with select Sears/Kenmore gas range models.

Replace a gas range burner head with uneven flames, weak heat output, or clogged ports. Sits at the center of the burner unit to control flame pattern.

Range burner cap covers the burner base on gas cooktops. Replace if cracked, chipped, discolored, or missing to restore proper flame distribution.

A replacement burner cap for gas cooktops that helps distribute the flame and protect the burner head for even cooking and reliable ignition. Fits as a single matching cap to replace a damaged or missing unit. What it does:

• Sits on top of the burner head to shape and stabilize the burner flame for more consistent heat
• Protects the burner head from spills, debris and corrosion that can affect ignition
• Helps restore proper flame pattern and reduce uneven cooking when a cap is cracked or warped
• Commonly replaced when a cap is chipped, melted, or missing and the burner won't heat correctly

• One burner cap (single)

• Ensure the range is turned off and cool before replacing the cap
• Remove debris and position the cap squarely over the burner head; no tools are typically required
• Follow all safety precautions in your appliance owner's manual when servicing gas components

Burner cap sits over sealed burner units to direct flame upward. Replace if cracked, chipped, or damaged from wear. Lifts off easily for quick replacement.

If your gas burner flame is uneven or yellow, the burner cap may be warped or cracked. This component covers flame ports for proper heat distribution.

Fix uneven flames or yellow burner tips with this gas range burner cap. Spreads flame evenly across the burner surface. Simple 5-minute swap.

Fix intermittent power or control failures with this gas range cable assembly. Routes power between the control board and components to restore operation.

Fix unresponsive control panel buttons with this tactile switch replacement. Restores reliable button response. Simple DIY repair, typically under 5 minutes.

Fix your oven not heating to the right temperature with this thermostat. Controls oven temperature accuracy. Moderate DIY repair with basic tools.

Wire harness assembly for electric ranges. Connects electrical components within the unit. Replace if wires are frayed, damaged, or connections are loose.

If your oven won't reach the right temperature or shows an F9 error, the temperature sensor may be faulty. Simple DIY repair in under 45 minutes.

Replace a damaged or corroded wire harness in your range. This single-connection harness restores proper electrical connections when original wiring is frayed, melted, or broken.

Fix uneven cooking or baking in your range. This convection fan motor circulates hot air for consistent heat distribution. Moderate DIY repair.

Secures the control panel to your range cabinet. Replace if the bracket is cracked, bent, stripped, or hardware no longer holds the console firmly in place.

Single wiring harness for electric and gas ranges. Replaces damaged, frayed, or corroded harnesses. Essential for restoring electrical connections.

Fix inaccurate oven temperatures with this range temperature sensor. Restores proper heating cycles when your oven runs too hot or cold.

Motor loose or vibrating excessively? This motor bracket secures the motor to the chassis, reducing vibration and maintaining alignment for quieter operation.

Fixes uneven baking and longer cooking times in your range. This convection fan blade restores proper air circulation for consistent oven temperatures.

This Fan Blade is an OEM part for LG microwaves. It is a critical component designed to circulate air within the microwave, aiding in heat dissipation and ensuring even cooking.

Fan blades in microwaves can suffer from wear, imbalance, or damage due to regular use or accumulation of debris. A malfunctioning fan blade can lead to inadequate ventilation, affecting the microwave's cooking efficiency and potentially causing overheating.

Symptoms of a bad fan blade include:

• Unusual noises during operation, such as rattling or buzzing, indicate a loose or damaged blade.
• The microwave overheating or shutting off prematurely.
• Inconsistent cooking or hot spots in food suggest poor air circulation.
• The fan not starting, or stopping unexpectedly during use.
• Visible signs of damage or wear on the blade.

This OEM LG part is also compatible with some Sears/Kenmore models.


Replace your damaged or broken range handle bar. This bar installs on the oven door, providing a secure grip for opening and closing. Order now.

Fixes uneven rotation or component failure in your range. This synchronous motor assembly restores precise speed control. Moderate DIY repair.

Range heating element loose or misaligned? This heater mounting bracket secures your heating assembly to the cabinet for stable, reliable operation.

Halogen oven light bulb illuminates your range interior for monitoring food while cooking. Replace when bulb burns out or flickers. Verify fit with your model.

This hinge bracket secures the oven door hinge mechanism on your range. Replace if the bracket is cracked, broken, bent, or missing to restore door support.

The range packing seal creates an airtight barrier around oven doors or other range components to maintain proper cooking temperatures and prevent heat loss. Positioned around door edges or component joints, it needs replacement if heat escapes, cooking becomes uneven, or the seal appears cracked or compressed.

Oven not heating or baking unevenly? This electric range heating element restores proper cooking temperature. Moderate DIY repair in 30-45 minutes.

Secures and supports your range oven door hinge for proper alignment and smooth operation. Replace if bracket is cracked, bent, or damaged to restore door fit.

Replacement support bracket for range control panels. Installs behind the control panel to provide structural support. Needed when original is broken or missing.

Range oven door gasket seals the oven cavity to retain heat and improve efficiency. Replace if torn, cracked, or no longer sealing properly. Confirm fit.

This burner assembly is the main gas burner component for a compatible range or cooktop. It replaces a worn or damaged burner to restore reliable ignition and consistent flame control for safe, even cooking. What it does:

• Directs gas to the burner ports so the cooktop produces a controlled flame
• Works with the range ignition system to light the burner when switched on
• Commonly used when a burner won't light, has a weak or uneven flame, or flame blows out
• Helps replace corroded or damaged burner components that affect performance

• Turn off gas supply and electrical power before removing or installing the part.
• Inspect gaskets, seals and mounting hardware; replace if damaged.
• Tighten connections and check for leaks with a soap solution or leak detector after installation.

Replace a burner cap when flames are uneven, yellow, or won't stay lit. This cap distributes heat evenly across your cooktop. Simple 5-minute swap—no tools.

Secures and finishes your range door opening with proper structural support. Replace if cracked, warped, or damaged to restore door alignment and seal.

This adjustable leg supports your range and allows you to level the appliance on uneven floors. It screws into the bottom corner of the range and can be adjusted up or down as needed. Replace this part if your range is wobbly, tilting, or sitting unevenly.

Idle bracket for electric and gas ranges. Secures internal components in place. Replace if bracket is bent, cracked, broken, or missing during repair.

Replacement slider for range drawers and panels. Restores smooth movement when original is worn, cracked, or broken. Mounts to moving components for alignment.

Replace worn range drawer sliders to restore smooth, quiet operation and proper alignment. Prevents damage to surrounding trim. Confirm fit with your model.

Replacement storage drawer for electric ranges. Installs below the oven cavity to restore convenient storage space. Needed when original is cracked or broken.

Replace a faulty oven temperature sensor if your range bakes unevenly, runs too hot or cold, or displays temperature errors. Moderate DIY repair.

Adjustable metal leveling foot that elevates and stabilizes your range. Mounts to the bottom of the unit. Replace if broken, worn, or missing.

Mounting anchor for range door handles. Replaces worn, broken, or missing anchors to restore secure handle attachment and eliminate wobbling or loose fit.

Accessory assembly for electric and gas ranges and wall ovens. Replaces damaged, broken, or missing accessory components. Restores proper fit and function.
