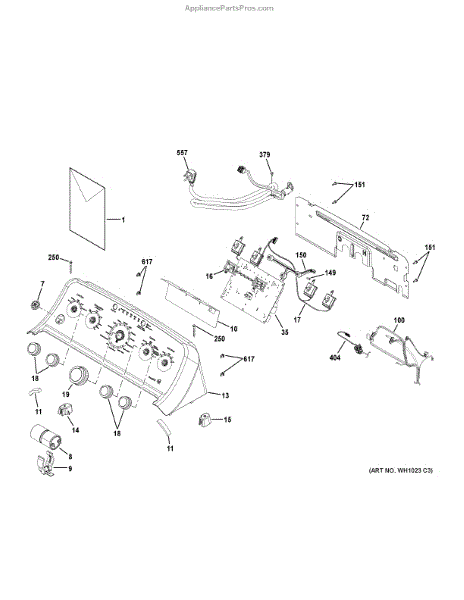

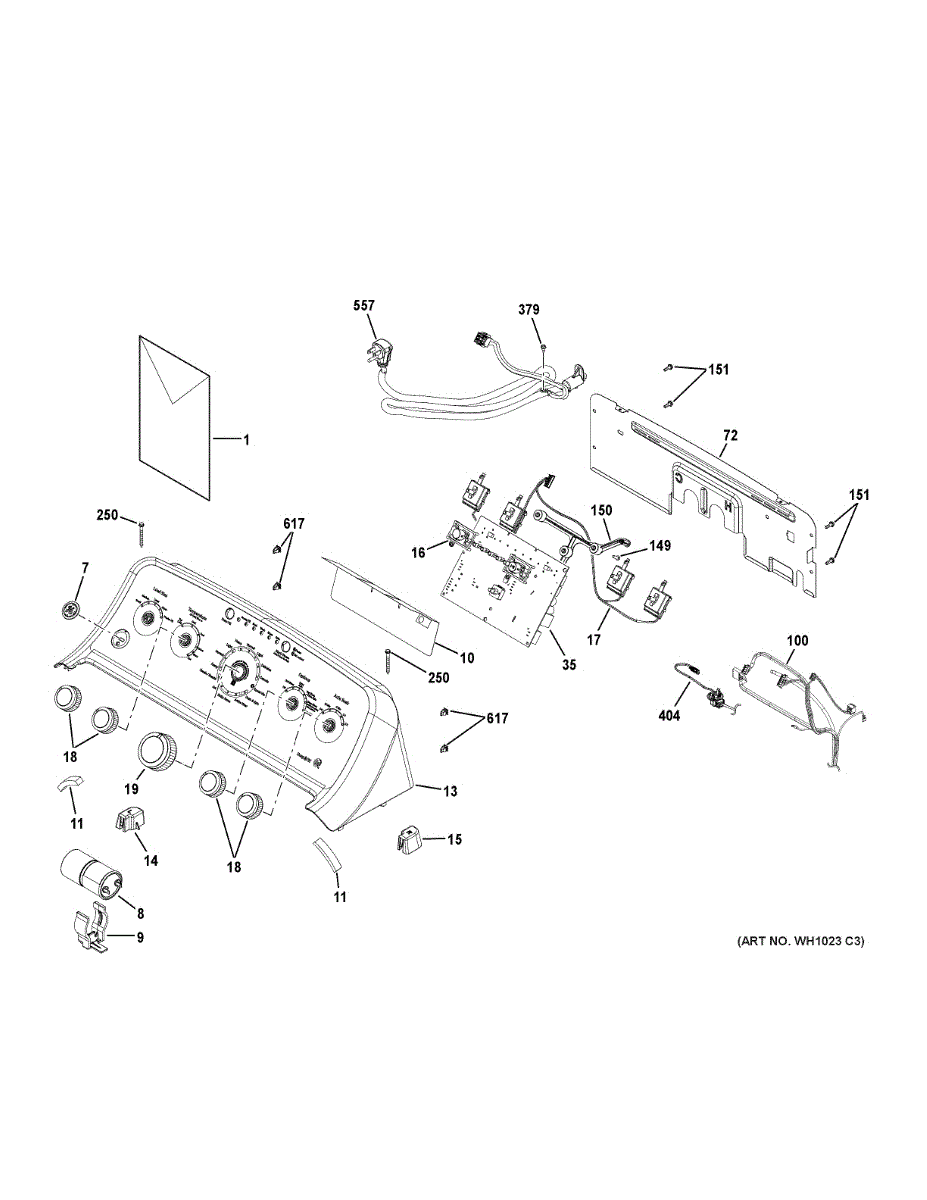

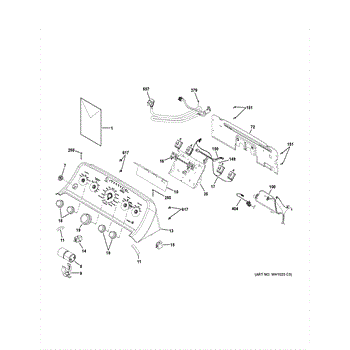

Parts for Ge GTW485ASJ2WS: Controls & Backsplash Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This decorative badge is the exterior emblem that mounts to the appliance cabinet or door to restore factory appearance and identification. It replaces a missing, faded, cracked, or detached emblem for a clean, finished look. What it does:

• Replaces a worn, damaged, or missing appliance emblem
• Restores original exterior appearance and branding visual
• Prevents loose badges from catching on clothing or edges
• Designed to match OEM fit and finish for a seamless look

• Typically installs on the appliance front using clips or adhesive
• Clean and dry the mounting surface before installing to ensure proper adhesion or fit
• Avoid excessive force when seating the badge to prevent damaging trim or clips
• Wear gloves to protect finish and follow general appliance-safety practices

The Start Capacitor is an OEM part for GE washing machines. It is comprised of a bracket and capacitor, which work together in the motor control circuit to start and run the drive motor. The capacitor provides a phase shift that allows for smoother operation of the electric motor.

Symptoms of a bad Start Capacitor include:

• The washer fails to agitate or spin clothes
• An electric burning smell coming from the motor or control board
• The drive motor makes buzzing or humming noises during the operation

Causes of failure can be normal component degradation over time. Exposure to moisture, physical damage, or operating the machine with an unbalanced load can also stress the capacitor prematurely.

This OEM GE part is also compatible with Hotpoint, RCA, and select Kenmore models.

The Start Capacitor is an OEM part for GE washing machines. It is comprised of a bracket and capacitor, which work together in the motor control circuit to start and run the drive motor. The capacitor provides a phase shift that allows for smoother operation of the electric motor.

Symptoms of a bad Start Capacitor include:

• The washer fails to agitate or spin clothes
• An electric burning smell coming from the motor or control board
• The drive motor makes buzzing or humming noises during the operation

Causes of failure can be normal component degradation over time. Exposure to moisture, physical damage, or operating the machine with an unbalanced load can also stress the capacitor prematurely.

This OEM GE part is also compatible with Hotpoint, RCA, and select Kenmore models.

This control board shield protects the appliance's electronic control board from debris, heat, and accidental contact to help maintain reliable operation. It's a direct-fit replacement designed to restore proper protection for the control electronics. What it does:

• Covers and shields the electronic control board from dust, moisture splash, and physical contact
• Helps reduce risk of short circuits caused by loose debris or small objects
• Preserves board components from incidental heat exposure and wear
• Commonly replaced when the old shield is cracked, broken, or missing

• One control board shield

• Disconnect power before servicing to avoid shock or damage to electronics
• Handle shield and control board carefully to avoid bending tabs or damaging connectors
• Reuse original fasteners if undamaged; replace any broken clips or screws

A molded metal support bracket that holds the right side of the oven/range backsplash assembly in place, restoring secure alignment and preventing sagging or gaps behind the control area. What it does

• Secures the right side of the backsplash or backguard assembly to the range frame.
• Helps prevent the backsplash from sagging, shifting, or coming loose when using controls or cleaning.
• Can stop visible gaps that allow debris or steam behind the control panel.
• Works with the existing backsplash components and mounting hardware to maintain proper fit.

• One right backsplash support bracket.

• Disconnect power to the appliance before attempting any service.
• Access may require removing the cooktop, control panel, or top trim.
• Use appropriate hand tools; keep track of fasteners and any clips removed.
• If the backsplash or adjacent parts are damaged, inspect related fasteners and supports for wear before reassembly.

This left backsplash support is the metal bracket that secures the range/oven backsplash and helps keep the control panel and rear trim stable. It restores proper alignment and reduces movement of the upper back assembly. What it does

• Provides structural support for the left side of the backsplash and control panel area
• Keeps the backsplash and rear trim aligned to prevent wobble or sagging
• Helps stop vibration or rattling coming from the upper rear of the appliance
• Replaces a bent, broken, or missing left support bracket

• One left backsplash support bracket

• Disconnect power to the appliance before starting any repair
• You may need to remove the range top, control panel, or rear access panel to access mounting screws
• Use basic hand tools; keep fasteners for reuse and note their original locations
• If you see additional damaged or missing fasteners or trim, replace them as needed for a secure fit

This button tree is the group of selector buttons behind the control panel. It restores reliable button action so you can choose cycles and options when keys stick, feel mushy, or stop responding.

• Provides the push-button interface for cycle and option selections on the control panel
• Helps address unresponsive or intermittent keys
• Resolves sticking or jammed buttons
• Restores proper alignment and tactile feel

• Disconnect power to the appliance before servicing
• Remove the console/control panel to access the button tree
• Seat the new button tree so each button aligns with the control board switch positions and the overlay
• Handle the user interface board and wiring gently; do not force clips or tabs

The Selector Switch is an OEM component specifically designed for GE washers. This switch is responsible for selecting the desired cycle and option settings on the washer control panel.

The selector switch allows the user to choose from various wash cycles like normal, heavy duty, gentle, and sanitize. It also enables cycle customizations like soil level, water temperature, and spin speed. The switch works together with the control board to accurately coordinate all washer functions based on the selected settings.

Symptoms of a bad selector switch include:

• Unable to select any wash cycles or options
• Wash cycles not functioning as intended
• Switch getting stuck or not responding properly
• Control panel lights/display not working correctly

Replace yours with this genuine GE OEM part to ensure your washer control interface works dependably. This replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 4 selector switches and wiring harnesses

The Selector Knob is an OEM replacement part for GE washing machines. Located on the control panel, this knob allows you to select desired wash cycles like normal, delicate or heavy duty.

Causes of a faulty selector knob include wear and tear from repeated twisting motions over many years as well as potential impacts if dropped. Water exposure can also degrade the knob material over time.

Symptoms of a damaged selector knob include:

• Difficulty rotating the knob or getting it to "catch" cycle positions
• Washer not initiating cycles properly based on knob setting
• Loose knob that wobbles excessively or falls off control panel
• Cracking, flaking or discoloration on the exterior knob surface

This genuine GE knob is compatible with select Hotpoint and RCA washers.

This washer control knob assembly replaces the main cycle selector knob. Swap a cracked or loose knob to restore precise, reliable selection of wash cycles and settings.

• Attaches to the selector shaft to set wash cycles and options
• Fixes issues such as a cracked hub, stripped insert, or knob that falls off
• Symptoms include free-spinning or loose knob, difficulty turning, or inability to select a cycle
• Restores positive engagement and control feel

• Disconnect power to the washer before servicing
• Pull the old knob straight off; gently wiggle if needed to release
• Align the flat/D-shaped side of the new knob with the shaft and press firmly until fully seated
• If the knob won't seat or stay on, inspect the selector/timer shaft for damage

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This main control board is the washer's central electronic brain, coordinating cycles, motor and valve operation, and safety checks. Replacing a failed board can restore normal starts, fills, agitation/spin, and reliable cycle completion.

• Manages cycle timing and power to the drive motor, drain pump, and water inlet valves
• Monitors inputs from the lid lock and other sensors for safe, accurate operation
• Interfaces with the user controls to run the selected wash program
• Typical failure symptoms: won't start or power up; no fill/agitate/spin/drain; stops mid-cycle; error codes or unresponsive controls

• Disconnect power before servicing and handle the board with ESD protection
• Access the control at the top/rear area, transfer connectors one at a time to the same positions, and secure the board in the original mounting
• After installation, restore power and run the unit's diagnostic/service mode to verify operation; some models may require a configuration/personality step per the tech sheet

This main wiring harness (green) routes power and signals between an appliance's control and major components, restoring reliable electrical connections. Replacing a damaged harness helps stop intermittent power issues and restore normal operation. What it does

• Connects control board to motors, switches, and sensors to enable normal operation
• Replaces frayed, burnt, or broken wiring that can cause intermittent or complete loss of function
• Helps eliminate electrical shorts or open circuits that prevent the appliance from starting or running consistently
• Maintains OEM-style connectors and color coding for proper routing and reconnection

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Route and secure the harness per OEM clips/retainers to avoid pinching or rubbing

8-18 hi/lo 5/8

This is a 8-18 x 1/2 inch hex washer head screw used to secure appliance panels and components. It provides a reliable, corrosion-resistant fastener for repair or reassembly tasks. What it does:

• Fastens panels, brackets or trim where an 8-18 x 1/2" screw is specified
• Hex washer head offers wider bearing surface to prevent pull-through
• Stainless finish resists rust and corrosion in humid appliance environments
• Restores proper fit and function when original screw is missing or damaged

• One 8-18 x 1/2 in. hex washer head stainless screw

• Use the correct driver/socket to avoid stripping the head
• Tighten securely but avoid over-torquing to prevent damage to plastic or thin metal parts
• Disconnect power and follow appliance safety precautions before working inside the unit
• Replace only with the same size and head style for proper fit

This replacement screw fastens appliance panels, brackets, and trim. The 8-18 thread with 1-3/4-inch length provides reliable bite in sheet metal or plastic, restoring a secure fit when an original fastener is missing or damaged.

• Secures panels, brackets, and trim to the cabinet or frame
• Replaces lost, stripped, or corroded fasteners
• Helps address loose or rattling panels, minor gaps, or misalignment
• Appropriate for sheet-metal applications that require ~1-3/4-inch reach

• Disconnect power before servicing; wear cut-resistant gloves
• Support the panel or part being fastened and use the correct driver for the screw head
• Start threads by hand to avoid cross-threading; do not overtighten into plastic or thin metal
• Repair or replace the anchor before installing

This 10-32 hex head screw secures appliance panels and components where a small machine screw is required. It provides a durable, threaded fastening point for repair or reassembly. What it does:

• Fastens panels, brackets, and small components using a 10-32 machine thread
• Hex head accepts a 7/16" socket or wrench for positive torque application
• Replaces worn or damaged screws that cause loose or rattling parts
• Compatible with common metal-to-metal and tapped-hole connections

• One 10-32 hex head screw with 7/16" socket head

• Use the correct 7/16" socket or wrench to avoid rounding the head
• Thread engagement should match the appliance's threaded insert; do not force if resistance is felt
• Follow manufacturer service manual for torque specs and installation sequence
• Disconnect power and follow safety procedures before servicing the appliance

The Lid Lock Wiring Harness is an OEM part for GE washing machines. It connects the lid lock mechanism to the washing machine’s control board, ensuring proper communication and functionality. This wiring harness is crucial for the safe operation of the washer, as it ensures the lid remains locked during certain cycles to prevent accidental openings and maintain safety.

You should replace the lid lock wiring harness if it becomes faulty. Causes of a bad wiring harness can include regular wear and tear, electrical faults, or damage from impacts or pinching. A damaged wiring harness can lead to communication errors between the lid lock and control board, resulting in improper functioning of the lid lock mechanism.

Symptoms of a bad lid lock wiring harness include:

• The washing machine not starting or stopping mid-cycle
• The lid not locking or unlocking properly
• Error codes related to the lid lock mechanism
• The washer not responding to control inputs

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Power Cord is an OEM part for GE washers. It provides the crucial connection, transmitting electrical current from the wall outlet to power the washer components and functions. Ensuring the integrity of this cord is vital for safe and reliable operation.

Symptoms of a bad power cord include:

• Frayed, cracked, or exposed copper wiring
• Loose connections at either end
• Buzzing, sparks, or shocks felt around the cord
• The washer fails to power on as expected

Causes can be normal flexing wear over thousands of cycles, damage from pinching, rodents, or excess tension on the cord.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
