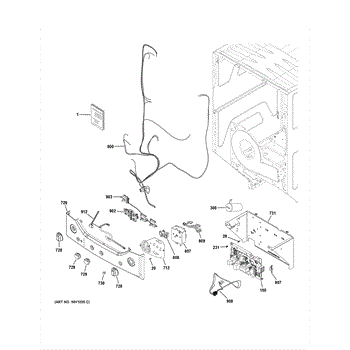

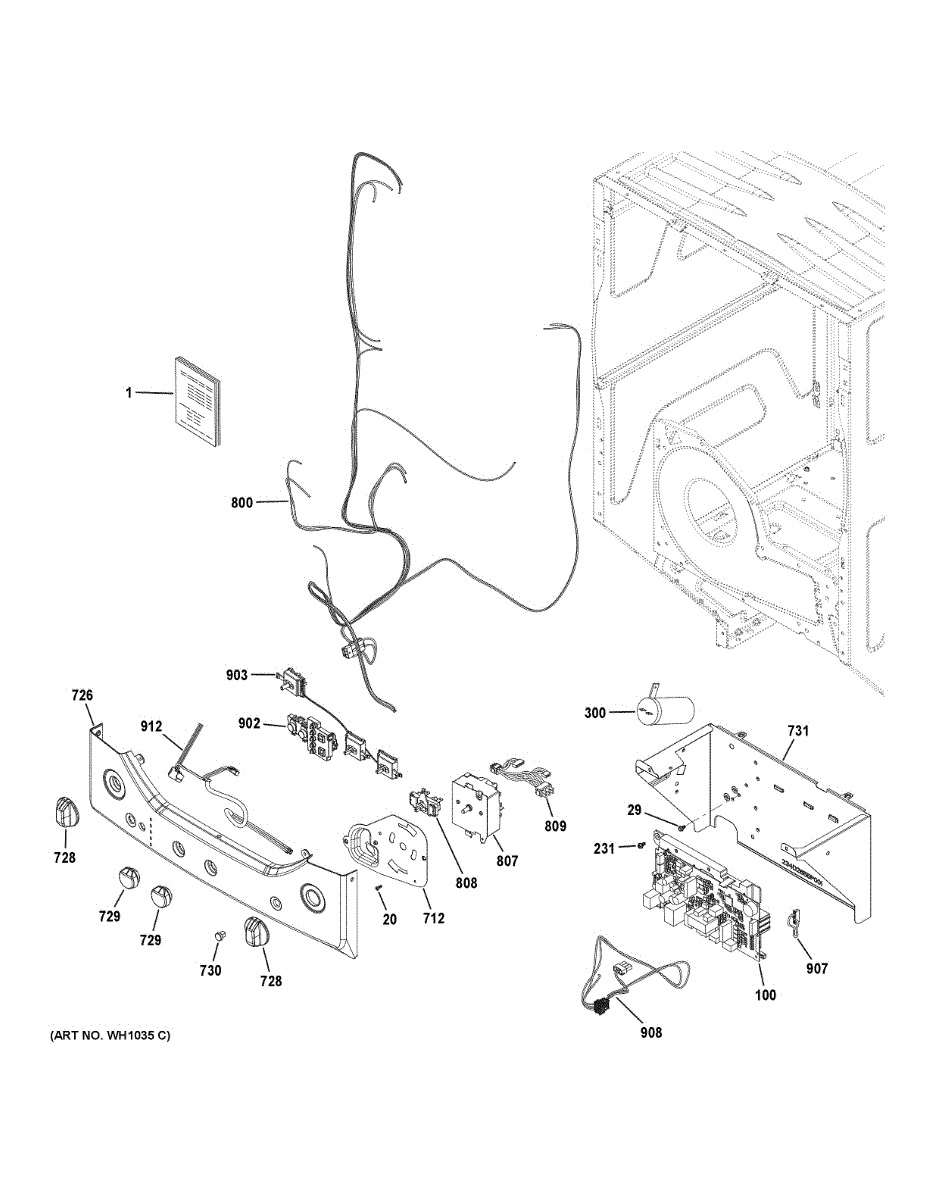

Parts for Ge GUD24ESSM1WW: Controls & Backsplash Parts

This replacement screw secures dryer panels and assemblies, helping prevent vibration and keeping components properly aligned. Use it to replace missing or stripped hardware and restore a solid, factory-tight fit during reassembly.

• Secures panels, brackets, and internal assemblies in the dryer cabinet
• Replaces lost, damaged, or stripped factory screw
• Helps reduce vibration and rattling caused by loose hardware
• Supports proper alignment of parts and a tight fit
• Symptoms can include loose or shifting panels, rattling noises, or gaps

• Disconnect power before servicing; for gas dryers, also shut off the gas supply if moving the unit.
• Match screw length and location to the original during reassembly.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver for your screw head style as used on your model.

The Board & Support Assembly is an OEM replacement part for GE washer/dryer combination laundry centers. This assembly features both the control board and its supporting structure. The control board is responsible for managing a variety of functions for both the washing machine and dryer, including cycle selection and timing, while the support secures the board in its proper position.

Causes for a malfunctioning Board & Support Assembly can include electrical issues like short circuits or power surges, as well as physical damage from impact or mishandling.

Symptoms of a bad Board & Support Assembly include:

• Difficulty in selecting or initiating wash or dry cycles
• Unresponsive or malfunctioning buttons on the control panel
• Error messages appearing on the display
• Inconsistent performance in either the washer or dryer

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

The CAPACITOR is an OEM part for GE washers. It works along with the motor to efficiently power the agitation and spinning functions. The capacitor stores and releases electrical current as needed to ensure a smooth wash action.

Symptoms of a bad capacitor include:

• The washer unable to progress beyond the initial agitation cycles
• Sluggish or struggling movements during washing or spinning
• Buzzing, humming, or crackling noises from electrical components
• Frequent tripping of circuit breakers when operating

Causes of failure can include drying out of internal components over many years, defects in capacitor plates or wiring, or electrical surges damaging sensitive components.

Replace yours today with this genuine OEM GE part for reliable storage and delivery of current. This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control support is the mounting bracket that secures the appliance control assembly, keeping the control panel stable and aligned for reliable operation. Replaces a worn or broken support to restore proper panel fit and reduce vibration. What it does:

• Holds the control board/panel in place to prevent sagging or misalignment
• Keeps control knobs and buttons properly positioned for accurate use
• Reduces vibration and rattling that can affect button/knob response
• Can prevent intermittent contact caused by a loose or damaged support

• One control support bracket

• Disconnect power (unplug the appliance or shut off the breaker) before starting any work
• Access usually requires removing the control panel or back panel; keep fasteners organized
• Install with original mounting screws; inspect surrounding clips and hardware for wear

This control knob assembly restores a solid, easy-to-grip selector on your appliance's console so you can accurately choose cycles and settings. It replaces broken or stripped knobs that slip, wobble, or fall off the control shaft.

• Attaches to the control/timer shaft so you can turn and set functions
• Replaces cracked, missing, or hub-stripped knobs
• Helps resolve free-spinning knobs or knobs that won't stay on
• Maintains correct shaft engagement and a clean, finished console appearance

• Disconnect power before servicing
• Pull the old knob straight off; avoid prying against the console
• Align the new knob with the flat/splined shaft and press until fully seated
• Inspect the shaft for wear or damage before forcing

The Rotatory Knob is an OEM part for GE washers. It allows users to easily select and change washer settings like cycles, temperatures, and options with a simple turn. As a control interface component, the rotatory knob provides direct input to the washer's control board.

Causes of a bad rotatory knob can be normal wear from frequent use over time. Exposure to moisture, physical impacts or mishandling, and mineral buildup are other potential causes of malfunction.

Symptoms of a bad rotatory knob include:

• Difficulty selecting or changing washer settings
• Loose, wobbly, or unresponsive knob behavior
• Inaccurate input to the control board causes operating issues
• Cracks, splits, or broken knob components

Compatible with some Hotpoint, RCA, and Kenmore models as well.

This start button assembly is the external pushbutton on the dryer console. It lets you begin a cycle; replacing a broken or missing button restores proper engagement of the start switch and a clean, factory appearance.

• Provides the physical Start control on the console and actuates the underlying switch
• Replaces a button that is cracked, missing, loose, or won't stay in place
• Helps when the dryer won't start because the button can't press the switch
• Restores smooth, reliable button travel and appearance

• Disconnect power; if gas, shut off gas supply before moving the appliance
• Access the console, remove fasteners, release tabs, and remove the old button assembly
• Transfer any small hardware from the original as needed; align and secure the new button
• Reassemble, restore power, and test for proper button movement and start engagement

The Timer is an OEM part for GE electric dryers. It serves as the critical control module that monitors and regulates dryer cycle times during functions like regular, wrinkle guard, fluff and more.

Causes of a bad timer include failure of internal electronic components or wiring connections due to prolonged exposure to heat and vibration inside the dryer cylinder. Mechanical wear of buttons or dials used to program cycles may occur as well over time.

Symptoms of a bad Timer include:

• Inability to set or change desired drying times accurately
• Premature stopping or starting of cycles without user input
• Faulty time or status display windows during use
• Complete shut down requiring manual override or reset

The GE OEM part is also compatible with Hotpoint, RCA and select Kenmore models.

The Dryer Push-to-Start Switch is an OEM replacement part for GE dryers. This component is responsible for initiating the drying cycle when pressed, serving as the primary control for starting the dryer's operation.

Symptoms of needing to replace the push-to-start switch include:

• The dryer failing to start or begin the cycle when the switch is pressed
• Intermittent or inconsistent starting issues
• Visible damage or deterioration of the switch itself

Causes of a faulty push-to-start switch can include mechanical wear and tear over time, electrical malfunctions, or physical damage due to impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore dryer models.

This UI harness assembly connects the appliance control console to the main control board, restoring signal and power pathways for the user interface. Use it to replace a damaged or disconnected control wiring harness. What it does:

• Transfers power and control signals between the console/touchpad and the main control board
• Re-establishes display, keypad response, and electronic control communication
• Commonly replaced when the control is unresponsive, display is blank, or buttons don't register
• Helps resolve intermittent operation caused by damaged wires or loose connectors

• One UI harness assembly as shown

• Disconnect power to the appliance before starting any repair
• Handle connectors gently and match keyed plugs; do not force connections
• Route the harness following the original path and secure with existing clips

The UI Board Assembly is an OEM part for GE electric and gas laundry centers. Located inside the combined washer/dryer cabinet, the UI board directs all washing and drying functions through a centralized control interface. Coordinating two appliances requires a robust control system.

Causes for replacement can include circuit failure from accumulated moisture exposure over many years of use. The humid environment inside a laundry center puts a greater strain on electronic parts.

Symptoms of a faulty UI board include:

• Inoperable or unresponsive control panel
• Failure to start wash or dry cycles
• Inability to adjust settings for either appliance
• Random starting or stopping during operation

This genuine GE part restores full customized functionality for both the washer and dryer. Whether drying laundry efficiently or completing extra large loads, dependable controls are crucial. Compatible with most GE electric and gas laundry center models, this replacement maintains long-term reliability.


This washer selector assembly sits behind the control panel and houses three switches for choosing cycle options. It restores reliable input so your selections register correctly and the control applies the settings you choose. What it does

• Provides three selector switches for cycle options on the control panel
• Sends user selections to the main control for proper cycle operation
• Common failure symptoms include unresponsive or intermittent buttons
• May cause settings to change unexpectedly or not hold
• Can contribute to a no-start condition if inputs aren't detected

• One 3-switch selector assembly

• Unplug the washer before servicing; electrical components are inside the console
• Remove console trim/screws to access the selector assembly
• Label or photograph wire connectors; move harnesses to the new assembly and seat fully
• Handle electronics with ESD care; test functions before reassembling the console

This communication harness provides an RJ45 connection between appliance control modules to enable board-to-board data signals and diagnostics. It restores proper communication so control boards can exchange status and commands. What it does:

• Carries digital communication signals between control boards using an RJ45-style connector
• Helps resolve issues where control modules fail to communicate or show communication errors
• Used when damaged, corroded, or broken connector wires cause intermittent or no signal
• Maintains correct pin alignment for reliable data transfer

• Disconnect power to the appliance before starting any work to avoid electrical shock
• Handle connectors by the housing; avoid pulling on wires to prevent damage
• Route the harness away from sharp edges, heat sources, and moving parts to prevent wear
