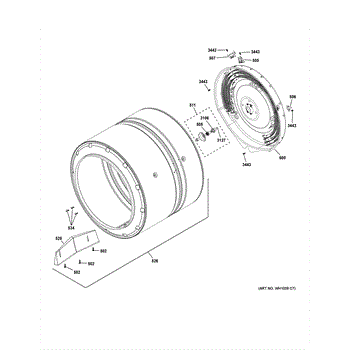

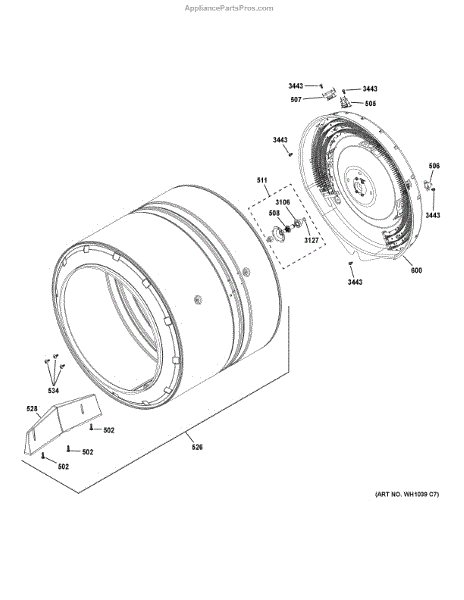

Parts for Ge GUD24ESSM1WW: Drum Parts

The inlet thermostat monitors the temperature of air entering the drum and cycles the heater to maintain proper drying temperatures. Replacing a weak or failed thermostat restores consistent heat control and helps prevent overheating for reliable drying. What it does:

• Senses inlet air temperature and turns the heater on/off to regulate heat
• Helps protect against overheating by opening at a calibrated temperature
• Failure can cause no heat, overheating, or the dryer shutting off mid-cycle
• Common signs include long dry times and inconsistent drying results

• 1 inlet thermostat

• Disconnect power; shut off gas supply if applicable before servicing
• Access is typically at the inlet duct/blower housing area; refer to your model's service information
• Transfer wires one at a time from the old thermostat; mount flush for proper temperature sensing
• After replacement, verify clear airflow and clean lint paths to prevent repeat temperature issues

This safety thermostat mounts on the left side of the dryer's heater/air duct. It helps protect the dryer by opening the heat circuit if temperatures climb too high, preventing overheating and enabling safe operation.

• Monitors dryer temperature and opens the circuit when excessive heat is detected
• Helps prevent overheating that could damage components or fabrics
• Typical failure symptoms: no heat, long dry times, very hot cabinet, or a burning smell
• Location-specific part: installs on the left side of the heater housing/exhaust duct

• Disconnect power; for gas dryers, also shut off gas supply
• Access the heater housing/exhaust duct; note left-side location and take a photo of wire positions
• Transfer wires one at a time and secure the thermostat with existing hardware
• Clean lint paths and verify venting/airflow to prevent repeat overheating

The Drum Support Shaft and Bearing is an OEM part for GE dryers. This component supports the drum and allows it to rotate smoothly during the drying cycle. The bearing reduces friction, ensuring quiet and efficient operation of the drum.

Common causes of a bad support shaft and bearing include normal wear and tear, overloading the dryer, or a lack of lubrication. These issues can lead to increased friction and stress on the components.

Symptoms of a bad Drum Support Shaft and Bearing include:

• Squeaking or grinding noises during operation
• The drum not rotating smoothly or becoming stuck
• Excessive vibration or wobbling of the drum
• Uneven drying of clothes

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement drum assembly restores the rotating drum that holds and tumbles clothes in your dryer, helping return smooth operation and reduce rubbing or scraping noises. Designed as a direct-fit service part when matched to your model. What it does:

• Houses and supports clothes while rotating during dry cycles to enable tumbling and even drying.
• Provides a smooth, durable surface to prevent clothes from catching or rubbing against the cabinet.
• Maintains correct drum alignment so the belt and rollers run smoothly.
• Common symptoms indicating a worn drum: loud scraping or grinding, visible drum wobble, or clothes that don't tumble properly.

• Disconnect power (and gas for gas dryers) before beginning any service.
• Retain original mounting hardware; additional fasteners or seals may be required if not supplied.

The Baffle is an OEM part for GE electric dryers. Located inside the dryer drum, it helps separate clothes and improves air circulation during tumbling cycles.

To achieve consistent drying times, a dryer relies on balanced airflow penetrating all areas where clothes reside. The baffle creates divisions to ensure air fully surrounds each layer instead of bypassing some areas. Its raised ridges also help tumbling action by preventing clumps of clothes.

Symptoms of a bad baffle include:

• Slow, uneven drying requiring extra cycles
• Certain areas of clothes remain damp while others over-dry
• Reduced airflow output from the vent due to blockage

Replacing it with the genuine GE baffle plate restores optimized air distribution within the drum. The part is also compatible with some Kenmore dryers that use GE elements.

The Heater and Housing Assembly is an OEM part for GE electric dryers. As the main heat source, the heater coil works together with the housing to effectively heat air flowing through the dryer. Precisely maintaining optimal drying temperatures is crucial to the drying process.

Symptoms of a bad heater and housing assembly include:

• Inefficient or prolonged drying times
• Excessive lint accumulation inside the housing
• Rust or damage visible on the heater coil
• Odors produced from a burnt-out or shorted heater element

Causes can be normal wear over time, moisture damage if the housing is not cleaned regularly, or an internal short if the heater coil is cracked or broken.

This heater and housing replacement is also compatible with Hotpoint, RCA, and some Kenmore electric dryer models.

Size: 8 - 18 ab.
