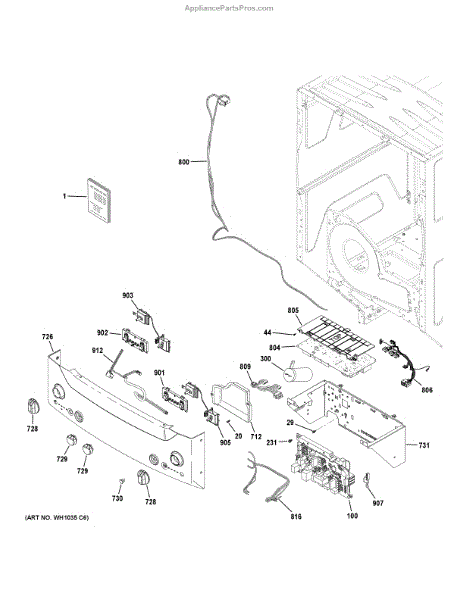

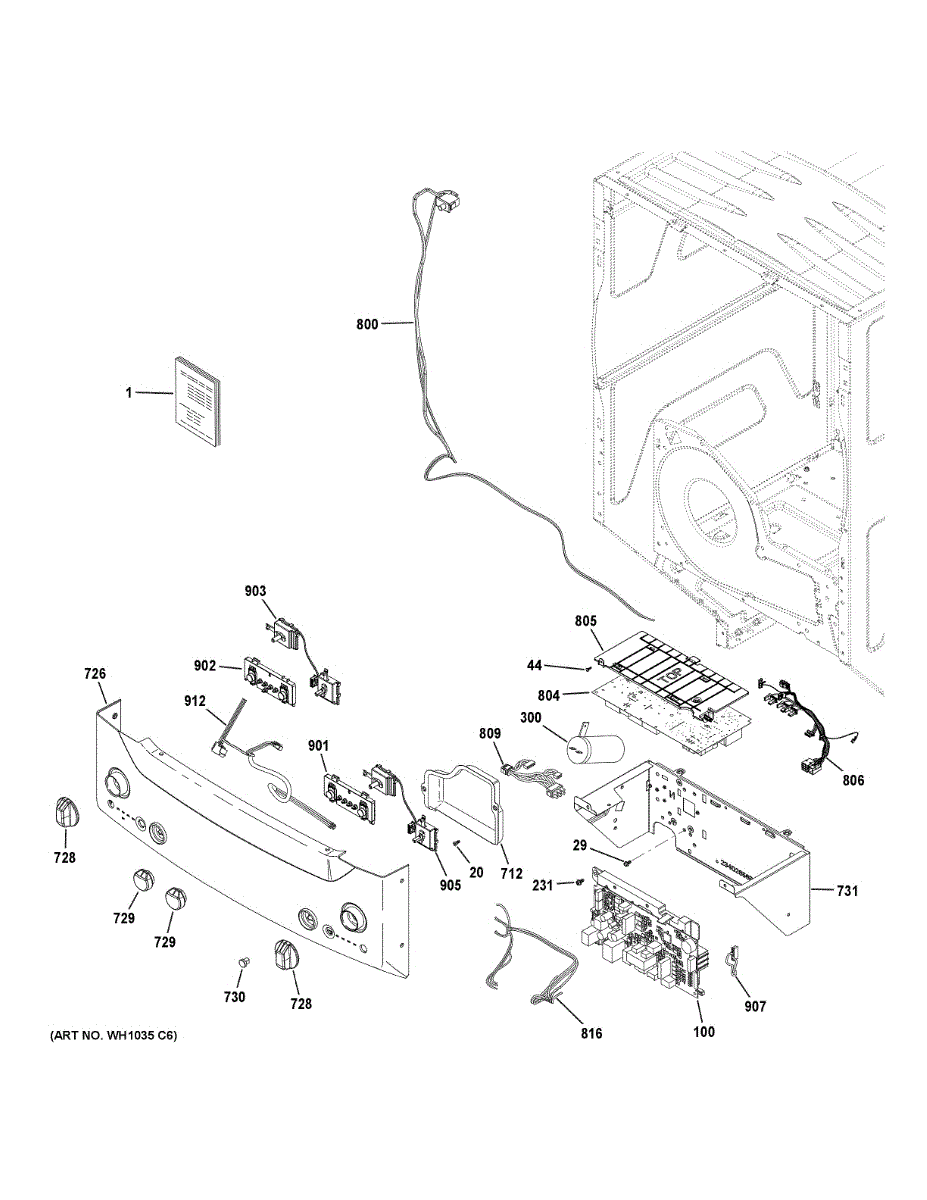

Parts for Ge GUD27EESN0WW: Controls & Backsplash Parts

This replacement screw secures dryer panels and assemblies, helping prevent vibration and keeping components properly aligned. Use it to replace missing or stripped hardware and restore a solid, factory-tight fit during reassembly.

• Secures panels, brackets, and internal assemblies in the dryer cabinet
• Replaces lost, damaged, or stripped factory screw
• Helps reduce vibration and rattling caused by loose hardware
• Supports proper alignment of parts and a tight fit
• Symptoms can include loose or shifting panels, rattling noises, or gaps

• Disconnect power before servicing; for gas dryers, also shut off the gas supply if moving the unit.
• Match screw length and location to the original during reassembly.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver for your screw head style as used on your model.

This silicon controlled rectifier (SCR) is an electronic switching device used in appliance control circuitry to regulate power to motors or heating circuits. Replacing a faulty SCR restores reliable power control and helps resolve intermittent or failed operation. What it does:

• Controls and modulates electrical current in control boards and power circuits
• Allows timed or variable power delivery to heating elements or motors in appliances
• Helps stop intermittent operation caused by a failed switching device
• Commonly replaced when an appliance experiences no heat, no motor run, or erratic performance

• Disconnect power to the appliance before servicing to avoid electric shock
• Handle with ESD precautions; avoid touching terminals and static-sensitive areas
• Install the replacement SCR with the same orientation and secure mounting as the original

This washer main board and support replaces the machine's electronic control to restore cycle control and user interface response. Replaces a failed control assembly to help get the washer operating normally again. What it does:

• Manages washer cycles, timers and user commands from the control panel
• Controls motor, valves and drain operations through electronic signals
• Can resolve symptoms like no power to controls, unresponsive buttons, or cycles that won't start/advance
• Stops intermittent or erratic operation caused by a failed control board

• Disconnect power at the breaker before starting; risk of electric shock.
• Handle the board by edges and avoid static discharge; use grounding strap if available.
• Transfer any connectors and the lid-lock or console components exactly as removed; note connector locations.
• Ensure all wiring harnesses are fully seated and the board is secured before restoring power; test with a short diagnostic cycle.

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

The CAPACITOR is an OEM part for GE washers. It works along with the motor to efficiently power the agitation and spinning functions. The capacitor stores and releases electrical current as needed to ensure a smooth wash action.

Symptoms of a bad capacitor include:

• The washer unable to progress beyond the initial agitation cycles
• Sluggish or struggling movements during washing or spinning
• Buzzing, humming, or crackling noises from electrical components
• Frequent tripping of circuit breakers when operating

Causes of failure can include drying out of internal components over many years, defects in capacitor plates or wiring, or electrical surges damaging sensitive components.

Replace yours today with this genuine OEM GE part for reliable storage and delivery of current. This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This genuine control panel restores the front user interface for 27" ranges, giving you back reliable button and touch control for oven functions and settings. Designed to match OEM fit and operation. What it does:

• Replaces a damaged or worn control panel assembly to restore responsive buttons and displays
• Helps resolve issues like unresponsive controls, stuck or faded buttons, or visible panel damage
• Works with the oven's control board to receive user commands for bake, broil, timers and settings
• Fits the 27" front control opening for proper alignment and secure mounting

• One control panel assembly

• Disconnect power to the range before starting work to avoid electrical shock
• Removal may require taking off the backguard or trim; use appropriate hand tools and keep fasteners organized
• Handle glass or painted surfaces carefully to avoid scratching; do not force connectors when disconnecting

The Timer Knob is an OEM part for GE dryers. It is designed to provide the user with manual control over the timing settings of the dryer’s cycles. This knob is mounted directly on the timer shaft and allows for the selection of various drying times and settings, essential for optimizing the drying process according to the type of laundry being handled.

Symptoms of a bad Timer Knob include:

• The knob failing to engage properly with the timer mechanism, resulting in no change in settings when turned.
• Physical damage such as cracks or breakage that impedes its functionality.
• Difficulty in turning the knob, which may feel stuck or loose.

Causes of a bad timer knob can include normal wear and tear from frequent use, accidental impacts from handling, or material degradation due to environmental factors like heat and humidity.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Selector Knob is an OEM replacement part for GE washing machines. Located on the control panel, this knob allows you to select desired wash cycles like normal, delicate or heavy duty.

Causes of a faulty selector knob include wear and tear from repeated twisting motions over many years as well as potential impacts if dropped. Water exposure can also degrade the knob material over time.

Symptoms of a damaged selector knob include:

• Difficulty rotating the knob or getting it to "catch" cycle positions
• Washer not initiating cycles properly based on knob setting
• Loose knob that wobbles excessively or falls off control panel
• Cracking, flaking or discoloration on the exterior knob surface

This genuine GE knob is compatible with select Hotpoint and RCA washers.

This start button assembly is the external pushbutton on the dryer console. It lets you begin a cycle; replacing a broken or missing button restores proper engagement of the start switch and a clean, factory appearance.

• Provides the physical Start control on the console and actuates the underlying switch
• Replaces a button that is cracked, missing, loose, or won't stay in place
• Helps when the dryer won't start because the button can't press the switch
• Restores smooth, reliable button travel and appearance

• Disconnect power; if gas, shut off gas supply before moving the appliance
• Access the console, remove fasteners, release tabs, and remove the old button assembly
• Transfer any small hardware from the original as needed; align and secure the new button
• Reassemble, restore power, and test for proper button movement and start engagement

This control board & chassis is the dryer's electronic control assembly. It manages cycle selection, timing, and key functions. Replacing a failed board can restore responsive controls and consistent operation when the console is dead or erratic.

• Manages cycle selection and timing; coordinates inputs from buttons/selector and sensors
• Sends control signals to run the motor and regulate heating as designed
• Can address a dryer that won't start despite correct power and a closed door
• Helps correct cycles that stop early, won't advance, or show random errors/beeping

• Disconnect power before service; if gas, also shut off the gas supply
• Use anti-static precautions when handling the electronic board
• Photograph/label wire connectors, then transfer wiring and any mounting from the old assembly
• After installation, run diagnostics or a test cycle per your model's service information

This UI harness assembly connects the appliance control console to the main control board, restoring signal and power pathways for the user interface. Use it to replace a damaged or disconnected control wiring harness. What it does:

• Transfers power and control signals between the console/touchpad and the main control board
• Re-establishes display, keypad response, and electronic control communication
• Commonly replaced when the control is unresponsive, display is blank, or buttons don't register
• Helps resolve intermittent operation caused by damaged wires or loose connectors

• One UI harness assembly as shown

• Disconnect power to the appliance before starting any repair
• Handle connectors gently and match keyed plugs; do not force connections
• Route the harness following the original path and secure with existing clips

This 27-inch fuse harness connects the dryer's thermal/fuse circuit and helps restore proper power delivery to the heating system. It provides a direct replacement for a worn or damaged harness to help re-establish safe operation. What it does:

• Carries power to the dryer's thermal cut-off/element circuit so the heater can operate
• Replaces frayed, burned or broken wiring that can cause no-heat or intermittent heating
• Restores secure terminal connections to prevent arcing and poor contact
• Supports troubleshooting for heater-related faults when the heater and thermostats test good

• Disconnect all power before servicing; verify the appliance is de-energized
• Inspect mating terminals and connectors; replace or clean damaged contacts before installation
• Route harness to match original routing and secure with existing clips or fasteners

This user interface control board operates the dryer's front console, letting you select cycles and see status updates. Replacing a faulty UI restores button response and display feedback for normal dryer operation. What it does:

• Registers button presses and sends commands to the dryer's main control
• Powers and displays cycle status, time and indicator lights
• Helps correct unresponsive buttons, blank or garbled display, or incorrect cycle selection
• Works with the console assembly to translate user inputs into dryer functions

• Disconnect power (unplug or switch off breaker) before starting any work
• Remove the dryer console or top panel per service manual to access the board
• Handle the board by edges and avoid static discharge; do not touch exposed circuitry
• Test operation before fully reassembling

This user interface board replaces the washer's console control module to restore button response and cycle selection. It provides the keypad/display electronics that let you start and control wash cycles from the console. What it does:

• Receives button presses and sends commands to the main control so cycles start and change as selected
• Restores unresponsive or intermittent buttons, blank or garbled console display, and incorrect cycle selections
• Helps resolve errors tied to the console electronics when troubleshooting points to the UI board
• Works as the console-level interface; it does not replace the main control board or wiring harness

• One user interface (console) board

• Disconnect power to the washer before beginning any service to avoid shock or damage
• Access typically requires removing the control console or top panel; retain screws and fasteners
• Handle the board by its edges and avoid touching components to prevent static damage
