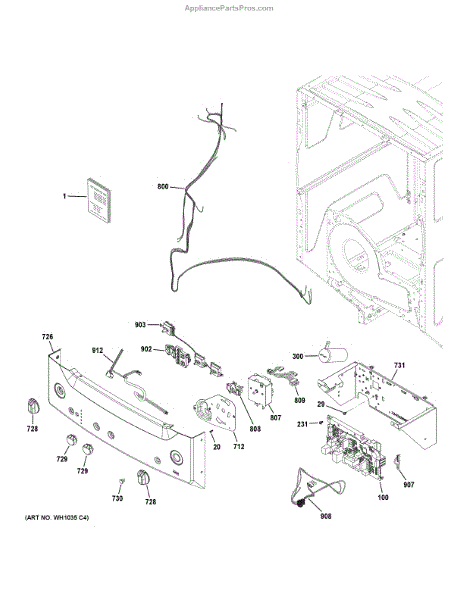

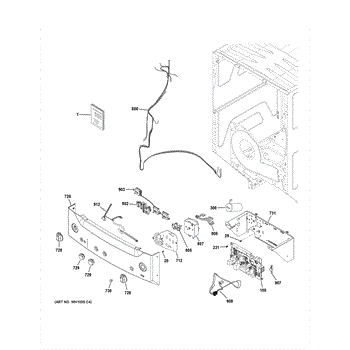

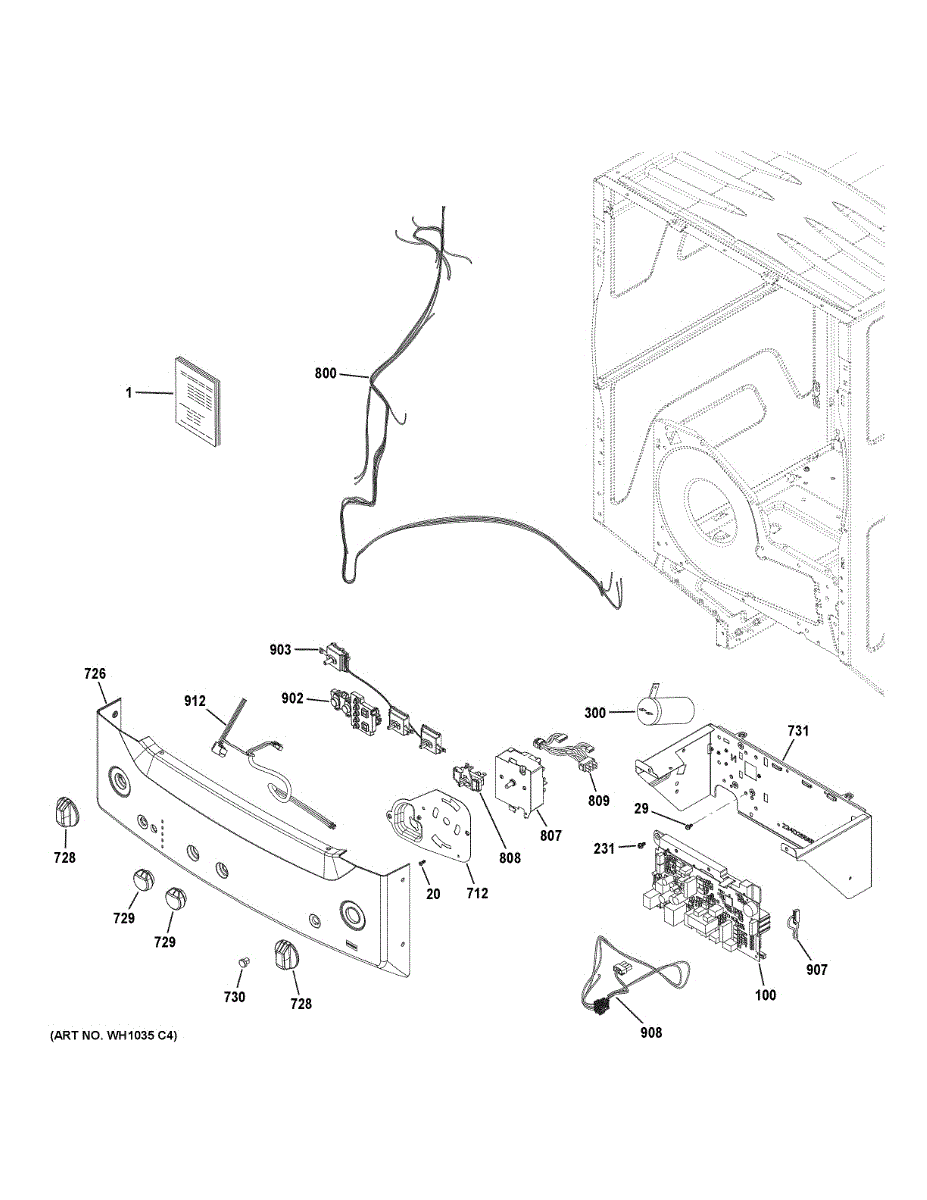

Parts for Ge GUD27GSPM1DG: Controls & Backsplash Parts

This replacement screw secures dryer panels and assemblies, helping prevent vibration and keeping components properly aligned. Use it to replace missing or stripped hardware and restore a solid, factory-tight fit during reassembly.

• Secures panels, brackets, and internal assemblies in the dryer cabinet
• Replaces lost, damaged, or stripped factory screw
• Helps reduce vibration and rattling caused by loose hardware
• Supports proper alignment of parts and a tight fit
• Symptoms can include loose or shifting panels, rattling noises, or gaps

• Disconnect power before servicing; for gas dryers, also shut off the gas supply if moving the unit.
• Match screw length and location to the original during reassembly.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver for your screw head style as used on your model.

The Board & Support Assembly is an OEM replacement part for GE washer/dryer combination laundry centers. This assembly features both the control board and its supporting structure. The control board is responsible for managing a variety of functions for both the washing machine and dryer, including cycle selection and timing, while the support secures the board in its proper position.

Causes for a malfunctioning Board & Support Assembly can include electrical issues like short circuits or power surges, as well as physical damage from impact or mishandling.

Symptoms of a bad Board & Support Assembly include:

• Difficulty in selecting or initiating wash or dry cycles
• Unresponsive or malfunctioning buttons on the control panel
• Error messages appearing on the display
• Inconsistent performance in either the washer or dryer

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

The CAPACITOR is an OEM part for GE washers. It works along with the motor to efficiently power the agitation and spinning functions. The capacitor stores and releases electrical current as needed to ensure a smooth wash action.

Symptoms of a bad capacitor include:

• The washer unable to progress beyond the initial agitation cycles
• Sluggish or struggling movements during washing or spinning
• Buzzing, humming, or crackling noises from electrical components
• Frequent tripping of circuit breakers when operating

Causes of failure can include drying out of internal components over many years, defects in capacitor plates or wiring, or electrical surges damaging sensitive components.

Replace yours today with this genuine OEM GE part for reliable storage and delivery of current. This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control support is the mounting bracket that secures the appliance control assembly, keeping the control panel stable and aligned for reliable operation. Replaces a worn or broken support to restore proper panel fit and reduce vibration. What it does:

• Holds the control board/panel in place to prevent sagging or misalignment
• Keeps control knobs and buttons properly positioned for accurate use
• Reduces vibration and rattling that can affect button/knob response
• Can prevent intermittent contact caused by a loose or damaged support

• One control support bracket

• Disconnect power (unplug the appliance or shut off the breaker) before starting any work
• Access usually requires removing the control panel or back panel; keep fasteners organized
• Install with original mounting screws; inspect surrounding clips and hardware for wear

The Control Panel Assembly is an OEM part for GE electric clothes dryers. Located at the front of the dryer, it encompasses the digital displays, push buttons, and wiring harness connecting all electronic functions.

As the core command module of the appliance, the panel facilitates cycle selection and monitoring of settings. Its surface-mounted circuit board receives input from buttons to direct dryer operations through output signals.

Causes of failure involve water exposure leading to circuit corrosion, excessive impact events like dropped tools potentially cracking components, or typical wear over 10+ years of continual use.

Symptoms of a bad control panel assembly include:

• Non-responsive or incorrectly responsive buttons
• Failed or blank digital readouts
• Improper cycle sequences despite functioning elements
• Occasional internal electrical connection issues

Replacing with the OEM GE assembly restores the control center and interactive interface. This ensures dependable dryer programming and reliable touch control feedback. Compatible with some Kenmore dryers.

The Control knob is an OEM part compatible with GE washers and dryers. It is a knob that controls the cycle selections, temperatures, spin speeds and other functions of your washer or dryer.

A faulty or worn control knob can make it difficult to accurately select the desired settings or cycles on your appliance. Causes of a bad knob may include excessive wear from repeated use over time, physical damage from impact, or internal mechanical failures.

Symptoms that may indicate a need to replace the control knob include:

• Difficulty turning or adjusting the knob positions
• The knob feeling loose or wobbly
• Incorrect cycles or settings engaging when turning the knob
• Visible cracks, breaks or damage to the knob itself

This GE part is also compatible with Hotpoint, RCA and some Kenmore washer and dryer models.

The Rotary Knob is an OEM component specifically designed for GE washers and dryers. As the interface control on the machine, this knob allows users to select cycles and operate settings. It provides tactile feedback during use through smooth rotation and defined click stops.

Symptoms of a bad rotary knob include:

• Difficulty selecting settings with loose, distorted, or broken click stops
• Inability to turn the knob or sensitive movements
• Detached, cracked, or broken knob base
• Missing or worn letters/numbers for identification of cycles

Causes of a bad rotary knob can be wear and tear over time, repeated use and impact, or damage from accidental mishandling.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.


This start button assembly is the external pushbutton on the dryer console. It lets you begin a cycle; replacing a broken or missing button restores proper engagement of the start switch and a clean, factory appearance.

• Provides the physical Start control on the console and actuates the underlying switch
• Replaces a button that is cracked, missing, loose, or won't stay in place
• Helps when the dryer won't start because the button can't press the switch
• Restores smooth, reliable button travel and appearance

• Disconnect power; if gas, shut off gas supply before moving the appliance
• Access the console, remove fasteners, release tabs, and remove the old button assembly
• Transfer any small hardware from the original as needed; align and secure the new button
• Reassemble, restore power, and test for proper button movement and start engagement

The Timer is an OEM part for GE electric dryers. It serves as the critical control module that monitors and regulates dryer cycle times during functions like regular, wrinkle guard, fluff and more.

Causes of a bad timer include failure of internal electronic components or wiring connections due to prolonged exposure to heat and vibration inside the dryer cylinder. Mechanical wear of buttons or dials used to program cycles may occur as well over time.

Symptoms of a bad Timer include:

• Inability to set or change desired drying times accurately
• Premature stopping or starting of cycles without user input
• Faulty time or status display windows during use
• Complete shut down requiring manual override or reset

The GE OEM part is also compatible with Hotpoint, RCA and select Kenmore models.

The Dryer Push-to-Start Switch is an OEM replacement part for GE dryers. This component is responsible for initiating the drying cycle when pressed, serving as the primary control for starting the dryer's operation.

Symptoms of needing to replace the push-to-start switch include:

• The dryer failing to start or begin the cycle when the switch is pressed
• Intermittent or inconsistent starting issues
• Visible damage or deterioration of the switch itself

Causes of a faulty push-to-start switch can include mechanical wear and tear over time, electrical malfunctions, or physical damage due to impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore dryer models.

This UI harness assembly connects the range/oven control board to the front control panel, restoring reliable button and display communication for the user interface. Replaces a damaged or loose harness to regain normal panel operation. What it does:

• Routes signals and power between the control board and touchpads/display so controls respond correctly
• Commonly used when buttons are unresponsive, display is intermittent, or control functions fail
• Helps eliminate loose or corroded connector issues that cause erratic or no UI behavior
• Matches factory connector ends and routing for proper fit and function

• One UI harness assembly as shown

• Disconnect power to the appliance before attempting any repair to avoid electric shock
• Requires removal of the control panel; handle connectors gently to avoid damaging pins
• Verify connectors fully seat and routing follows original path to prevent pinches or interference

The UI Board Assembly is an OEM part for GE electric and gas laundry centers. Located inside the combined washer/dryer cabinet, the UI board directs all washing and drying functions through a centralized control interface. Coordinating two appliances requires a robust control system.

Causes for replacement can include circuit failure from accumulated moisture exposure over many years of use. The humid environment inside a laundry center puts a greater strain on electronic parts.

Symptoms of a faulty UI board include:

• Inoperable or unresponsive control panel
• Failure to start wash or dry cycles
• Inability to adjust settings for either appliance
• Random starting or stopping during operation

This genuine GE part restores full customized functionality for both the washer and dryer. Whether drying laundry efficiently or completing extra large loads, dependable controls are crucial. Compatible with most GE electric and gas laundry center models, this replacement maintains long-term reliability.


This washer selector assembly sits behind the control panel and houses three switches for choosing cycle options. It restores reliable input so your selections register correctly and the control applies the settings you choose. What it does

• Provides three selector switches for cycle options on the control panel
• Sends user selections to the main control for proper cycle operation
• Common failure symptoms include unresponsive or intermittent buttons
• May cause settings to change unexpectedly or not hold
• Can contribute to a no-start condition if inputs aren't detected

• One 3-switch selector assembly

• Unplug the washer before servicing; electrical components are inside the console
• Remove console trim/screws to access the selector assembly
• Label or photograph wire connectors; move harnesses to the new assembly and seat fully
• Handle electronics with ESD care; test functions before reassembling the console

This communication harness provides an RJ45 connection between appliance control modules to enable board-to-board data signals and diagnostics. It restores proper communication so control boards can exchange status and commands. What it does:

• Carries digital communication signals between control boards using an RJ45-style connector
• Helps resolve issues where control modules fail to communicate or show communication errors
• Used when damaged, corroded, or broken connector wires cause intermittent or no signal
• Maintains correct pin alignment for reliable data transfer

• Disconnect power to the appliance before starting any work to avoid electrical shock
• Handle connectors by the housing; avoid pulling on wires to prevent damage
• Route the harness away from sharp edges, heat sources, and moving parts to prevent wear
