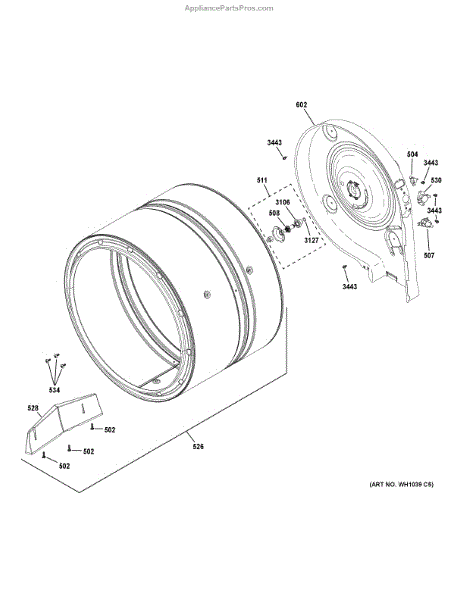

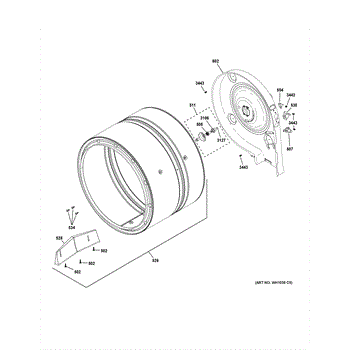

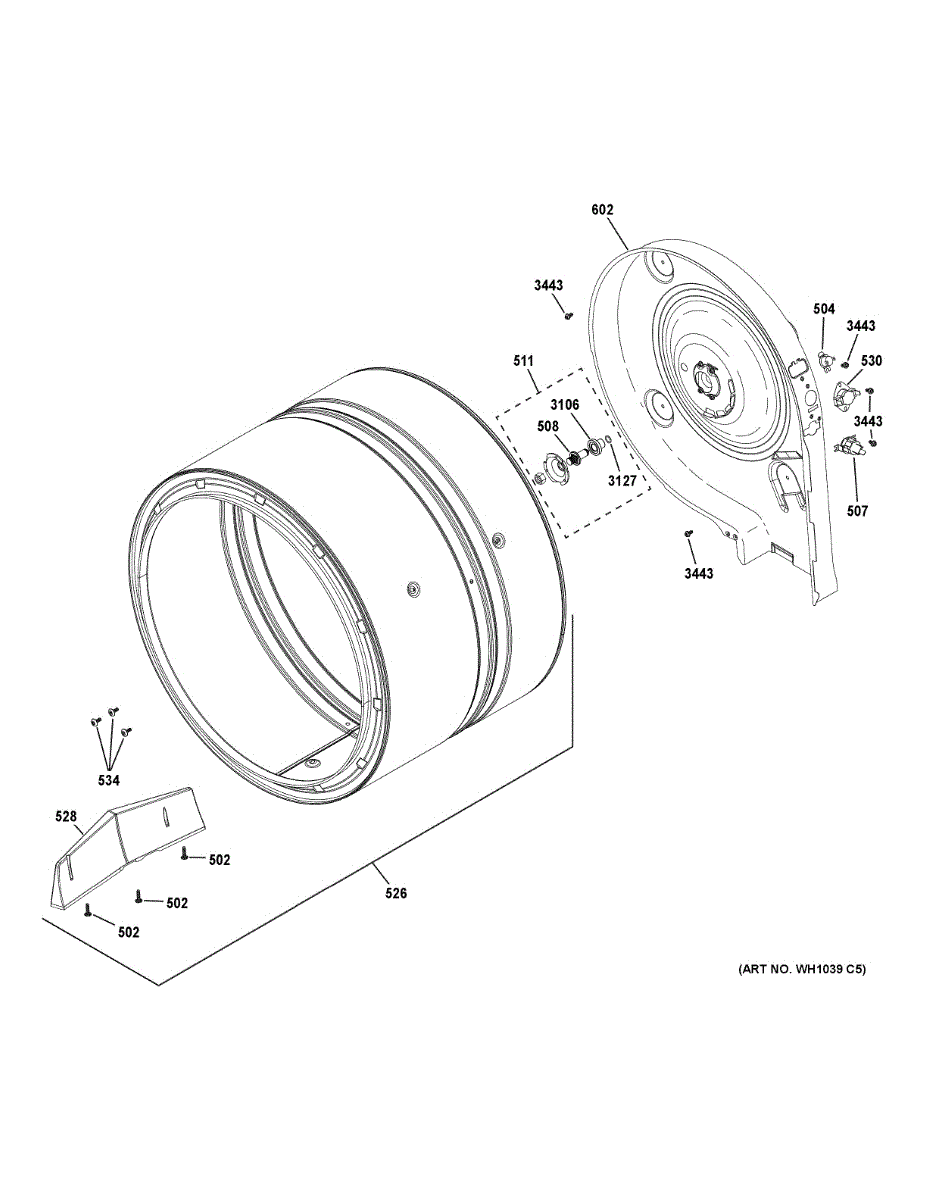

Parts for Ge GUD27GSPM1DG: Drum Parts

Parts for Ge GUD27GSPM1DG: Drum Parts

Location on Diagram
Part Description
Price & Availability
504
Product photo
By: Ge
Part Number: WE4M529

This safety thermostat is a temperature-sensitive cutoff for gas dryers. It monitors heat at the burner housing and opens the circuit if temperatures rise too high, helping protect the appliance and restore safe, reliable heating performance.

  • Monitors burner/heater housing temperature to prevent overheating
  • Opens the heat circuit when an over-temperature condition occurs
  • Common symptoms: no heat, burner won't ignite or stay lit, heat shuts off too soon, long dry times
  • Overheating or failure is often caused by restricted airflow; check venting and lint buildup
Install notes:
  • Disconnect power and shut off gas supply before servicing
  • Access the thermostat on the burner/heater housing; transfer wires one at a time and mount flush using the original hardware
  • Do not overtighten; ensure firm metal-to-metal contact for accurate sensing
  • After repair, clear lint and verify strong airflow at the exterior vent to prevent repeat issues

More
$34.95

IN STOCK
Ships Today Guaranteed
Add to Cart
507
Best Seller
Product photo
By: Ge
Part Number: WE4M528

Dryer not heating or shutting off mid-cycle? A faulty safety thermostat can cut heat when temperatures climb too high. Direct heater duct mount part.

More
$34.95

IN STOCK
Ships Today Guaranteed
Add to Cart
511
Best Seller
Product photo
4.9 (17)
By: Ge
Part Number: WE3M33

Supports and stabilizes the dryer drum for smooth rotation. Replace if shaft is worn, bearing is damaged, or drum wobbles or sinks at the rear.

More
$41.60

IN STOCK
Ships Today Guaranteed
Add to Cart
526
5.0 (1)
By: Ge
Part Number: WE21X28957

This replacement drum assembly is the rotating cylinder that tumbles laundry in your dryer. Replacing a damaged or out-of-round drum restores smooth, quiet tumbling and helps protect fabrics from snags, scraping, and uneven drying.

  • Forms the rotating chamber that holds clothes; driven by the belt and motor to tumble items for drying
  • Works with drum seals and lifters/baffles to maintain airflow and separate fabrics for even drying
  • Replacing a dented, cracked, or out-of-round drum can resolve thumping, scraping, or rumbling noises
  • Addresses sharp seams, loose spots, or rust that can snag/tear clothing or leave marks
What's included: 1 drum assembly Install notes:
  • Disconnect power; shut off gas supply for gas models before service
  • Remove top/front panels and release belt tension to lift out the old drum; note belt routing
  • Compare parts and move over any reusable, model-specific components if required
  • Inspect belt, idler pulley, bearings, and felt seals while open; replace if worn

More
$362.32

IN STOCK
Ships Today Guaranteed
Add to Cart
528
By: Ge
Part Number: WE21M39

The Baffle is an OEM part for GE electric dryers. Located inside the dryer drum, it helps separate clothes and improves air circulation during tumbling cycles.

To achieve consistent drying times, a dryer relies on balanced airflow penetrating all areas where clothes reside. The baffle creates divisions to ensure air fully surrounds each layer instead of bypassing some areas. Its raised ridges also help tumbling action by preventing clumps of clothes.

Symptoms of a bad baffle include:

  • Slow, uneven drying requiring extra cycles
  • Certain areas of clothes remain damp while others over-dry
  • Reduced airflow output from the vent due to blockage

Replacing it with the genuine GE baffle plate restores optimized air distribution within the drum. The part is also compatible with some Kenmore dryers that use GE elements.

More
$17.95

IN STOCK
Ships Today Guaranteed
Add to Cart
602
By: Ge
Part Number: WE14M193
$111.02

IN STOCK
Ships Today Guaranteed
Add to Cart
3443
Product photo
By: Ge
Part Number: WH2X1217

Size: 8 - 18 ab.

More
$9.88

IN STOCK
Ships Today Guaranteed
Add to Cart
