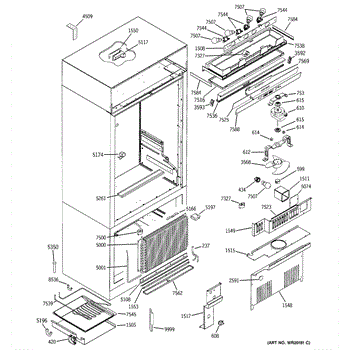

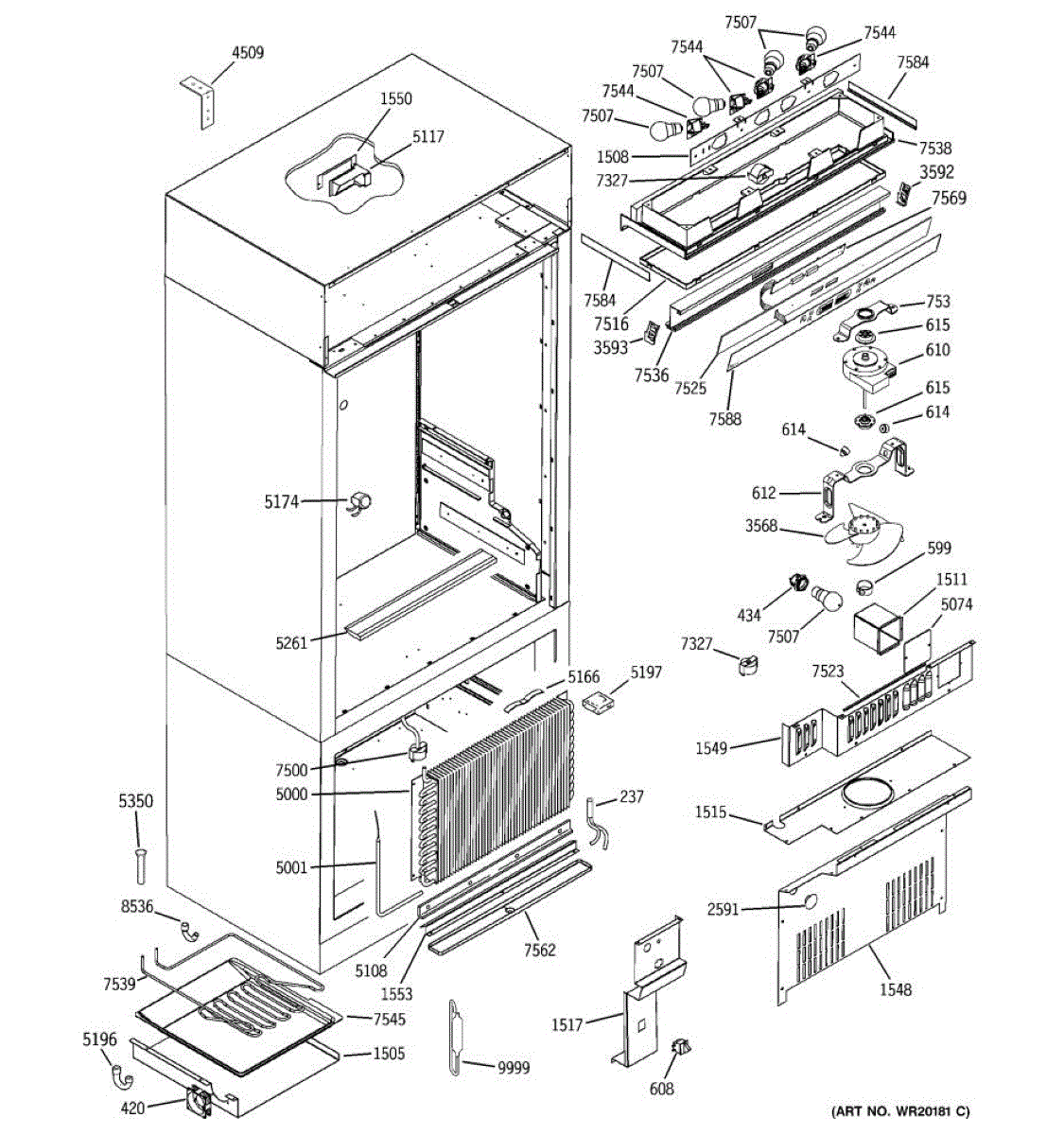

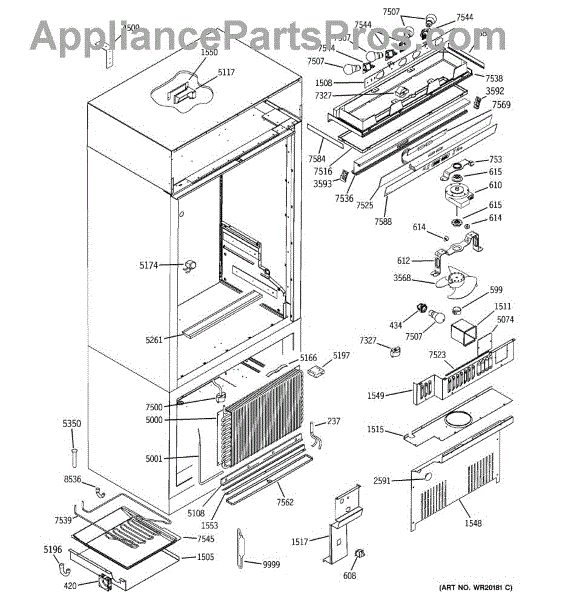

Parts for Ge ZICP360SRASS: 02 - Controls & Components Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This fresh food compartment fan circulates cool air inside the refrigerator section to help maintain even temperatures and reduce hotspots. Replacing a worn fan can restore airflow and improve overall cooling consistency. What it does:

• Moves air through the fresh food compartment to help distribute cold air evenly
• Helps prevent warm spots and reduces temperature fluctuations in the refrigerator section
• Common symptom of failure: reduced airflow or unusual noise coming from the fresh food area

• One fresh food compartment fan

• Disconnect power to the appliance before attempting any repairs
• Access often requires removing interior panels or shelves; keep track of fasteners and trim
• Inspect wiring and connectors for damage before installing the new fan

The Lamp Socket is an OEM component specifically designed for GE refrigerator interiors. It provides the connection point for interior lighting.

The lamp socket mounts near the top of the interior and includes contacts that receive and hold the installed light bulb firmly in position. Proper socket operation enables convenient and dependable interior illumination.

Causes of a bad socket can include wear from repeated bulb replacements, damaged contacts from moisture exposure over time, or loose electrical connections.

Symptoms include:

• Intermittent or no interior light function
• Bulbs that will not screw in securely or pop out easily
• Exposed or frayed electrical wire connections
• Visible cracks or breaks in the socket assembly

This genuine OEM GE replacement socket ensures clear vision inside refrigerator shelves for years. Compatible with additional brands including Hotpoint, RCA, or Kenmore refrigerator models.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This freezer door light switch turns the interior freezer light on and off when the door opens and closes, restoring proper illumination so you can see contents clearly and avoid wasting food. What it does:

• Activates the freezer interior light when the door opens; deactivates it when the door closes.
• Replaces a worn, stuck or intermittent switch that causes the light to stay on, not turn on, or flicker.
• Fits into the door or cabinet frame mounting and connects to the existing wiring harness for direct replacement.

• Disconnect power to the appliance before starting any repair to prevent shock.
• Typically snaps into place and connects to the factory wiring harness; no special parts required.

The Evaporator Fan Motor is an OEM part for GE refrigerators. It circulates air over the evaporator coils, ensuring consistent cooling throughout the refrigerator and freezer compartments. The motor operates 9.75 volts DC. The motor has a 1/8" shaft and a 12" long, 4-wire harness.

You should replace the evaporator fan motor if it becomes faulty due to wear and tear, electrical issues, or physical damage. Over time, the motor bearings can wear out, or the motor itself can fail due to continuous operation.

Symptoms of a bad evaporator fan motor include:

• The refrigerator or freezer not cooling properly
• Unusual noises coming from the freezer area
• Frost buildup in the freezer
• The refrigerator running continuously without reaching the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Keep the refrigerator's rear fan assembly secure and airflow on track with this fan orifice bracket. It supports the fan shroud/orifice so the motor and blade stay aligned, helping maintain proper cooling and reduce vibration.

• Secures the fan orifice/shroud to the machine-compartment frame
• Maintains correct fan motor and blade positioning for smooth operation
• Helps direct airflow through the condenser area for effective heat removal
• Typical symptoms of a failed bracket include rattling/buzzing from the back, a loose or wobbling fan assembly, reduced airflow, or warm temperatures

• Disconnect power and move the refrigerator to access the rear machine compartment
• Remove the rear access cover; support the fan motor/blade before loosening fasteners
• Transfer any reusable mounting hardware to the new bracket; align the orifice/shroud properly
• Ensure the fan spins freely and the assembly is secure before reinstalling the rear cover and restoring power

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. This small but essential component serves as a seal and insulator around the area where the fan motor shaft protrudes from the appliance body.

Causes of needing to replace the fan motor grommet can include normal wear and tear over time, exposure to extreme temperatures or moisture, or physical damage due to impact or improper installation.

Symptoms of a faulty or missing grommet include:

• Air leaks or drafts around the fan motor area
• Condensation buildup or frost formation near the motor shaft
• Increased noise or vibration from the fan motor assembly
• Reduced cooling efficiency due to air leakage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

Rear evaporator fan motor bracket secures the evaporator fan motor to the refrigerator cabinet, maintaining airflow over the coils for efficient cooling. Replaces a bent or broken mounting bracket so the fan runs steadily. What it does:

• Holds the evaporator fan motor in the correct position to maintain steady rotation and consistent airflow across the evaporator coils.
• Prevents the motor from rubbing against the housing or fan blades, reducing noise and vibration.
• Common replacement when bracket is cracked, corroded, or bent — symptoms include noisy fan operation, intermittent fan movement, or reduced cooling performance.
• Restores proper motor alignment to help prevent premature motor wear.

• Always disconnect power to the appliance before beginning any repair.
• Remove the evaporator cover or access panel to reach the bracket; retain original mounting hardware unless replacements are provided.
• Ensure the fan blades spin freely and the motor is undamaged before reassembly; ensure the bracket seats securely and the fan does not contact the housing.
• If the motor or fan blade shows damage, replace those parts separately rather than relying on the bracket alone.

This fill tube cover is the molded shield that fits over the refrigerator's water/ice fill tube to protect and insulate the fill path and help direct water into the ice maker. It replaces a cracked, missing, or damaged cover to restore proper fill alignment. What it does:

• Protects and insulates the water/ice fill tube to reduce drafts and condensation
• Helps direct water into the ice maker mold for consistent fills
• Prevents the fill tube from being bumped or misaligned during normal use
• Can reduce water spray or minor leakage caused by a damaged cover

• One fill tube cover

• Disconnect power to the appliance and shut off the water supply before servicing
• Usually snaps into place near the ice maker; handle gently to avoid breaking mounting tabs
• If other fill components are cracked or leaking, inspect and replace them as needed

This molded plastic water collector directs and contains water from the refrigerator ice maker to prevent pooling and unwanted leaks. It restores proper drainage and helps keep the freezer interior dry and functioning normally. What it does:

• Captures and channels ice maker fill/drip water away from the ice compartment
• Prevents water from pooling under the ice bin or freezing in unwanted areas
• Helps stop intermittent leaks or water on the freezer floor when cracked or damaged
• Works with the ice maker assembly to maintain consistent ice production conditions

• One water collector

• Disconnect power to the refrigerator before servicing to avoid shock or injury
• Remove the ice bin and any obstructing panels to access the ice maker area
• Inspect mating surfaces and install the collector so it seats securely; replace if cracked or warped

An evaporator fan blade mounts on the evaporator fan motor to move cold air across the coils and throughout the refrigerator compartments. Replacing a cracked, warped, or loose blade restores proper airflow, temperature balance, and quiet operation.

• Circulates air across the evaporator and into the fresh food and freezer sections to maintain even temperatures
• Helps reduce frost/ice buildup on the evaporator cover by improving airflow after defrost
• Common symptoms of a damaged blade: rattling or scraping noises behind an interior panel, weak or no airflow at vents, warming in the fresh food section, or uneven cooling
• A cracked or loose blade may spin but move little air even when the motor runs

• Disconnect power to the refrigerator before service
• Access the evaporator fan behind the interior rear panel; remove the cover/shroud as required (varies by model)
• Note blade orientation; seat the new blade fully on the motor shaft and verify clearance inside the shroud
• Reassemble panels, restore power, and confirm the fan spins freely without rubbing

This defrost heater warms the evaporator coils during the automatic defrost cycle to melt frost and keep air moving. When it fails, ice builds up, airflow drops, and temperatures rise in the fresh food compartment.

• Heats the evaporator to clear frost/ice so the fan can circulate air
• Helps maintain stable temperatures and normal airflow between freezer and refrigerator sections
• Common signs of failure: heavy frost on the back freezer panel, warm refrigerator/cool freezer, fan noise from ice contact, long run times
• Works with the defrost thermostat and control to complete defrost cycles

• Unplug the refrigerator before service; use caution around sharp evaporator fins
• Access the evaporator behind the freezer's rear panel and fully defrost ice before replacement
• Route wiring exactly as original; avoid kinking or stressing the heating element
• After reassembly, restore power and verify a successful defrost cycle per service procedures

This drain baffle guides defrost water into the refrigerator drain to prevent puddling and ice buildup, keeping the fresh food area dry and reducing odors. It fits into the freezer/refrigerator drain opening and channels meltwater safely away. What it does:

• Directs defrost and condensation water into the appliance drain to prevent pooling.
• Helps reduce ice formation and standing water inside the fresh food or freezer compartment.
• Minimizes odors by keeping water from collecting under shelves or liners.
• Works with the drain tube and heater to maintain proper drainage.

• Disconnect power before accessing interior panels or removing shelves.
• Remove shelves and the crisper/evaporator cover as needed to reach the drain area.
• Clear any ice or debris from the drain before installing the new baffle to ensure proper flow.

The Refrigerator Damper and Gasket Assembly is an OEM replacement part for GE refrigerators. It includes a moving damper plate that regulates airflow through vents, as well as its surrounding sealing gasket.

Symptoms of a bad assembly include:

• Inability to maintain proper internal temperatures
• Frost or condensation buildup inside from restricted airflow
• Odors or flavors transferring between compartments
• Noisy ventilation from a loose damper plate

Causes of a bad assembly can be worn over extended use, cracks forming in the damper component itself, or a degraded gasket failing to seal properly.

This genuine GE replacement is compatible with additional GE refrigerator brands including Hotpoint and RCA.

This small replacement wire retainer secures heater and sensor wiring to the evaporator area, preventing wire contact with sharp edges and maintaining proper routing for reliable defrost operation and safe airflow. What it does:

• Holds heater and thermostat/sensor wires in place near the evaporator assembly
• Prevents chafing, pinching, or accidental contact with moving or hot components
• Helps maintain correct wire routing for consistent defrost performance and temperature sensing
• Reduces risk of intermittent connections or short circuits caused by loose wiring

• Designed for a simple clip-in or screw-mount installation; inspect mounting point for clips or fasteners before replacing
• Disconnect power to the appliance before accessing the evaporator compartment
• Handle wiring gently and ensure secure seating of wires in the retainer before reassembling panels
• If any wiring or insulation is damaged, replace or repair the wiring harness per manufacturer guidance

This left-side evaporator baffle directs cold-air flow inside the freezer compartment to help even cooling and reduce frost buildup. It replaces a cracked or missing baffle to restore proper airflow and compartment temperature balance. What it does:

• Channels airflow from the evaporator to distribute cold evenly through the freezer
• Helps prevent localized frost buildup by guiding return air across the coil
• Restores proper compartment temperatures if cooling is uneven or items thaw in spots
• Stops rattling or loose-panel noise caused by a broken or loose baffle

• Disconnect power to the appliance before starting any repair
• Remove shelving and access panels as needed; handle plastic parts gently to avoid cracking
• Avoid touching the evaporator coil or refrigerant lines; wear gloves to protect hands
• Inspect and address defrost components or heaters if exposed or damaged

This tube drain routes defrost and condensation water away from the refrigerator cabinet to the drain system, helping prevent pooling and ice build-up. It's a direct-replacement service part designed to restore proper water flow. What it does

• Channels defrost and condensation runoff from the evaporator area into the main drain or drain pan.
• Helps prevent water pooling inside the fresh food compartment or under crispers.
• Replaces cracked, kinked, clogged or deteriorated drain tubing that can cause leaks or frost buildup.
• Works with the existing drain funnel and heater components to maintain normal drainage.

• One tube drain

• Disconnect power to the appliance before beginning work; shut off water supply if the repair requires it.
• Remove interior panels as needed to access the evaporator/drain area; handle evaporator fins and plastic parts carefully to avoid damage.
• Ensure the tube is seated fully at both connection points and routed without tight bends or kinks to allow free drainage.
• After installation, run a small amount of warm water into the drain area to check for leaks.

This defrost thermostat senses evaporator temperature and shuts off the defrost heater once the coil warms, preventing overheating. Replacing a failed thermostat restores proper defrosting to stop ice buildup and stabilize refrigerator temperatures.

• Controls the defrost heater based on evaporator coil temperature
• Closes when cold to allow defrost; opens as the coil warms to end the cycle
• Protects against overheating during defrost
• Failure may cause frost/ice on the back wall or evaporator, poor cooling, or a heater that never energizes

• Disconnect power before service; evaporator fins and sheet metal are sharp
• Access the evaporator by removing the freezer rear panel; note wire routing and mounting
• Position the new thermostat in the same location for tight contact with the tubing; reconnect wires exactly as found
• Reassemble and monitor a defrost cycle to confirm heater operation

Also called a thermodisc, this evaporator-mounted defrost thermostat monitors coil temperature and switches the heater off when frost is cleared. Replacing a failed thermostat helps restore proper defrosting, airflow, and consistent refrigerator temperatures.

• Senses evaporator coil temperature during the defrost cycle
• Closes when the coil is cold to let the defrost heater energize; opens as the coil warms to stop heating
• Helps prevent heavy frost buildup that restricts airflow and cooling
• Symptoms include ice on the rear freezer panel, poor cooling, or the defrost heater not turning on

• Disconnect power before servicing
• Access from the freezer by removing shelves and the rear panel
• Attach the thermostat securely to the same tubing location for good thermal contact; route wires away from moving parts
• Fully defrost any existing ice before returning the unit to service

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This molded plastic light shield covers and protects the interior light in the refrigerator fresh-food compartment while directing light for better visibility. It replaces cracked or discolored shields that block or scatter the bulb's output. What it does:

• Protects the interior light bulb from bumps and spills
• Directs and diffuses the light for clearer interior visibility
• Prevents direct contact with the bulb for improved safety
• Restores a clean, finished appearance to the compartment

• Disconnect power to the appliance before starting any work
• Remove any shelves or items that block access to the shield for easier removal/installation
• Usually snaps or screws into place; handle the plastic gently to avoid cracking
• Test the light after installation and restore power only when reassembly is complete

This HMI control assembly is the user interface board that lets you select and display settings on the appliance, restoring responsive controls and proper display feedback for normal operation. What it does:

• Provides the touch/key inputs and display signals for the appliance control system
• Registers user commands (cycle selection, temperature, timers) and sends them to the main control
• Restores missing or unresponsive front-panel controls and display feedback
• Can resolve symptoms like non-responsive buttons, blank or erratic display, or failure to accept user inputs

• Always disconnect power to the appliance before servicing to avoid electrical shock
• Handle the board carefully to avoid static damage; use anti-static precautions if available
• Installation typically requires removing the control panel or trim; retain fasteners and gaskets for reassembly

This evaporator trough (drip pan) catches and channels defrost and condensation water away from the freezer evaporator, helping prevent leaks and water accumulation. It restores proper drainage and reduces ice build-up near the evaporator area. What it does:

• Collects defrost melt and condensation from the evaporator coils
• Directs water to the drain or evaporator fan area to prevent pooling
• Helps reduce ice buildup and moisture-related odors around the evaporator
• Commonly replaced when cracked, warped, or leaking after defrost cycles

• One evaporator trough

• Disconnect power to the appliance before servicing to avoid shock
• Access typically requires removing the evaporator cover and possibly the evaporator fan assembly
• Inspect surrounding seals and drain components when replacing to ensure proper fit and drainage
• Use caution with sharp sheet-metal edges and refrigerant lines

This HMI control assembly is the user interface board that lets you select and display settings on the appliance, restoring responsive controls and proper display feedback for normal operation. What it does:

• Provides the touch/key inputs and display signals for the appliance control system
• Registers user commands (cycle selection, temperature, timers) and sends them to the main control
• Restores missing or unresponsive front-panel controls and display feedback
• Can resolve symptoms like non-responsive buttons, blank or erratic display, or failure to accept user inputs

• Always disconnect power to the appliance before servicing to avoid electrical shock
• Handle the board carefully to avoid static damage; use anti-static precautions if available
• Installation typically requires removing the control panel or trim; retain fasteners and gaskets for reassembly
