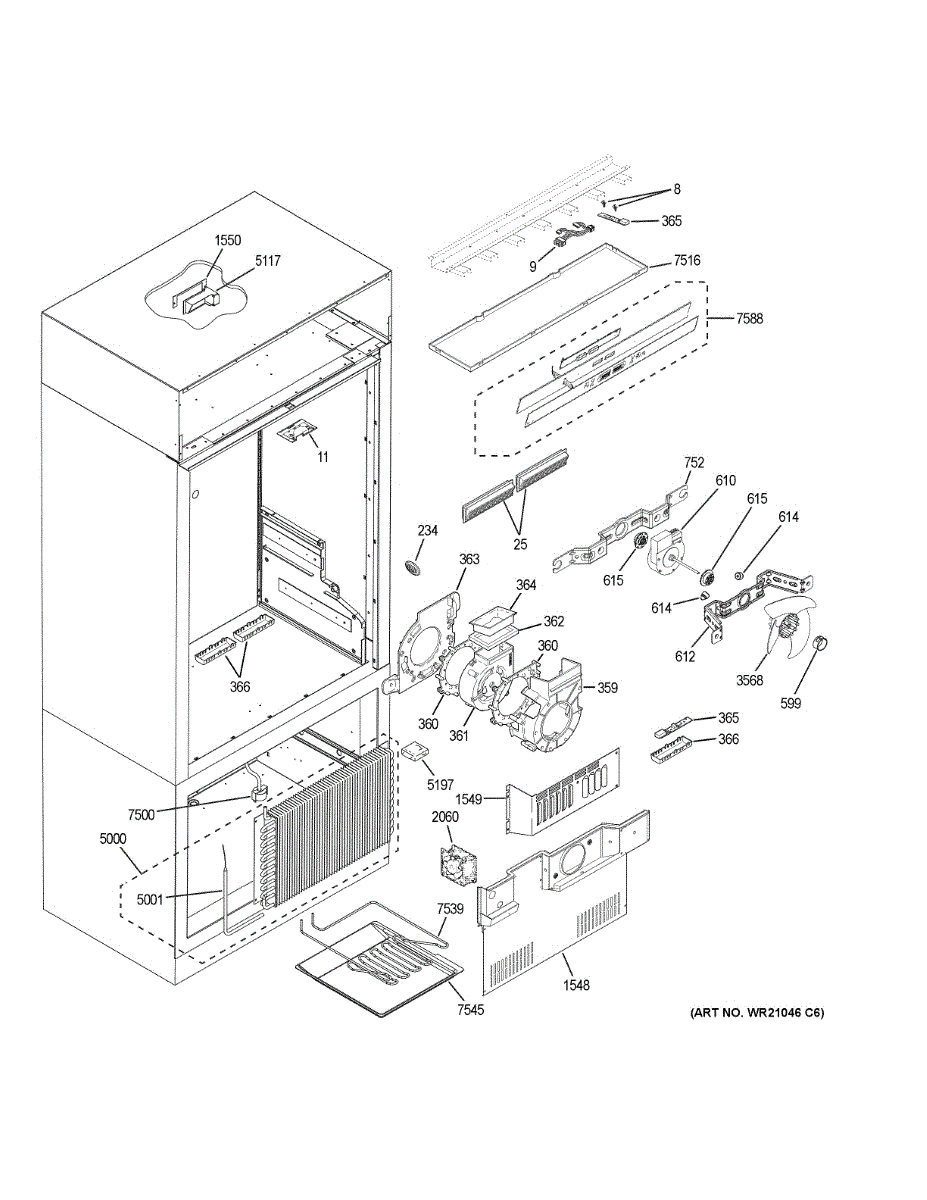

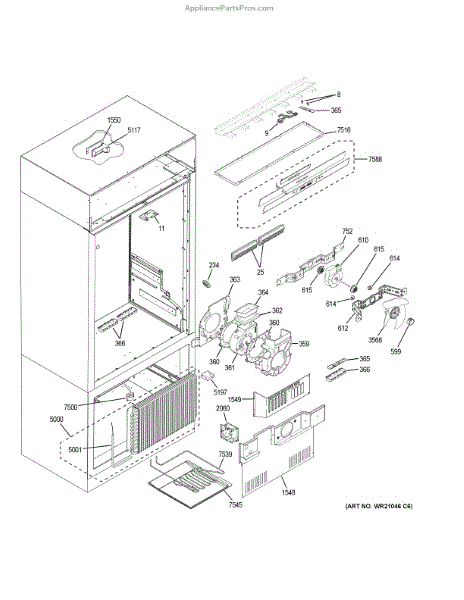

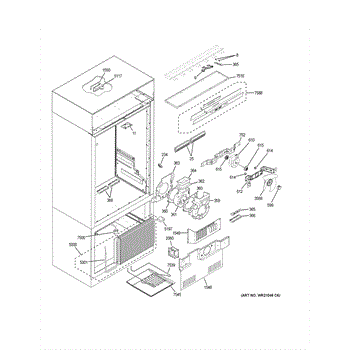

Parts for Ge ZIP360NHC: Controls & Components Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This oven grill vent directs heat and exhaust away from the control area and helps protect internal components while allowing proper airflow for safe operation. It restores the oven's ventilation and exterior appearance. What it does:

• Directs hot air and exhaust from the oven cavity to the exterior vent path
• Helps prevent heat damage to nearby controls and trim
• Maintains proper airflow to support consistent oven performance
• Covers and protects internal vent openings from debris and splashes

• Disconnect power to the appliance before attempting any service.
• Typically fastens with a few screws; keep screws and trim pieces for reassembly.
• Handle edges carefully to avoid cuts and to prevent scratching the finish.

The Temperature Sensor Grille is an OEM part for GE refrigerators. This grille covers and protects the temperature sensor, ensuring it accurately measures the internal temperature of the refrigerator.

Causes of a bad grille can include physical damage from impacts, regular wear and tear, or the buildup of dust and debris that can obstruct airflow.

Symptoms of a bad temperature sensor grille include:

• Inaccurate temperature readings
• The refrigerator running continuously or not cooling properly
• Visible damage or obstruction on the grille
• The sensor becoming loose or dislodged

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This blower fan duct channels air moved by the evaporator fan through the refrigerator's air passages, helping maintain consistent temperatures and reliable cooling performance. Replacing a cracked or warped duct restores the designed airflow path and reduces fan noise. What it does:

• Directs airflow from the evaporator fan to the cooling vents for proper circulation
• Helps balance temperatures between compartments for even cooling
• A damaged or misaligned duct can cause weak airflow, warm spots, frost/ice around the cover, or unusual fan noise
• Restores correct air routing after breakage or warping

• Disconnect power before servicing to avoid electrical shock or moving-fan injury
• Remove shelves/drawers and the interior cover as needed to access the duct; retain screws and clips
• Transfer any reusable seals or hardware from the original duct to the new part
• After reassembly, ensure the fan spins freely and no rubbing noises are present before returning to service

This gasket fan bracket seals the fan housing to help direct airflow and reduce vibration in the refrigerator. Replacing a worn bracket restores proper airflow path and can reduce noise or uneven cooling. What it does:

• Seals the fan housing to maintain directed airflow across the evaporator and condenser
• Dampens fan noise and vibration caused by a loose or damaged housing seal
• Helps prevent air leaks that can contribute to frost build-up or inconsistent cooling
• Secures fan assembly alignment for reliable operation

• One gasket fan bracket

• Disconnect power to the appliance before beginning any repair
• Remove access panels to reach the fan housing; keep track of screws and fasteners
• Inspect surrounding gaskets and fan components for wear; replace as needed

LED light board assembly that provides interior illumination for compatible refrigerators. Replaces a failed or dim LED module to restore even lighting so you can see contents clearly and access food safely. What it does:

• Replaces the refrigerator's interior LED light board to restore proper illumination.
• Fixes common lighting symptoms such as no light, dim lights, flickering, or partial outages.
• Provides a direct replacement that mounts in the existing light housing and connects to the factory wiring harness.

• Disconnect power (unplug or shut off breaker) before starting work to avoid electric shock.
• Remove interior shelves or light cover as needed; handle the board by its edges and avoid touching LED surfaces.
• Verify connector orientation and seat wiring harness fully; secure board to the housing with original fasteners.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Motor is an OEM part for GE refrigerators. It circulates air over the evaporator coils, ensuring consistent cooling throughout the refrigerator and freezer compartments. The motor operates 9.75 volts DC. The motor has a 1/8" shaft and a 12" long, 4-wire harness.

You should replace the evaporator fan motor if it becomes faulty due to wear and tear, electrical issues, or physical damage. Over time, the motor bearings can wear out, or the motor itself can fail due to continuous operation.

Symptoms of a bad evaporator fan motor include:

• The refrigerator or freezer not cooling properly
• Unusual noises coming from the freezer area
• Frost buildup in the freezer
• The refrigerator running continuously without reaching the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. This small but essential component serves as a seal and insulator around the area where the fan motor shaft protrudes from the appliance body.

Causes of needing to replace the fan motor grommet can include normal wear and tear over time, exposure to extreme temperatures or moisture, or physical damage due to impact or improper installation.

Symptoms of a faulty or missing grommet include:

• Air leaks or drafts around the fan motor area
• Condensation buildup or frost formation near the motor shaft
• Increased noise or vibration from the fan motor assembly
• Reduced cooling efficiency due to air leakage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This drain fan assembly circulates air around the refrigerator's drain/evaporation area so defrost water can dry properly. Replacing a worn or seized fan restores intended airflow and helps reduce lingering moisture and related odors. What it does:

• Moves air across the drain/evaporation path to aid drying after defrost cycles
• Helps minimize standing water and musty odors near the drain pan area
• Supports proper moisture management in the machine compartment
• Common symptoms of a failing fan include not running, intermittent operation, rattling/squealing, or occasional water pooling near the base

• One drain fan assembly

• Disconnect power before servicing; wear cut-resistant gloves
• Location and access vary by model—refer to your model's service information
• Note wire connections and mounting orientation before removal; transfer any reusable hardware from the original assembly
• After installation, ensure the blade spins freely and wiring is routed clear of moving parts

The Evaporator Fan Blade is an OEM part for GE refrigerators. This fan blade is crucial for circulating air over the evaporator coils, which helps to maintain an even temperature throughout the refrigerator and ensures efficient cooling.

Common causes of a bad fan blade include regular wear and tear, damage from ice buildup or debris, and mechanical issues that cause the blade to crack or warp. A compromised fan blade can lead to poor air circulation, resulting in uneven cooling and potential frost buildup.

Symptoms of a bad evaporator fan blade include:

• Unusual noises coming from the freezer compartment
• Inconsistent temperatures within the refrigerator or freezer
• Frost buildup on the evaporator coils
• Reduced cooling efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This evaporator defrost assembly restores controlled defrosting for the freezer evaporator coil in bottom-mount refrigerators, helping stop frost buildup and maintain cooling efficiency. Designed as a direct-replacement assembly. What it does:

• Heats the evaporator coil during defrost cycles to melt accumulated frost and ice.
• Helps prevent excessive frost buildup that can reduce cooling performance.
• Works with the fridge's timer/controls and sensors to run defrost cycles only as needed.
• Commonly replaces faulty defrost components when you see frost on the evaporator or reduced freezer cooling.

• Disconnect power to the appliance before starting any repair.
• Handle the evaporator coil and surrounding fins carefully to avoid damage.
• May require basic tools and access through the freezer back panel.

The Damper Assembly is an OEM component specifically designed for GE refrigerators. This assembly is located within the fresh food compartment and functions to control airflow and temperature regulation.

The damper works with the evaporator fan to carefully moderate circulating air, preventing cold spots and optimizing equal cooling. Consistent temperatures extend the shelf life of perishable goods.

Causes of a faulty damper assembly can include failure of the plastic gears or axle that coordinate its movements over time. Improper air circulation disrupts the refrigerator's performance.

Symptoms include:

• Formation of frost or ice buildup in problem areas
• Inconsistent shelf temperatures from top to bottom
• Foods spoiling more quickly

This replacement assembly from GE restores dependable temperature control. Upgrade today for continued fresh food preservation abilities matching OEM standards. It is also compatible with Hotpoint, RCA, and some Kenmore models.


This left-side evaporator baffle directs cold-air flow inside the freezer compartment to help even cooling and reduce frost buildup. It replaces a cracked or missing baffle to restore proper airflow and compartment temperature balance. What it does:

• Channels airflow from the evaporator to distribute cold evenly through the freezer
• Helps prevent localized frost buildup by guiding return air across the coil
• Restores proper compartment temperatures if cooling is uneven or items thaw in spots
• Stops rattling or loose-panel noise caused by a broken or loose baffle

• Disconnect power to the appliance before starting any repair
• Remove shelving and access panels as needed; handle plastic parts gently to avoid cracking
• Avoid touching the evaporator coil or refrigerant lines; wear gloves to protect hands
• Inspect and address defrost components or heaters if exposed or damaged
