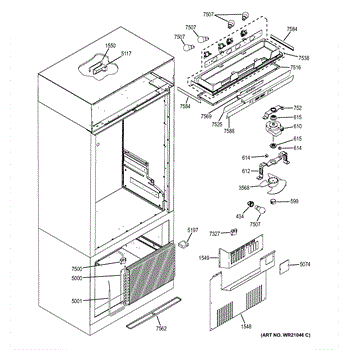

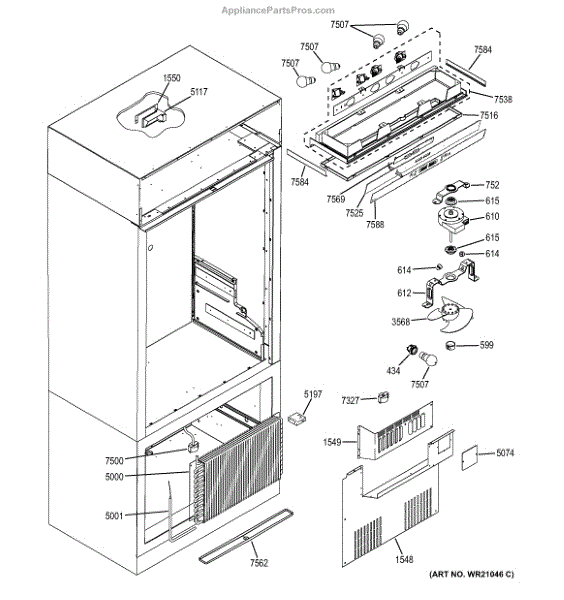

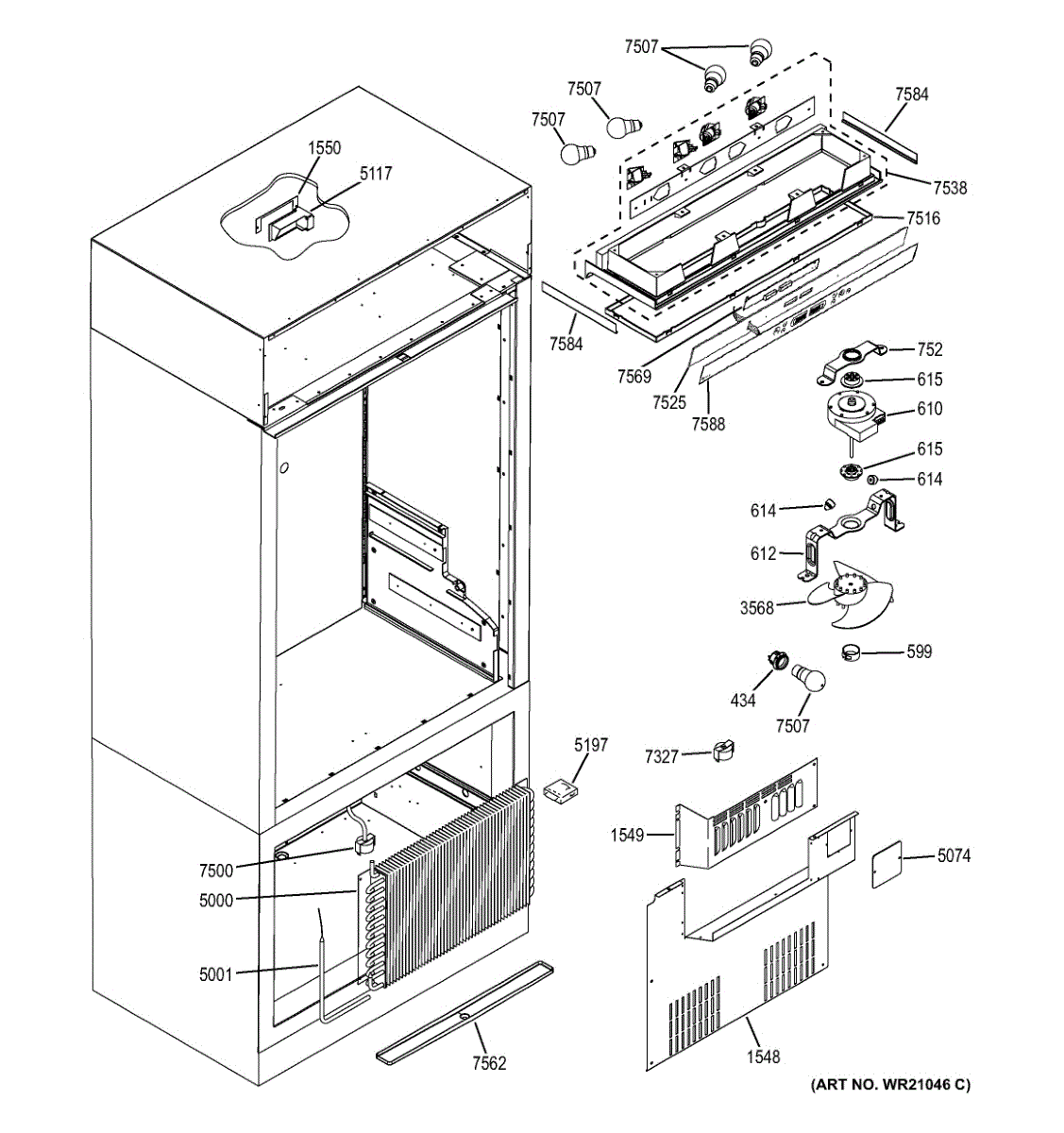

Parts for Ge ZIPP360NZA: Controls & Components Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Light Bulb Socket is an OEM part for GE refrigerators. It holds the light bulb in place within the refrigerator, ensuring a secure connection to provide illumination when the refrigerator door is opened. This socket ensures that the interior light functions correctly, allowing users to see and access food items easily.

Common causes of a bad light bulb socket include electrical issues, such as short circuits, wear and tear from regular use, or physical damage from handling or bulb replacements.

Symptoms of a bad light bulb socket include:

• The refrigerator light flickering or not turning on
• Burn marks or signs of overheating around the socket
• Loose or poor connection with the light bulb
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Motor is an OEM part for GE refrigerators. It circulates air over the evaporator coils, ensuring consistent cooling throughout the refrigerator and freezer compartments. The motor operates 9.75 volts DC. The motor has a 1/8" shaft and a 12" long, 4-wire harness.

You should replace the evaporator fan motor if it becomes faulty due to wear and tear, electrical issues, or physical damage. Over time, the motor bearings can wear out, or the motor itself can fail due to continuous operation.

Symptoms of a bad evaporator fan motor include:

• The refrigerator or freezer not cooling properly
• Unusual noises coming from the freezer area
• Frost buildup in the freezer
• The refrigerator running continuously without reaching the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. This small but essential component serves as a seal and insulator around the area where the fan motor shaft protrudes from the appliance body.

Causes of needing to replace the fan motor grommet can include normal wear and tear over time, exposure to extreme temperatures or moisture, or physical damage due to impact or improper installation.

Symptoms of a faulty or missing grommet include:

• Air leaks or drafts around the fan motor area
• Condensation buildup or frost formation near the motor shaft
• Increased noise or vibration from the fan motor assembly
• Reduced cooling efficiency due to air leakage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Evaporator Fan Blade is an OEM part for GE refrigerators. This fan blade is crucial for circulating air over the evaporator coils, which helps to maintain an even temperature throughout the refrigerator and ensures efficient cooling.

Common causes of a bad fan blade include regular wear and tear, damage from ice buildup or debris, and mechanical issues that cause the blade to crack or warp. A compromised fan blade can lead to poor air circulation, resulting in uneven cooling and potential frost buildup.

Symptoms of a bad evaporator fan blade include:

• Unusual noises coming from the freezer compartment
• Inconsistent temperatures within the refrigerator or freezer
• Frost buildup on the evaporator coils
• Reduced cooling efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Defrost Heater Assembly is an OEM replacement part for GE refrigerators. It is designed to heat the evaporator coils during the defrost cycle, melting any accumulated ice or frost. This helps maintain proper airflow and prevents the coils from freezing over, allowing your refrigerator to cool normally.

A bad defrost heater assembly can occur due to electrical issues, component failure, or damage to the heater itself. If you notice symptoms such as excessive frost or ice buildup in the freezer, inconsistent cooling, or water pooling at the bottom of the refrigerator, it may indicate a need to replace the defrost heater assembly.

Symptoms of a bad defrost heater assembly include:

• Excessive frost or ice buildup in the freezer
• Inconsistent cooling
• Water pooling at the bottom of the refrigerator

Restore your refrigerator by replacing the faulty defrost heater assembly with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Damper Assembly is an OEM component specifically designed for GE refrigerators. This assembly is located within the fresh food compartment and functions to control airflow and temperature regulation.

The damper works with the evaporator fan to carefully moderate circulating air, preventing cold spots and optimizing equal cooling. Consistent temperatures extend the shelf life of perishable goods.

Causes of a faulty damper assembly can include failure of the plastic gears or axle that coordinate its movements over time. Improper air circulation disrupts the refrigerator's performance.

Symptoms include:

• Formation of frost or ice buildup in problem areas
• Inconsistent shelf temperatures from top to bottom
• Foods spoiling more quickly

This replacement assembly from GE restores dependable temperature control. Upgrade today for continued fresh food preservation abilities matching OEM standards. It is also compatible with Hotpoint, RCA, and some Kenmore models.


This left-side evaporator baffle directs cold-air flow inside the freezer compartment to help even cooling and reduce frost buildup. It replaces a cracked or missing baffle to restore proper airflow and compartment temperature balance. What it does:

• Channels airflow from the evaporator to distribute cold evenly through the freezer
• Helps prevent localized frost buildup by guiding return air across the coil
• Restores proper compartment temperatures if cooling is uneven or items thaw in spots
• Stops rattling or loose-panel noise caused by a broken or loose baffle

• Disconnect power to the appliance before starting any repair
• Remove shelving and access panels as needed; handle plastic parts gently to avoid cracking
• Avoid touching the evaporator coil or refrigerant lines; wear gloves to protect hands
• Inspect and address defrost components or heaters if exposed or damaged

This defrost thermostat senses evaporator temperature and shuts off the defrost heater once the coil warms, preventing overheating. Replacing a failed thermostat restores proper defrosting to stop ice buildup and stabilize refrigerator temperatures.

• Controls the defrost heater based on evaporator coil temperature
• Closes when cold to allow defrost; opens as the coil warms to end the cycle
• Protects against overheating during defrost
• Failure may cause frost/ice on the back wall or evaporator, poor cooling, or a heater that never energizes

• Disconnect power before service; evaporator fins and sheet metal are sharp
• Access the evaporator by removing the freezer rear panel; note wire routing and mounting
• Position the new thermostat in the same location for tight contact with the tubing; reconnect wires exactly as found
• Reassemble and monitor a defrost cycle to confirm heater operation

The Defrost Thermostat is an OEM replacement part for GE refrigerators responsible for regulating the defrost cycle of the refrigerator's cooling system. The defrost thermostat monitors the temperature of the evaporator coils. When the coils reach a certain temperature, the thermostat signals the defrost heater to activate, melting any ice or frost that has accumulated. Once the coils are clear, the thermostat signals the heater to turn off, allowing the normal cooling cycle to resume.

A bad defrost thermostat can occur due to electrical issues, component failure, or damage to the thermostat itself. If you notice symptoms such as excessive frost or ice buildup in the freezer, inconsistent cooling, or the refrigerator running continuously without cycling off, it may indicate a need to replace the defrost thermostat.

Symptoms of a bad defrost thermostat include:

• Excessive frost or ice buildup in the freezer
• Inconsistent cooling
• Continuous operation without cycling off

Restore your refrigerator by replacing the faulty defrost thermostat with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

This molded plastic light shield covers and protects the interior light in the refrigerator fresh-food compartment while directing light for better visibility. It replaces cracked or discolored shields that block or scatter the bulb's output. What it does:

• Protects the interior light bulb from bumps and spills
• Directs and diffuses the light for clearer interior visibility
• Prevents direct contact with the bulb for improved safety
• Restores a clean, finished appearance to the compartment

• Disconnect power to the appliance before starting any work
• Remove any shelves or items that block access to the shield for easier removal/installation
• Usually snaps or screws into place; handle the plastic gently to avoid cracking
• Test the light after installation and restore power only when reassembly is complete

This HMI control assembly is the user interface board that lets you select and display settings on the appliance, restoring responsive controls and proper display feedback for normal operation. What it does:

• Provides the touch/key inputs and display signals for the appliance control system
• Registers user commands (cycle selection, temperature, timers) and sends them to the main control
• Restores missing or unresponsive front-panel controls and display feedback
• Can resolve symptoms like non-responsive buttons, blank or erratic display, or failure to accept user inputs

• Always disconnect power to the appliance before servicing to avoid electrical shock
• Handle the board carefully to avoid static damage; use anti-static precautions if available
• Installation typically requires removing the control panel or trim; retain fasteners and gaskets for reassembly

This evaporator trough (drip pan) catches and channels defrost and condensation water away from the freezer evaporator, helping prevent leaks and water accumulation. It restores proper drainage and reduces ice build-up near the evaporator area. What it does:

• Collects defrost melt and condensation from the evaporator coils
• Directs water to the drain or evaporator fan area to prevent pooling
• Helps reduce ice buildup and moisture-related odors around the evaporator
• Commonly replaced when cracked, warped, or leaking after defrost cycles

• One evaporator trough

• Disconnect power to the appliance before servicing to avoid shock
• Access typically requires removing the evaporator cover and possibly the evaporator fan assembly
• Inspect surrounding seals and drain components when replacing to ensure proper fit and drainage
• Use caution with sharp sheet-metal edges and refrigerant lines

This HMI control assembly is the user interface board that lets you select and display settings on the appliance, restoring responsive controls and proper display feedback for normal operation. What it does:

• Provides the touch/key inputs and display signals for the appliance control system
• Registers user commands (cycle selection, temperature, timers) and sends them to the main control
• Restores missing or unresponsive front-panel controls and display feedback
• Can resolve symptoms like non-responsive buttons, blank or erratic display, or failure to accept user inputs

• Always disconnect power to the appliance before servicing to avoid electrical shock
• Handle the board carefully to avoid static damage; use anti-static precautions if available
• Installation typically requires removing the control panel or trim; retain fasteners and gaskets for reassembly
