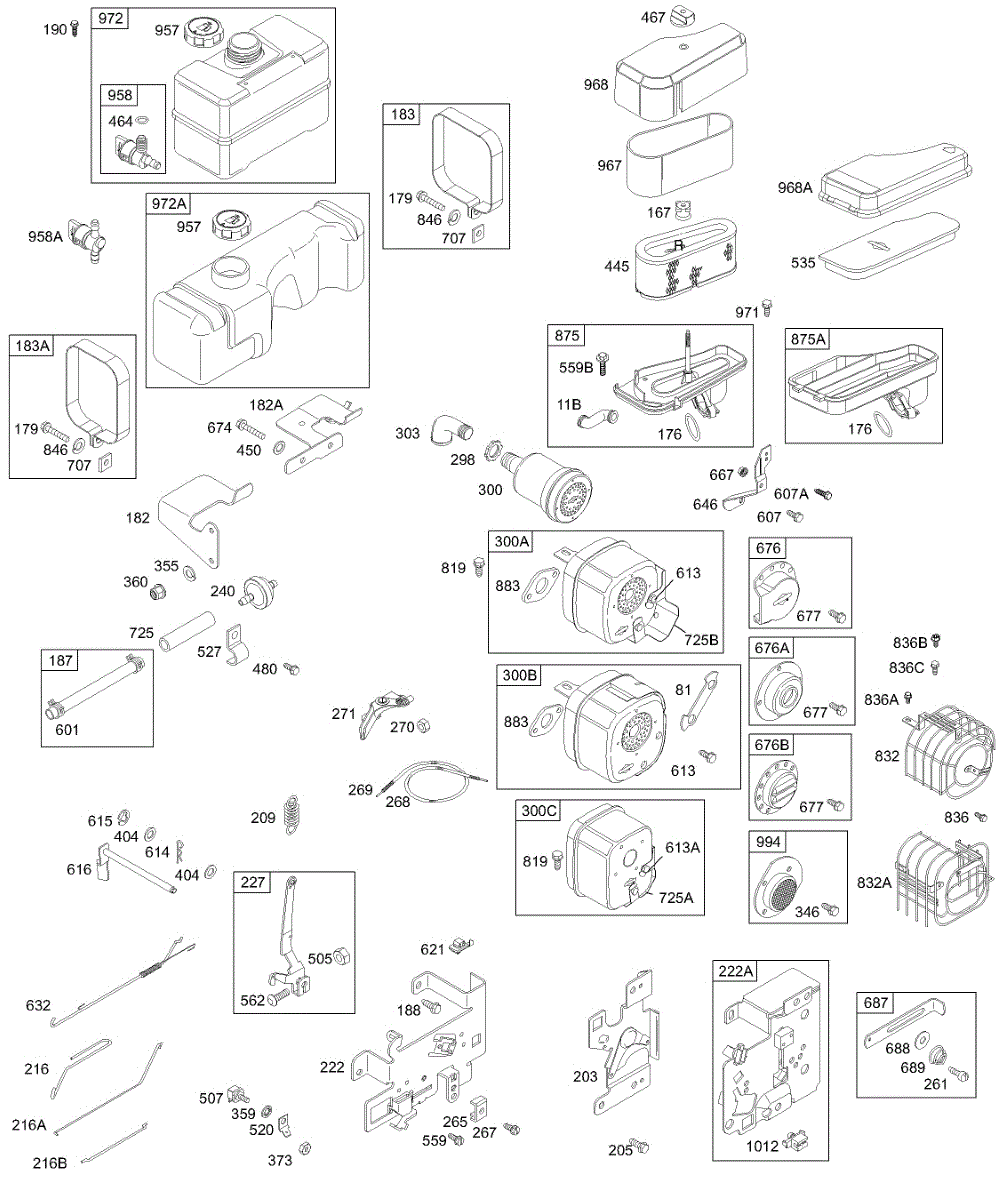

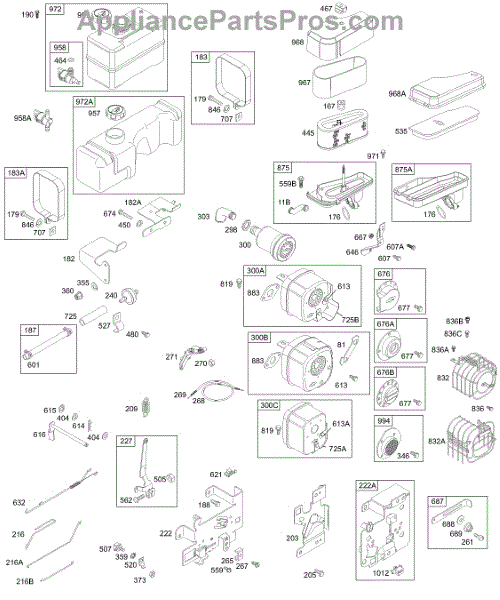

Parts for Briggs & Stratton 196702-4516-E2: Controls, Fuel, Air Cleaner, Mufflers Parts

O-rings are used in various locations and applications to seal and protect connections throughout the engine. The O-ring is typically used for rigid connections where a proper seal is required for optimal functioning. It is critical to have the right size and style of O-ring installed for proper operation. These parts tend to wear over time and that can affect their ability to seal. If O-rings are degraded or damaged in any way, they need to be replaced as soon as possible to prevent further damage. This O-ring is manufactured to exact specifications by Briggs & Stratton to provide a genuine OEM replacement. It can be used in various Toro, Briggs & Stratton, and Lawn-Boy engines. Typically found in lawn tractor engines, this part is compatible with more than 150 machines. This O-ring is made from durable materials and sold individually. Always disconnect the spark plug before beginning engine work and wear gloves for hand protection.

An in-line fuel filter prevents contaminants from entering the carburetor and engine. In any engine, if the in-line fuel filter becomes clogged for whatever reason, the fuel cannot flow freely to the carburetor. This can prevent the engine from starting or may shut off the engine during operation when the fuel supply is interrupted. Without any gas, the engine cannot run. Any number of things can cause the filter to become clogged. Examples of typical clogging culprits are lawn clippings, mulch, stones or rocks, or contaminants from poor-grade fuel. If your engine stops or won’t start up, remove the old in-line fuel filter, and replace it with the new one. If this does not fix your problem, the carburetor may need cleaning or replacement due to damage from the contaminants, as well. The outside material of this fuel filter is plastic, while the inside material is comprised of a filter component interior. This in-line fuel filter is manufactured by Briggs & Stratton. It is compatible with engines on lawnmowers, lawn tractors, snowblowers, and generators manufactured by Briggs & Stratton, Craftsman, Cub Cadet, Murray, MTD, Simplicity, Snapper, Toro, and Troy-Bilt. It is for engines that are supplied fuel by way of a fuel pump. This is a genuine OEM part and is sold separately as a replacement.

This muffler is designed to be used in a variety of types of lawn and garden equipment to prevent sparks from the exhaust igniting leaves, grass, and other debris. It also reduces the noise that comes from the exhaust. The muffler is made of durable metal, but after regular use, soot can build up and cause issues. The muffler can also experience holes and cracks that prevent the part from working correctly.If the muffler is broken or damaged, it needs to be replaced. The bolts in the muffler should be removed before taking the muffler away from the engine. Take the new muffler and insert the bolts into the holes on it. Install the needed gaskets and heat shields before adding the new muffler to the equipment. Make sure all parts are tightened before using.This is an authentic OEM replacement part this is directly sourced from the manufacturer. It is sold as an individual unit. The muffler is made to be compatible with wood chippers, tillers, snowblowers, and lawnmowers manufactured by Toro, Briggs & Stratton, and Simplicity.

This screw is designed to be used on all sorts of lawn and garden equipment. The metal screw is durable and attaches to the muff guard bracket to keep it in place and stable while the equipment is being used. This screw can become damaged through overuse or wear and tear. It can also break or become stripped, which will require it to be replaced.Visually inspecting the area with the muff guard bracket is connected to the rest of the equipment will give information about whether the screw is broken or damaged. The screws can also be cleaned to be more visible so small problems are easier to pick up on. Sometimes the screws can become loose, which is another situation where a replacement is needed. Simply use a screwdriver to take out the old screw and replace it with a new one.This screw is a genuine OEM replacement part that is directly sourced from the manufacturer. It comes as an individual part. The screw can be used on snowblowers, lawnmowers, lawn tractors, tillers, pressure washers, leaf blowers, edgers, generators, wood chippers, and log splitters made by MasterCut, Simplicity, MTD, Snapper, Lawn-Boy, Wheel Horse, Cub Cadet, Toro, Craftsman, and Briggs & Stratton.

This replacement air cleaner cartridge is a part that is used in routine maintenance of several models of lawn mowers and tractors. The air cleaner cartridge is installed in the air cleaner assembly to help filter the air coming into the engine before it is taken in by the carburetor. The air cleaner removes particulates, debris, and protects the engine from other contaminants. Over time and with regular use, it will become clogged and will need to be replaced.This OEM replacement air cleaner cartridge is specifically manufactured for use with lawn tractors from Briggs & Stratton, Toro, Cub Cadet, and Simplicity. The cartridge should be replaced at least once a season, or more frequently if it becomes clogged as the mower is used. Some owners purchase an extra to keep on hand in case of emergencies, as well. Allow the lawn mower to cool completely before beginning any repairs. Wear gloves and disconnect the spark plug to ensure the engine doesn't attempt to engage during repairs.

This screw is designed to be used on all sorts of lawn and garden equipment. The metal screw is durable and attaches to the muff guard bracket to keep it in place and stable while the equipment is being used. This screw can become damaged through overuse or wear and tear. It can also break or become stripped, which will require it to be replaced.Visually inspecting the area with the muff guard bracket is connected to the rest of the equipment will give information about whether the screw is broken or damaged. The screws can also be cleaned to be more visible so small problems are easier to pick up on. Sometimes the screws can become loose, which is another situation where a replacement is needed. Simply use a screwdriver to take out the old screw and replace it with a new one.This screw is a genuine OEM replacement part that is directly sourced from the manufacturer. It comes as an individual part. The screw can be used on snowblowers, lawnmowers, lawn tractors, tillers, pressure washers, leaf blowers, edgers, generators, wood chippers, and log splitters made by MasterCut, Simplicity, MTD, Snapper, Lawn-Boy, Wheel Horse, Cub Cadet, Toro, Craftsman, and Briggs & Stratton.

The stop switch, sometimes called a kill switch, is triggered to stop the engine when the operator is no longer on the seat ,This is important for safety. If the stop switch is not functioning properly, inspect it for damage and replace it right away. Operating a machine without a functional stop switch can be dangerous. The stop switch is a genuine OEM part, and it is sold individually. The switch can work for many types of equipment including lawn tractors, lawnmowers, log splitters, wood chippers, pressure washers, and tillers. The replacement part is compatible with a range of brands, including Midwest Engine, Toro, Craftsman, Briggs & Stratton, Lawn-Boy, Murray, Snapper, and MTD.

This replacement part is a nut. This part is small but important in various types of equipment. Nuts are able to work with other small parts such as washers and screws to secure equipment components in place.If a nut has become stripped or worn down over time, it is possible that it can no longer perform the function needed. Be sure to wear work gloves when working with small parts such as nuts to prevent injury during the repair. This is a genuine OEM replacement part manufactured by Midwest Engine. This part is sold individually.

This screw is designed to be used on all sorts of lawn and garden equipment. The metal screw is durable and attaches to the muff guard bracket to keep it in place and stable while the equipment is being used. This screw can become damaged through overuse or wear and tear. It can also break or become stripped, which will require it to be replaced.Visually inspecting the area with the muff guard bracket is connected to the rest of the equipment will give information about whether the screw is broken or damaged. The screws can also be cleaned to be more visible so small problems are easier to pick up on. Sometimes the screws can become loose, which is another situation where a replacement is needed. Simply use a screwdriver to take out the old screw and replace it with a new one.This screw is a genuine OEM replacement part that is directly sourced from the manufacturer. It comes as an individual part. The screw can be used on snowblowers, lawnmowers, lawn tractors, tillers, pressure washers, leaf blowers, edgers, generators, wood chippers, and log splitters made by MasterCut, Simplicity, MTD, Snapper, Lawn-Boy, Wheel Horse, Cub Cadet, Toro, Craftsman, and Briggs & Stratton.

This replacement exhaust gasket is an authentic OEM part for a snowblower or lawn tractor engine. On these appliances, the exhaust is located quite near to the air filter, meaning that there is a chance that exhaust could leak into the carburetor. The carburetor requires fresh air to oxygenate fuel for combustion, so manufacturers install a gasket to help seal off the exhaust. Once installed, gaskets exist under a lot of pressure and will absorb the heat of the engine. These stresses cause gaskets to slowly degrade and eventually break their seal. If the exhaust gasket blows, the engine will not perform as it should. Be cautious of a noisy engine that burns more fuel than usual and gives off a burning smell. These are signs that the exhaust gasket has given out. If so, use a socket wrench and wrench set to disassemble the blower and air filter housings, then remove the exhaust manifold and change out the broken gasket. This high-quality replacement exhaust gasket is compatible with engines made by Toro, Husqvarna, Briggs & Stratton, and Snapper. It comes sourced from the original manufacturer and ships individually.

This valve fuel shut off is a genuine Midwest Engine replacement part for outdoor appliances with small engines, such as lawn mowers, leaf blowers, chipper shredders, and snowblowers. The valve fuel shut off serves as a basic safety and maintenance feature which temporarily blocks fuel from reaching the engine. This valve might be used when performing work on the engine, when transporting the appliance, or to generally prevent oil leakage and flooding in certain scenarios.The valve fuel shut off could be subject to damage in the long-term from general use. If there is oil inexplicably found leaking into the carburetor, the float chamber, or the intake valve, thereby causing engine damage or hydraulic lock, there might be damage in the valve fuel shut off. If that is the case, this genuine OEM replacement part will be essential. Remember to always wear gloves when handling, repairing, and operating outdoor equipment.This valve fuel shut off is compatible with the following brands: Briggs and Stratton, Toro, Cub Cadet, and Simplicity. This part is individually sold and any additional parts needed will have to be purchased separately.

The fuel cut-off valve is used as an external mechanism to stop the flow of gasoline from the fuel assembly to the engine to conserve fuel and maintain safe operation. If your device did not come with a cut-off valve, this is an easy install to give more control over the engine’s operation. When installing a fuel cut-off valve in your small gasoline engine, the first thing to note is the little arrow on the side of the valve. This indicates the direction that fuel will be flowing from the tank to the motor. Empty the fuel tank before proceeding with the repair. Remove the fuel line from the tank and cut the hose in two. Install properly sized hose clamps on either side of the cut and force the two ends of the valve into the severed line. Reattach the fuel lines and fill the tank. This fuel cut-off valve is compatible with a variety of gasoline-driven tools, including lawnmowers, generators, snowblowers, and chippers. Brands that use this OEM replacement part include Craftsman, Briggs & Stratton, Snapper, Simplicity, Toro, and Cub Cadet. This OEM part is sold individually.

This replacement part is a filter. It is a genuine replacement part made by Midwest Engine. This filter is used in tandem with a fan to keep the engine clear of dust and debris. This filter keeps the parts safe, prolonging the equipment's life.A new filter might be needed if the current one is filled with debris. This can be from years of use. If the filter is unable to be cleaned it is important to replace it as soon as possible. If the filter gets too full it can overheat. Be sure the engine is completely off before starting this repair.This filter is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer to ensure a proper fit.

Flange screws have a flange located near the top of the screw, which helps to distribute the connection force over a larger area to reduce potential damage to the machine. It also allows the screws to be used in oversized or irregular holes, and it helps to ensure they stay in place. This flange screw also has a hex top. Screws can last for a long time. However, they may become corroded or worn over time and need to be replaced. They could also become lost and need a replacement. Without all of the screws in the proper places in a machine, it could vibrate too much, which could render it less effective or unsafe to use. The flange screw is a genuine OEM part that can be used with many types of machines including lawn mowers, snowblowers, tillers, pressure washers, leaf blowers, generators, wood chippers, and other small engines. The screws are compatible with Briggs & Stratton, Craftsman, Toro, Cub Cadet, Murray, Lawn-Boy, Snapper, Simplicity, and MTD.

The fuel tank is a genuine OEM replacement for select Briggs & Stratton engine models. This 4-quart fuel tank is mounted on the engine and is designed specifically for remote mounting. This tank holds the fuel and connects via fuel lines to the carburetor to provide fuel to the engine. Over time, this tank can become damaged or worn out. Some owners may just want to upgrade to a remote mounting tank from their original model. This replacement tank includes the fuel cap and tank assembly and offers an exact fit for compatible models. This OEM fuel tank is used with various models of push mowers that include a compatible Briggs & Stratton engine. These include mowers from Briggs & Stratton, Troy-Bilt, and others. This fuel tank is made of durable plastic material and sold as an individual unit. Always drain the fuel system completely when installing a new fuel tank and ensure a secure installation and check for fuel leaks after replacing the tank. Wear gloves when performing equipment repairs for hand protection.
