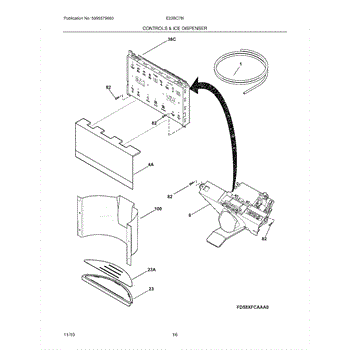

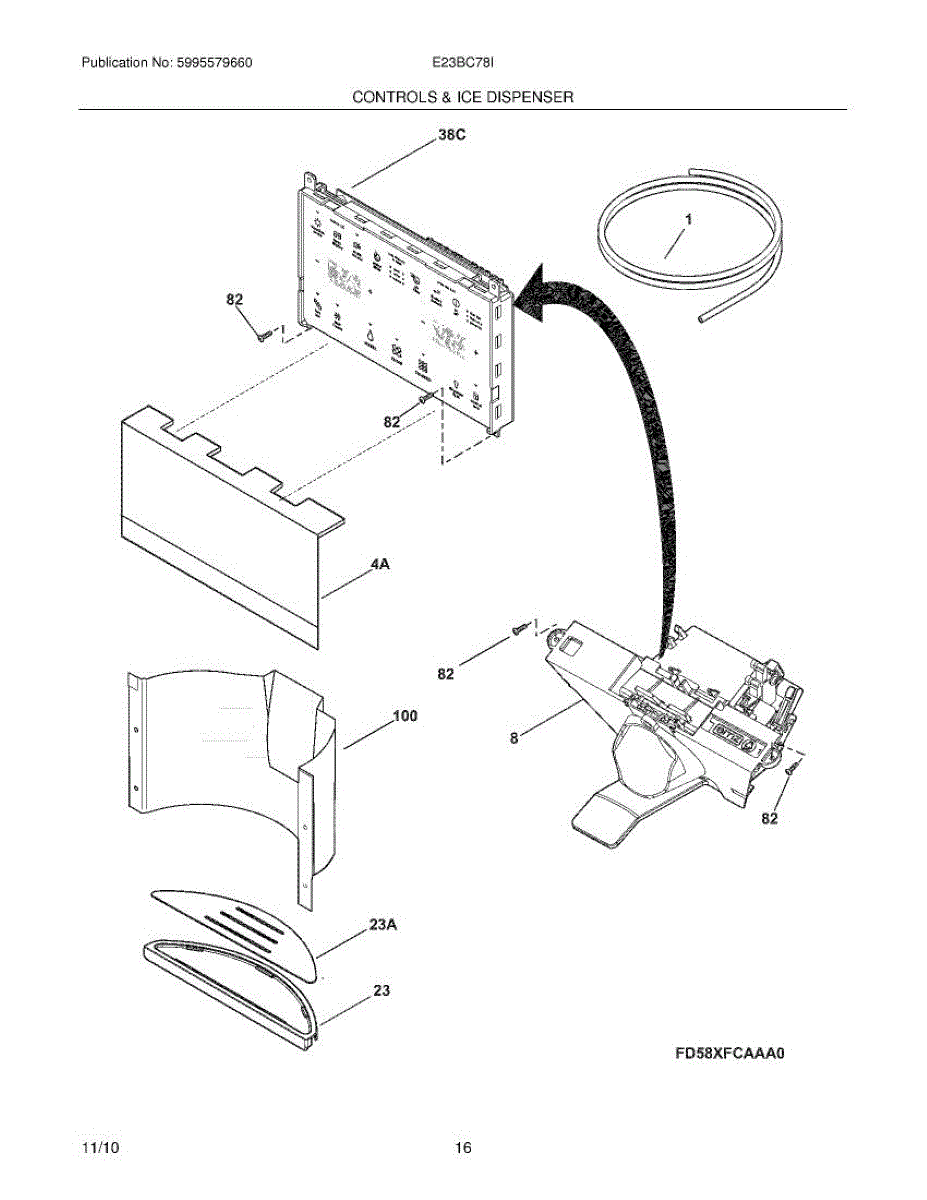

Parts for Electrolux E23BC78IPS5: 13 - Controls & Ice Dispenser Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This dispenser module controls the refrigerator door water and ice dispenser pads and sends the control signals that operate the dispenser. Replacing a failed module restores normal button/pad response and dispenser operation. What it does:

• Receives input from the door dispenser pads or switches and sends signals to the water valve and ice dispenser components.
• Restores responsive dispense pad/button operation when the dispenser is unresponsive or intermittent.
• Can stop erratic or continuous dispensing caused by a faulty dispenser control.
• Works as the electronic interface between the user controls and the dispenser mechanisms.

• Disconnect power to the appliance before starting—electrical shock hazard.
• You may need to remove the refrigerator door inner panel to access the module; keep fasteners organized.
• Handle the module carefully to avoid static damage; avoid touching circuit traces or connectors.
• Reconnect power and test dispenser functions after installation.

This drip tray collects defrost and condensation water and helps channel it to the evaporator/evaporation area, reducing puddles and water damage under the appliance. It's a direct-fit service part designed for easy replacement. What it does:

• Catches meltwater from the defrost cycle and directs it to the evaporator/evaporation area
• Prevents water pooling under or around the appliance that can cause floor damage
• Helps reduce odor and mold risk by containing and directing moisture
• Restores proper drainage when the original tray is cracked, warped, or clogged

• Disconnect power to the appliance before beginning any service
• Remove access panels or kickplate as needed to reach the tray; keep fasteners for reinstallation
• Inspect surrounding seals and drain channel for clogs or damage while replacing the tray
• Handle carefully to avoid bending or cracking the new tray; ensure it seats flat and drains properly before restoring power

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This water tube routes potable water inside the refrigerator to the dispenser and/or ice maker, restoring normal water delivery and preventing leaks. It's a direct-fit replacement that helps maintain proper ice and water operation. What it does:

• Channels water from the refrigerator inlet/valve to the dispenser or ice maker
• Replaces cracked, kinked or punctured tubing that causes leaks
• Stops intermittent or no-water delivery caused by damaged tubing
• Restores steady water flow for ice production and dispensing

• Turn off the refrigerator power and shut off the water supply before starting
• Inspect connection fittings and tubing route; replace any worn clamps or seals as needed
• Use appropriate tools to loosen and tighten fittings without over-torquing

This dispenser wiring harness connects the dispenser controls and components in the refrigerator door, restoring electrical continuity for the dispenser functions and simplifying replacement of a damaged or faulty harness. What it does:

• Carries power and signals between the dispenser switches, valve/solenoid, and indicator lights
• Replaces frayed, pinched, or damaged wiring that can cause intermittent or no dispenser operation
• Addresses symptoms like non-working water/ice dispenser, no dispenser lights, or unresponsive dispenser switches
• Provides factory-style connectors for a direct, plug-and-play replacement

• One dispenser wiring harness

• Disconnect power to the appliance before beginning any work to avoid shock
• Remove the inner door panel or dispenser bezel per your model's service instructions to access the harness
• Match connectors and routing to the original harness; avoid stretching or pinching wires when reinstalling
• Test dispenser functions after installation and reassemble panels securely

This replacement chute guides output through the appliance's passageway so it reaches the correct area. Replacing a cracked or warped chute restores smooth, consistent flow and helps prevent blockages, spills, and misdirected dispensing.

• Directs flow through the intended path between components
• Helps maintain alignment and sealing with adjoining parts
• Restores consistent dispensing/throughput when the original is damaged
• Common symptoms: visible cracks, obstructions, misalignment, or output missing the opening

• Disconnect power; turn off water supply if applicable
• Access the chute by removing the relevant cover or panel
• Transfer any reusable gasket/seal or mounting hardware from the old chute
• Seat and align the new chute fully; reassemble and test operation
