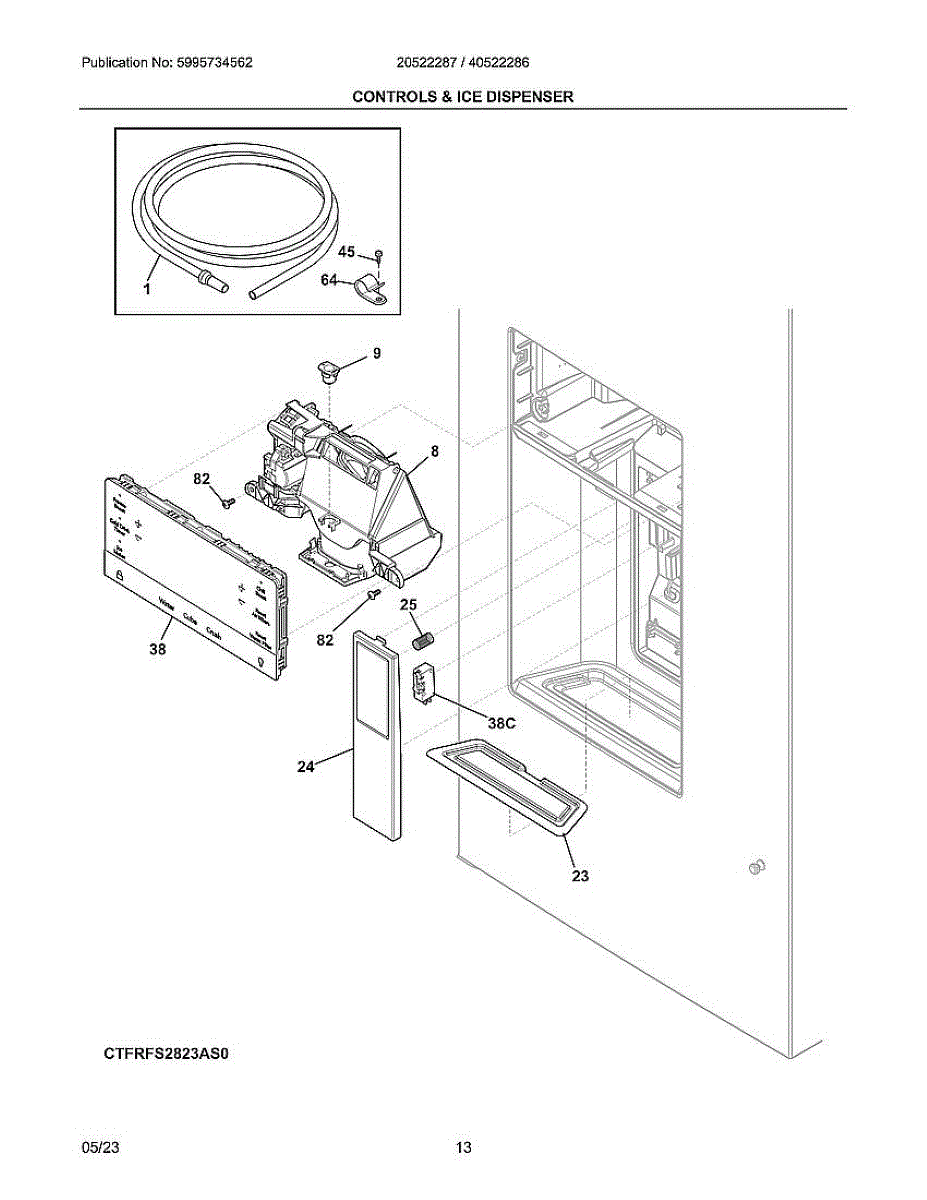

Parts for Frigidaire 40522286A: Controls & Ice Dispenser Parts

The Water Tube is an OEM part for Frigidaire refrigerators. It is a flexible plastic tube that transports water from the refrigerator's water valve to the dispensing system within the door.

Over time, constant flexing and humidity exposure can cause cracks and splits to form within the water tube. Mineral buildup may also restrict flow. Please note, this part does not include mounting brackets or clips.

Causes of a bad tube can be wear and tear, piercing from sharp shelf edges, or damage incurred during repairs.

Symptoms of a bad water tube include:

• Leaks or drips of water inside the refrigerator
• Slow water flow or intermittent water flow from the dispenser
• Dispenser unable to produce water or ice

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This housing is the main structural enclosure that supports and protects internal components, restoring proper alignment and safe operation. It replaces a damaged or cracked outer housing to reduce vibration and protect wiring and moving parts. What it does

• Provides structural support and mounting points for internal components.
• Protects internal parts from debris and physical damage.
• Helps reduce vibration and rattling caused by a cracked or broken housing.
• Restores proper alignment to maintain correct component clearances.

• One housing main assembly.

• Disconnect power and, if applicable, gas supply before starting any repair.
• Handle carefully to avoid damaging mounting tabs or paint; some trimming may be required for perfect fit on older units.
• If any fasteners, clips, or gaskets are worn or missing, replace them to ensure a secure installation.

This Ice & Water Module Assembly controls the refrigerator's dispenser and related ice/water functions so the dispenser and ice system respond correctly. It restores control signals between the dispenser controls and the valve/ice circuits. What it does:

• Routes user dispenser commands to the dispenser actuator and water/ice valves.
• Manages dispenser lights and switch inputs for water and ice selection.
• Can stop dispenser response or cause intermittent dispensing when faulty.
• Common symptom: dispenser unresponsive or only one function (ice or water) working.

• One Ice & Water Module Assembly

• Disconnect power to the appliance before beginning any work.
• Handle the module and connectors carefully to avoid bending pins or damaging wiring.
• Installation typically requires access behind the dispenser/control panel; keep screws and trim organized.

This plastic guide positions and supports a moving component inside the appliance to keep parts aligned and running smoothly. Replacing a worn guide restores proper fit and helps reduce rubbing noises and uneven movement. What it does:

• Holds and aligns a moving part or trim so it tracks correctly during operation
• Prevents rubbing, scraping, or binding that can cause noise or premature wear
• Maintains correct spacing to protect adjacent components from damage
• Commonly replaced when you see misalignment, clicking, or intermittent contact

• One plastic guide as shown

• Disconnect power (and water, if applicable) before attempting any repair
• Access may require removing panels or trim; keep fasteners organized
• Inspect adjacent parts for wear and replace if needed to prevent repeat failure

The Dispenser Drip Tray is an OEM part for Frigidaire refrigerators. It is located under the water and ice dispenser to catch any drips or spills that occur during use.

A bad dispenser drip tray can be caused by wear and tear, damage, or improper cleaning. When the drip tray becomes faulty, it can result in issues such as water or liquid pooling on the dispenser area or leaking onto the floor.

Symptoms of a bad dispenser drip tray include:

• Water or liquid pooling on the dispenser area
• Leaks or drips from the dispenser onto the floor
• Difficulty in removing or cleaning the tray due to damage

Replace your faulty dispenser drip tray with this genuine OEM Frigidaire part to restore your dispenser area. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


Replacement drip pan that catches defrost and condensation water beneath the appliance to help keep the cabinet floor dry and reduce the chance of visible leaks or puddling. Simple swap to restore proper water collection. What it does

• Collects defrost and condensation water to channel it away from the cabinet floor.
• Helps prevent water stains and puddles under the appliance.
• Replaces cracked, warped, or missing factory trays that cause leaks or odors.
• Works with the appliance's drainage path to reduce floor-level moisture.

• One replacement tray.

• Disconnect power to the appliance before servicing.
• Remove contents, shelves or access panels as needed to reach the tray.
• Slide or snap the old tray out and position the new tray in the same orientation; secure any clips or fasteners used by the original part.

This tension spring provides the restoring force needed for a moving refrigerator component, helping parts return to their normal position for reliable operation and alignment. It's a simple replacement that restores proper movement and stability. What it does:

• Provides tension to return or hold a component in place during normal operation
• Helps maintain proper alignment and smooth movement of the associated mechanism
• Worn or broken springs can cause improper latching, sagging, or uneven movement
• Replacing a damaged spring often resolves related noise or binding issues

• One replacement spring

• Disconnect power before attempting any repairs to avoid electrical hazards
• Handle springs carefully; they can be under tension and may require basic tools to remove/install
• Replace with the exact part number to ensure fit and function

This is a replacement appliance switch used to complete or interrupt a circuit for lights, controls, or safety features. It restores proper on/off function so features respond when the switch is pressed or released. What it does:

• Acts as a user-operated electrical contact to turn a circuit on or off
• Commonly used for door lights, control panels, or interlock functions
• Works as a direct mechanical/electrical replacement when the original switch fails

• One replacement switch

• Disconnect power to the appliance before attempting replacement
• Verify orientation and connector fit; do not force terminals
• Dispose of the old switch per local electronic-waste guidelines

This control assembly is the console electronics that manage the oven/range user interface, display and temperature control. Replacing a faulty control restores responsive keys, accurate displays and reliable oven operation. What it does:

• Regulates oven temperature and cooking cycles via the console electronics.
• Provides the front display, clock and touch/keypad input processing.
• Can resolve symptoms like unresponsive buttons, blank or erratic display, or oven not starting.
• Works with the range/oven's wiring harness and sensors to execute user commands.

• Disconnect power at the breaker or unplug the appliance before beginning work.
• Protect the PCB from static: handle by edges and avoid touching circuitry.
• Verify wire connections match the original harness before powering on.

The Dispenser Control Panel Assembly is an OEM part for Frigidaire refrigerators. It is responsible for controlling and activating the various functions of the refrigerator's dispenser, including ice and water dispensing.

A bad dispenser control panel assembly can be caused by electrical issues, component failure, or damage. When the dispenser control panel assembly becomes faulty, it can result in issues such as unresponsive buttons, malfunctioning dispenser features, or a lack of dispensing functionality.

Symptoms of a bad dispenser control panel assembly include:

• Unresponsive buttons or controls on the dispenser
• Inability to dispense ice or water
• Malfunctioning dispenser features
• Display not showing accurate information

Replace your faulty dispenser control panel assembly with this genuine OEM Frigidaire part to restore your refrigerator's dispenser. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


Color: Black/natural. Nylon

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This dispenser wiring harness connects the dispenser controls and components in the refrigerator door, restoring electrical continuity for the dispenser functions and simplifying replacement of a damaged or faulty harness. What it does:

• Carries power and signals between the dispenser switches, valve/solenoid, and indicator lights
• Replaces frayed, pinched, or damaged wiring that can cause intermittent or no dispenser operation
• Addresses symptoms like non-working water/ice dispenser, no dispenser lights, or unresponsive dispenser switches
• Provides factory-style connectors for a direct, plug-and-play replacement

• One dispenser wiring harness

• Disconnect power to the appliance before beginning any work to avoid shock
• Remove the inner door panel or dispenser bezel per your model's service instructions to access the harness
• Match connectors and routing to the original harness; avoid stretching or pinching wires when reinstalling
• Test dispenser functions after installation and reassemble panels securely

This refrigerator clip is a small retainer that secures a component in place so it stays properly seated during use. Replacing a worn or missing clip restores a snug fit and helps eliminate looseness, rattling, or misalignment.

• Holds a part, panel, tube, or wire securely in its mounting point
• Maintains alignment to prevent shifting or vibration
• Helps preserve proper fit and airflow when components are correctly seated
• Symptoms can include loose or sagging pieces, rattling noises, or parts that won't stay attached

• Unplug the refrigerator; if working near water lines, shut off the water supply
• Note the clip's orientation before removal; take a photo for reference
• Use needle-nose pliers to release/install; avoid over-flexing the clip
• After installation, tug-test gently to confirm a secure fit before reassembling

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
