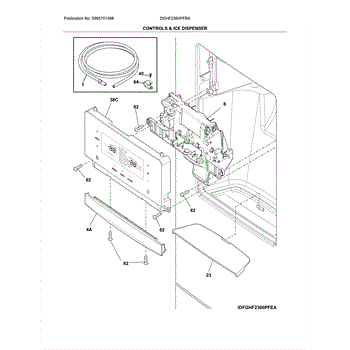

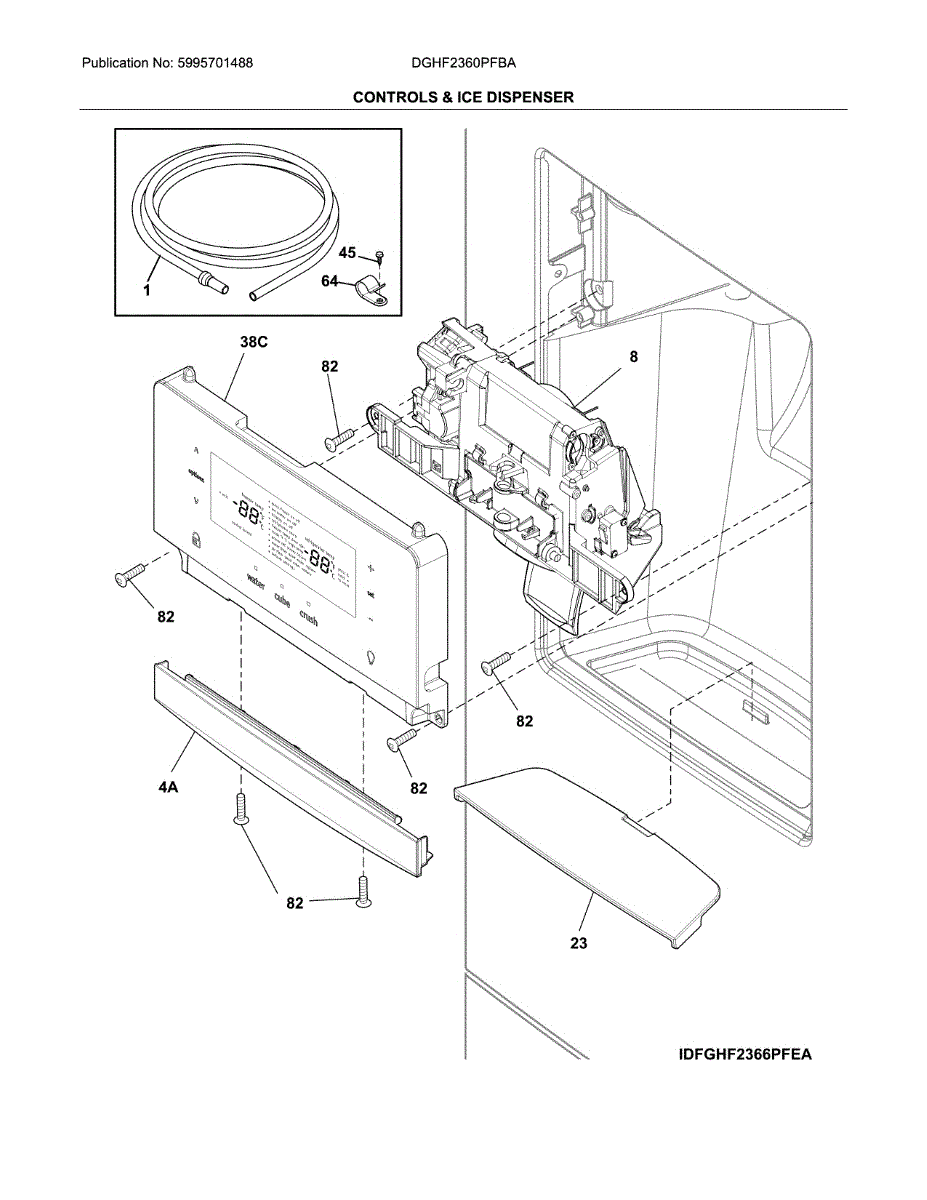

Parts for Frigidaire DGHF2360PFBA: Controls & Ice Dispenser Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Water Filter is an OEM replacement part for Frigidaire refrigerators. This PureSource Ultra Ultrawf Refrigerator Water Filter is designed to provide superior filtration, ensuring that your water and ice are clean and refreshing.

With the Frigidaire Refrigerator Water Filter, you can enjoy up to six months of crystal-clear water and ice. For the filter bypass, order part number 242294402. Get the most out of your Frigidaire appliance with a new OEM water filter, and enjoy clean, refreshing water and ice every time!

Causes of a bad part:

• Overused or expired
• Clogged by excessive impurities

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


Replacement water tube that routes water from the inlet valve to the refrigerator dispenser and ice maker, helping restore proper water flow for reliable dispensing and ice production. What it does:

• Carries water from the refrigerator inlet/valve to the dispenser and ice maker fill system.
• Used when cracked, kinked, clogged or brittle tubing prevents water flow.
• Helps stop leaks and restore normal ice maker fill when tubing is damaged.
• Addresses symptoms such as no water at the dispenser, ice maker not filling, or visible leaking under the fridge.

• Turn off the water supply and unplug the refrigerator before beginning any work.
• May require basic hand tools and careful routing to avoid kinks; do not overtighten fittings.
• Inspect and replace any damaged clamps or seals; test for leaks after reconnecting the water supply.

Color: Stainless Steel
The Dispenser Trim is an OEM part for Frigidaire refrigerators. It surrounds the ice and water dispenser area located externally on the refrigerator door.

Causes of a faulty dispenser trim can include cracks, chips or damage from impacts or general wear over time.

Symptoms of failure include:

• Water leaks developing around the dispenser opening
• Loose or detached trim that does not sit flush
• Access to dispenser functions being obstructed

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Dispenser Module is an OEM component specifically designed for Frigidaire refrigerators. This module dispenses filtered water and crushed ice through the refrigerator door.

Causes of a bad dispenser module can include worn gears or levers that impair water or ice dispensing, broken components that prevent proper operation of the dispenser function, or failure of electronic parts that control dispensing.

Symptoms of a bad dispenser module include:

• Slow, inconsistent, or no water dispensing
• Ice crushing mechanism not working
• Dispenser door not opening or closing smoothly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This dispenser drip tray sits at the base of the refrigerator's ice/water dispenser. It catches small drips and splashes to help keep the dispenser recess and door front cleaner and drier. What it does:

• Collects minor drips and splashes from the ice and water dispenser
• Helps protect the door finish and surrounding area from moisture
• Replace if the tray is cracked, warped, stained, or missing
• Common signs include water pooling in the dispenser recess or a loose, ill-fitting tray

• 1 dispenser drip tray

• Pull the old tray straight out of the dispenser recess; no tools are typically required
• Clean any mineral deposits or debris in the recess before installing the new tray
• Align and seat the new tray flat and flush in the opening
• Disconnect power and shut off water

Control assembly that replaces a faulty front control, restoring touchpad and display responsiveness so the range or oven accepts commands and shows status. What it does:

• Replaces the appliance's front user interface, including the touchpad/keys and display electronics.
• Restores ability to enter settings, start cycles and change functions when the original control is unresponsive.
• Commonly used when the display is blank, shows garbled characters, or button presses do not register.
• Matches the appliance only if the part number fits.

• Disconnect power to the appliance before starting any repair to avoid shock or damage.
• Handle the control assembly by its edges and avoid contact with circuits; use ESD precautions if available.
• Installation typically requires removing the control panel or backguard and unplugging/replugging the wire harness; retain all mounting hardware.

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

Color: Black/natural. Nylon

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This genuine replacement screw secures appliance components and restores proper fit and stability. Use it to replace a missing or damaged fastener and stop panels, trim, or parts from shifting or rattling during normal use. What it does:

• Fastens and holds panels, brackets, or small components in place
• Restores secure attachment when an original screw is missing, damaged, or stripped
• Helps eliminate vibration, rattling, or loose-fitting parts
• Matches the OEM fit and function for reliable reassembly

• Use correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and remove food or contents from appliance areas as needed before servicing
• If fastener threads are damaged, replace with the exact OEM screw rather than forcing installation

This wire harness is an electrical connector assembly that links appliance components so circuits can carry power and signals. It helps restore reliable electrical connections and proper operation when the original harness is damaged or worn. What it does:

• Provides factory-style electrical connections between components to enable power and signal flow
• Replaces frayed, broken, or corroded wiring that can cause intermittent operation
• Helps stop symptoms like components that won't power on, erratic cycles, or loss of function traced to wiring
• Maintains correct connector fit and routing for safe, reliable performance

• One wire harness assembly as pictured

• Disconnect all power to the appliance before starting any repair
• Compare the replacement harness to the original to ensure connectors, length, and routing
• Route harness to avoid sharp edges, heat sources, and moving parts; secure with factory clips or ties

This dispenser wiring harness connects the dispenser controls and components in the refrigerator door, restoring electrical continuity for the dispenser functions and simplifying replacement of a damaged or faulty harness. What it does:

• Carries power and signals between the dispenser switches, valve/solenoid, and indicator lights
• Replaces frayed, pinched, or damaged wiring that can cause intermittent or no dispenser operation
• Addresses symptoms like non-working water/ice dispenser, no dispenser lights, or unresponsive dispenser switches
• Provides factory-style connectors for a direct, plug-and-play replacement

• One dispenser wiring harness

• Disconnect power to the appliance before beginning any work to avoid shock
• Remove the inner door panel or dispenser bezel per your model's service instructions to access the harness
• Match connectors and routing to the original harness; avoid stretching or pinching wires when reinstalling
• Test dispenser functions after installation and reassemble panels securely

This water inlet tube routes potable water from the supply/valve to the refrigerator's water/ice system, keeping the dispenser and icemaker supplied. It's a direct-fit replacement that restores proper water flow and helps prevent leaks from damaged tubing. What it does:

• Channels water from the inlet valve to the dispenser/ice maker assembly
• Restores proper water delivery when original tubing is cracked, clogged, or leaking
• Helps prevent water damage by providing a secure, direct path for supply water
• Matches OEM routing and connection points for proper fit and flow

• One water inlet tube

• Disconnect power and shut off the home's water supply before starting
• Inspect fittings and replace any damaged clips or seals during install
• Use proper tools and avoid kinking the tube; hand-tighten fittings then test for leaks

This refrigerator clip is a small retainer that secures a component in place so it stays properly seated during use. Replacing a worn or missing clip restores a snug fit and helps eliminate looseness, rattling, or misalignment.

• Holds a part, panel, tube, or wire securely in its mounting point
• Maintains alignment to prevent shifting or vibration
• Helps preserve proper fit and airflow when components are correctly seated
• Symptoms can include loose or sagging pieces, rattling noises, or parts that won't stay attached

• Unplug the refrigerator; if working near water lines, shut off the water supply
• Note the clip's orientation before removal; take a photo for reference
• Use needle-nose pliers to release/install; avoid over-flexing the clip
• After installation, tug-test gently to confirm a secure fit before reassembling

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
