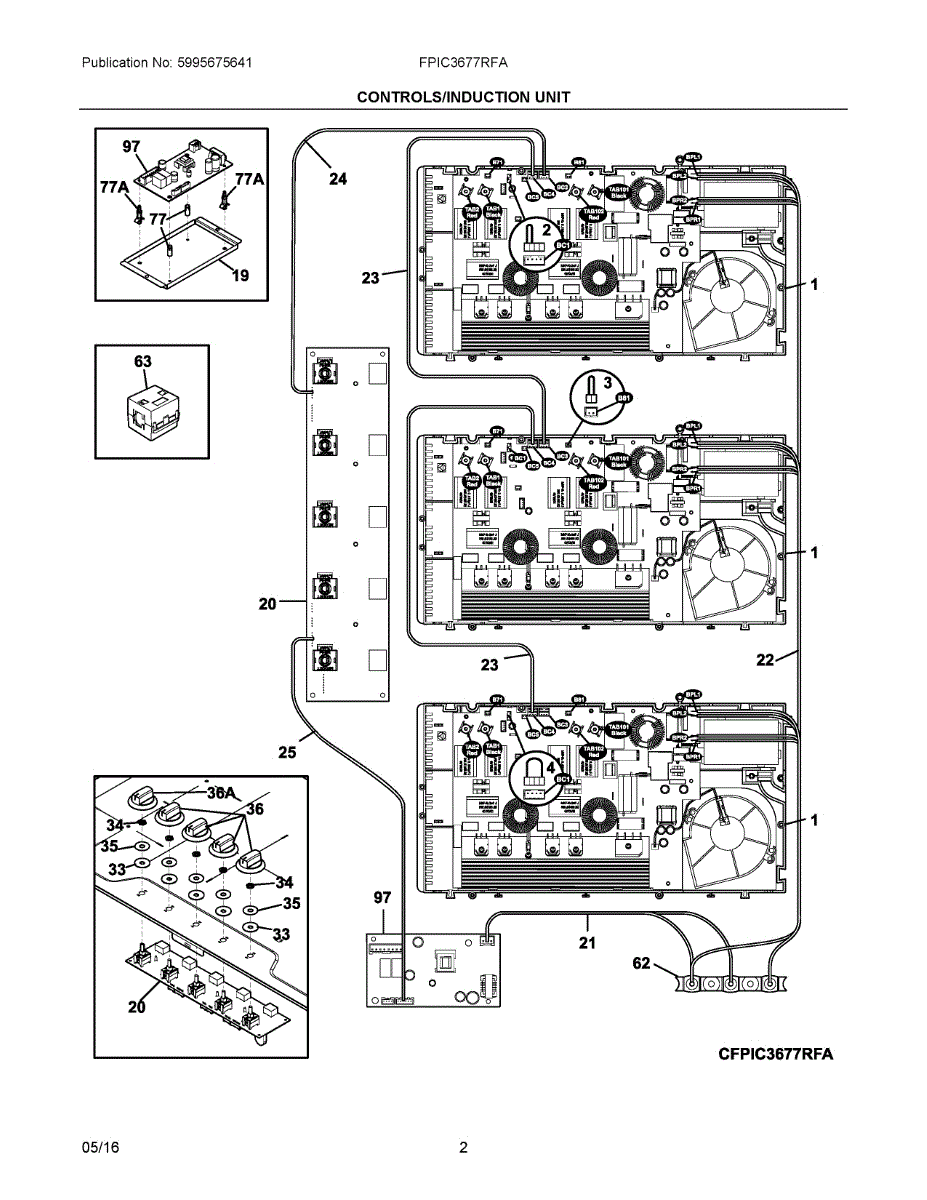

Parts for Frigidaire FPIC3677RFA: 02 - Controls / Induction Unit Parts

This electronic board assembly controls core appliance functions and replaces a failed control module to restore normal operation. It manages signals between sensors, displays, and actuators so the appliance can run as intended. What it does:

• Receives inputs from user controls and sensors and sends commands to motors, valves, and lights
• Replaces a malfunctioning or non-responsive control module that causes erratic operation or loss of features
• Helps stop intermittent cycling, unresponsive controls, or failure to start when board faults are the cause
• Works as the central logic component coordinating timing and mode selection

• Disconnect power before servicing to avoid shock or damage
• Handle the board by its edges and avoid contact with electronic components
• Verify connector alignment and secure all wiring; double-check connections before restoring power

This control mounting hex nut secures the burner or oven control to the control panel, keeping the shaft stable so the knob turns smoothly and the switch stays properly aligned.

• Threads onto the control/infinite switch or thermostat bushing to fasten it to the panel
• Prevents the control from rotating or shifting when the knob is turned
• Replace if the original nut is missing, stripped, rounded, or corroded
• Common signs: loose or wobbly knob, switch spins in the panel, or misaligned knob indexing

• Disconnect power; for gas appliances, also shut off gas before servicing
• Pull off the knob and any trim; support the control body from behind the panel while removing/installing the nut
• Start the new nut by hand to avoid cross-threading; tighten snugly with the correct-size wrench—do not overtighten
• The control sits square in the panel and the knob operates smoothly before restoring power

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
